Plastic Perrin Plate And Frame Filter - IPP# 228111

  • Plastic Perrin Plate And Frame Filter - IPP# 228111 Plastic Perrin Plate And Frame Filter - IPP# 228111
  • Plastic Perrin Plate And Frame Filter - IPP# 228111 Plastic Perrin Plate And Frame Filter - IPP# 228111
  • Plastic Perrin Plate And Frame Filter - IPP# 228111 Plastic Perrin Plate And Frame Filter - IPP# 228111
  • Plastic Perrin Plate And Frame Filter - IPP# 228111 Plastic Perrin Plate And Frame Filter - IPP# 228111
  • Plastic Perrin Plate And Frame Filter - IPP# 228111 Plastic Perrin Plate And Frame Filter - IPP# 228111
  • Plastic Perrin Plate And Frame Filter - IPP# 228111 Plastic Perrin Plate And Frame Filter - IPP# 228111
  • Plastic Perrin Plate And Frame Filter - IPP# 228111
  • Plastic Perrin Plate And Frame Filter - IPP# 228111
  • Plastic Perrin Plate And Frame Filter - IPP# 228111
  • Plastic Perrin Plate And Frame Filter - IPP# 228111
  • Plastic Perrin Plate And Frame Filter - IPP# 228111
  • Plastic Perrin Plate And Frame Filter - IPP# 228111
Overview
Filter
Press
Perrin
Used
Plastic
Capacity
290.2 m² (3,124 ft²)
Other Specifications
15.5 bar (225 psi)
5.6 m3 (196.8 ft3)
Center feed
Yes
Plates
1,200 mm (47.2 in)
1,200 mm (47.2 in)
Yes

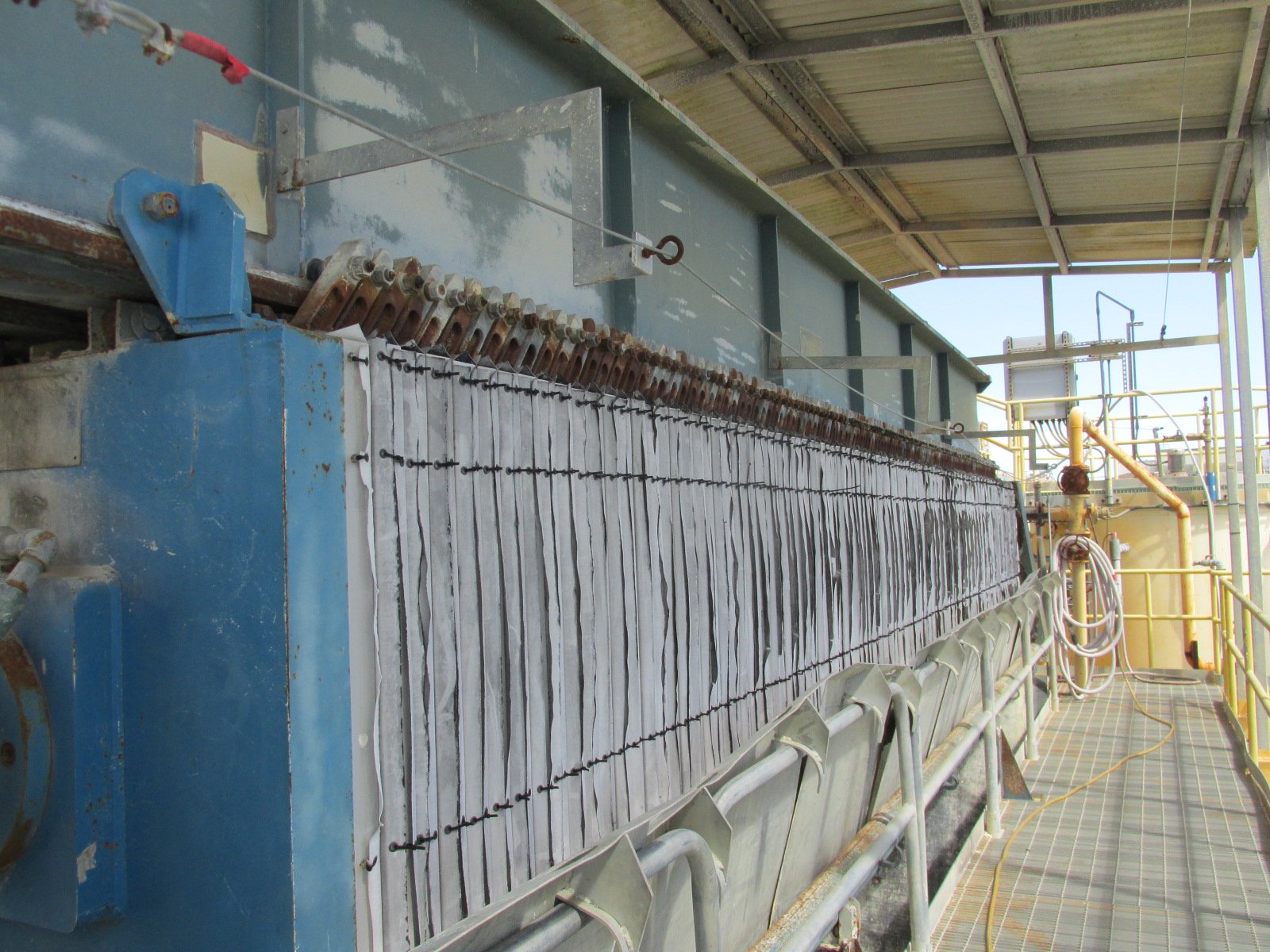

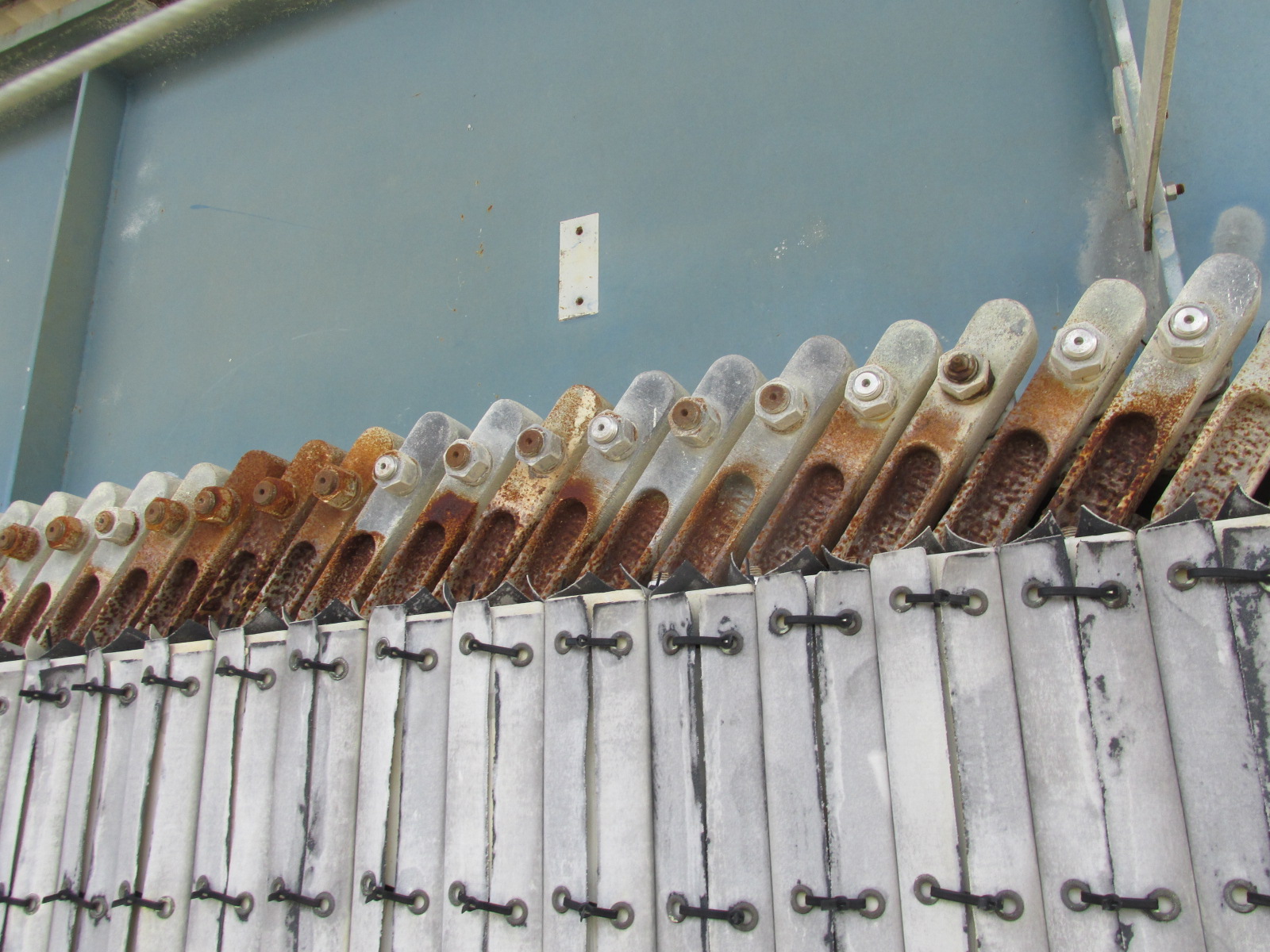

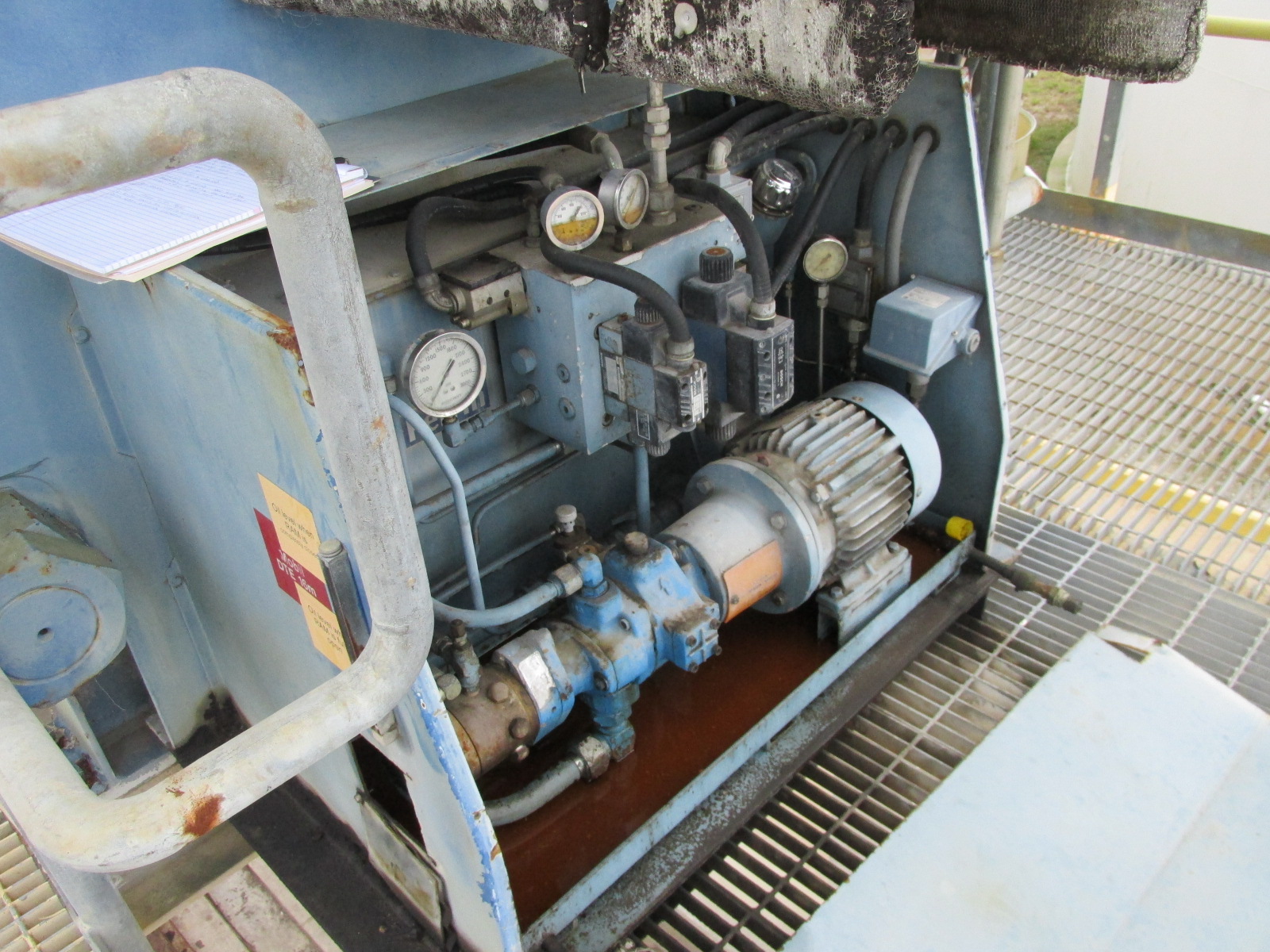

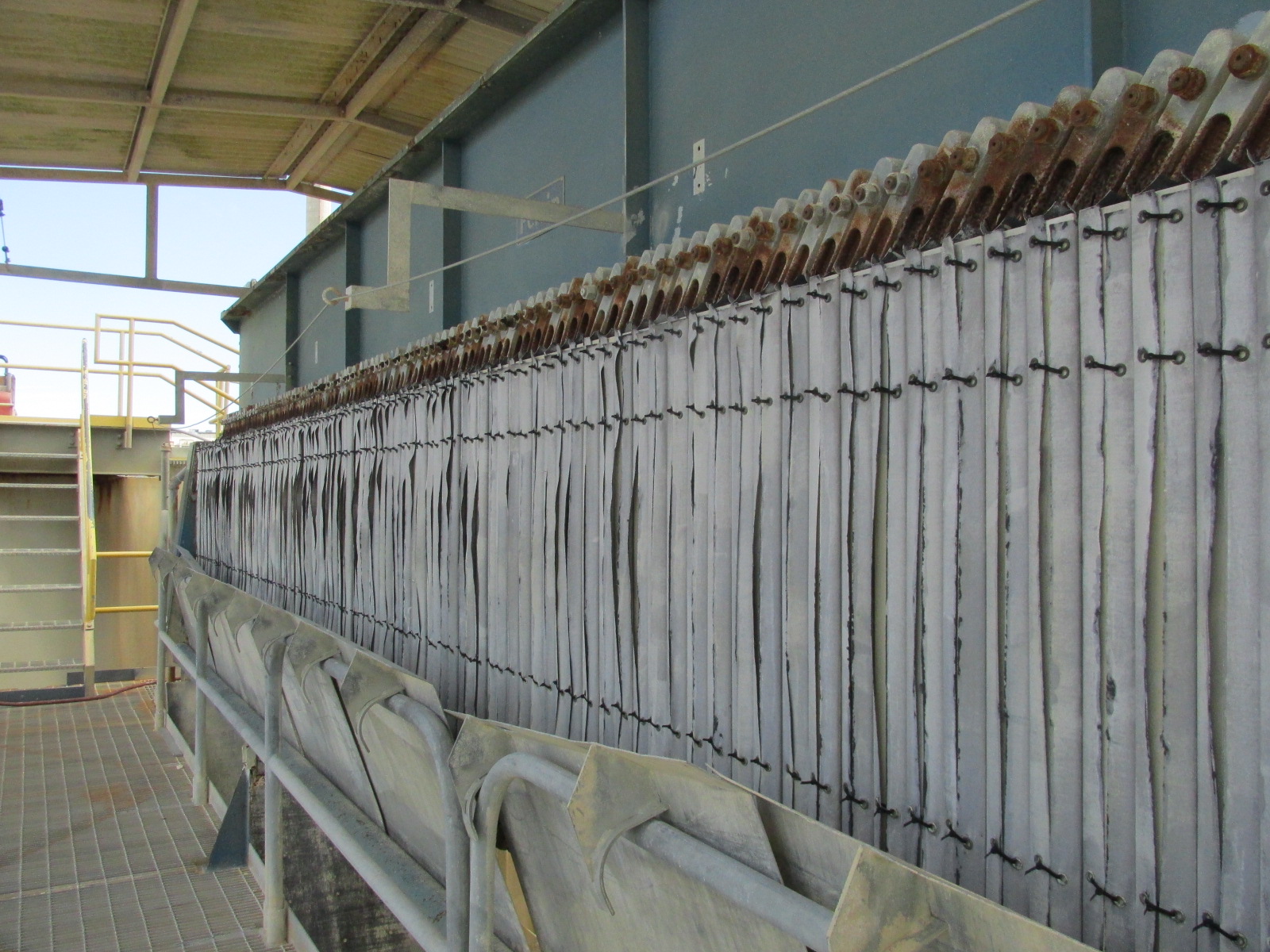

123 chambers. Plates are made from non-reinforced, molded, pressure-resistant polypropylene. Cake thickness is 32 mm. Filter frame is heavy duty construction from A-36 steel with Stainless steel covered side rails assembly to support the filter plate stack. Closing device is hydraulic and automatic. The press is furnished with recessed chamber plates in center feed design with closed filtrate discharge and filtrate discharging through four corner ports.

Similar Equipment

33 m² (355.2 ft²) Plastic Press Filter

Plastic Press Filter

Type: Filter

Subtype: Press

Manufacturer: Perrin

Model: 800—P25-50-37-17MNLS

Condition: Used

Material: Plastic

Filtration Area: 33 m² (355.2 ft²)

Cake Volume: 0.46 m3 (16.3 ft3)

Polypropylene plates and frames and all Stainless Steel skeleton. approximately38 chambers. 4 eye closed delivery, 1" inlet and outlets. Manual closure with Hydraulic Assist manufactured by SPX.

Number of Plates: 80. Plate MOC: Plastic. Plate Diameter or Width: 800 mm (31.5 in). Plate Height: 800 mm (31.5 in).

37 m² (398.3 ft²) Plastic Press Filter

Plastic Press Filter

Type: Filter

Subtype: Press

Manufacturer: Perrin

Model: 100-M-30-37-PF1.0

Condition: Used

Material: Plastic

Filtration Area: 37 m² (398.3 ft²)

Cake Volume: 462 m3 (16,315 ft3)

filter press with Polypropylene plates and frames and all Stainless Steel skeleton. 95 plates with 44 chambers 4 eye closed delivery, 1" inlet and outlet. Manual closure with Hydraulic Assist manufactured by SPX.

Number of Plates: 90. Plate MOC: Plastic. Plate Diameter or Width: 800 mm (31.5 in). Plate Height: 800 mm (31.5 in).

37 m² (398.3 ft²) Plastic Press Filter

Plastic Press Filter

Type: Filter

Subtype: Press

Manufacturer: Perrin

Model: 100-M-30-37-PF1.0

Condition: Used

Material: Plastic

Filtration Area: 37 m² (398.3 ft²)

Cake Volume: 0.46 m3 (16.3 ft3)

Polypropylene plates and frames and all Stainless Steel skeleton. 44 chambers. 4 eye closed delivery, 1" inlet and outlet. Manual closure with Hydraulic Assist manufactured by SPX.

Number of Plates: 90. Plate MOC: Plastic. Plate Diameter or Width: 800 mm (31.5 in). Plate Height: 800 mm (31.5 in).

3.2 m² (34.8 ft²) Plastic Press Filter

Plastic Press Filter

Type: Filter

Subtype: Press

Manufacturer: Bethlehem Corp

Condition: Used

Material: Plastic

Filtration Area: 3.2 m² (34.8 ft²)

Cake Volume: 0.03 m3 (1.2 ft3)

Unit has 10 chambers recessed plates with 1/2" recess for forming 1" thick cake. 4 corner closed discharge, Unit has an air over oil compensating pump.

Plate MOC: Plastic. Plate Diameter or Width: 457.2 mm (18 in). Plate Height: 457.2 mm (18 in). Plate Thickness: 12.7 mm (0.5 in). Plates Recessed: Yes.
