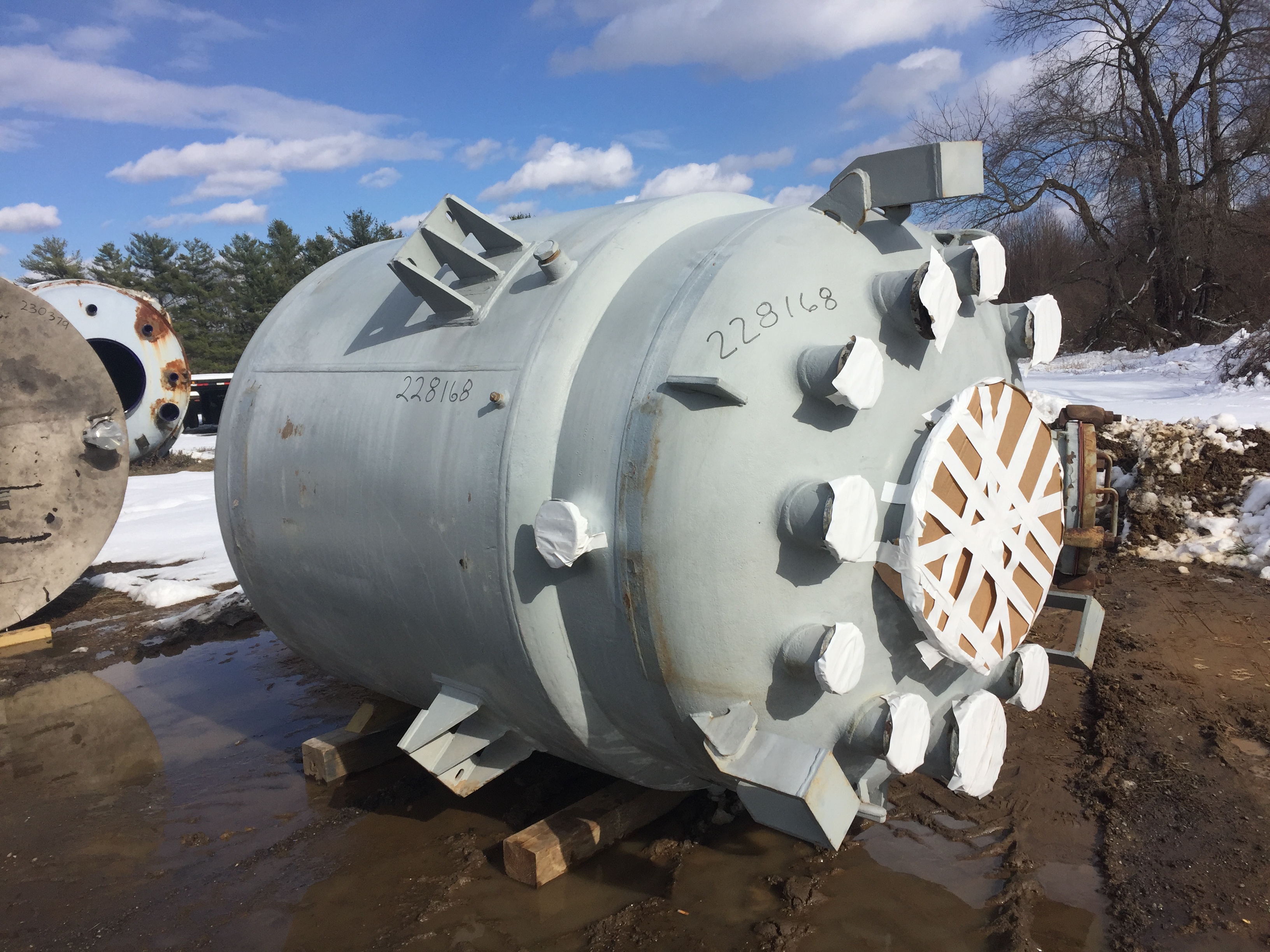

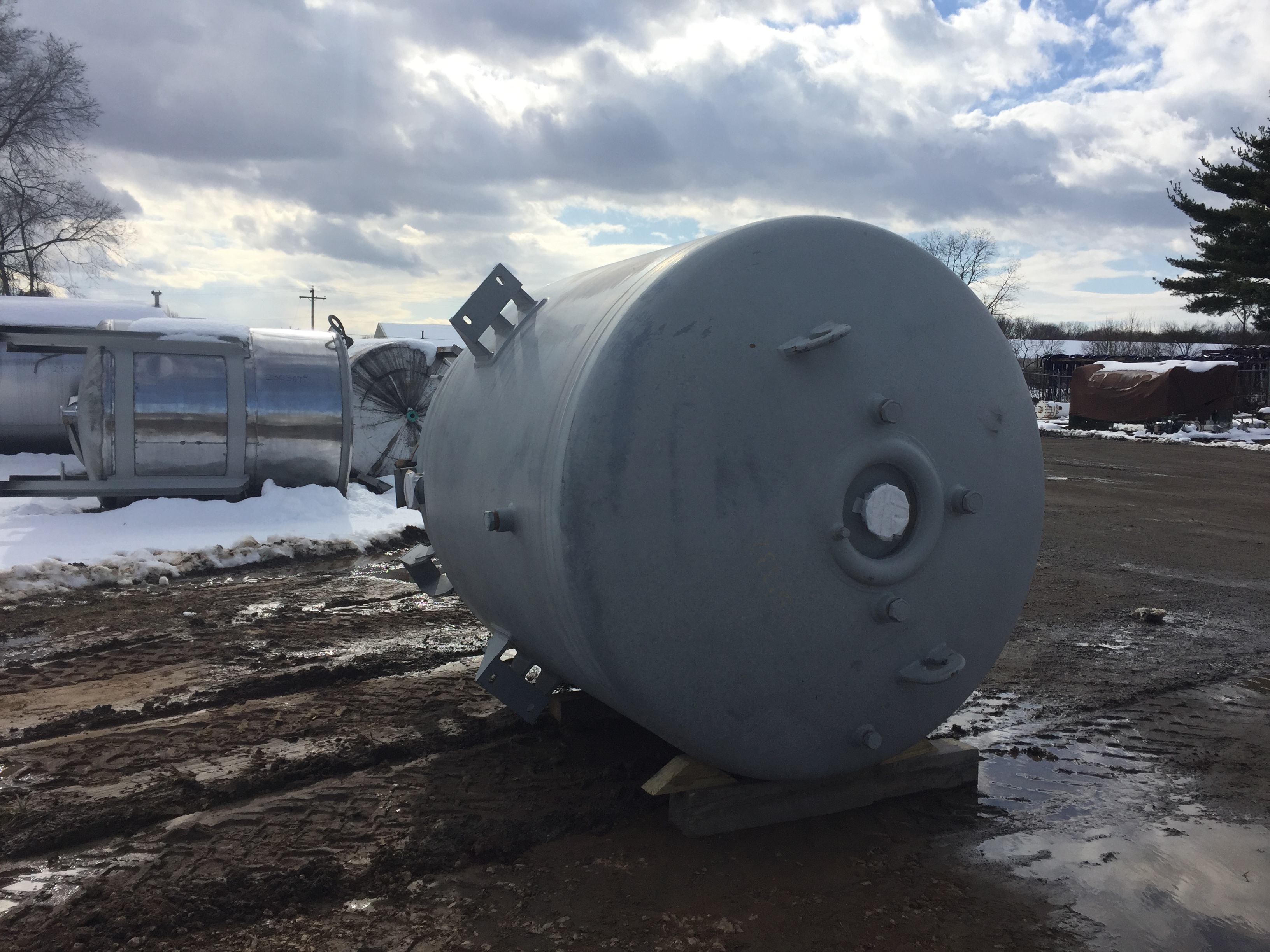

Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 228168

  • Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 228168 Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 228168
  • Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 228168 Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 228168
  • Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 228168 Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 228168
  • Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 228168 Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 228168
  • Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 228168
  • Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 228168
  • Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 228168
  • Glasslined DeDietrich Batch-Type Agitated Reactor - IPP# 228168
Overview
Reactor
Batch Type Body Only
DeDietrich
Used
Glasslined
3,800 L (1,000 gallons)
Pressure Vessel
3.4 bar (50 psi)
Yes
204.4 °C (400 °F)
Jacket/Internal Coil
4.5 bar (65 psi)
204.4 °C (400 °F)
Carbon Steel
Dimensions
Vertical
1,700 mm (66 in)
1,600 mm (63.8 in)
Heads
Dish
Dish
Inlets & Outlets

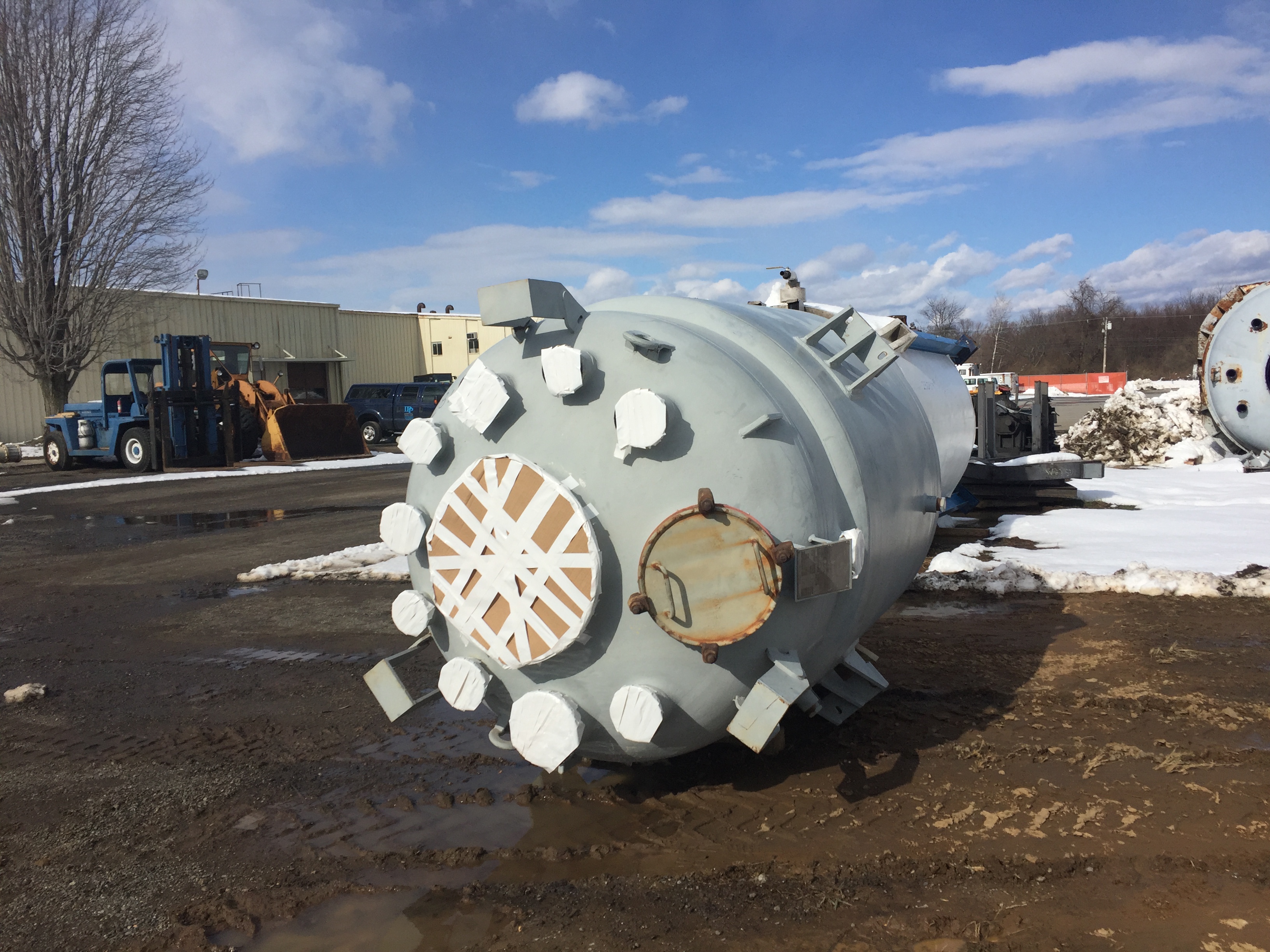

- Opening: One opening for a 24" cover - Inlet nozzles: One 8", five 5", and five 4"
Other Specifications
Lugs
Additional Information

custom S66 reactor body with additional nozzles or 50 psig with internal vacuum Head thickness: 3/4" minimum with a 2:1 elliptical ratio 2:1 elliptical ratio Outlet is one 4". Vessel has 2 lifting lugs and 2 guiding lugs.
