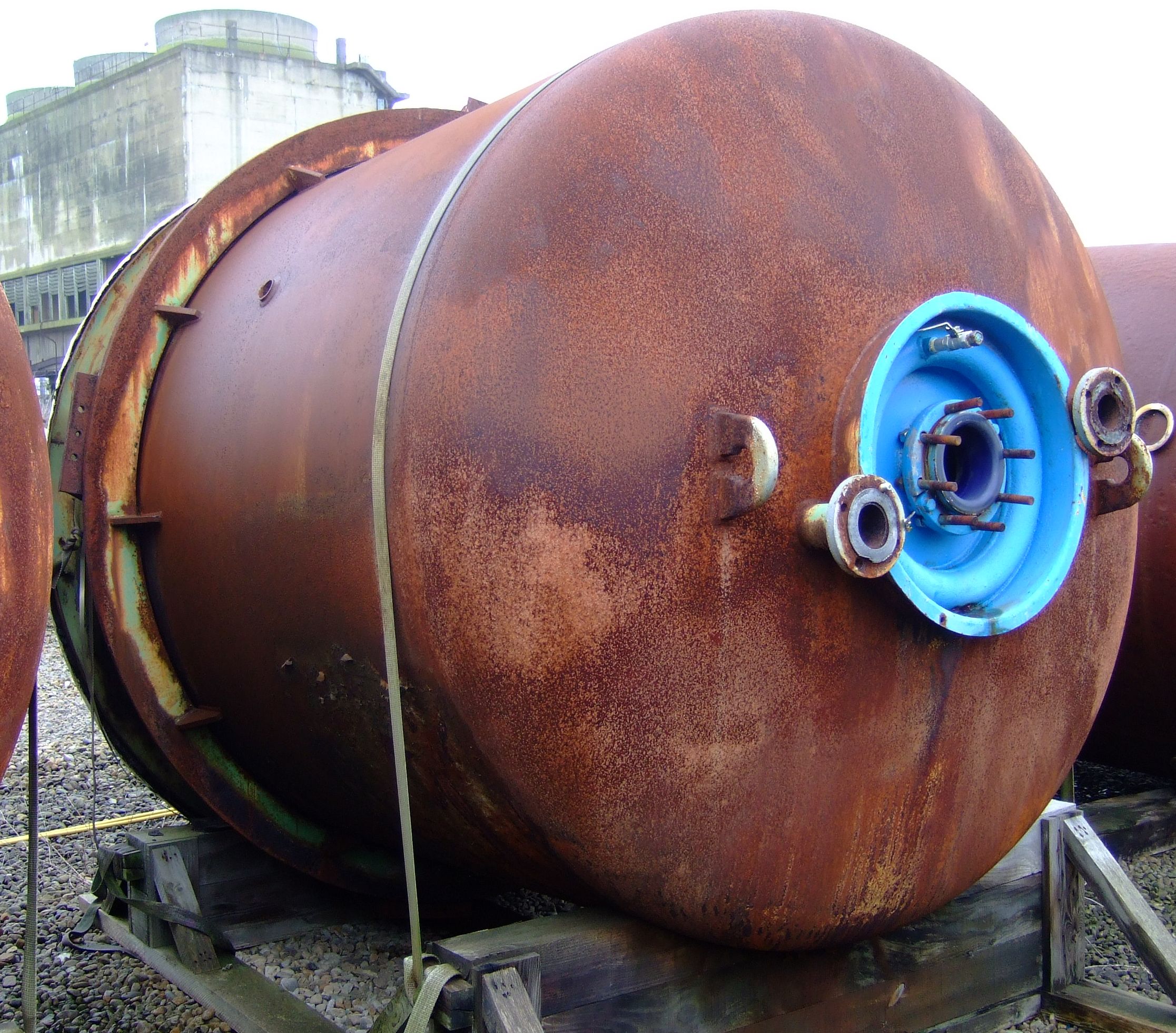

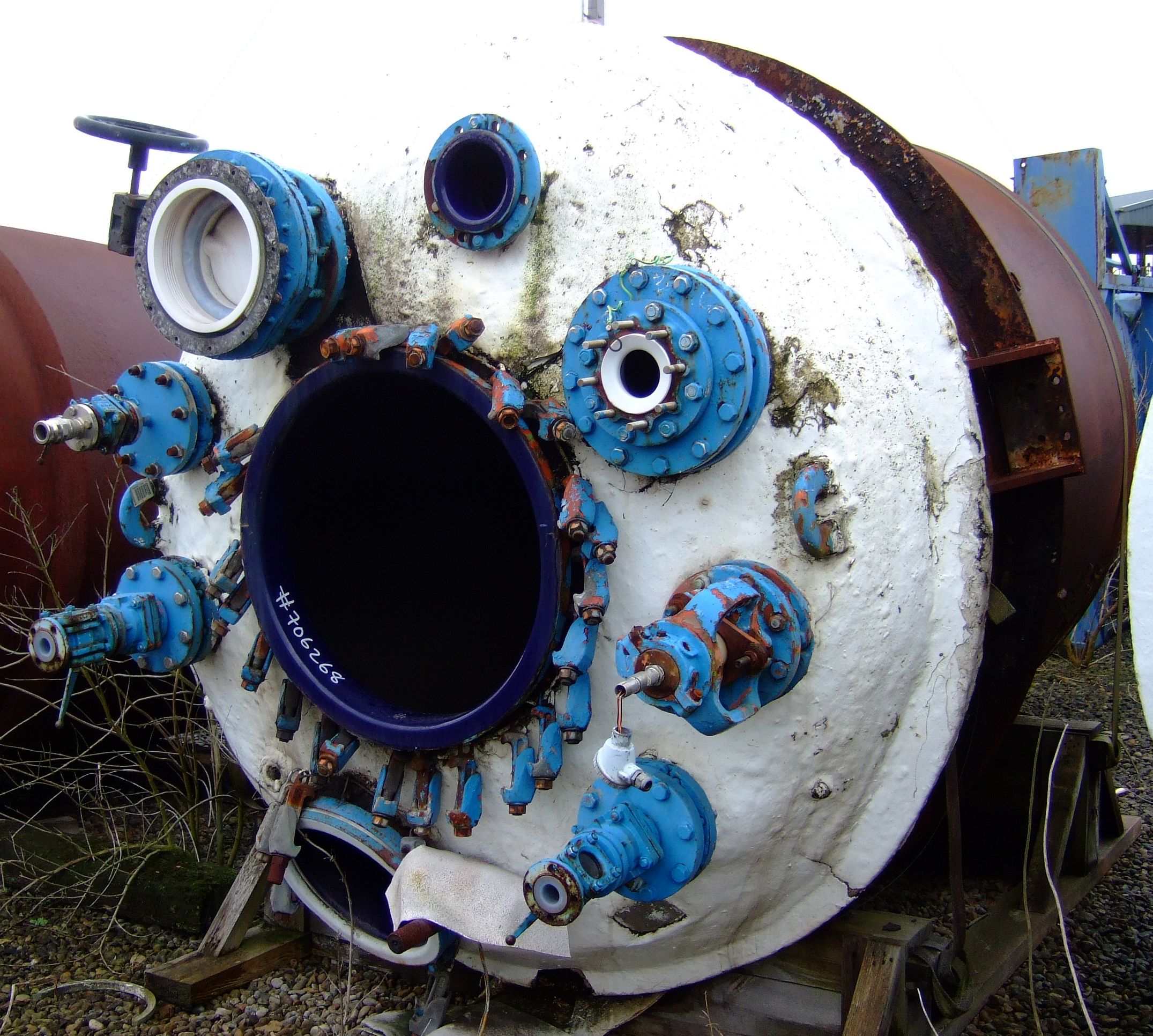

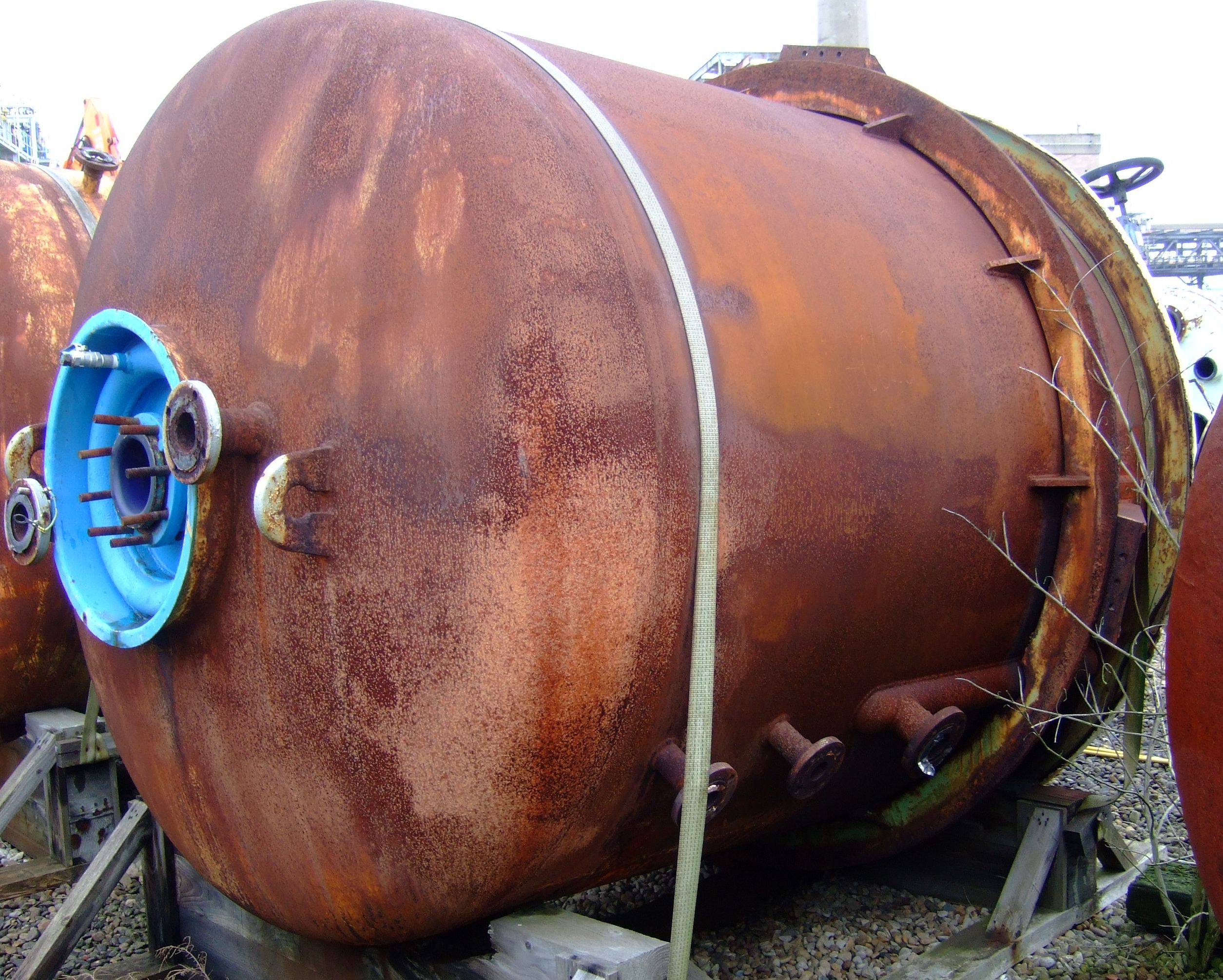

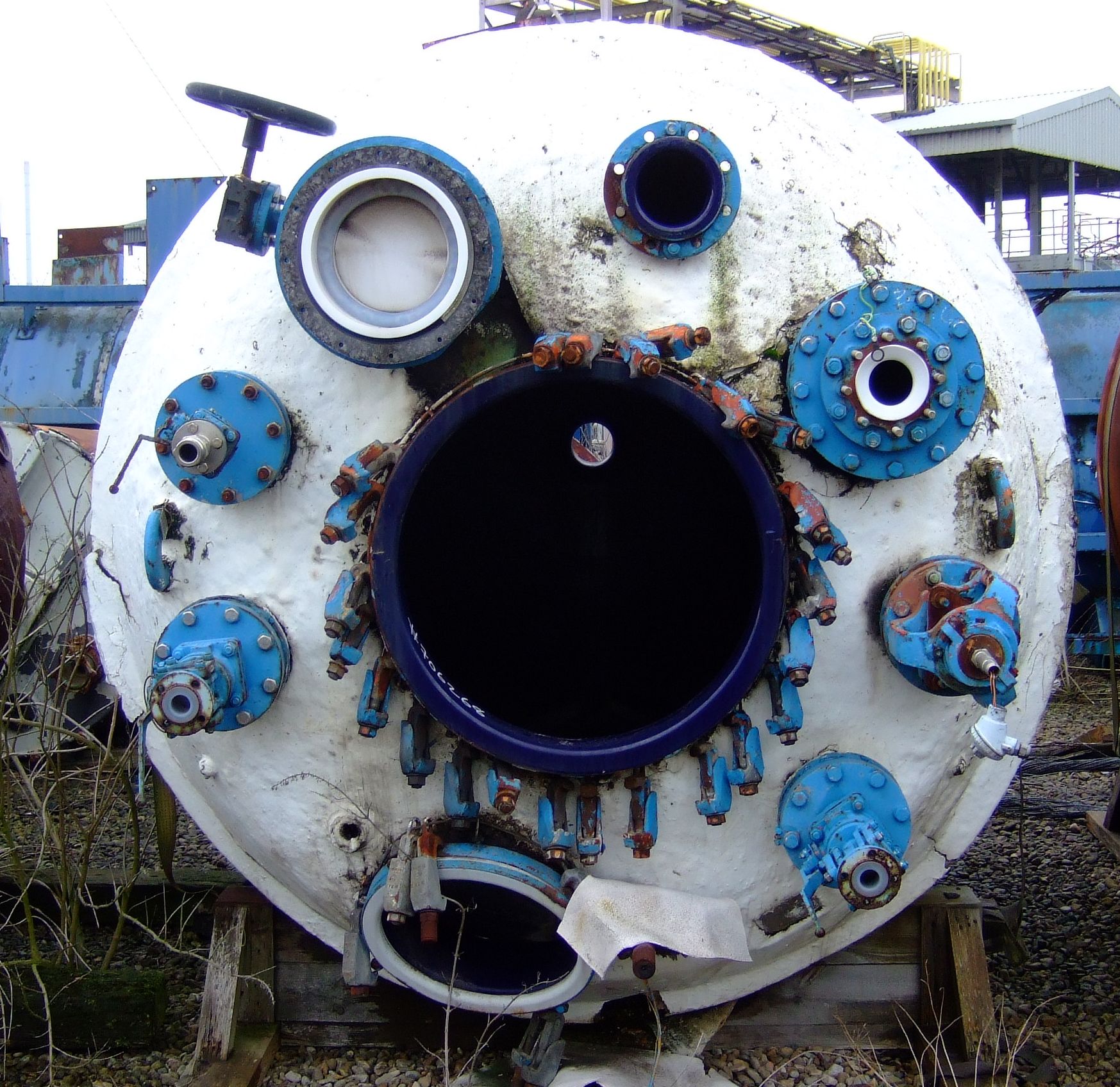

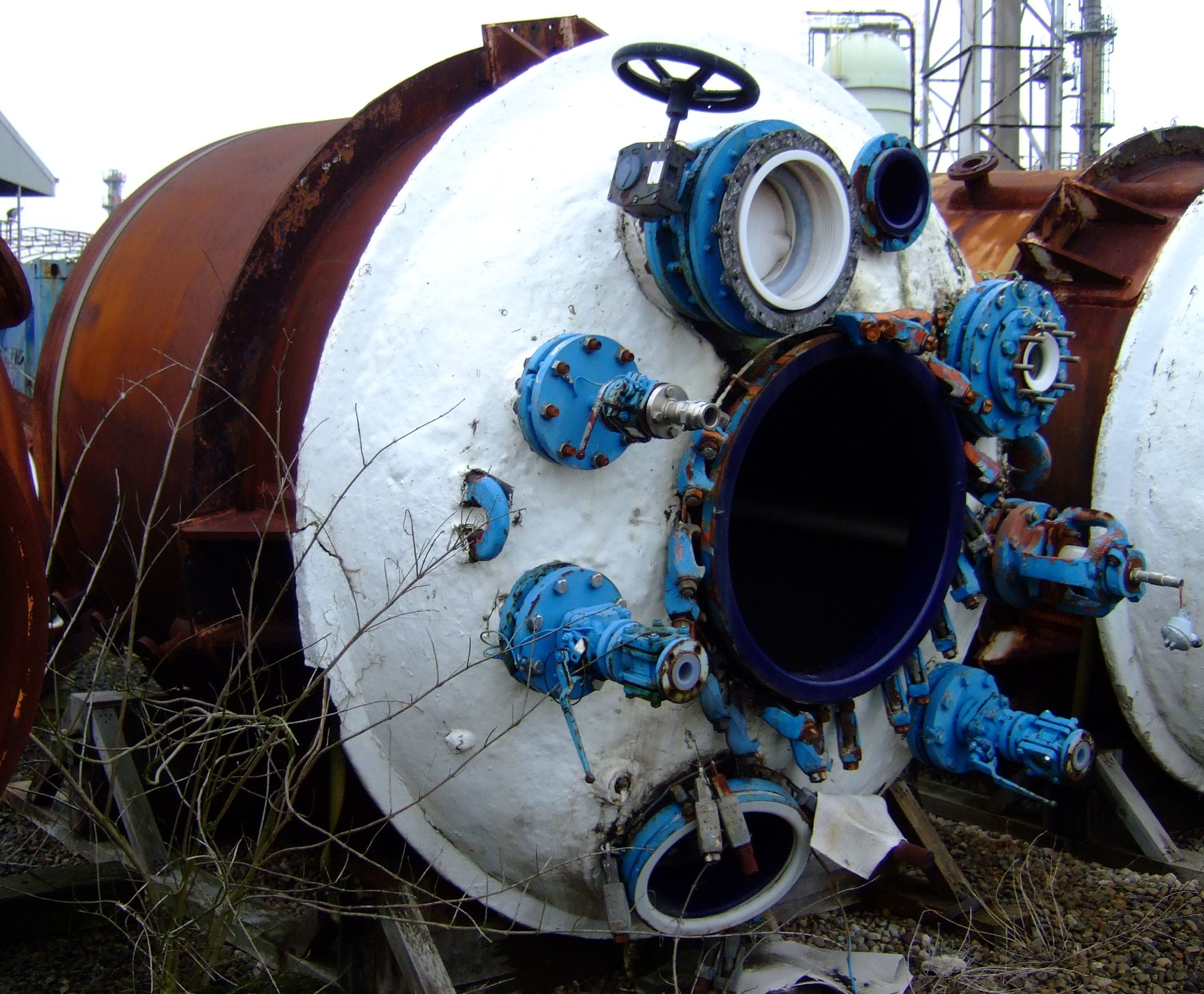

Glasslined DeDietrich CE Batch Type Body Only Reactor - IPP# 706268

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: DeDietrich

Model: CE

Condition: Used

Material: Glasslined

Capacity (Design): 6,300 L (1,650 gallons)

Internal Pressure: 6 bar (87 psi)

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Body Only: Yes. Orientation: Vertical. Diameter: 2,000 mm (78.7 in). Straight Side Length: 2,000 mm (78.7 in). Support Type: Ring.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: DeDietrich

Model: CE

Condition: Used

Material: Glasslined

Capacity (Design): 3,250 L (855 gallons)

Internal Pressure: 6 bar (87 psi)

• 2500 liter internal pressure -1/6 bar @ -10/200 degrees C.
• (3235 liter) ,jacket -1/6 abr @ -10/200 degrees C. (352 liter)

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight Side Length: 2,050 mm (81.1 in). Support Type: Legs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: DeDietrich

Condition: Unused

Material: Glasslined

Clad: Yes

Capacity (Design): 100 L (26.4 gallons)

Internal Pressure: 6 bar (87 psi)

• Glass type 3009LB
• Light blue glass -design pressure internal -1/6 bar @ -25/150 degrees C (100 liter) jacket -1/6 bar @ -25/150 degrees C (36 liter)
• Open topped
• CE marked
• Stainless steel cladding/insulation on the straight side

Internal Full Vacuum: Yes. Internal Temperature: 150 °C (302 °F). Jacket Pressure: 16 bar (232.1 psi). Jacket Temperature: 150 °C (302 °F). Body Only: Yes. Orientation: Vertical. Diameter: 470 mm (18.5 in). Straight Side Length: 430 mm (16.9 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: DeDietrich

Model: SA

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 2,850 L (750 gallons)

Internal Pressure: 6.9 bar (100 psi)

Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 260 °C (500 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,700 mm (66 in). Straight Side Length: 1,300 mm (52 in). Support Type: Legs.
