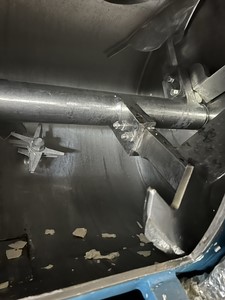

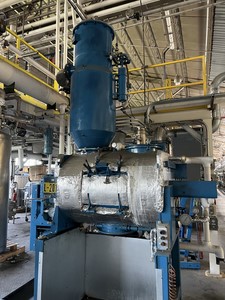

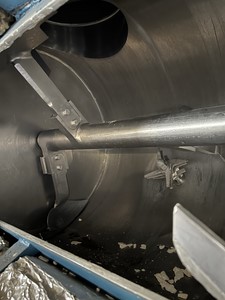

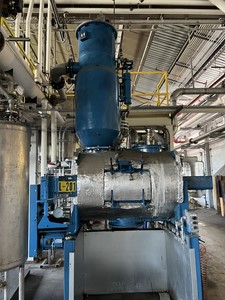

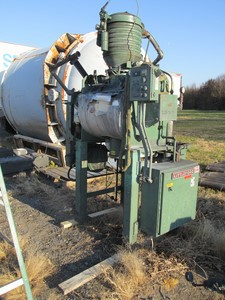

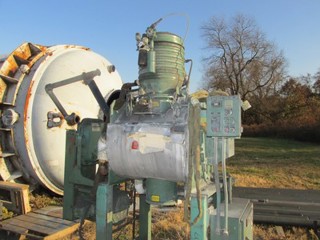

Designed for batch operation. Designed for vacuum operation to -25 "hg. Internal finish polished to a 120 grit finish. Main shaft drive 10 Hp with gear reducer for output rpm of 65. Center bottom discharge 15.5" ID. No dust collector with unit.
Type: Dryer-Rotary Vacuum
Manufacturer: Littleford Bros, Inc
Model: FKM-600-D
Condition: Used
Material: Stainless Steel 304
Capacity Design: 0.62 m3 (22 ft3)
Capacity Working: 0.37 m3 (13 ft3)
product contact Designed for batch operation. Designed for vacuum operation to -25 "hg. Internal finish polished to a 120 grit finish. Center bottom discharge 15.5" ID.

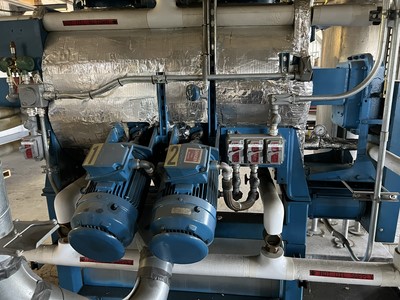

Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Operational Mode: Batch. Agitation Seal Type: Packing. Number of Choppers: 2. Jacket Pressure: 5.2 bar (75 psi). Jacket Temperature: 160 °C (320 °F).
Type: Dryer-Rotary Vacuum
Model: 1.2-4-DBK
Condition: Unused
Material: Stainless Steel 304
Capacity Design: 4 m3 (141 ft3)
Capacity Working: 1.98 m3 (70 ft3)
304SS shell with CS jacket Openings: top 1-14", 1-12", 1-24" w/28" dia x 36" str side air receiver Center btm discharge 1-12" Rotor speed 6 rpm
Diameter: 1,219 mm (48 in). Length: 3,962 mm (156 in). Pressure: 2 bar (29 psi). Shaft Cored and National Board Stamped: Yes. Agitation: Yes. Agitation Seal Type: Packing. Jacket Material: Carbon Steel. Jacket Pressure: 8.1 bar (118 psi).
Type: Dryer-Rotary Vacuum
Manufacturer: Stokes
Condition: Used
Material: Stainless Steel 304
Capacity Design: 9.4 m3 (333 ft3)
Capacity Working: 7.1 m3 (250 ft3)
NS# P-76551-1 Rated FV internal @ 300 degrees F Shell is 5' ID X 20' long
Diameter: 1,524 mm (60 in). Length: 6,096 mm (240 in). Height: 2,134 mm (84 in). Temperature: 148.9 °C (300 °F). Orientation: Horizontal. Agitation: Yes. Jacket Material: Carbon Steel. Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 148.9 °C (300 °F).
Type: Dryer-Rotary Vacuum
Manufacturer: Blaw Knox
Condition: Used
Material: Stainless Steel 304
Capacity Design: 3.5 m3 (125 ft3)
Capacity Working: 2.3 m3 (82 ft3)
4' diameter x 10' long chamber. as 24" cored shaft with paddles and removable scrapers. No drive available. Unit has chain guards for drive. Top openings one 12", one 10 ". Jacket openings are 2" NPT. 12" bottom discharge.
Diameter: 1,219 mm (48 in). Length: 3,048 mm (120 in). Height: 2,134 mm (84 in). Agitation Seal Type: Packing. Jacket Material: Carbon Steel.
