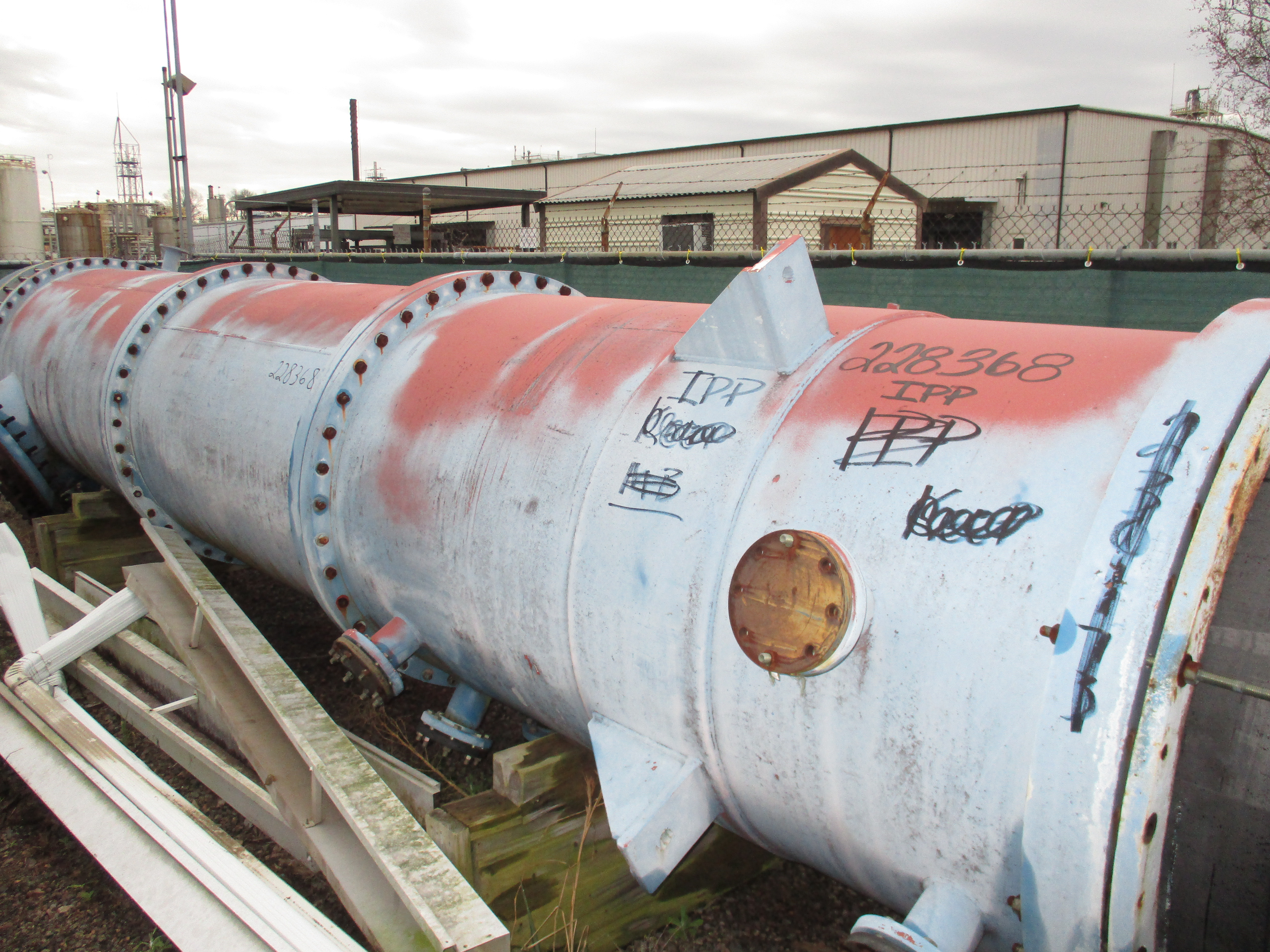

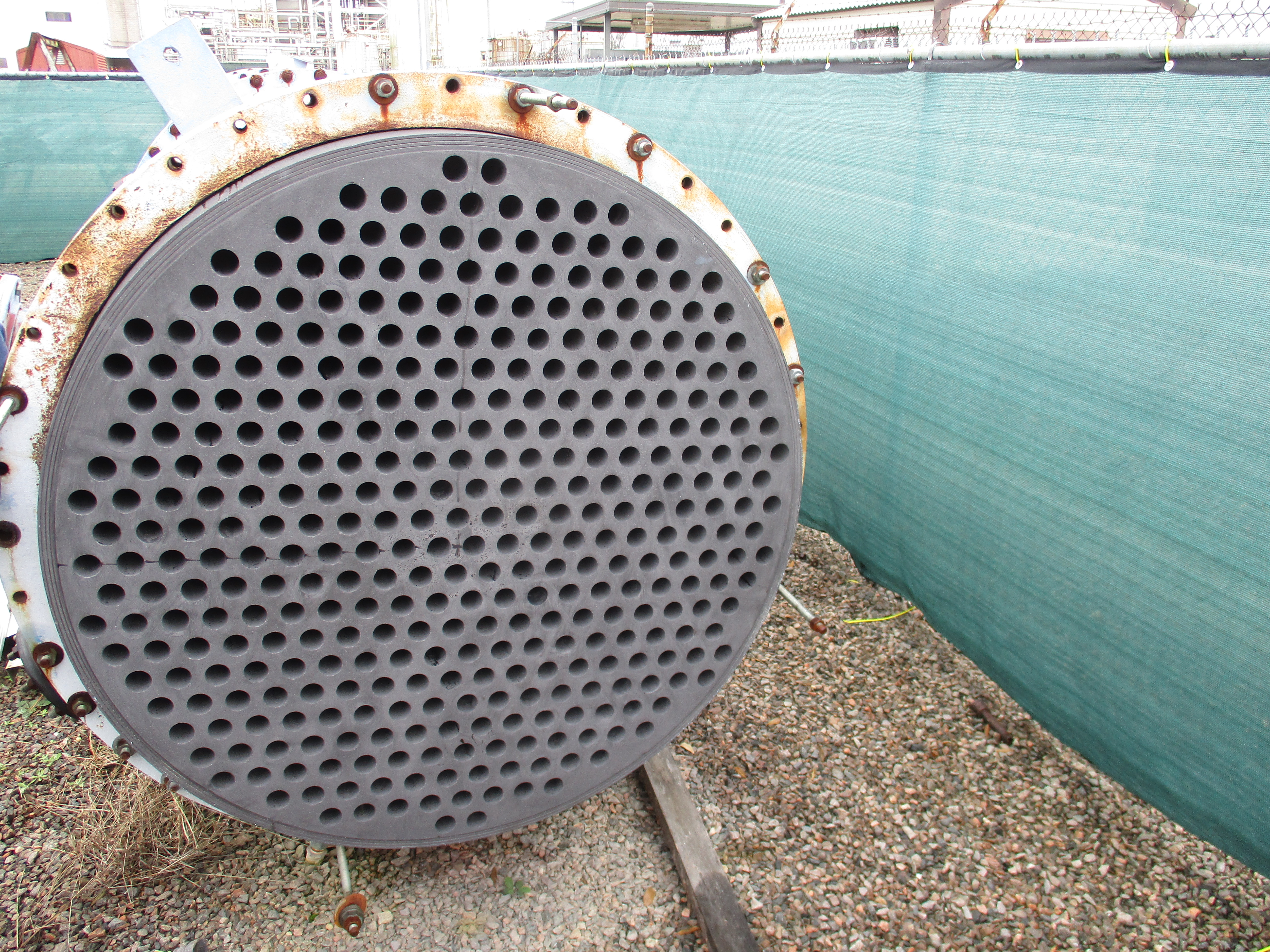

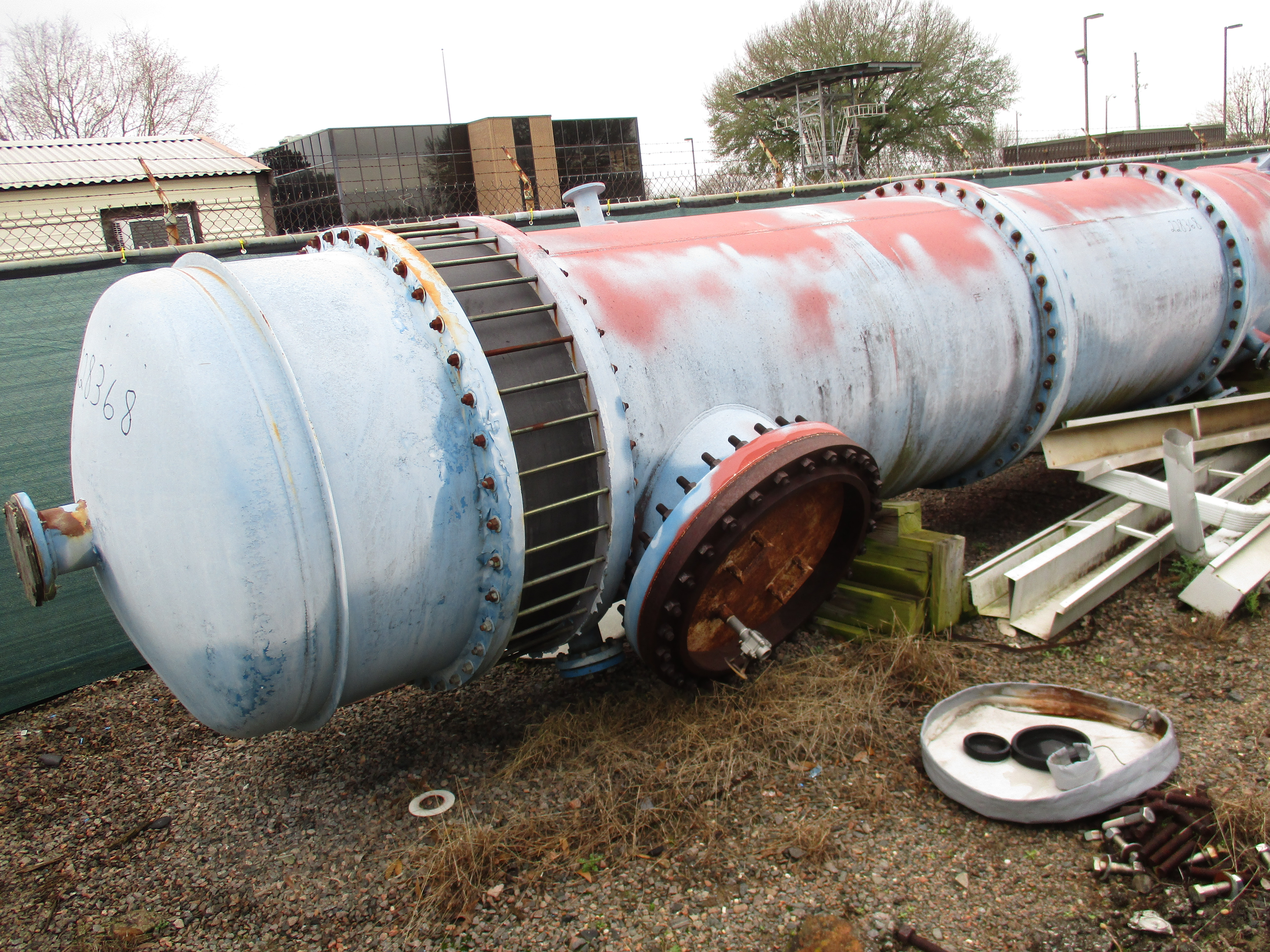

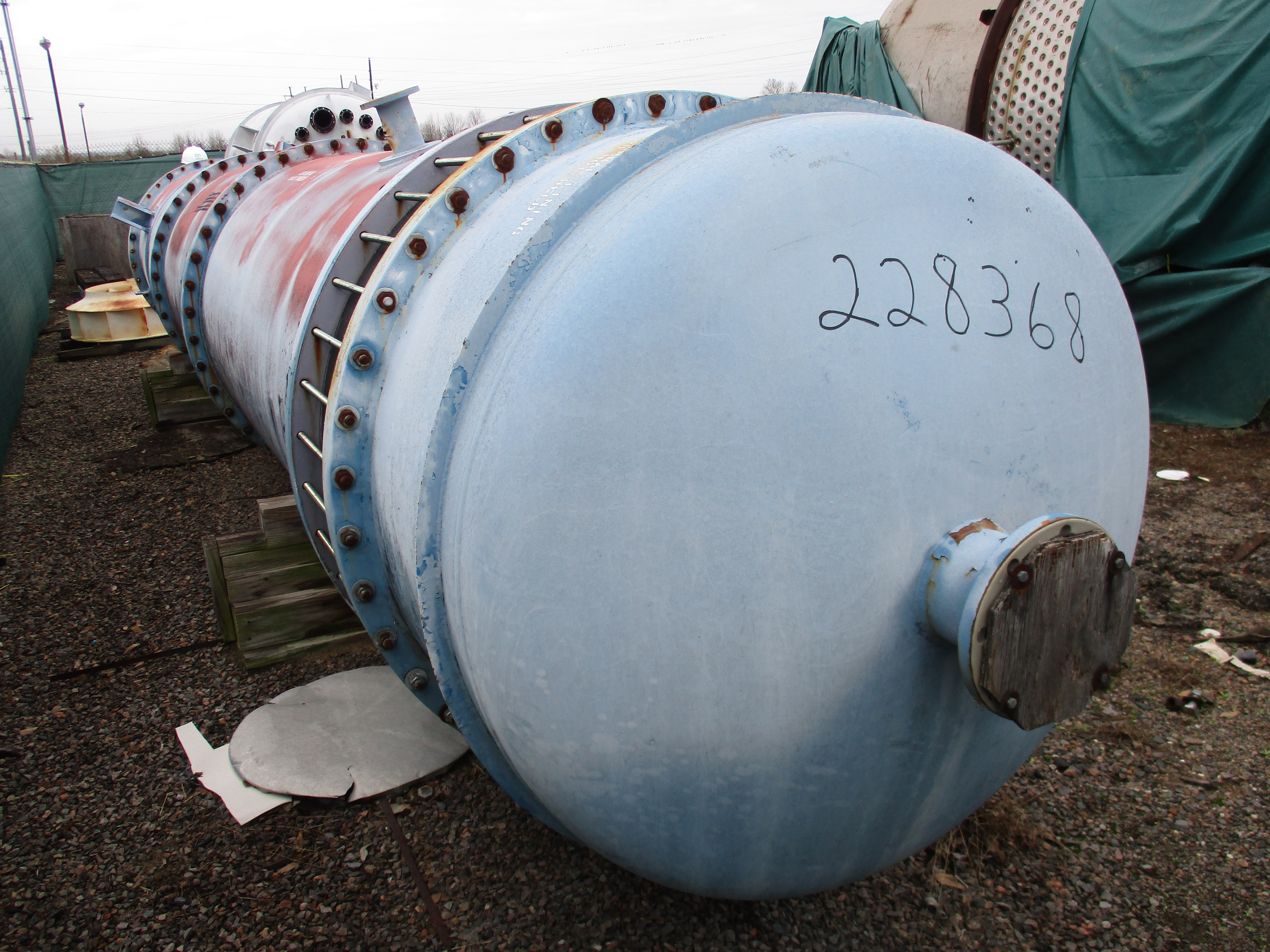

Unused Graphilor Shell and Tube Heat Exchanger - IPP# 228368

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Carbone of America Corp

Model: K 110/35

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 9.3 m² (100 ft²)

Shell Pressure: 5.2 bar (75 psi)

• Carbone Number: CO51974
• Dimensions: 22 3/8" x 22 3/4" x 23 3/4"
• Process Side Inlet: 6" 150 #
• Process Side Outlet: 4" 150 #
• Service Side Inlet: 2" 150 #
• Service Side Outlet: 2" 150 #

Shell Temperature: 182.2 °C (360 °F). Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 182.2 °C (360 °F). Shell-side Passes: 8. Tube-side Passes: 1.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: VICARB

Model: HP2/20

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 21 m² (226 ft²)

Orientation: Vertical

design pressure process side 7 bar @ 50/61 degrees C, service 3.6 bar @ 23/34 degrees C, exchanger made up of 8- blocks of HP2/20 elements

Shell Pressure: 2.5 bar (36.3 psi). Shell Temperature: 34 °C (93.2 °F). Shell Material: Carbon Steel. Tube Pressure: 6 bar (87 psi). Tube Temperature: 61 °C (141.8 °F). Tube Material: Graphite. Shell-side Passes: 2. Tube-side Passes: 3. Nozzle Schedule: openings: process 2-100mm, 2-25mm, service 2-100mm,.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Ralph Coidan LTD.

Model: 85-04.5A

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 11.6 m² (125.1 ft²)

Orientation: Horizontal

inclined Hykarb tube in shell graphite heat exchangerJob number: 3420B Design pressure shell side: 5.2 bar @ 90 degrees C Design pressure tubeside: 3.5 bar @ 170 degrees C Tube dimensions: (85) 32mm O/D x 22mm I/D X 1391mm longNumber of internal baffle plates: 10

Shell Pressure: 3.5 bar (50.8 psi). Shell Temperature: 90 °C (194 °F). Tube Pressure: 1.01 bar (14.7 psi). Tube Temperature: 170 °C (338 °F). Shell Diameter: 438 mm (17.2 in). Length: 2,500 mm (98.4 in). Tube Number: 85. Tube Diameter: 32 mm (1.26 in). Tube Length: 1,400 mm (54.8 in). Tube Thickness: 10 mm (0.39 in). Nozzle Schedule: openings tubeside: 1-200mm, 1-150mm, 1- 100mm, 1-80mm, shell: 2-80mm,.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Ralph Coidan LTD.

Model: 85-04.5A

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 11.6 m² (125.1 ft²)

Orientation: Inclined

inclined Hykarb tube in shell graphite heat exchanger Job number: 3420A Design pressure (shell side): 5.2 bar @ 90 degrees C Design pressure (tubeside): 3.5 bar @ 170 degrees C Tube dimensions: (85) 32mm O/D x 22mm I/D X 1391mm long Number of internal baffle plates: 10

Shell Pressure: 3.5 bar (50.8 psi). Shell Temperature: 90 °C (194 °F). Tube Pressure: 1.01 bar (14.7 psi). Tube Temperature: 170 °C (338 °F). Tube Material: Graphite. Shell Diameter: 438 mm (17.2 in). Length: 2,500 mm (98.4 in). Tube Number: 85. Tube Diameter: 32 mm (1.26 in). Tube Length: 1,400 mm (54.8 in). Tube Thickness: 10 mm (0.39 in). Nozzle Schedule: openings tubeside: 1-200mm, 1-150mm, 1-100mm, 1-80mm, shell: 2-80mm,.
