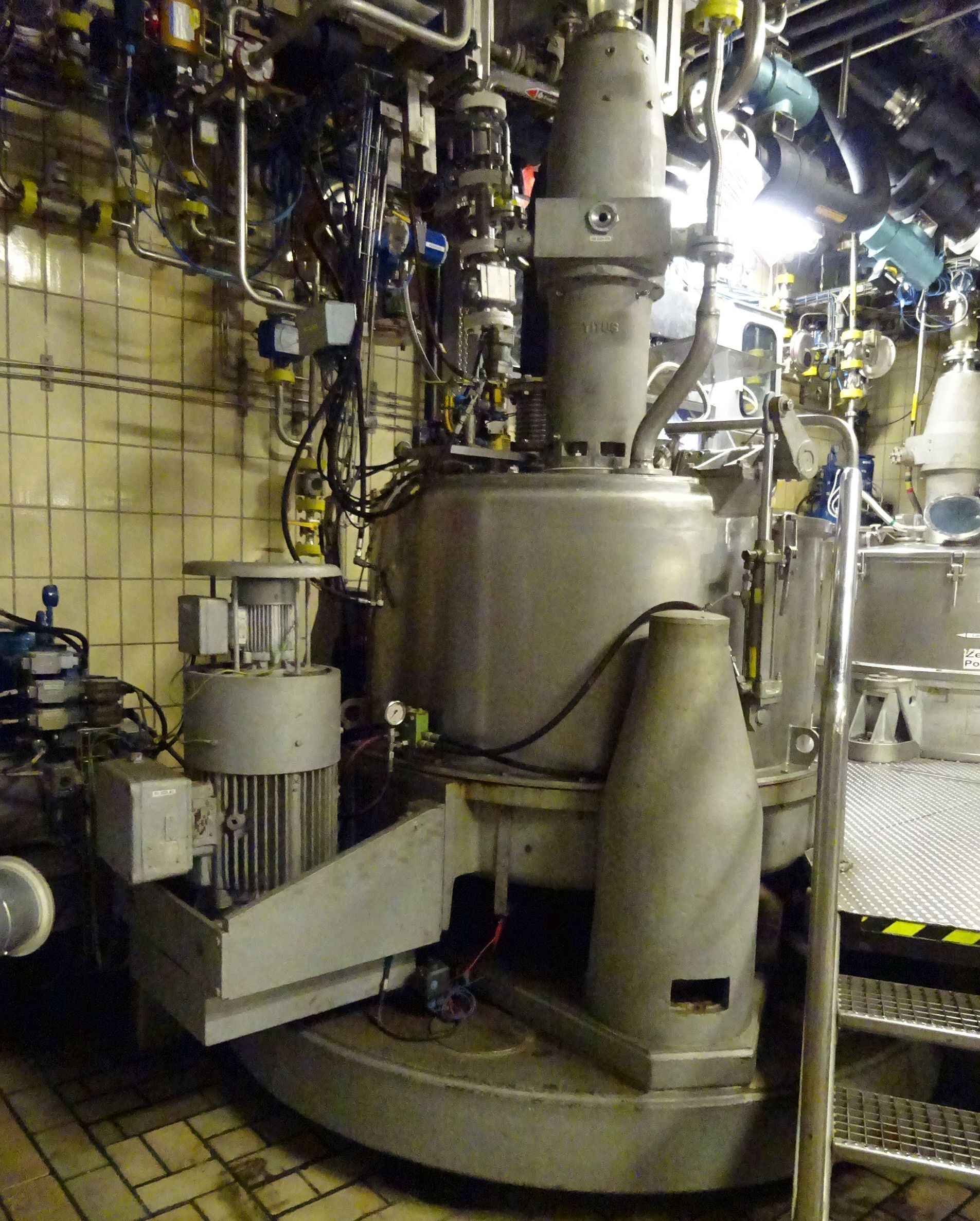

TUV
12mm thick basket
pressure 0.3 bar @ 50 degrees C

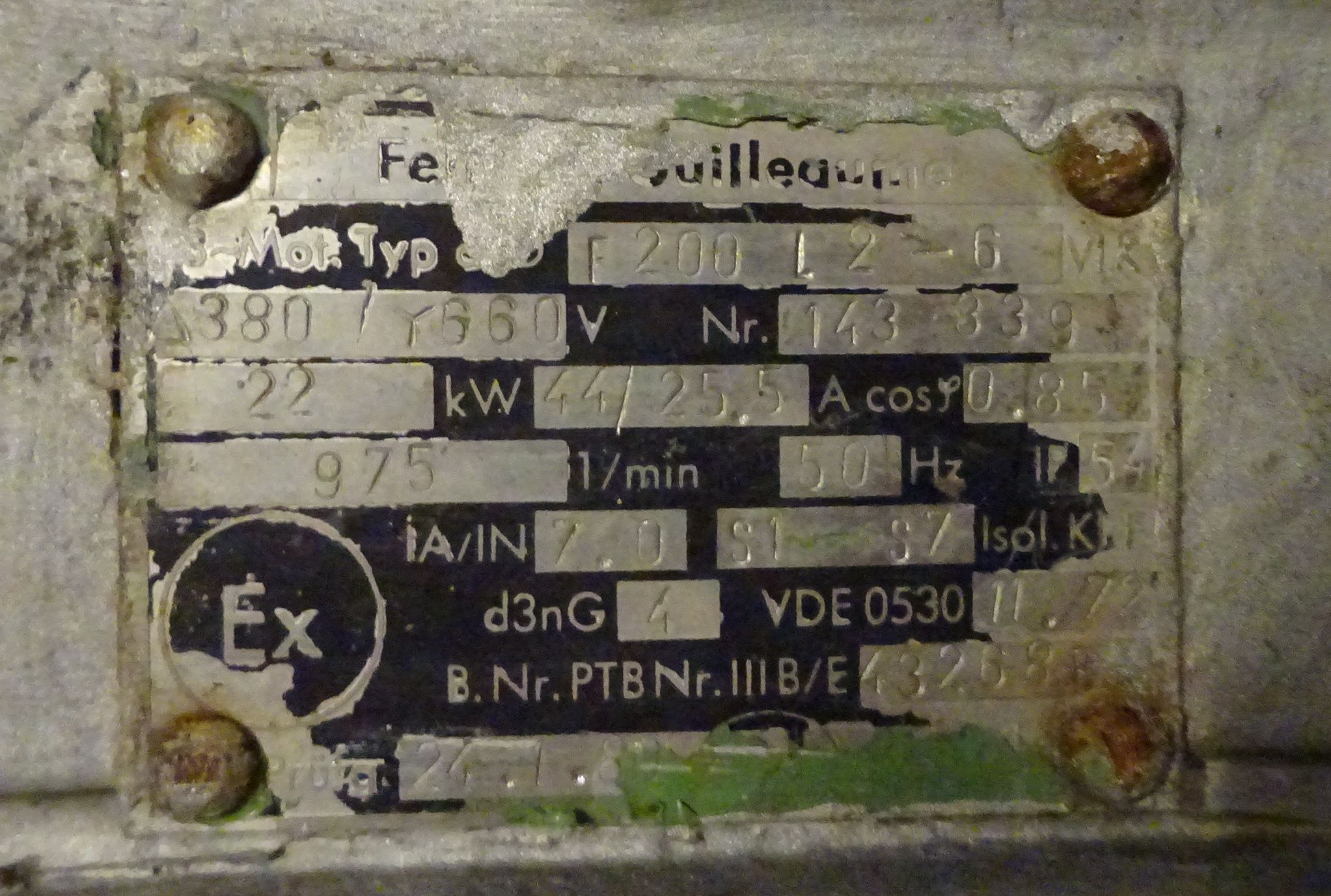

22kw 3/50/380/660 volt

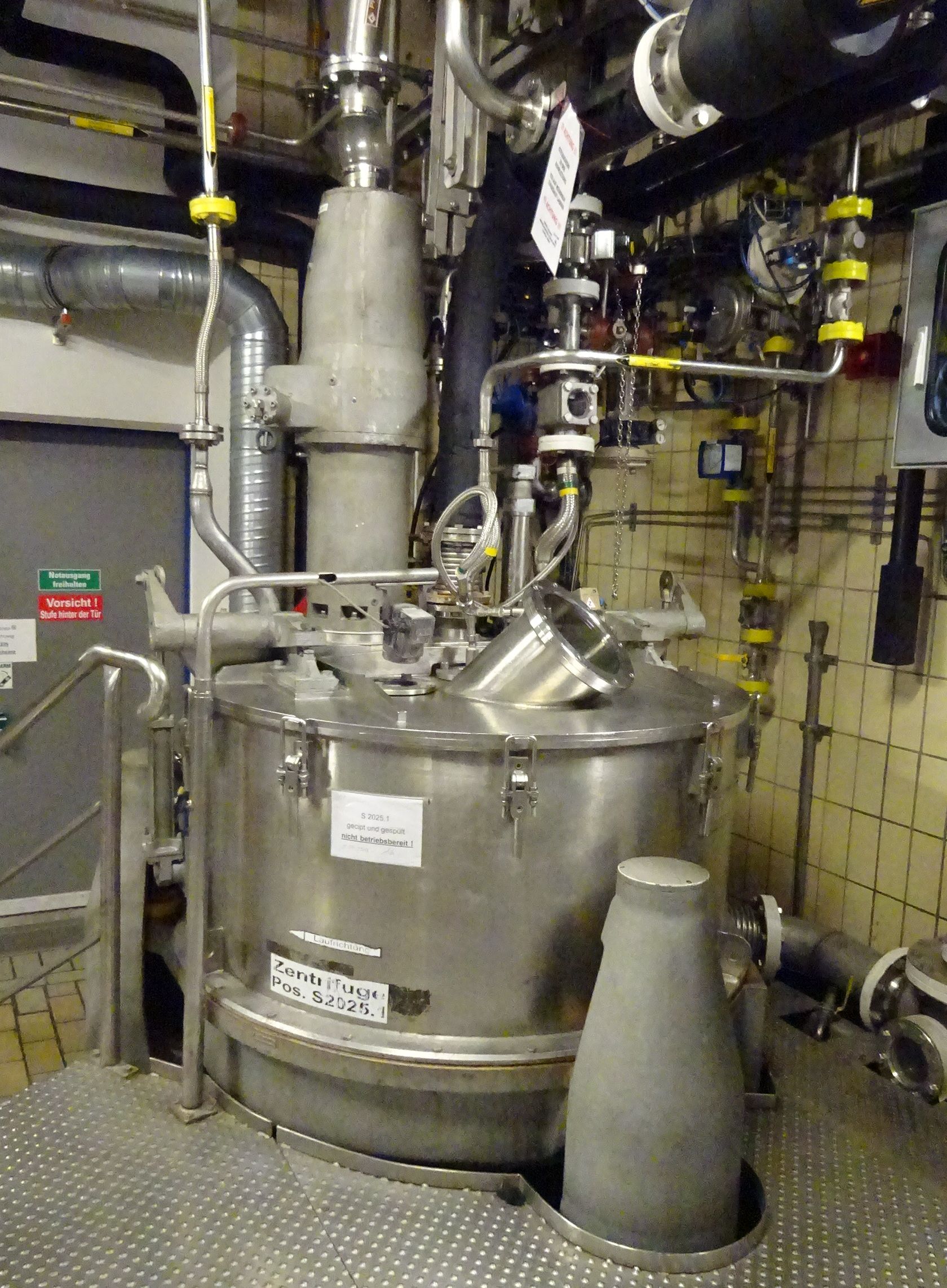

half of the top cover hinges/opens,
with open/close assist,

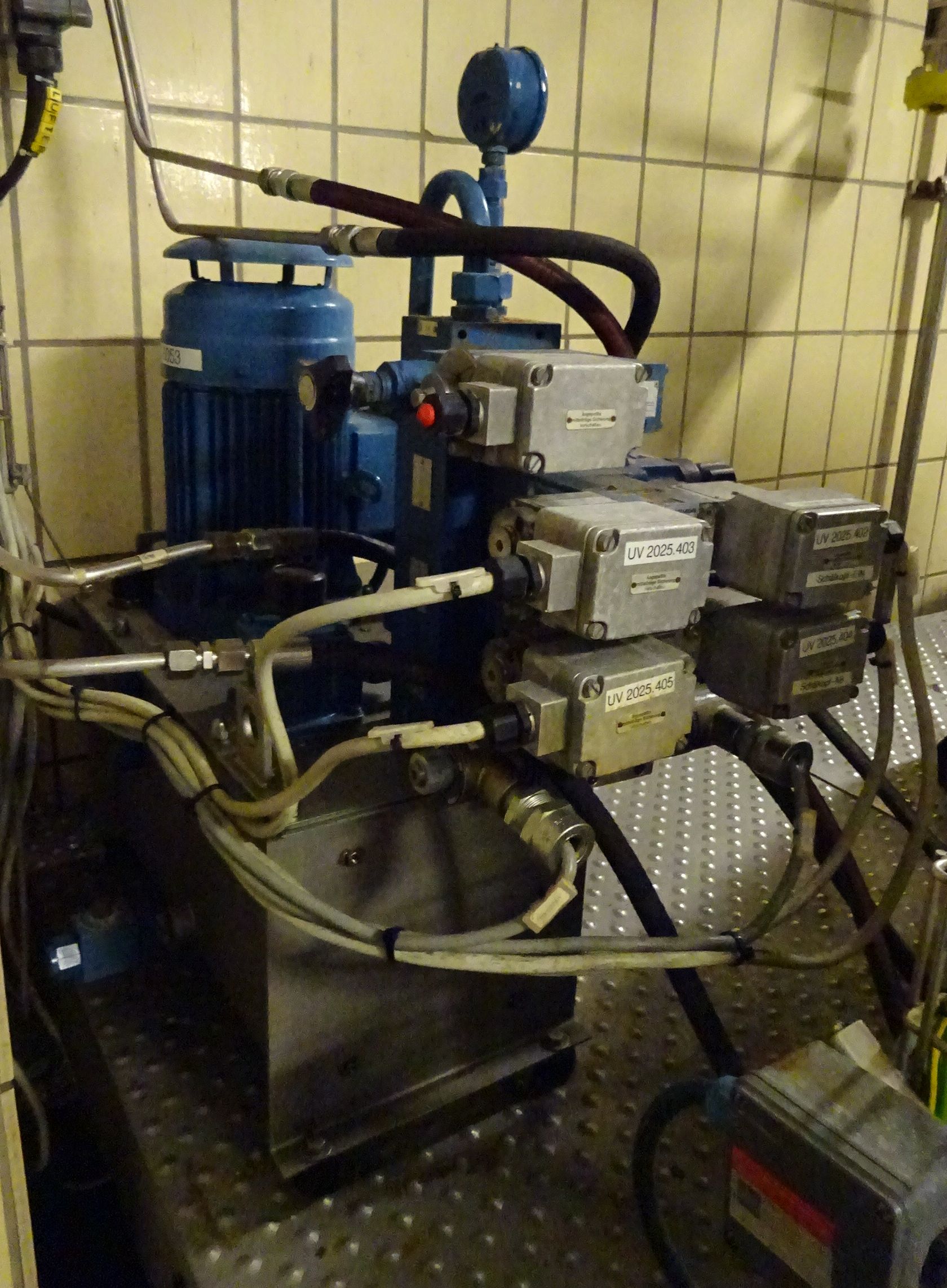

cake is discharged via a pneumatic thermosyphon peeling pipe/plow and also pressurised gas is introduced into the centrifuge which enables the solids to discharge upwards, Thermosyphon/plow driven by a hydraulic power pack,
feed pipe, wash pipe with spray nozzles
Type: Centrifuge-Basket
Subtype: Manual Discharge-Top
Manufacturer: Ellerwerk
Model: 733C
Condition: Used
Material: Stainless Steel Austenitic
Basket Diameter: 500 mm (19.7 in)
Basket Depth: 400 mm (15.7 in)
perforated basket centrifuge
EX motor with air cooling fan mounted on top
driven by 0.12 KW 3/50/380 volt motor.
Motor Power: 7.5 kW (10.1 HP). Gas Tight: Yes.
Type: Centrifuge-Basket
Subtype: Manual Discharge-Top
Manufacturer: Ellerwerk
Model: 735-C
Condition: Used
Material: Stainless Steel Austenitic
Basket Diameter: 1,000 mm (39.4 in)
Basket Depth: 400 mm (15.7 in)
manual discharge top
wall thickness of the basket 6mm
Speed-RPM Maximum: 1,000. Load Weight: 150 kg (331 lb).
Type: Centrifuge-Basket
Subtype: Manual Discharge-Top
Manufacturer: Ellerwerk
Model: 734 C
Condition: Used
Material: Stainless Steel Austenitic
Basket Diameter: 800 mm (31.5 in)
Basket Depth: 400 mm (15.7 in)
316SS TI (1.4571) clarifier basket centrifuge
Jkt case
fully liftable cover w/pneumatic operated cylinder
Max basket speed 2300 rpm.
38mm feed,
spray nozzles,
1-100mm sight glass,
1-175mm sight glass;
1-100mm liquid discharge
Motor Power: 11 kW (14.8 HP). Speed-RPM Maximum: 2,300. Load Weight: 100 kg (220 lb). Gas Tight: Yes.
Type: Centrifuge-Basket
Subtype: Manual Discharge-Top
Manufacturer: Heine
Condition: Refurbished/Rebuilt
Material: Stainless Steel 316
Basket Diameter: 1,016 mm (40 in)
Basket Depth: 406 mm (16 in)
NO MOTOR. Heine 316SS (V4AE)Basket thickness 6mmPneumatic operated liftable half top cover.W/1-200mm sight glass, 1-100mm sight glass, 2-25mm, 1-50mm, 1-75mm; 1-100mm discharge, W/hydraulic powerpack
Speed-RPM Maximum: 1,000. Load Weight: 200 kg (441 lb). Gas Tight: Yes.
