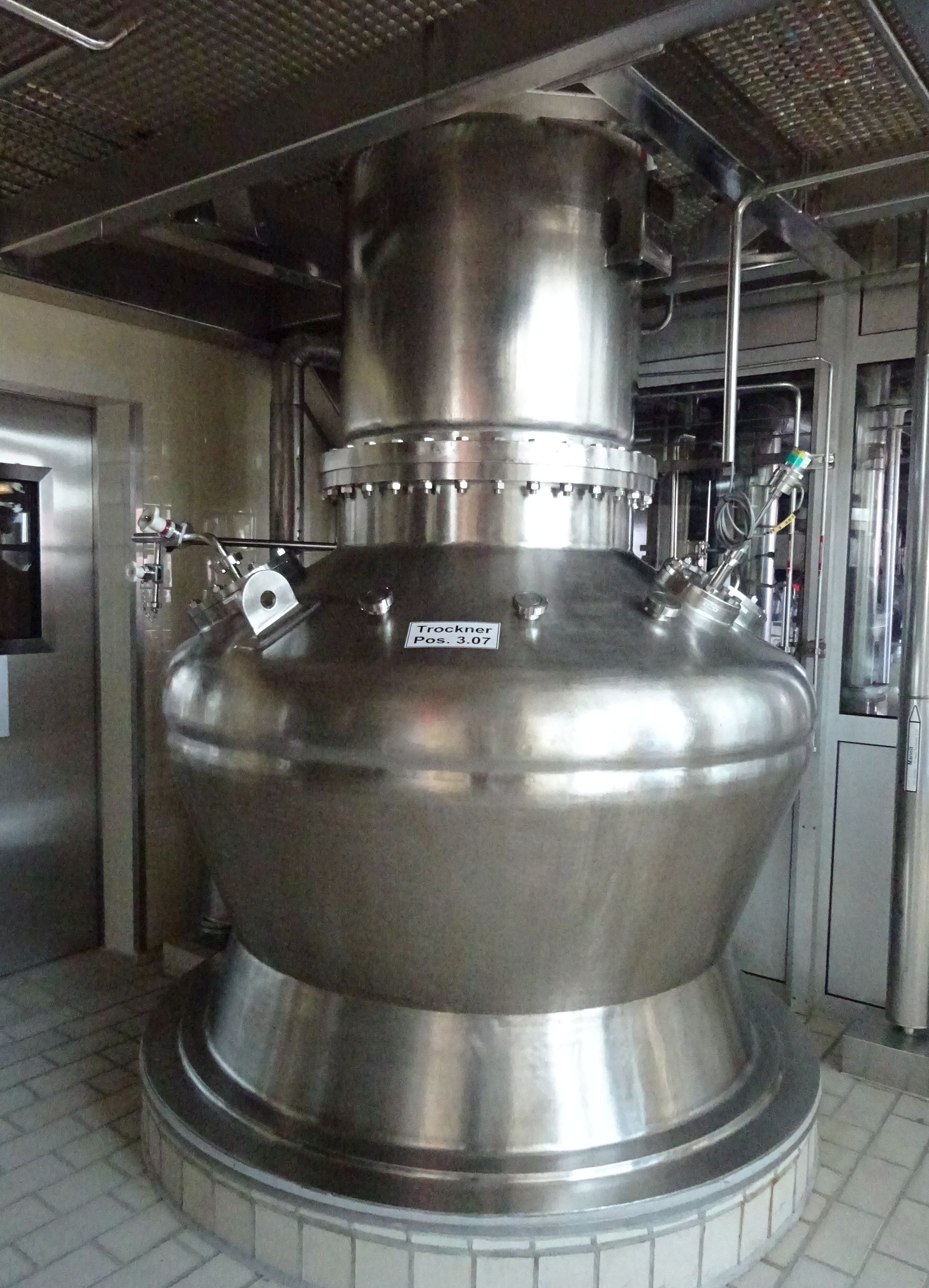

Dryer Nauta Krauss Maffei MT 2/300 Stainless Steel 316 - IPP# 231137

Type: Dryer- Nauta / Conical

Manufacturer: Krauss Maffei

Model: TMT 20/300

Condition: Used

Material: Stainless Steel Austenitic

Capacity Solids: 19.9 m3 (704 ft3)

Capacity Liqid: 19,950 L (5,250 gallons)

• 20 Cubic Meter, (704 Cu.Ft.)Krauss Maffei/Titus Nauta type Blender/Dryer.
• Internal has a 4 micron polished finish.
• The Dryer has an internal rotating screw agitator, rated speed is 10 to 100 rpm
• Screw carriage rated speed is rated .035-.35 rpm.
• Vessel diameter is 3900mm External bottom mounted screw drive.
• Pneumatically activated product discharge valve
• Unit has a top mounted 6 sq. Meter 316Ti jacketed bag filter.

Vessel Pressure: 2 bar (29 psi). Vessel Temperature: 150 °C (302 °F). Jacket Pressure: 3 bar (43.5 psi). Jacket Temperature: 150 °C (302 °F). Dust Collection: Yes.

Type: Dryer- Nauta / Conical

Manufacturer: Vrieco Nauta

Model: 20 VB-S

Condition: Unused

Material: Stainless Steel 316

Capacity Solids: 1.98 m3 (70 ft3)

Capacity Liqid: 2,000 L (528 gallons)

• Jacketed conical dryer fabrik #10861
• Protection class Ex-e-T3 Top driven screw orbital arm driven by 0.55 kW, 3/50/500 volt, 1370 rpm Ex e T3 IP44 motor via a 32 rpm reduction gearbox.
• 2m top cone diameter, with a weld dished top, and a bottom discharge valve.

Vessel Pressure: 6 bar (87 psi). Vessel Temperature: 100 °C (212 °F). Jacket Pressure: 3 bar (43.5 psi). Jacket Temperature: 100 °C (212 °F).

Type: Dryer- Nauta / Conical

Manufacturer: Engelsmann AG

Condition: Used

Material: Stainless Steel 316

Clad: Yes

Capacity Solids: 10 m3 (353 ft3)

Capacity Liqid: 10,000 L (2,650 gallons)

• Pressure -1/3.2 bar @ 250 degrees C.
• Single stainless steel screw, screw is bottom driven.
• Dished top with a 316Ti (1.4571) stainless steel reverse jet filter, pressure -1/3 bar @ 165 degrees C (1220 liter).
• Bolt dished top, (6) jets,
• TUV certified, CE marked

Vessel Pressure: 3.2 bar (46.4 psi). Vessel Temperature: 165 °C (329 °F). Jacket Pressure: 3 bar (43.5 psi). Jacket Temperature: 165 °C (329 °F).

Type: Dryer- Nauta / Conical

Manufacturer: Bauer Mainz

Model: T710C

Condition: Used

Material: Stainless Steel 316

Clad: Yes

Capacity Solids: 10 m3 (353 ft3)

Capacity Liqid: 10,000 L (2,650 gallons)

• Single stainless steel screw, screw bottom driven.
• Dished top with a 26 square meter 316Ti (1.4571) stainless steel reverse jet filter
• Pressure -1/3 bar @ 165 degrees C.
• Bolt dished top, (12) jets.
• TUV certified, CE marked.

Vessel Pressure: 3.2 bar (46.4 psi). Vessel Temperature: 250 °C (482 °F). Jacket Pressure: 3 bar (43.5 psi). Jacket Temperature: 165 °C (329 °F).
