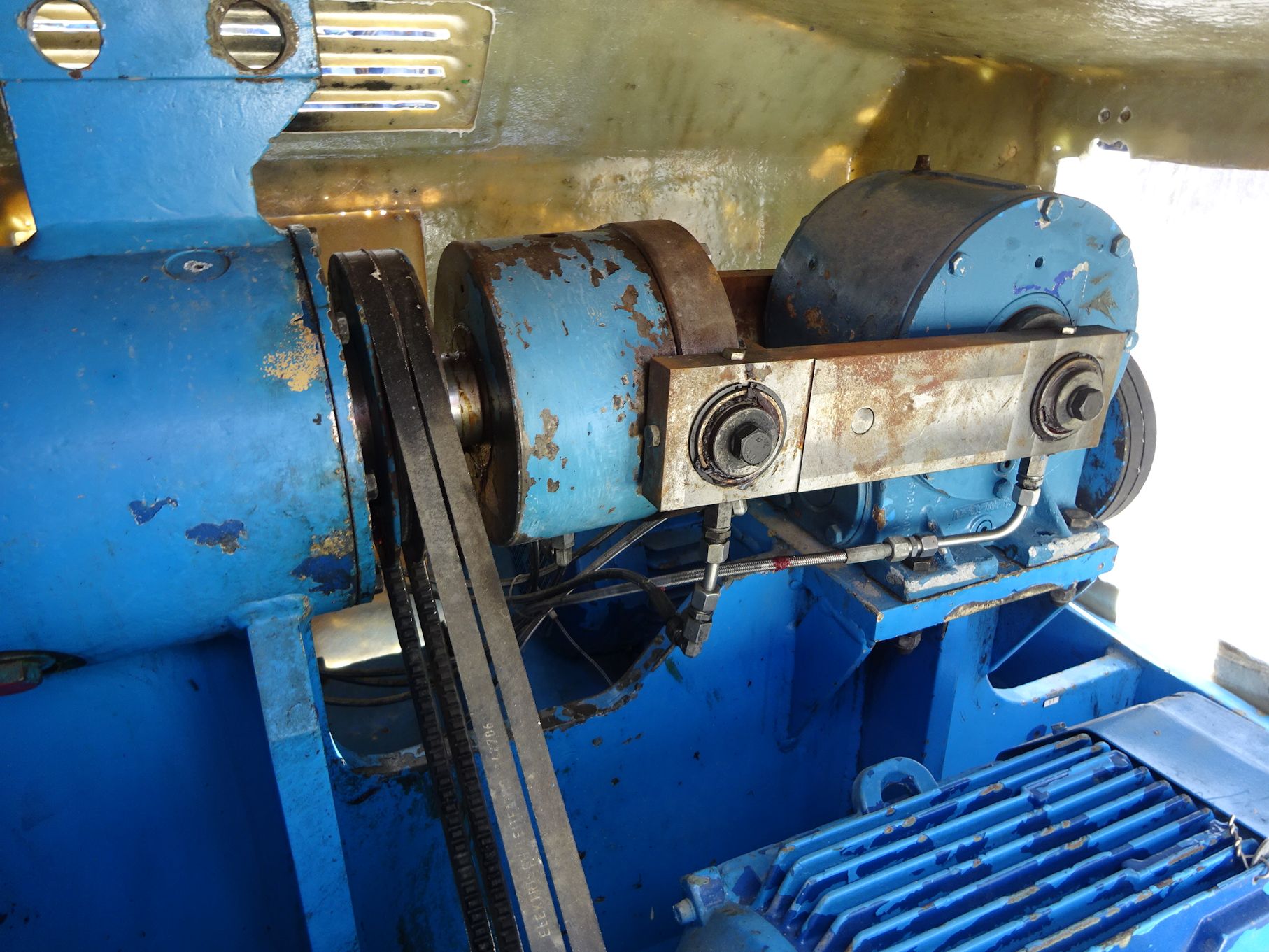

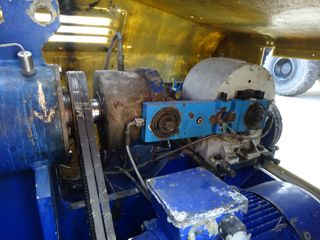

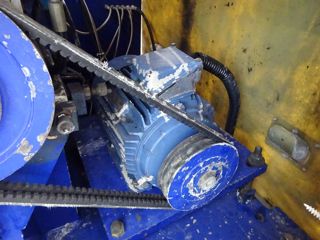

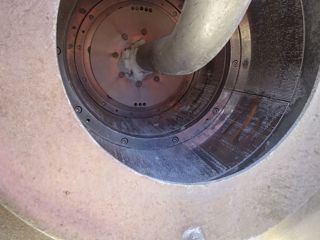

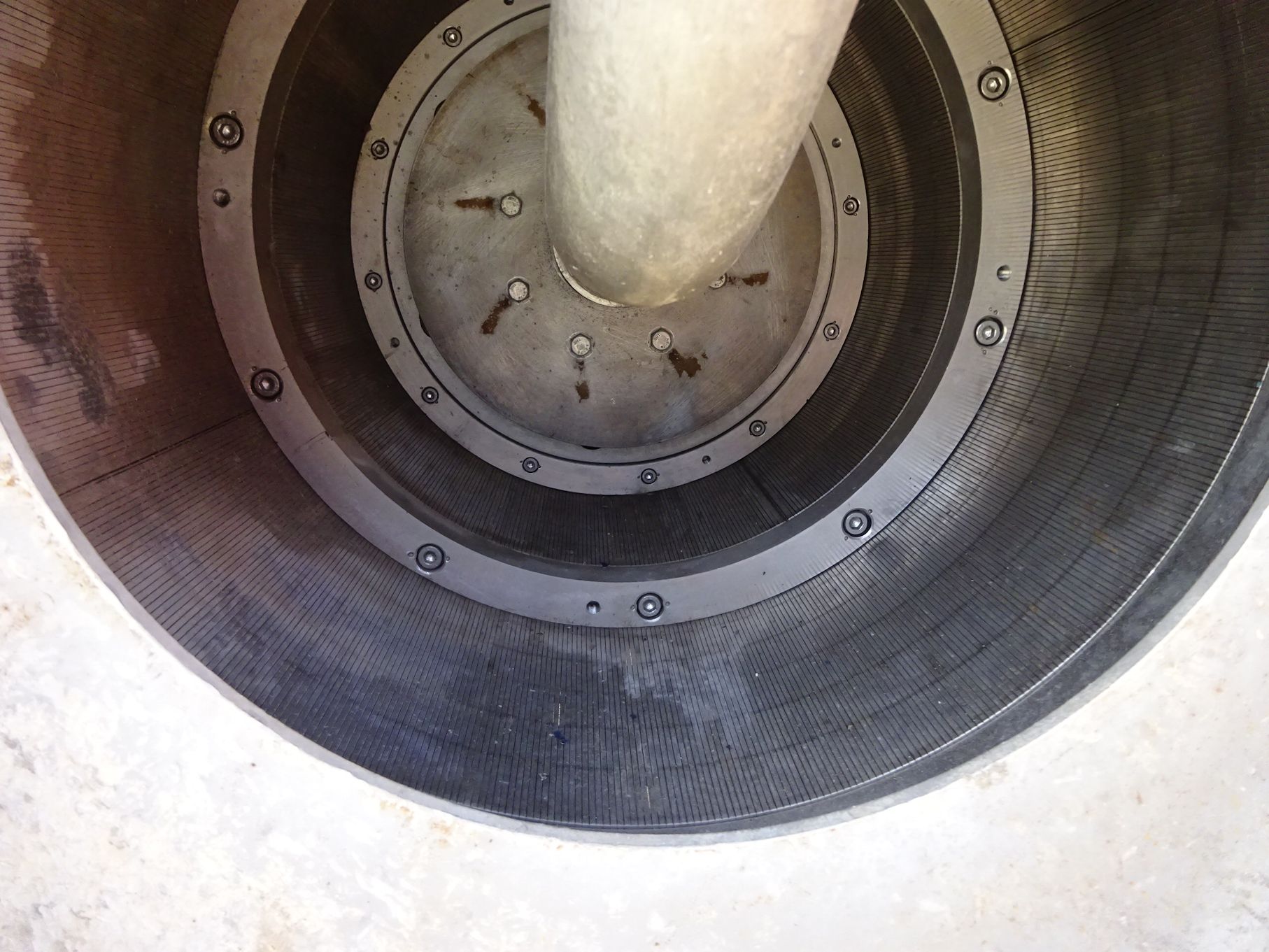

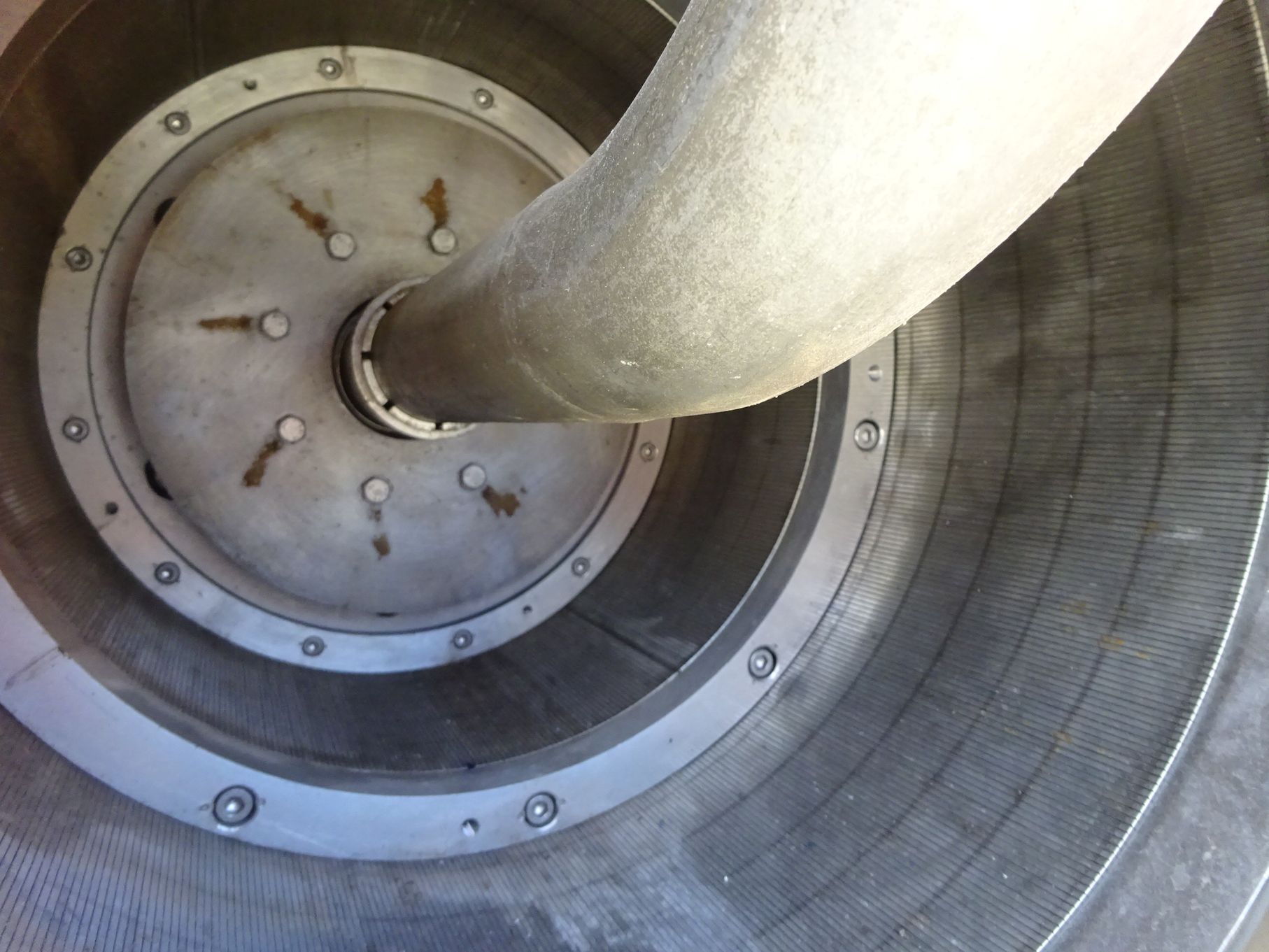

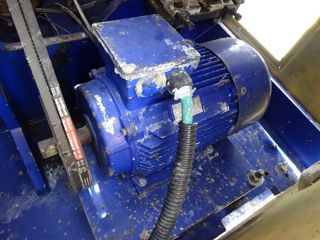

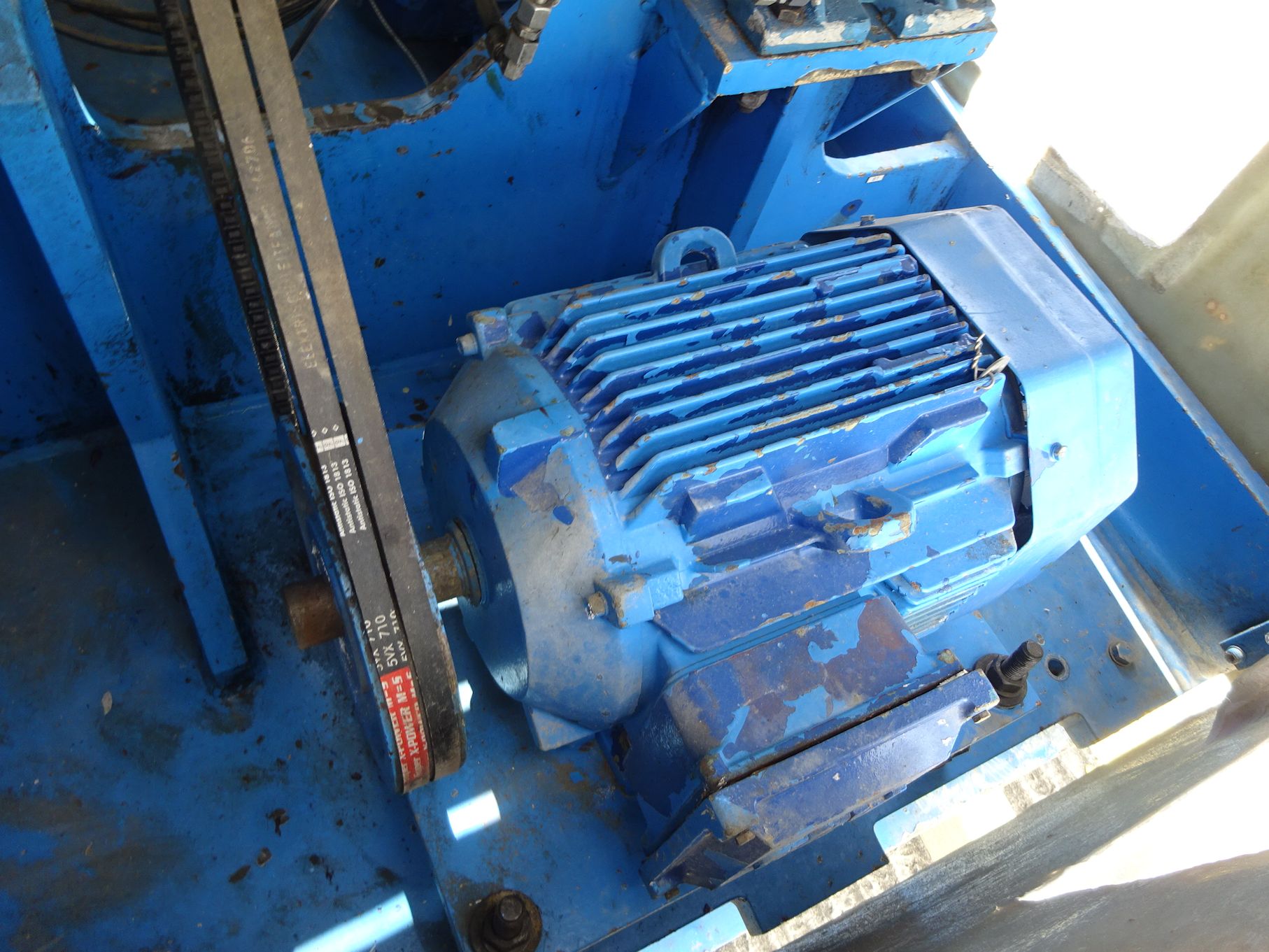

316 stainless steel 5.5 ton/hour troughput of solids 130 degrees C (max) inner diameter of outer basket 412mm, inside diameter of inner basket 356mm cake thickness of outer basket 41mm (max), inner basket 40mm centrifugal force @ max speed 490/570 G nominal volumne 15.4 dm3, inner basket screen slot width 0.2mm, outerbasket screen 0.2mm, outer and inner baskets are Duplex stainless steel (1.4470), slot screens are 317 stainless steel (1.4439), pusher plate is 316 stainless steel (1.4404), housing is 316 stainless steel (1.4404), pusher mechanism belt driven by a 7.5 kW, 3/50/380 volt, 1430 rpm IP55 CE motor, pusher stroke 40mm, stoke number (frequency) 60 rpm, pusher force 35 kN, solids side discharge, centrifuge main fields of application: fertilisers, plastics, explosives, foodstuff, fodder, processing of salts, wherever high product quality, high throughputs, low residual moisture, efficient washing of the solids and long residence times are required along with continuous operation

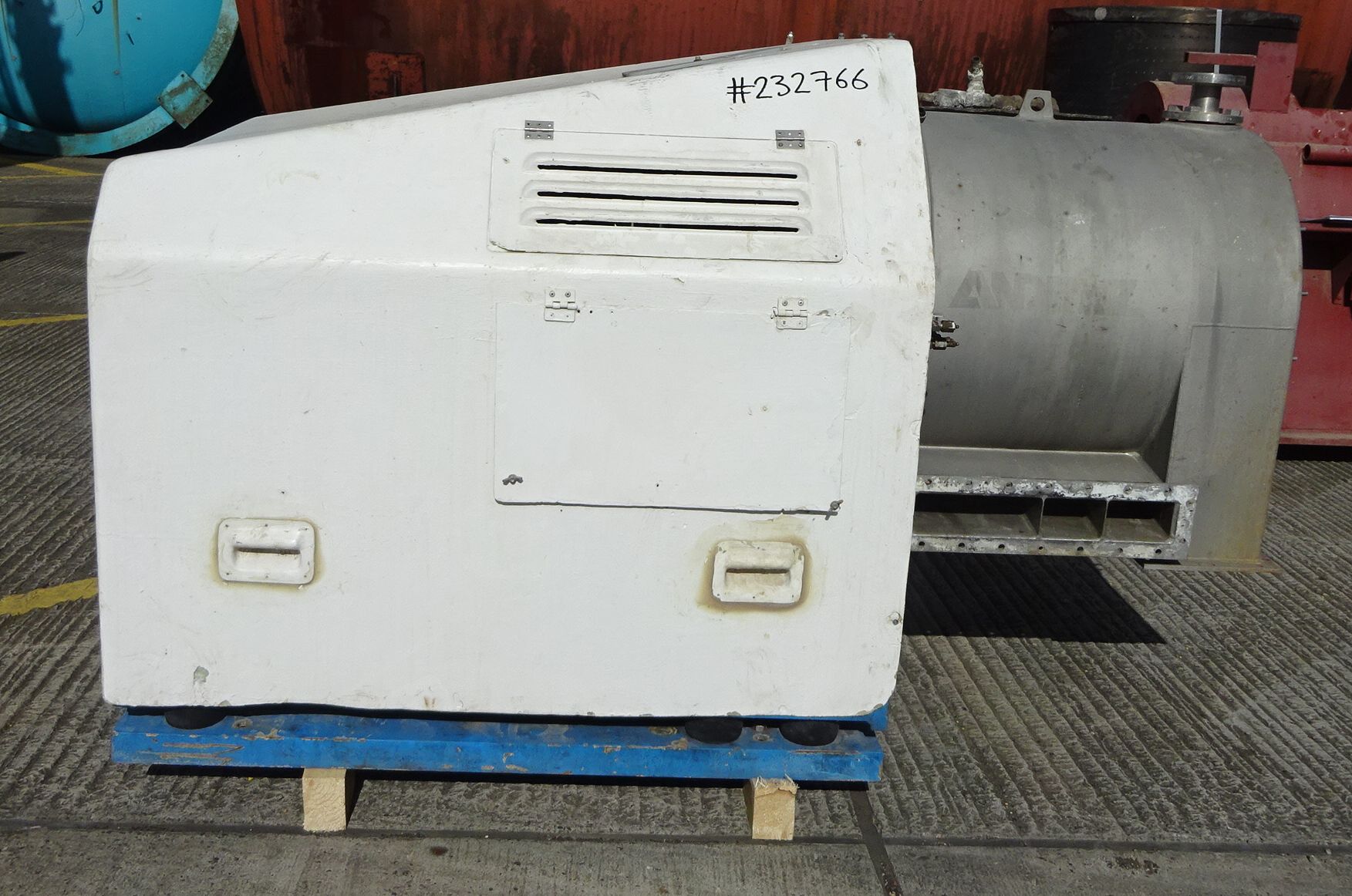

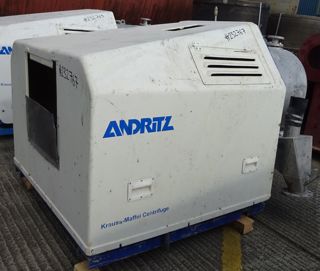

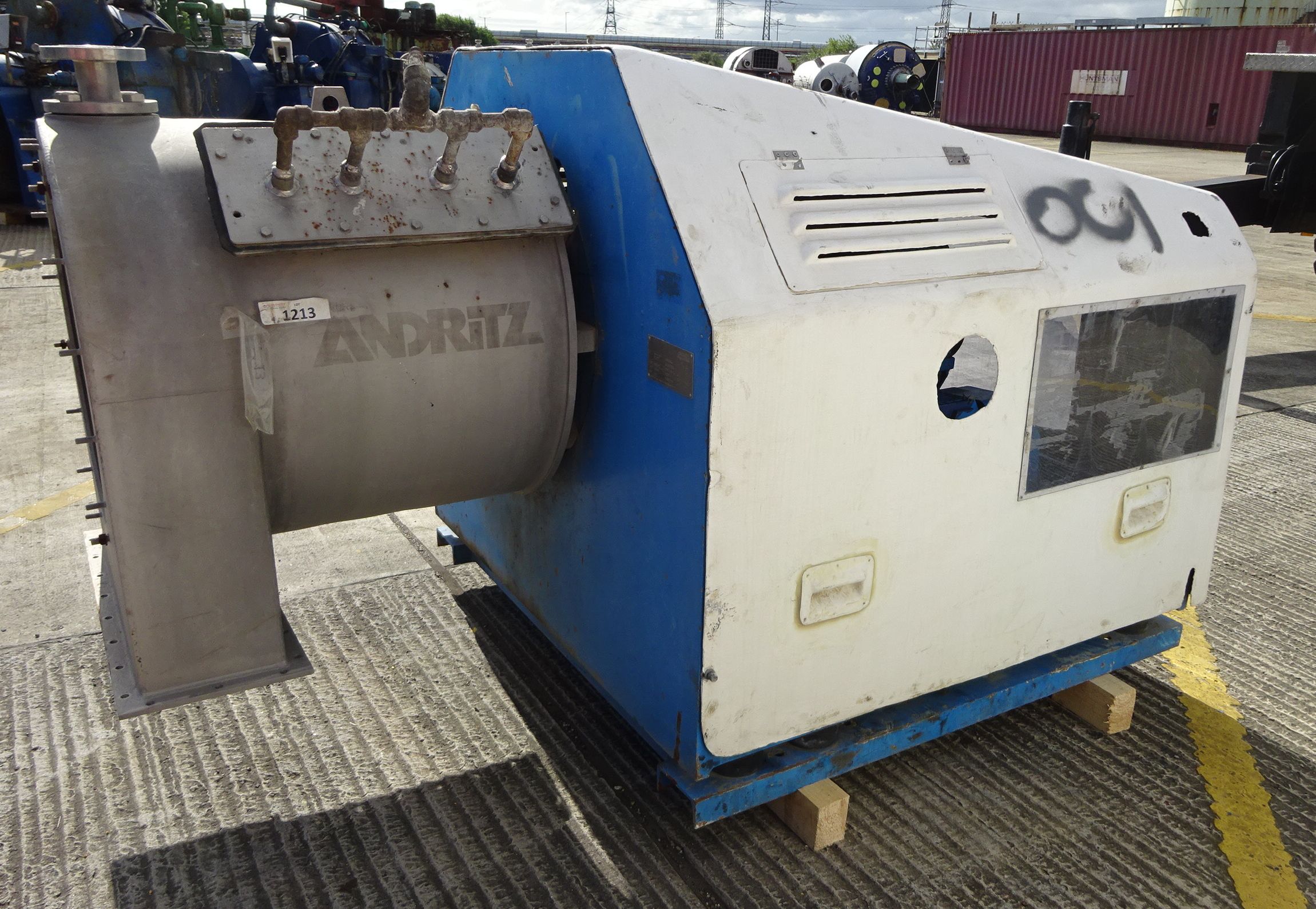

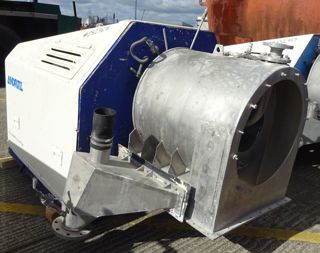

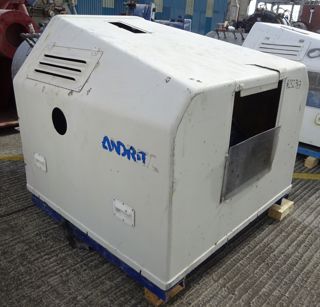

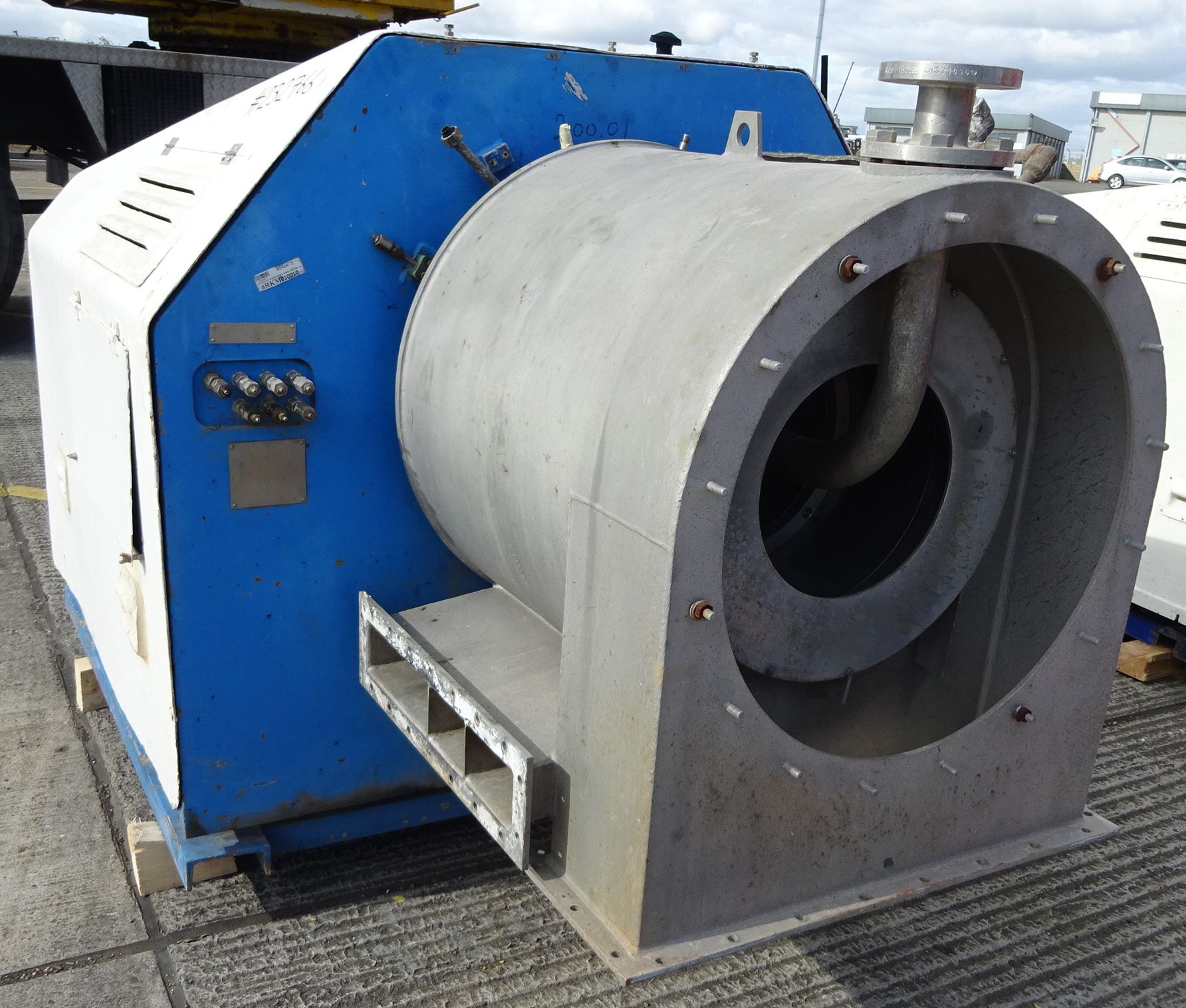

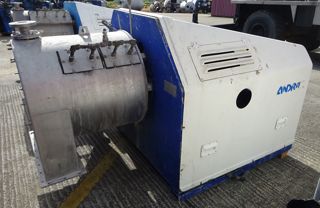

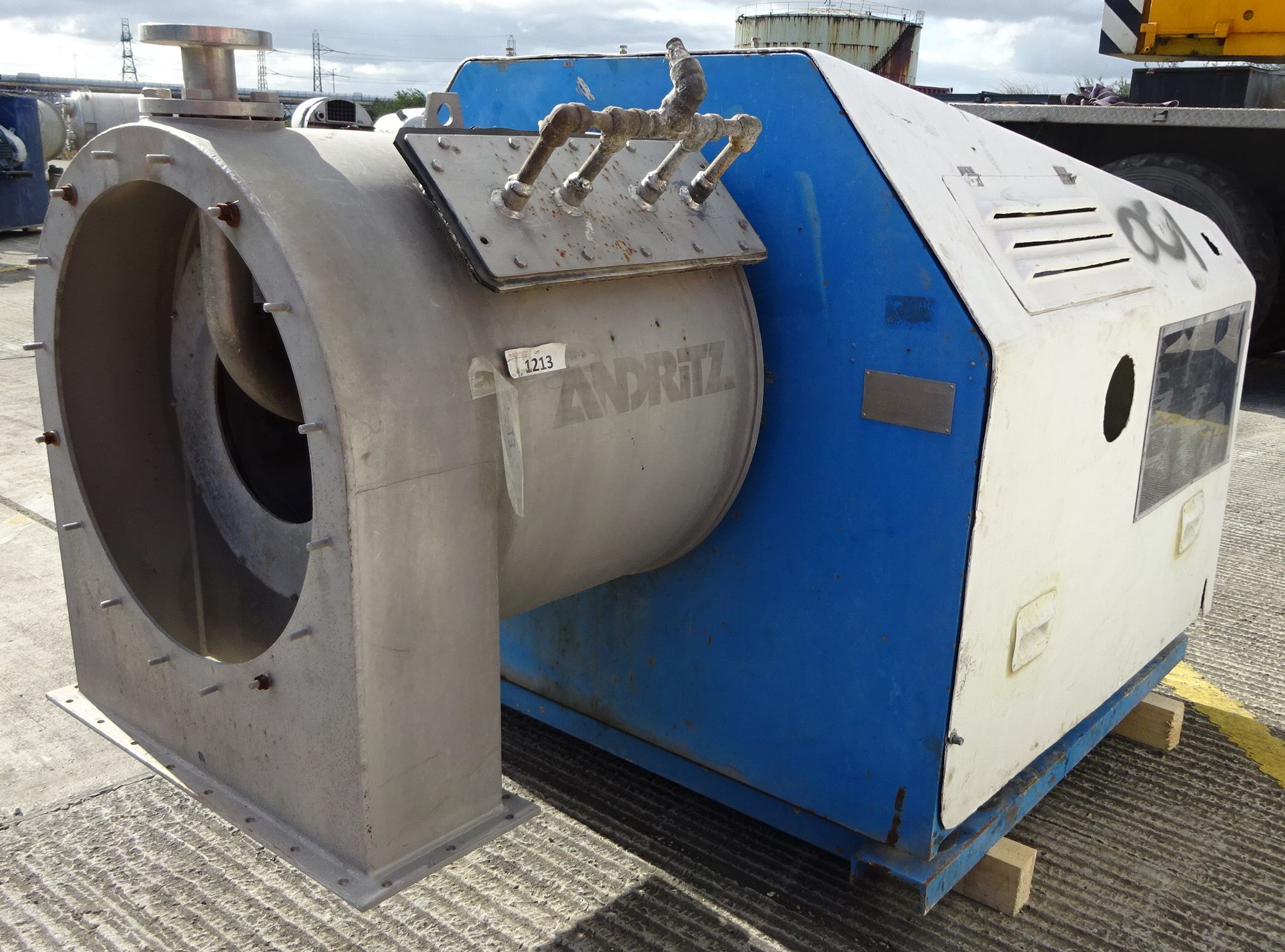

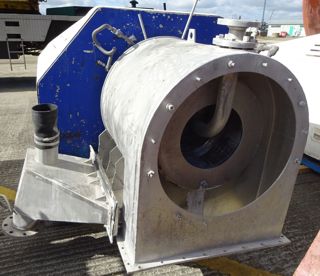

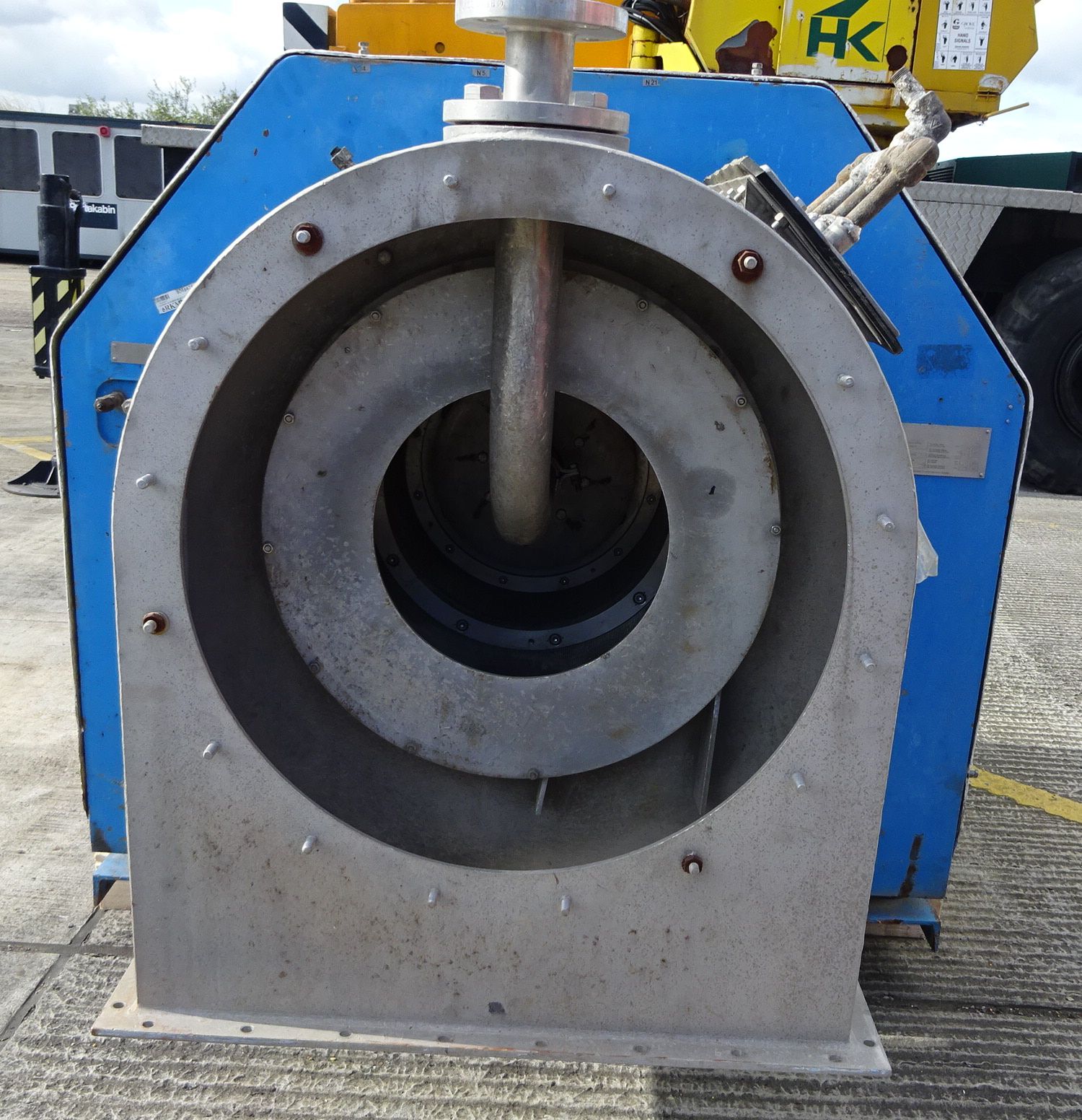

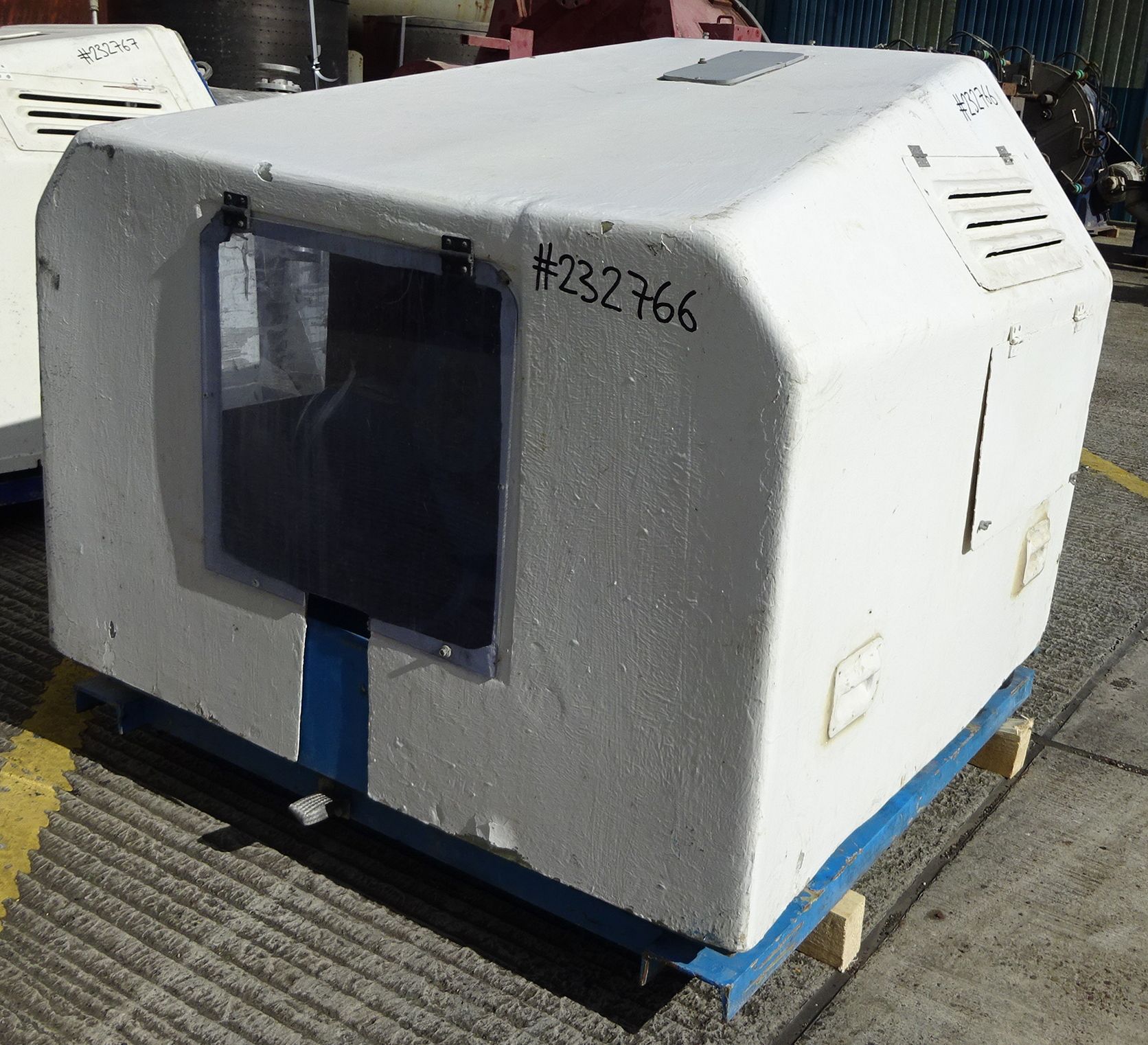

Type: Centrifuge-Pusher
Manufacturer: Andritz
Model: SZ400/2
Condition: Refurbished/Rebuilt
Material: Stainless Steel 317
Basket Diameter: 400 mm (15.7 in)
Basket Depth: 344 mm (13.5 in)
Duplex/317/316 stainless steel two stage pusher continuous centrifugeTwo stage pusher continuous centrifuge 5.5 ton/hour troughput of solids 10/130 degrees C cake thickness of outer basket 40mm (max) inner basket 40mm, force @ max speed 490/570 G, nominal volumne 15.5 dm3, inner basket screen slot width 0.2mm, outerbasket screen 0.2mm, outer and inner baskets are Duplex stainless steel pusher mechanism belt driven by a 7.5 kW (10hp), 3/50/400/690 volt, 1445 rpm IP55, EFF 1 pusher stroke 40mm, stoke number (frequency) 60 rpm, pusher force 35 kN, solids side discharge, centrifuge main fields of application: fertilisers, plastics, explosives foodstuff, fodder, processing of salts, wherever high product quality, high throughputs, low residual moisture, efficient washing of the solids and long residence times are required along with continuous operation
Motor Power: 15 kW (20.1 HP). Speed-RPM Maximum: 1,600. G Force: 570. Load Weight: 20.5 kg (45.2 lb). Number of Basket Stages: 2.
