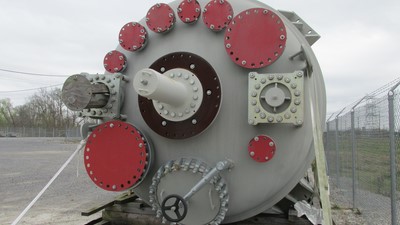

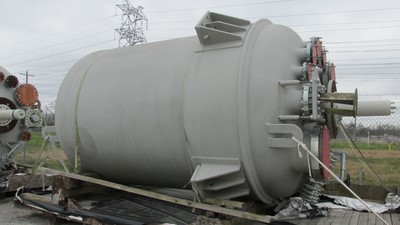

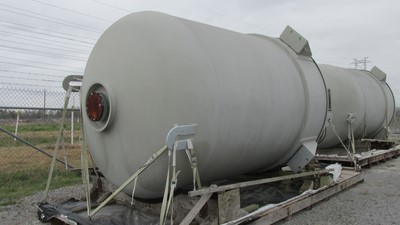

Name: New Glasslined 3V Tech PL Type Tank
Brand: 3V Tech
SKU: 233762

Overview

Type:

Tank

Manufacturer:

3V Tech

Model:

PL Type

Condition:

New

Material:

Glasslined

Capacity

Capacity (Design):

21,150 L (5,600 gallons)

Dimensions

Orientation:

Vertical

Diameter:

2,600 mm (102 in)

Straight-side Length:

3,350 mm (132 in)

Pressure

Internal Pressure:

6.2 bar (90 psi)

Temperature

Internal Temperature:

232.2 °C (450 °F)

Agitation

Does it have Agitation ?:

Yes

Other Specifications

Vacuum:

Yes

Baffle Details:

(2) flange mounted glasslined baffles; (1) with WIKA TR-10 temperature probe.

Baffle Type:

Beavertail

Manway:

Yes

Support:

Lugs

Motor

Motor Power:

37.3 kW (50 HP)

Additional Info:

Rated for lethal service.
Nozzles with Inconel 625 inlay.
Glasslined beavertail baffle with WIKA TR-10 & PT100 temperature probes.
Mechanically sealed agitator: FlowServe MD-200 DN140.
See sales comments for additional options.

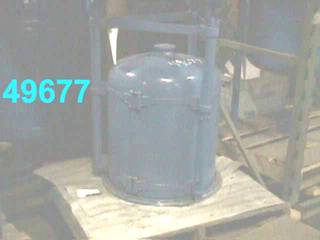

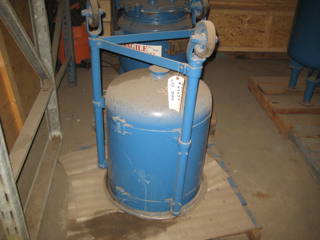

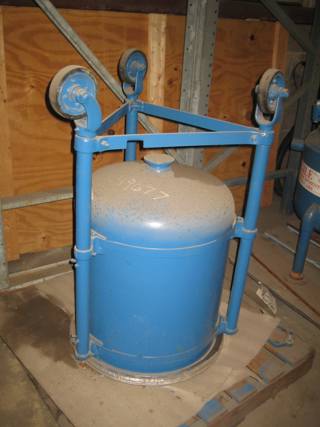

Glasslined DeDietrich VR36-200-25 Tank
