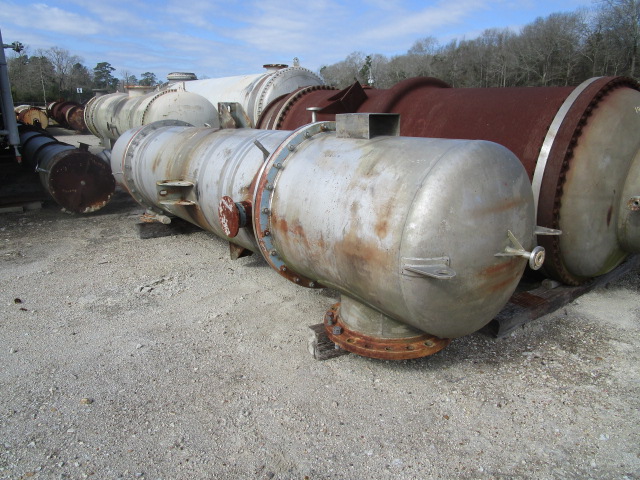

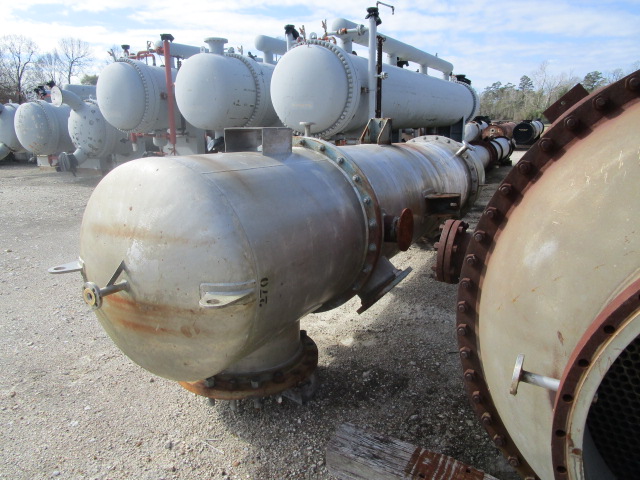

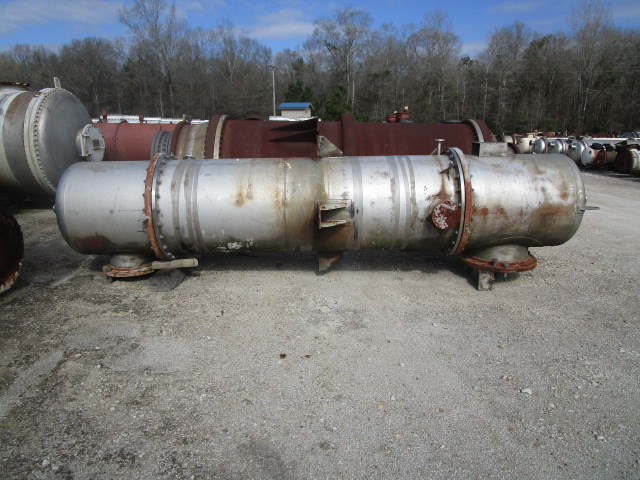

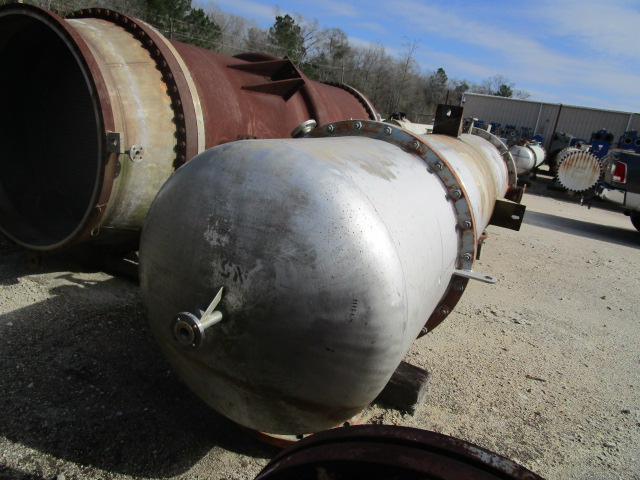

Unused Shell and Tube Heat Exchanger 178 m² (1,900 ft²) Stainless Steel 304 For Sale - IPP# 235342

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Praj Industries

Condition: Unused

Material: Stainless Steel 304

Heat Transfer Surface Area: 370.4 m² (4,000 ft²)

Orientation: Vertical

The shell has a bottom concentric head and bolts directly to heat exchanger H-1606 Tube pitch 1.25" , 6 baffles, with spacing 2' 1"

Shell Pressure: 0.69 bar (10 psi). Shell Temperature: 160 °C (320 °F). Shell Material: Stainless Steel 304. Tube Pressure: 4.1 bar (60 psi). Tube Temperature: 45 °C (113 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 1,500 mm (60 in). Head Material: Stainless Steel 304. Length: 6,900 mm (271 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 926. Tube Diameter: 25.4 mm (1 in). Tube Length: 5,000 mm (197 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Shell nozzles are 14", and 4", tube nozzles are 12" and 1".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Praj Industries

Condition: Unused

Material: Stainless Steel 304

Heat Transfer Surface Area: 53.9 m² (580 ft²)

Orientation: Horizontal

Tube pitch 1.5" , 3 baffles, with spacing 2' 8"

Shell Pressure: 0.69 bar (10 psi). Shell Temperature: 60 °C (140 °F). Shell Material: Stainless Steel 304. Tube Pressure: 3.9 bar (56 psi). Tube Temperature: 55 °C (131 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 711 mm (28 in). Head Material: Stainless Steel 304. Length: 4,650 mm (184 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 260. Tube Diameter: 25.4 mm (1 in). Tube Length: 3,000 mm (118 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Shell nozzles: 12", 4", and 1" - Tube nozzles: two 12".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Praj Industries

Condition: Unused

Material: Stainless Steel 304

Heat Transfer Surface Area: 234.1 m² (2,500 ft²)

Orientation: Vertical

Tube pitch 1.25" , 4 baffles, with spacing 1' 7"

Shell Pressure: 2 bar (29 psi). Shell Temperature: 115 °C (239 °F). Shell Material: Stainless Steel 304. Tube Pressure: 0.69 bar (10 psi). Tube Temperature: 100 °C (212 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 1,100 mm (43 in). Head Material: Stainless Steel 304. Length: 5,700 mm (225 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 978. Tube Diameter: 25.4 mm (1 in). Tube Length: 3,000 mm (118 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Shell nozzles are 1-8", 1-3" Tube nozzles are 1-20", and 1-28"..

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Praj Industries

Condition: Unused

Material: Stainless Steel 304

Heat Transfer Surface Area: 110.1 m² (1,200 ft²)

Orientation: Horizontal

Tube pitch 1.25" , 9 baffles, with spacing at 10"

Shell Pressure: 1.72 bar (25 psi). Shell Temperature: 145 °C (293 °F). Shell Material: Stainless Steel 304. Tube Pressure: 3.9 bar (56 psi). Tube Temperature: 50 °C (122 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Shell Diameter: 813 mm (32 in). Head Material: Stainless Steel 304. Length: 4,150 mm (164 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: Straight Tube. Tube Number: 460. Tube Diameter: 25.4 mm (1 in). Tube Length: 2,900 mm (114 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Shell nozzles are 8" and 4", tube nozzles are two 12"..
