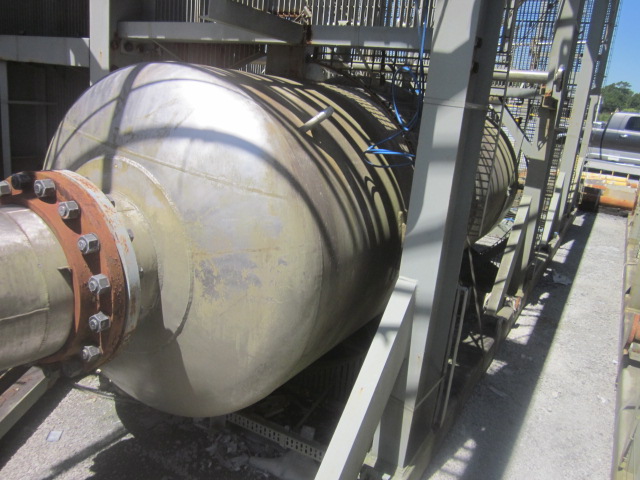

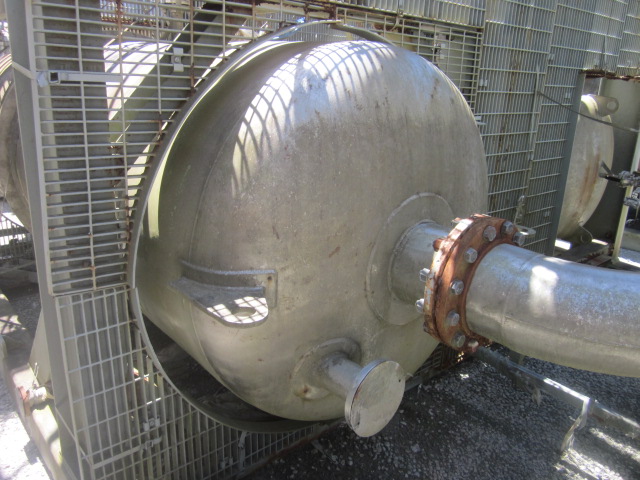

Unused Stainless Steel 304 Praj Industries Tank - IPP# 235454

Type: Tank

Manufacturer: Praj Industries

Condition: Unused

Material: Stainless Steel 304L

Capacity (Design): 999 L (264 gallons)

Orientation: Vertical

Two top lifting trunnions.

Diameter: 1,100 mm (43 in). Straight-side Length: 965 mm (38 in). Internal Pressure: 2.2 bar (32 psi). Internal Temperature: 160 °C (320 °F). Support: Legs.

Type: Tank

Manufacturer: Praj Industries

Condition: Unused

Material: Carbon Steel

Capacity (Design): 9,300 L (2,450 gallons)

Orientation: Horizontal

Head thickness: Nominal 0.157" Lifting trunnions: Four top nominal 0.157" thick heads. Four top lifting trunnions.

Diameter: 1,800 mm (71 in). Straight-side Length: 3,050 mm (120 in). Internal Pressure: 0.69 bar (10 psi). Internal Temperature: 130 °C (266 °F). Support: Saddle.

Type: Tank

Condition: Used

Material: Stainless Steel 304L

Capacity (Design): 28,000 L (7,400 gallons)

Orientation: Horizontal

• internal working pressure atmospheric @ 80 deg C, design temperature 150 deg C,
• Coil pressure rating: 3.5 bar
• Coil material: 316L s/steel
• Coil design: 1-turn, hairpin
• Coil location: Running along full length of vessel bottom
• Cradle type: Fixed c/steel tank has a 50mm fall from back to front, fully insulated with 50mm foam glass and clad with aluminum

Diameter: 2,500 mm (98.4 in). Straight-side Length: 6,000 mm (236.2 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 150 °C (302 °F). Does it have an Internal Coil?: Yes. Support: Saddle.

Type: Tank

Manufacturer: Constructiebedrijf Verkouille

Condition: Used

Material: Stainless Steel 304L

Capacity (Design): 16,000 L (4,250 gallons)

Orientation: Horizontal

• Built to TUV design code.
• With Mono C14D stainless steel rotary screw discharge pump.
• Pump operating at 77 RPM, 25 bar max del. pressure, 21.72 bar duty differential pressure

Diameter: 2,400 mm (94.5 in). Straight-side Length: 2,950 mm (115.6 in). Internal Pressure: 0.4 bar (5.8 psi). Internal Temperature: 165 °C (329 °F). Vacuum: Yes. Cone Length: 1,050 mm (41 in). Support: Lugs.
