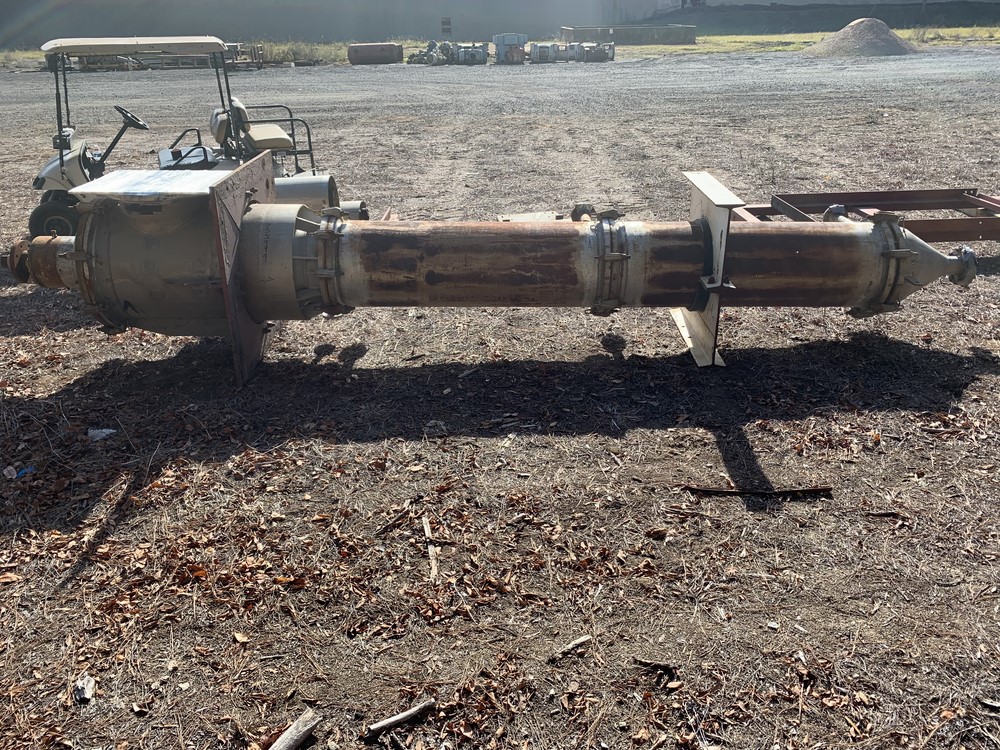

wiped film evaporator. Jacket rated for Rated for 150 psi at 381 degrees F. Stainless steel rotor belt driven by a pully and motor. Diameter of body section jacket 19.2". Shell wall thickness 0.393 thick, Jacket wall thickness is 0.275" thick. Empty weight 3,400 lbs.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Condition: Used
Material: Stainless Steel Other
Evaporation Rate: 47.6 kg/h (105 lb/h)
Total Heat Transfer Surface Area: 2 m² (21.5 ft²)

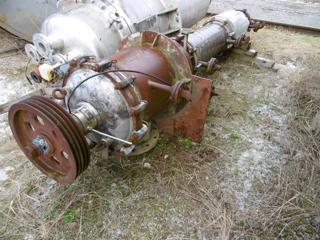

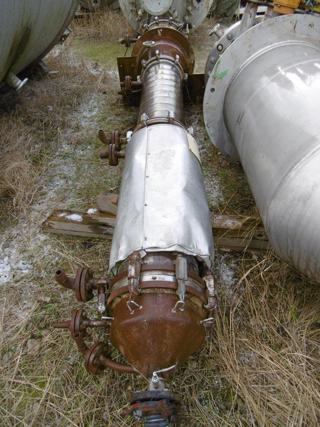

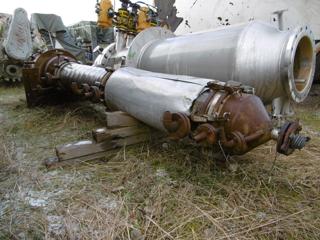

Luwa wipe film evaporator jacket 4 bar, c/steel jacket 2 x 340mm diameter x 1.1m long clamped sections
Diameter: 340 mm (13.4 in). Height: 2,200 mm (86.6 in). Pressure: 8 bar (116 psi). Temperature: .
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Condition: Used
Material: Stainless Steel Other
Diameter: 352.3 mm (13.9 in)
Height: 314.2 mm (12.4 in)

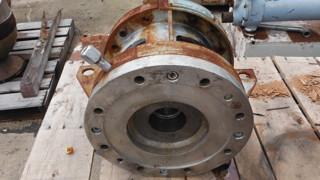

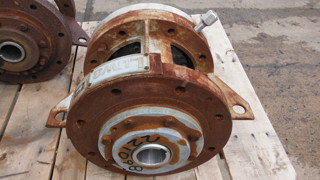

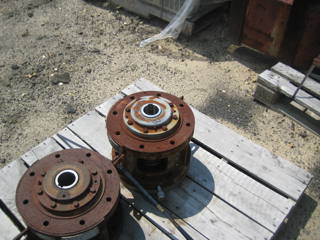

2.25" shaft, seal housing for a wiped film evaporator. Mechanical seal with cooling lines. 2.25" shaft with key way.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Model: LN0050
Condition: Used
Material: Stainless Steel Other
Evaporation Rate: 11.3 kg/h (25 lb/h)
Total Heat Transfer Surface Area: 0.5 m² (5.4 ft²)

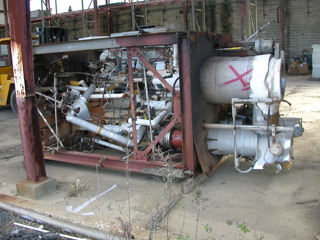

24 psig @ 482 degrees F in the jacket, All product wetted parts stainless steel. Mechanical seal on Rotor. Rotor driven by a 3 hp 1800 rpm 3 phase 60 cycle 230/460 volt. Entire system mounted in CS framework, with approximately 50 square foot condensor, 8" x 12" receiever under evaproator, Wilden diamphram pump, and demister.
Orientation: Vertical. Temperature: 250 °C (482 °F). Vacuum: Yes.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Model: L-425
Condition: Used
Material: Stainless Steel Austenitic
Total Heat Transfer Surface Area: 3.2 m² (34.4 ft²)
Orientation: Vertical
wiped film evaporator Shell 22" dia x 87" long Expansion joint on shell. Jkt rated 25 ATM @ 230 deg C Jkt 25 ATV @ 250 deg C. 3" btm discharge.
Diameter: 559 mm (22 in). Height: 2,200 mm (87 in). Temperature: 230 °C (446 °F). Vacuum: Yes.
