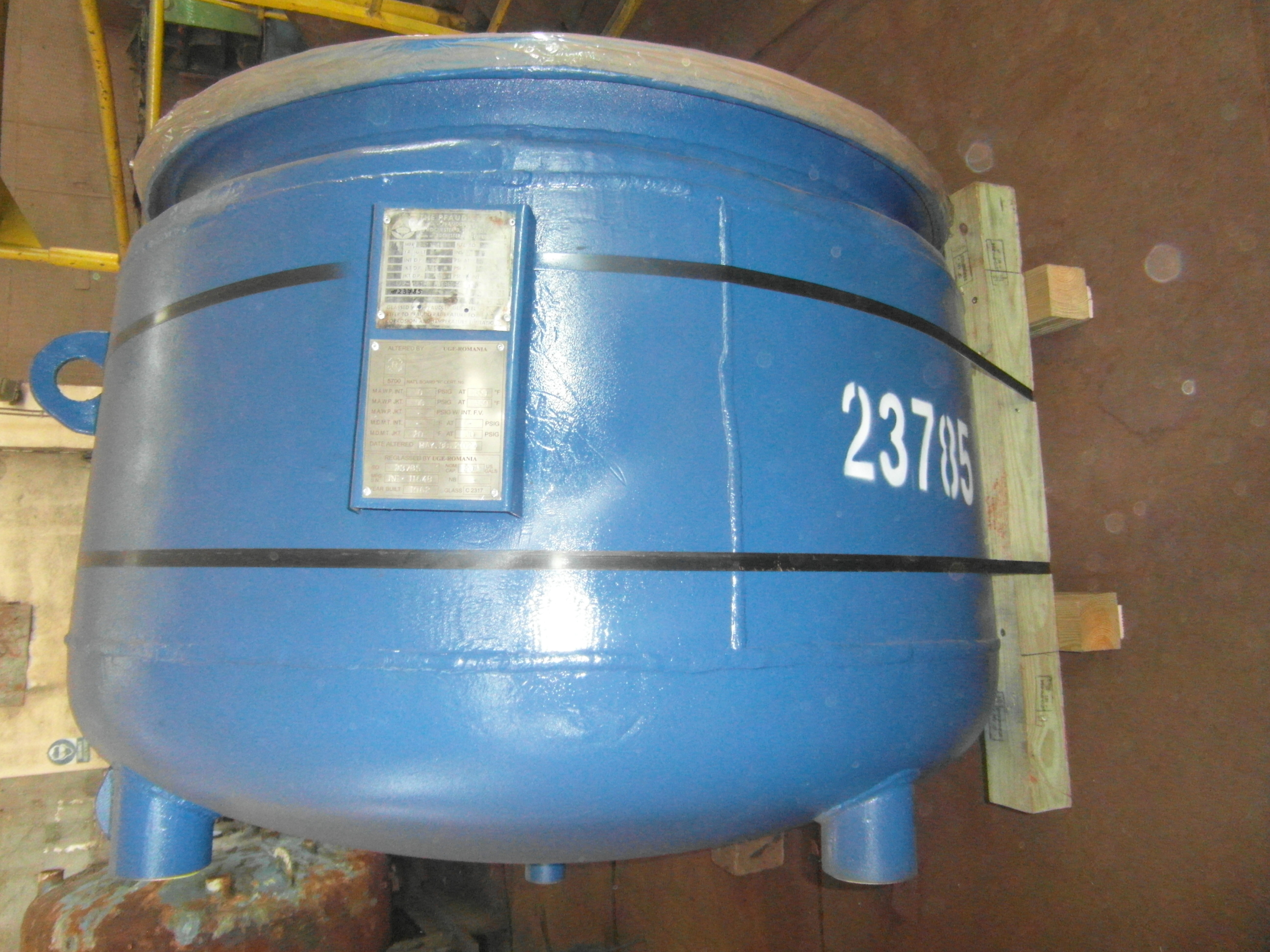

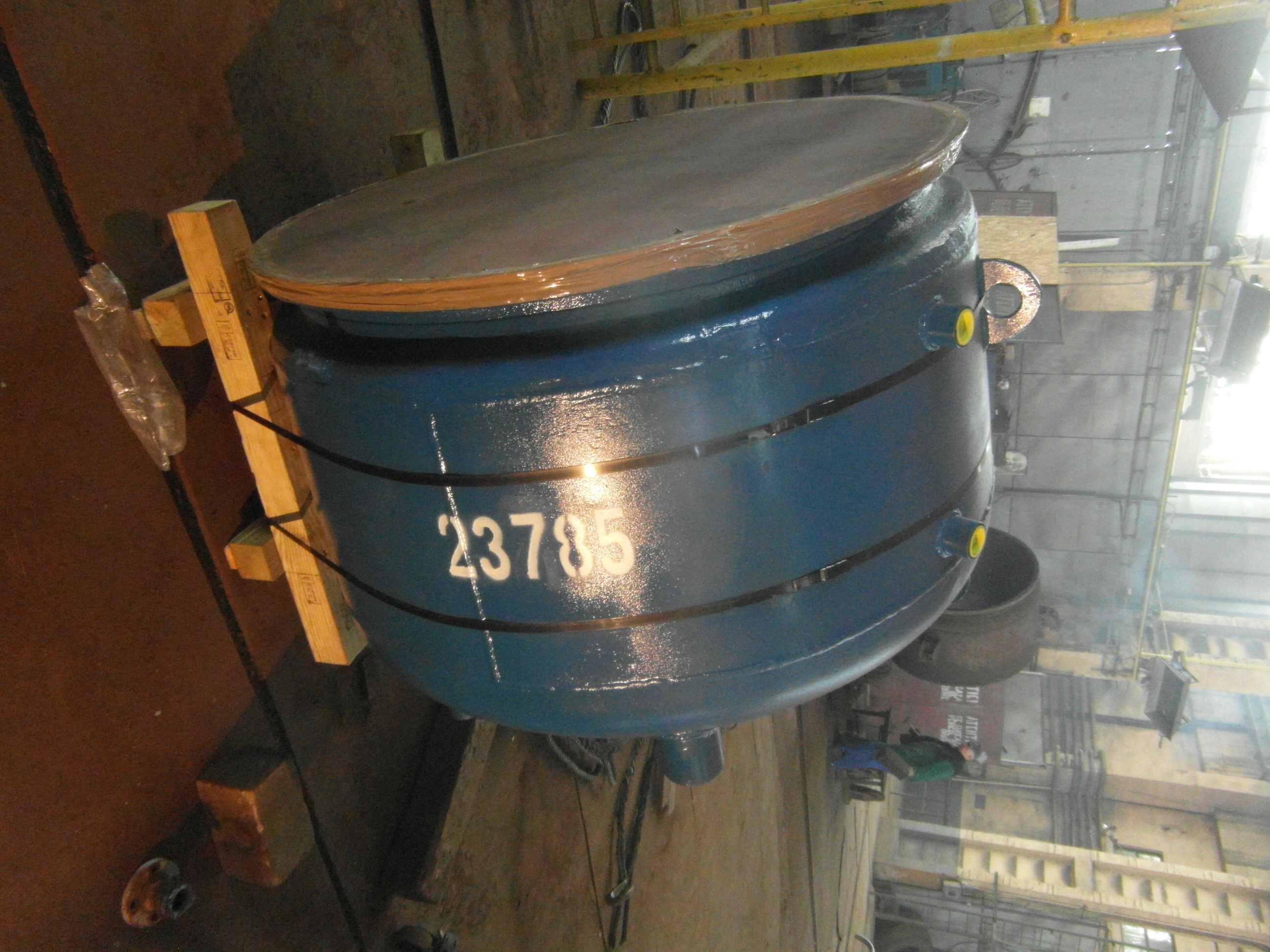

Glasslined Pfaudler EL Batch Type Body Only Reactor - IPP# 23785

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: EL

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 1,900 L (500 gallons)

Internal Pressure: 5.2 bar (75 psi)

• Base , clamp top ,75 PSI with internal vacuum.

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 176.7 °C (350 °F). Body Only: Yes. Diameter: 1,200 mm (48 in). Straight Side Length: 1,750 mm (68 in). Support Type: Lugs.

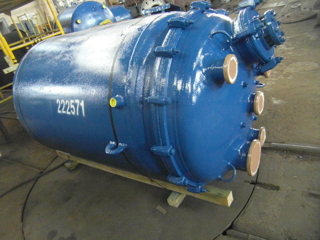

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RA

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 2,850 L (750 gallons)

Internal Pressure: 6.9 bar (100 psi)

• (4) lugs and (4) sockets for pipe legs.

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 176.7 °C (350 °F). Body Only: Yes. Diameter: 1,500 mm (60 in). Straight Side Length: 1,300 mm (52 in). Support Type: Legs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: P

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 94.6 L (25 gallons)

Internal Pressure: 0.83 bar (12 psi)

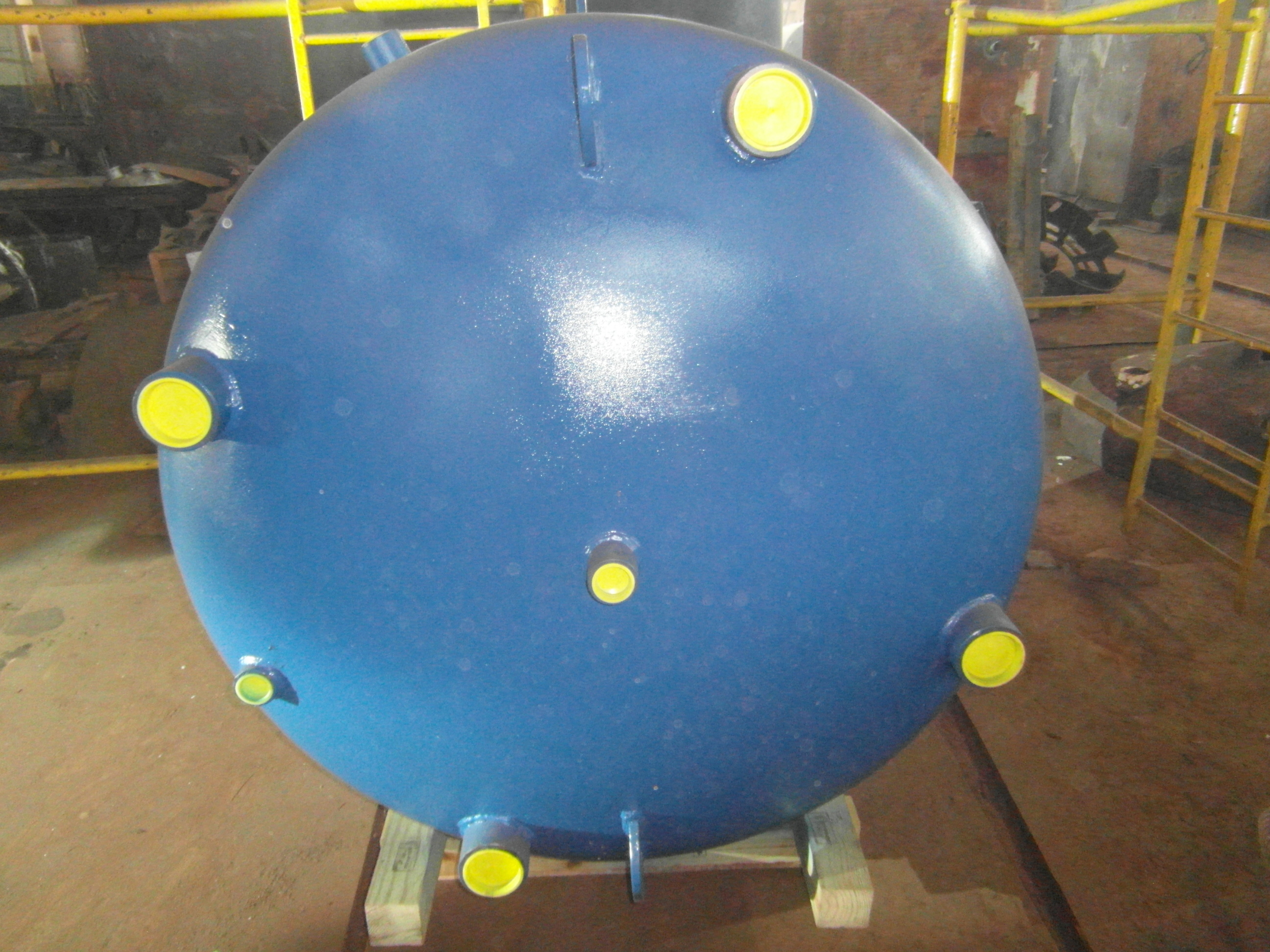

reactor bottom

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 7.9 bar (115 psi). Jacket Temperature: 232.2 °C (450 °F). Diameter: 610 mm (24 in). Straight Side Length: 406.4 mm (16 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Condition: Used

Material: Glasslined

Capacity (Design): 1,350 L (360.1 gallons)

Internal Pressure: 3 bar (43.9 psi)

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 5.7 bar (82.5 psi). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,200 mm (47 in). Straight Side Length: 1,100 mm (44 in). Support Type: Lugs.
