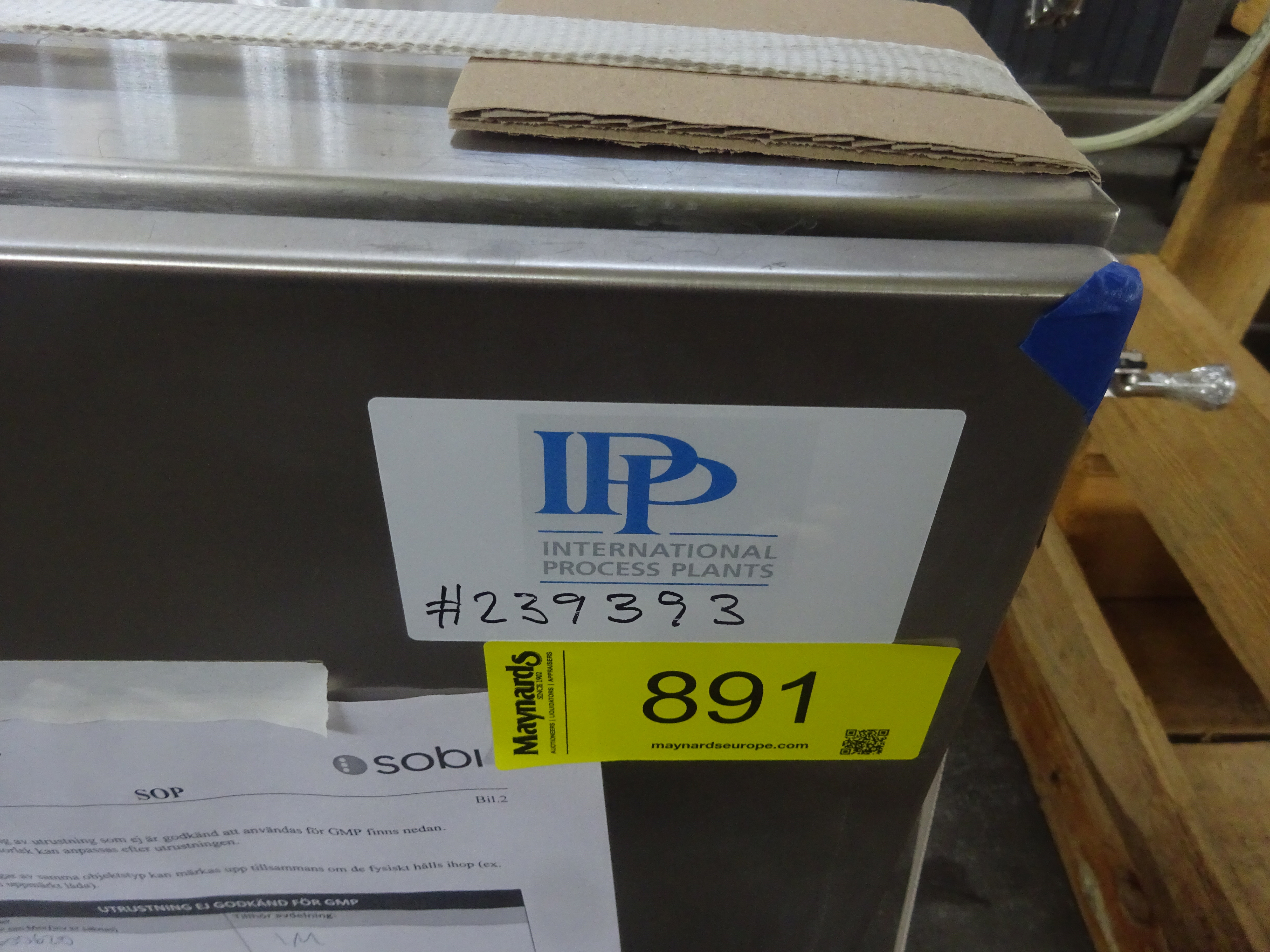

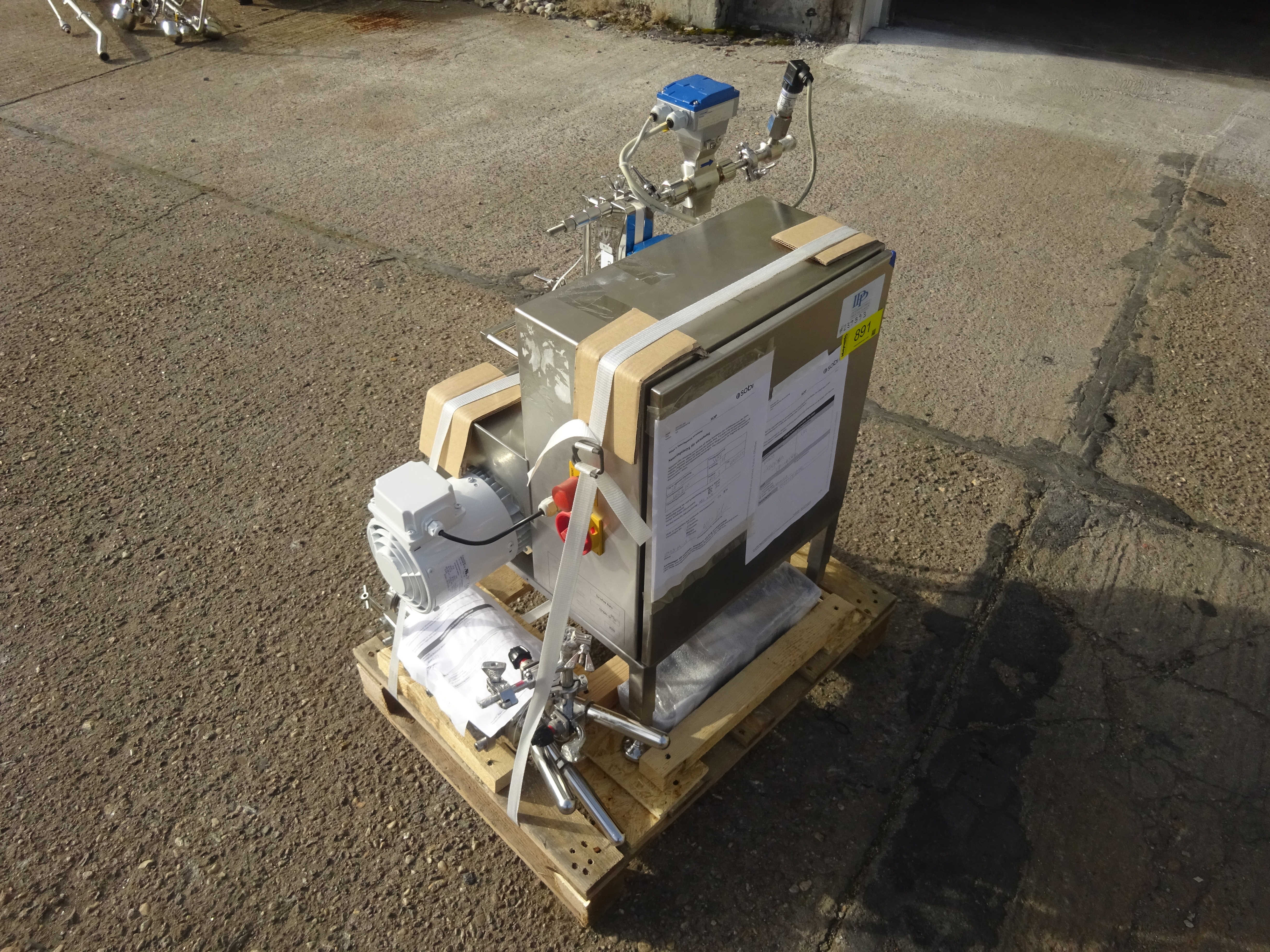

Filter - IPP# 239393

Type: Filter

Manufacturer: Sartorius

Model: Sartoflow 20 PH/A "Gandalf"

Condition: Used

Material: Stainless Steel 316

Vessel Liquid Capacity: 200 L (52.8 gallons)

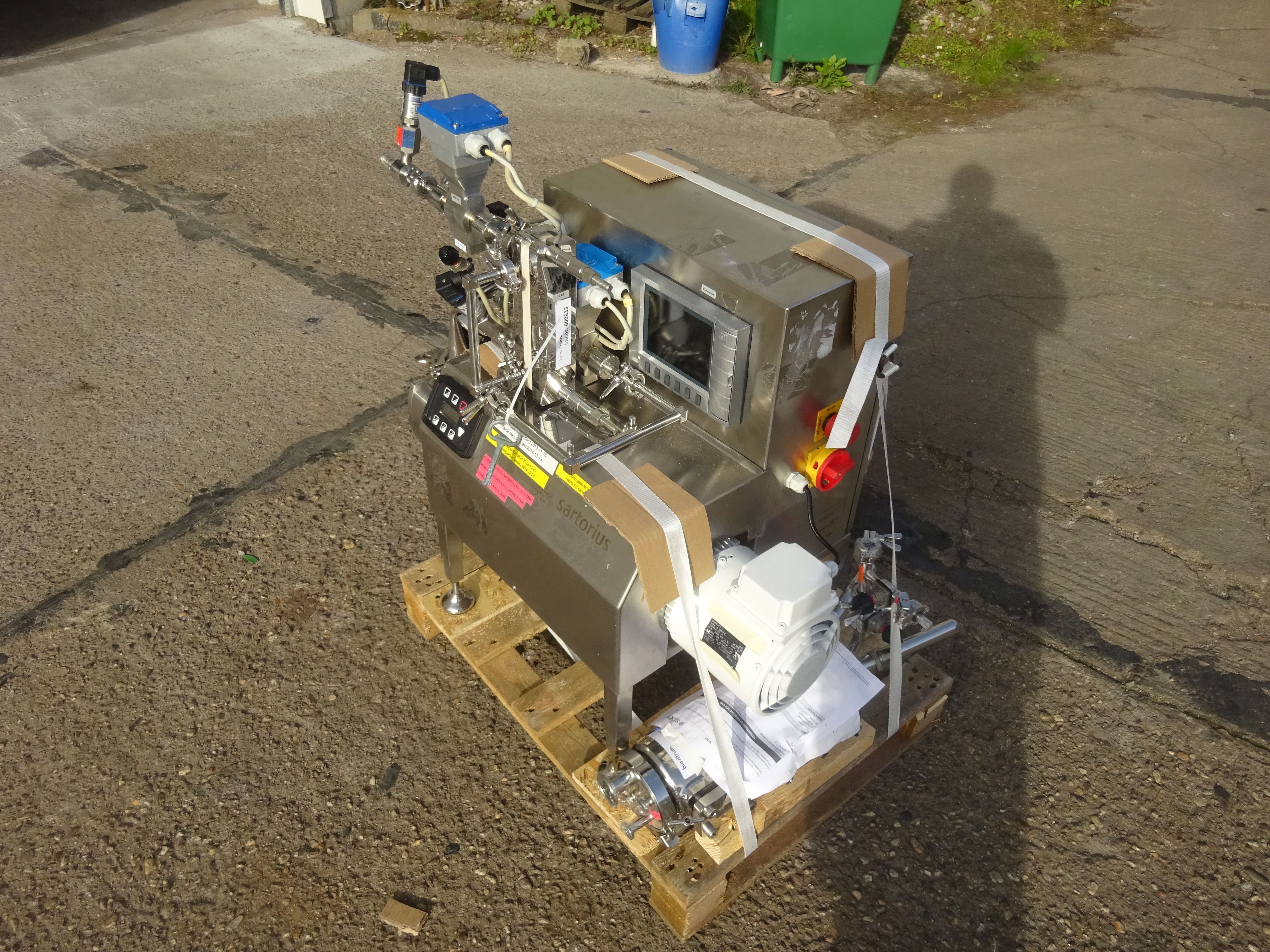

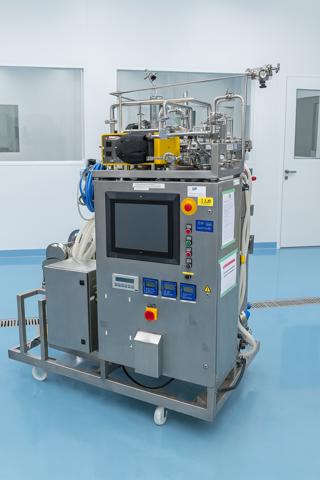

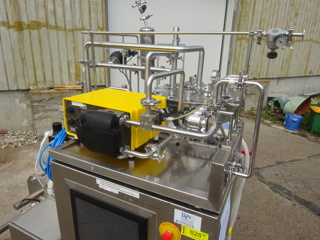

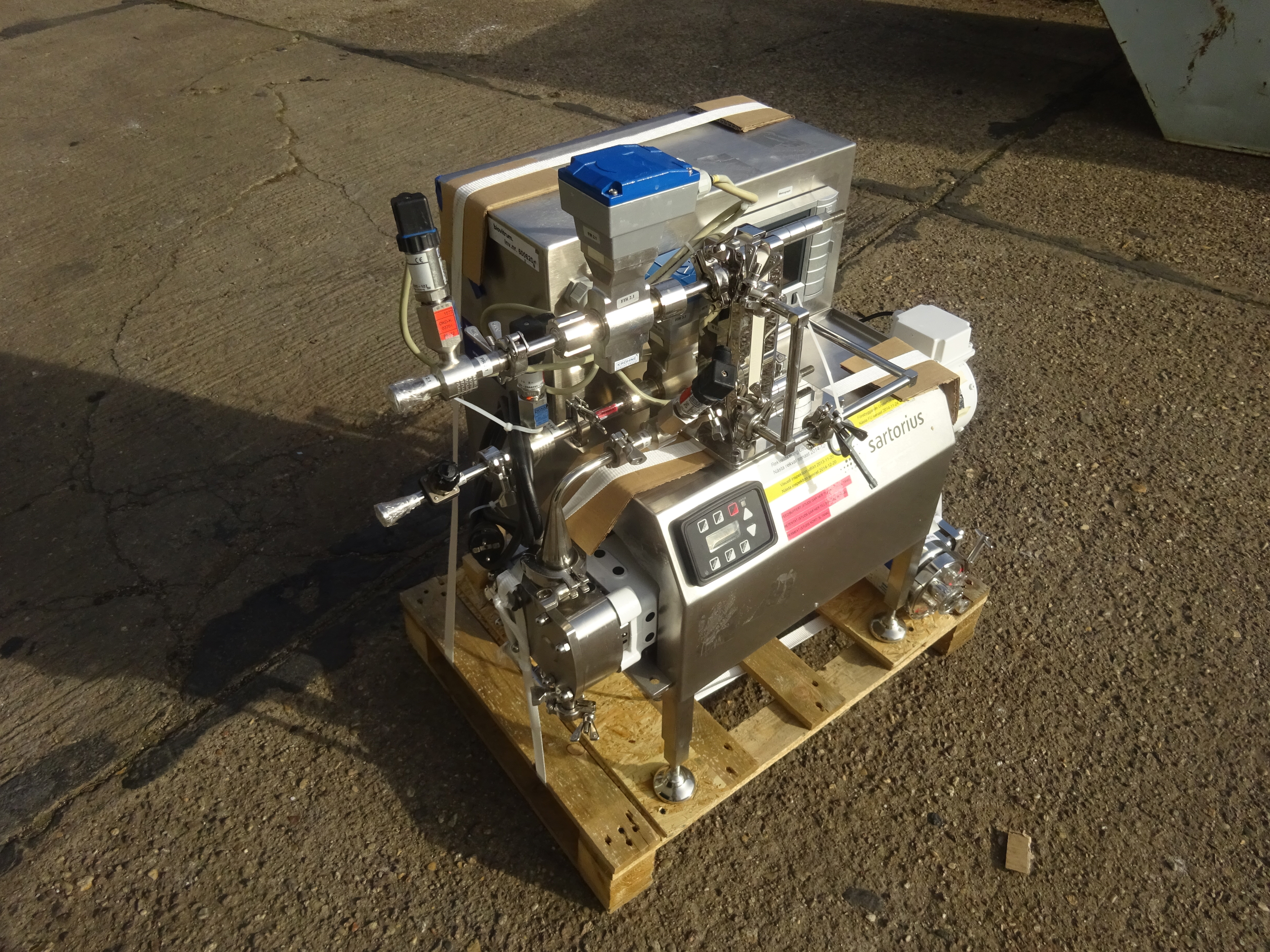

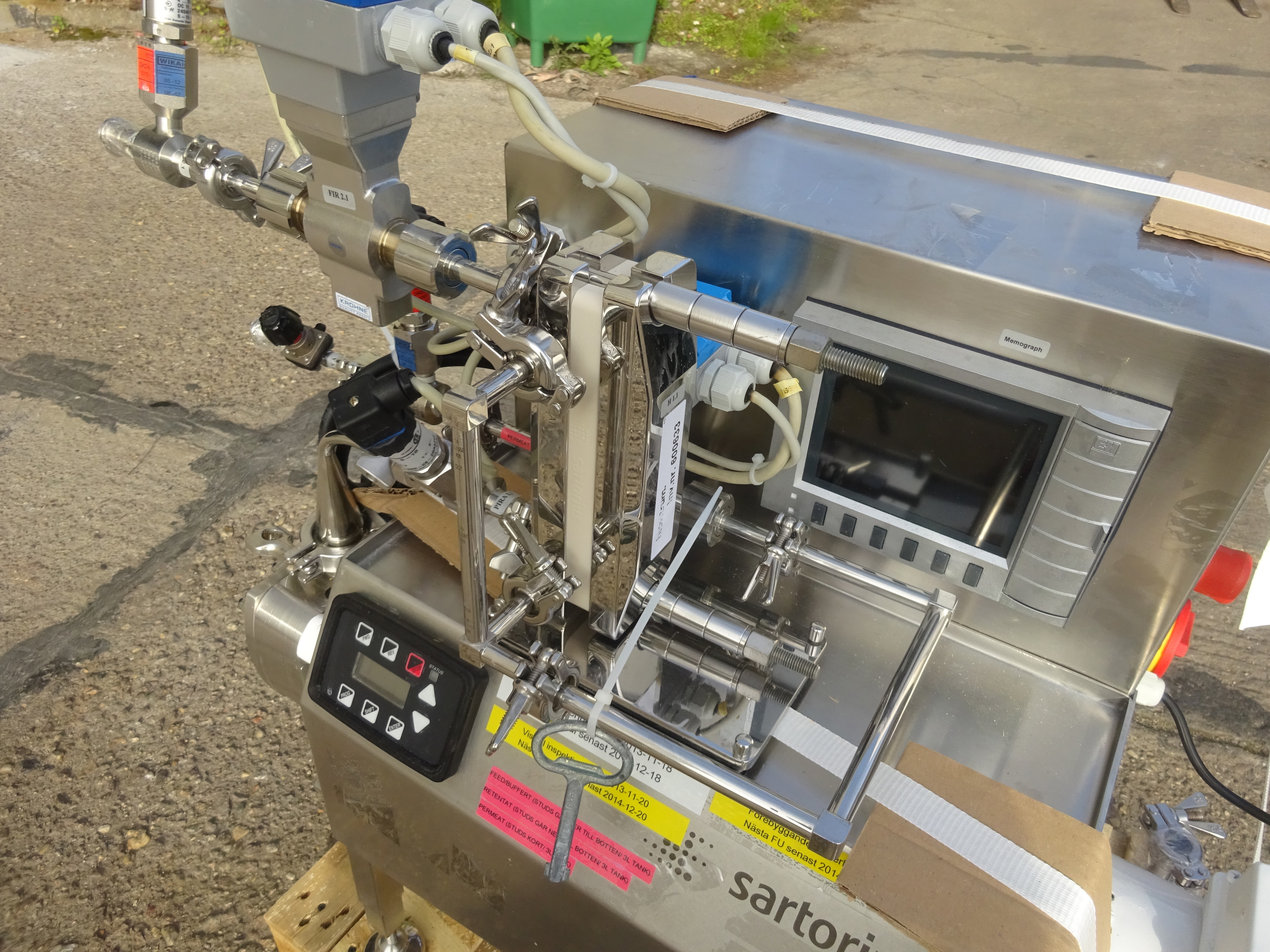

Sartoflow 20 PH/A Crossflow Filter/ Tangential Flow Filter (TFF) system

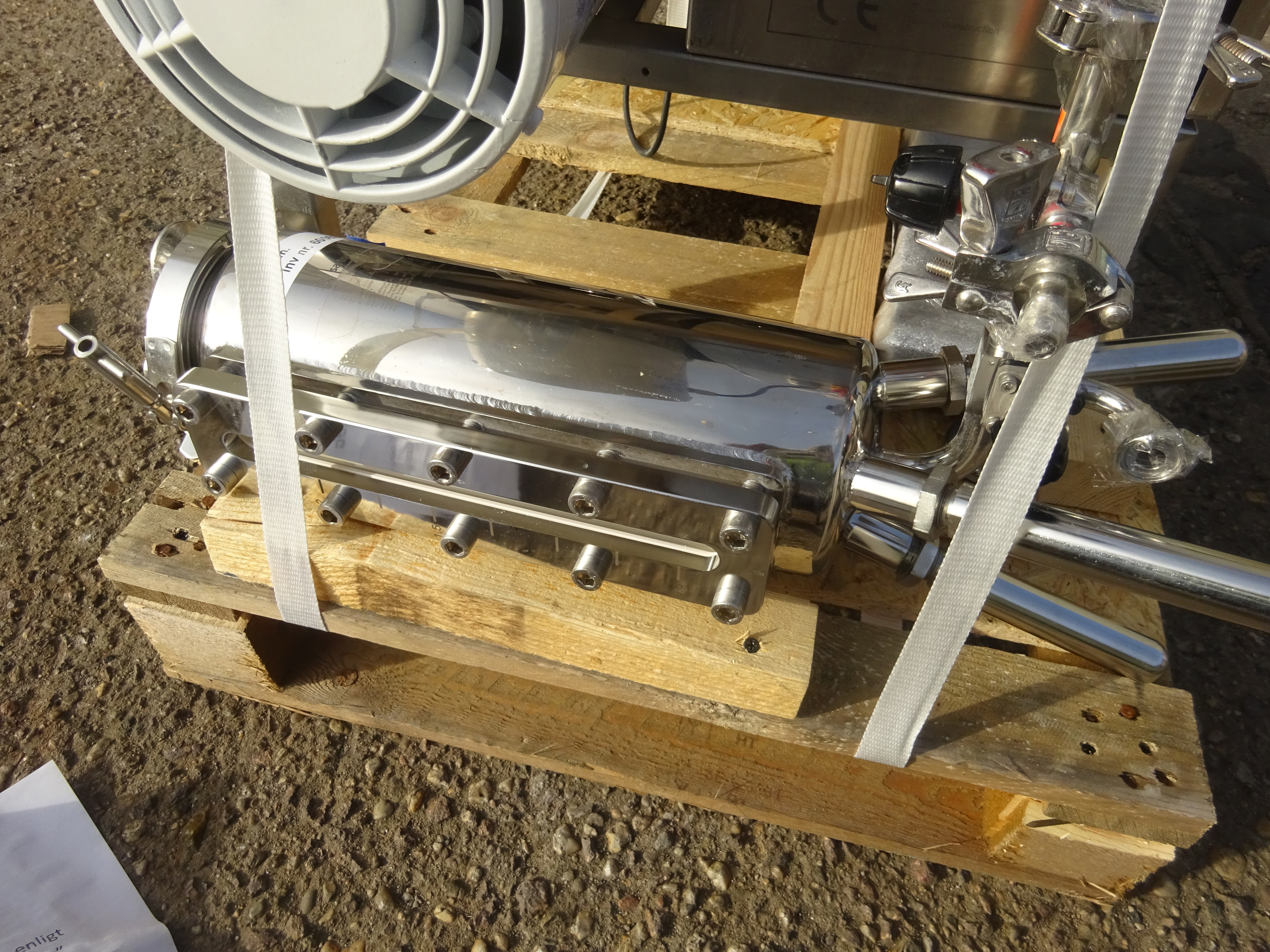

• Skid mounted system with the following components- Sartoflow 20 filter holder, can handle 20 crossflow cassettes or four Sartocubes.
• A 200 Liter vertical pressure tank, with jacket engineered by Sartorius, type 200L NOC-39600055, serial # 0406154. Vessel rated for -1 to 6 bar at 140 degrees C, jacket (15 liter) is rated for -1 to 4 bar at 140 degrees C. Vessel has a welded dish bottom and bolted flat top. Under drive is magnetic with a 1 kW drive motor.

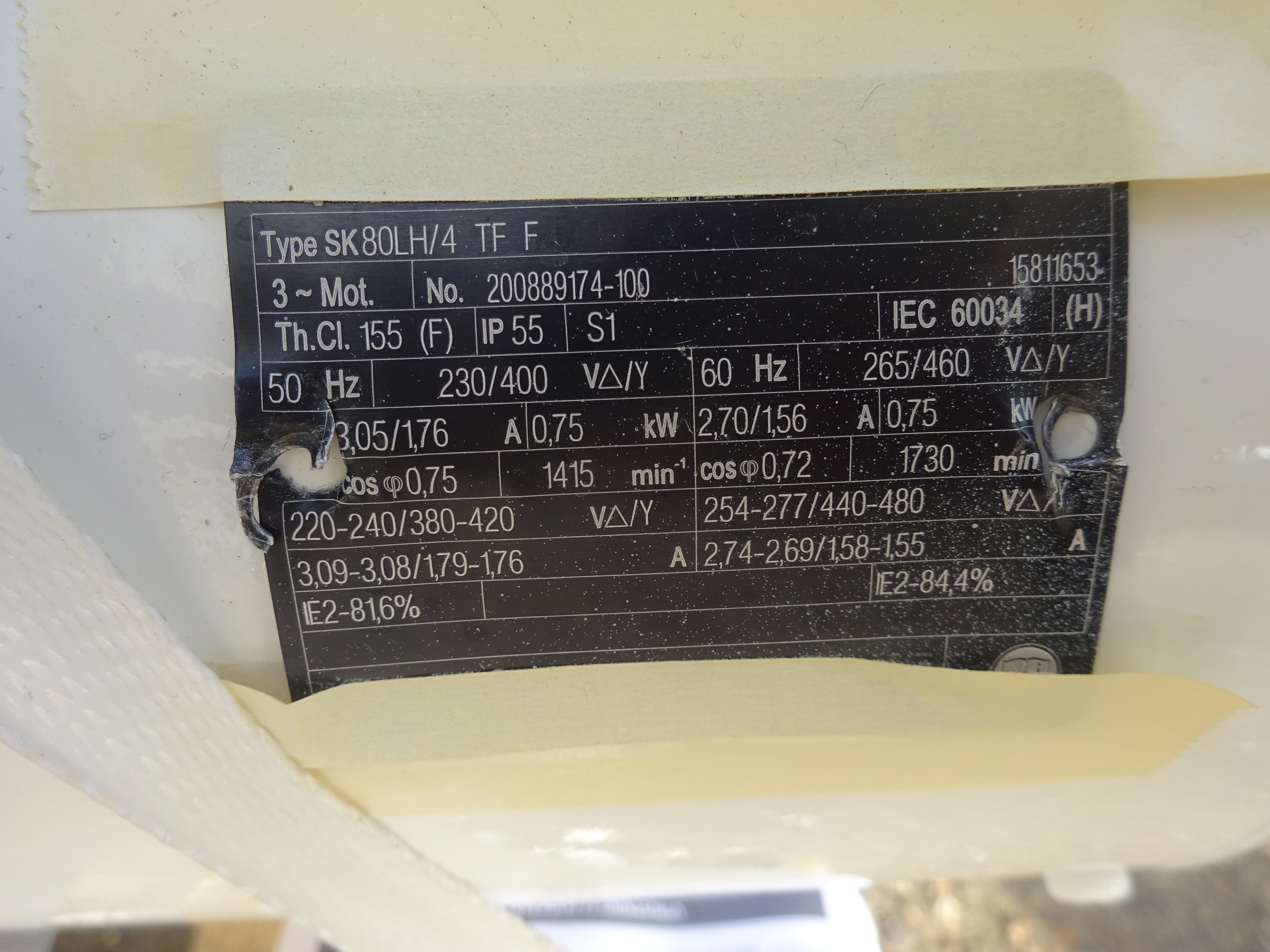

• 2" x 2" rotary lobe pump with a Nord drive serial # 30515/A/04 rated for 7 bar.
• With one Watson Marlow 624 U, auto control 165 rpm peristaltic pump. Controls in NEMA Stainless steel cabinets with an IEI HMI. Jacket and cooling is completed by a Lauda T -4600 cooling unit, 18 Liter bath capacity, process thermostat, manufactured by Lauda-Brinkman, model T4600. Temperature range -30 degrees C to 120 degrees C. Cooling capacity at 20 degrees C. 4600 W. With 2 line back lit LCD display. Temperature accuracy to plus/minus 0.05 degrees C. Skid dimensions overall 1.8 m long x 1260 mm deep x 2.5 m high. CE certified.

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Chemap

Model: A18

Condition: Unused

Material: Stainless Steel 316L

Filtration Area: 18 m² (193.8 ft²)

Diameter: 1,100 mm (43.3 in)

Funda filter with centrifugal discharge (23) 1000mm diameter filter elements mounted @ 30mm spacing Wet cake discharge

Pressure: 5 bar (72.5 psi). Temperature: 100 °C (212 °F).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Schenk

Model: ZHF-SR 5 KL-B1

Condition: Used

Material: Stainless Steel 316L

Filtration Area: 4.7 m² (50.6 ft²)

Diameter: 900 mm (35.4 in)

• jacketed centrifugal discharge pressure plate filter
• CE0036
• internal pressure -1/6 barg @ -25/185 degrees C (350 liter),
• jacket -1/6 barg @ -25/185 degrees C (72 liter),
• 0.92 square meter scavenger plate area
• cake volume 0.15 cubic meter
• approx (12) 805mm diameter filter plates
• jacket on top and bottom heads
• underdriven

(1) centrifugal pump

Orientation: Vertical. Pressure: 6 bar (87 psi). Temperature: 185 °C (365 °F). Vacuum: Yes. Jacket: Yes. Jacket Pressure: 6 bar (87 psi). Jacket Type: Standard. Jacket MOC: Stainless Steel 304. Jacket Temperature: 185 °C (365 °F). Cake Volume: 0.15 m3 (5.3 ft3). Number of Filter Elements: 12. Vessel Liquid Capacity: 350 L (92.5 gallons). Scavenging: Yes. Number of Scavenging Elements: 1.

Type: Filter

Subtype: Nutsche

Manufacturer: Cogeim

Model: FPP 800 FF

Condition: Used

Material: Stainless Steel 316L

Filtration Area: 8 m² (86.1 ft²)

Diameter: 3,200 mm (126 in)

• design pressure internal 4 bar + full vacuum @ -28.8/185 degrees C (12800 liter),
• jacket 10 bar + full vacuum @ -28.8/185 degrees C (140 liter),
• internals mirror polished to 0.4um Ra,
• fixed bed design,
• 3.2m diameter x 1.2m straight side,
• bottom discharges,
• shaft with internal bellows,
• shaft driven by 30kw 3/50/400 volt IP55 EExd IIB T4 motor via a 210:1 ratio reduction gearbox,
• shaft speed 1.43-10.7 rpm,
• mechanical seal with lubricator,
• shaft with Hydraulic raise/lower mechanism, driven by a hydraulic power pack with a 7.5kw 3/50/400 volt IP55 EExd IIB T4 motor,
• jacket on straight side and bottom filter bed,
• internal wash ring/spray bar,
• side inspection manway with cover and davit,
• design code: 97/23/CE (supported by ASME VIII DIV 1 Ed 2000),
• Note: Side Discharge Valve Not Included

(1) centrifugal pump, driven by 11/12.5kW 3/50-60/690-400/660-380/415-440 volt, 2936/2929/2942/3526 rpm EEx de IIB T4 B3 ATEX motor,

Orientation: Vertical. Pressure: 4 bar (58 psi). Temperature: 185 °C (365 °F). Vacuum: Yes. Jacket: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Temperature: 185 °C (365 °F).
