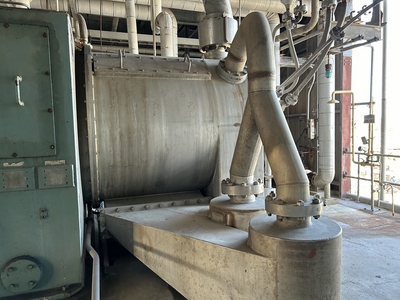

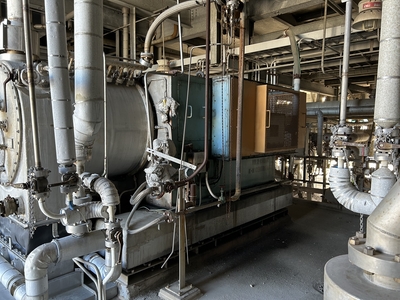

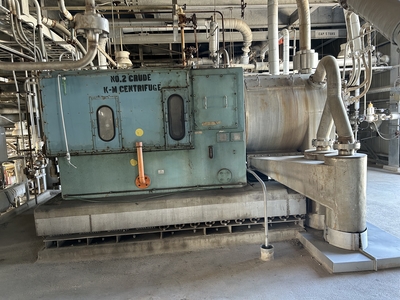

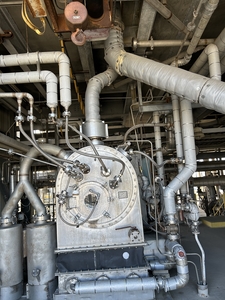

1000 mm product contact two stage pusher centrifuge Plant # 5101-0320-32 Basket diameter is 1032 mm, x 315 mm x 315 mm. (estimated inner basket of 932 mm) Main Drive Horsepower is 125, Rpm is 1800 With two stage washing Originally designed for maximum feed of 98,000 lbs./hr. of slurry, with 44,100 lbs./hr. of solids and 53,900 lbs./hr. of liquids. At 45 % wt. solids. Exit cake moisture of 6.0 wt.% or less. Vapor tight housing to +27.7” water and -13.8 “ water (vacuum) Book weight 8,900 kg. (19,621 lbs.)
Type: Centrifuge-Pusher
Manufacturer: Krauss Maffei
Model: SB 1000/2
Condition: Used
Material: Stainless Steel 304
Basket Diameter: 1,050 mm (40.6 in)
Basket Depth: 315 mm (12.4 in)
1000 mm product contact two stage pusher centrifuge Basket diameter is 1032 mm, x 315 mm x 315 mm. (estimated inner basket of 932 mm) With two stage washing Originally designed for maximum feed of 98,000 lbs./hr. of slurry, with 44,100 lbs./hr. of solids and 53,900 lbs./hr. of liquids. At 45 % wt. solids. Exit cake moisture of 6.0 wt.% or less. Vapor tight housing to +27.7” water and -13.8 “ water (vacuum) Book weight 8,900 kg. (19,621 lbs.)
Filtration Area: 2.1 m² (23 ft²). Motor Power: 93.2 kW (125 HP). Speed-RPM Maximum: 1,800. Gas Tight: Yes. Number of Basket Stages: 2.
Type: Centrifuge-Pusher
Manufacturer: Krauss Maffei
Model: SB 1000/2
Condition: Used
Material: Stainless Steel 304
Basket Diameter: 1,050 mm (40.6 in)
Basket Depth: 315 mm (12.4 in)
1000 mm product contact two stage pusher centrifuge Plant # 5101-0320-31 Basket diameter is 1032 mm, x 315 mm x 315 mm (estimated inner basket of 932 mm) Main Drive Horsepower is 125, Rpm is 1800 With two stage washing Originally designed for maximum feed of 98,000 lbs./hr. of slurry, with 44,100 lbs./hr. of solids and 53,900 lbs./hr. of liquids. At 45 % wt. solids. Exit cake moisture of 6.0 wt.% or less. Vapor tight housing to +27.7” water and -13.8 “ water (vacuum) Book weight 8,900 kg. (19,621 lbs.)
Filtration Area: 2.1 m² (23 ft²). Motor Power: 93.2 kW (125 HP). Speed-RPM Maximum: 1,800. Gas Tight: Yes. Number of Basket Stages: 2.
Type: Centrifuge-Pusher
Manufacturer: Krauss Maffei
Model: SB 1000/2
Condition: Used
Material: Stainless Steel 304
Basket Diameter: 1,050 mm (40.6 in)
Basket Depth: 315 mm (12.4 in)
1000 mmproduct contact two stage pusher centrifuge Plant # 5101-0620-31Basket diameter is 1032 mm, x 315 mm x 315 mm. (estimated inner basket of 932 mm)Main Drive Horsepower is 125, Rpm is 1800With two stage washing Originally designed for maximum feed of 98,000 lbs./hr. of slurry, with 44,100 lbs./hr. of solids and 53,900 lbs./hr. of liquids. At 45 % wt. solids. Exit cake moisture of 6.0 wt.% or less. Vapor tight housing to +27.7” water and -13.8 “ water (vacuum)Book weight 8,900 kg. (19,621 lbs.)
Filtration Area: 2.1 m² (23 ft²). Motor Power: 93.2 kW (125 HP). Speed-RPM Maximum: 1,800. Gas Tight: Yes. Number of Basket Stages: 2.
Type: Centrifuge-Pusher
Manufacturer: Krauss Maffei
Model: SB 1000/2
Condition: Used
Material: Stainless Steel 304
Basket Diameter: 1,050 mm (40.6 in)
Basket Depth: 315 mm (12.4 in)
1000 mm product contact two stage pusher centrifuge Plant # 5101-0620-32 Basket diameter is 1032 mm, x 315 mm x 315 mm. (estimated inner basket of 932 mm) With two stage washing Originally designed for maximum feed of 98,000 lbs./hr. of slurry, with 44,100 lbs./hr. of solids and 53,900 lbs./hr. of liquids. At 45 % wt. solids. Exit cake moisture of 6.0 wt.% or less. Vapor tight housing to +27.7” water and -13.8 “ water (vacuum) Book weight 8,900 kg. (19,621 lbs.)
Filtration Area: 2.1 m² (23 ft²). Motor Power: 93.2 kW (125 HP). Speed-RPM Maximum: 1,800. Gas Tight: Yes. Number of Basket Stages: 2.
