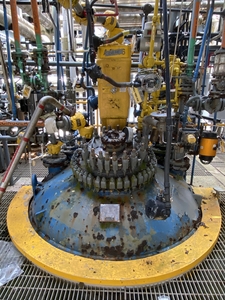

Name: Glasslined DeDietrich SA Batch-Type Agitated Reactor
Brand: DeDietrich
SKU: 241073

Overview

Type:

Reactor

Subtype:

Batch-Type Agitated

Manufacturer:

DeDietrich

Model:

Condition:

Used

Material:

Glasslined

Capacity (Design):

7,550 L (2,000 gallons)

Pressure Vessel

Internal Pressure:

6.9 bar (100 psi)

Internal Full Vacuum:

Yes

Internal Temperature:

260 °C (500 °F)

Jacket/Internal Coil

Jacket Pressure:

6.2 bar (90 psi)

Jacket Temperature:

260 °C (500 °F)

Dimensions

Orientation:

Vertical

Diameter:

1,950 mm (76.9 in)

Straight Side Length:

2,150 mm (84 in)

Agitation System

Agitation:

Yes

Agitator Details:

PTE 08 Drive with estimated 15 HP EXP motor, and stuffing box for seal. 3 BRC agitator

Motor Power:

11.2 kW (15 HP)

Baffle Type:

Finger Baffle

Baffle Details:

3 finger up baffle with tantalum tip

Heads

Top Head Type:

Dish

Bottom Head Type:

Dish

Other Specifications

Manway:

Yes

Support Type:

Legs

Inlets & Outlets

Nozzle Schedule:

30" main cover with 14" x 18" man way, and pro ring and davit arm. Main cover has two 2" nozzles and one 4" nozzle. Man way cover has two 4" raised nozzles. Sight glass assembly. Two 8" nozzles, two 6" nozzles, three 4" nozzles, one 4" center bottom nozzle

Additional Info:

Conventional jacket head thickness15/16" jacket thickness=35/64"

Glasslined DeDietrich SA Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: SA

Condition: Needs Reglass

Material: Glasslined

Capacity (Design): 7,550 L (2,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

Conventional jacket head thickness15/16" jacket thickness=35/64"

Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 260 °C (500 °F). Orientation: Vertical. Agitation: Yes. Diameter: 1,950 mm (76.9 in). Straight Side Length: 2,150 mm (84 in). Support Type: Legs.

Glasslined DeDietrich SA Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: SA

Condition: Used

Material: Glasslined

Capacity (Design): 7,550 L (2,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

reactor assembly. Vessel rated 100/FV @ 500 degrees F head thickness15/16", jacket thickness=35/64".
PTE 08 Drive with estimated 15 HP EXP motor, and stuffing box for seal 30" main cover with 14" x 18" man way, and pro ring and spring assist.. Man way has one 4" nozzle. Sight glass assembly

Glasslined DeDietrich SA Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: SA

Condition: Used

Material: Glasslined

Capacity (Design): 7,550 L (2,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

reactor assembly Vessel rated 100/FV @ 500 degrees F. Conventional jacket rated for FV/90psi @ 500 degrees F head thickness15/16" jacket thickness=35/64" PTE 08 Drive with estimated 15 HP EXP motor, and stuffing box for seal

Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 260 °C (500 °F). Orientation: Vertical. Diameter: 1,950 mm (76.9 in). Straight Side Length: 2,150 mm (84 in). Support Type: Legs.
