Type: Centrifuge-Inverting Filter
Manufacturer: Heinkel
Model: HF800.1
Condition: Used
Material: Stainless Steel 316Ti
Basket Diameter: 800 mm (31.5 in)
Filtration Area: 0.9 m² (9.69 ft²)
Speed-RPM Maximum: 1,600. G Force: 1,150. Load Weight: 149 kg (328 lb). Main Drive Motor Power: 40 kW (53.6 HP). Washing: Yes.
Type: Centrifuge-Inverting Filter
Manufacturer: Heinkel
Model: HF-600.1
Condition: Used
Material: Hastelloy - C22
Basket Diameter: 600 mm (23.6 in)
Basket Depth: 220 mm (8.66 in)
explosion class E Exde II CT4, non-wetted parts 316L stainless steel (1.4571)
Teflon seals
inverting mechanism driven by 5.5 kw, 3/50/500 volt, 1500 rpm E Exd II CT4 motor,
feed pipe with 1.5kw, 3/50/500 volt, 1500 rpm E Exd II CT4 motor,
hinged front door,
CE and TUV certified
Filtration Area: 0.45 m² (4.84 ft²). Speed-RPM Maximum: 1,940. G Force: 1,250. Load Weight: 65 kg (143 lb). Main Drive Motor Power: 22 kW (29.5 HP). Controls: Yes. Washing: Yes.
Type: Centrifuge-Inverting Filter
Manufacturer: Heinkel
Model: HF800
Condition: Used
Material: Hastelloy - C22
Basket Diameter: 800 mm (31.5 in)
Basket Depth: 340 mm (13.4 in)

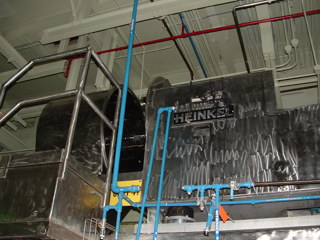

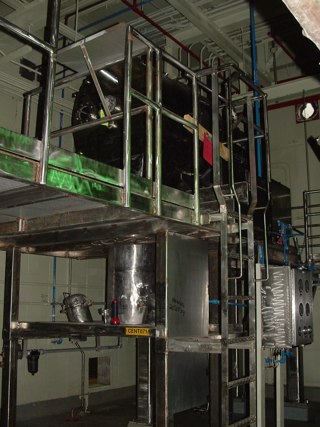

inverting filter centrifuge
Rated 1150 RPM
Solid Haynes Hastelloy C22 for all process parts
316SS for balance of exterior parts
Clean in place nozzles for solids and filtrate housings
Polished to 180 grit and electropolished solids and filtrate housings
Electric Rotational Drive, Hydraulic Axial System, Maximum Speed 1600 rpm and G force of 1150 G's
Bowl Diameter 800 mm or 32 ", Maximum Fill Weight 149 kg
Maximum Fill Quantity 119 liters

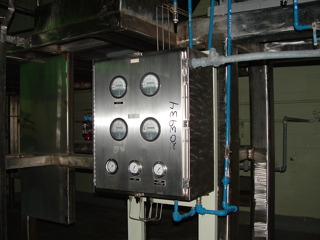

Nitrogen Purge Panel
Designed for Axial Hydraulic Skid
Built in 1990 for pharmaceutical industry
Filtration Area: 0.9 m² (9.69 ft²). Speed-RPM Maximum: 1,600. G Force: 1,150. Load Weight: 149 kg (328 lb). Washing: Yes.
Type: Centrifuge-Inverting Filter
Manufacturer: Heinkel
Model: HF800
Condition: Refurbished/Rebuilt
Material: Hastelloy - C22
Basket Diameter: 800 mm (31.5 in)
Basket Depth: 340 mm (13.4 in)

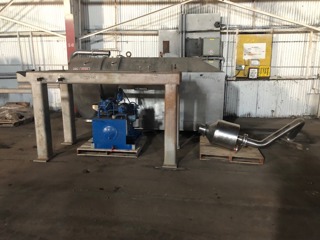

new bearings, seals, belts, rebuilt hydraulic unit, and run in by the OEM
1600 RPM Maximum
Solid Haynes Hastelloy C 22
for all process parts,
316SS for balance of exterior parts
Clean in place nozzles for solids and filtrate housings
Polished to 180 grit and electro polished solids and filtrate housings.
Electric Rotational Drive
hydraulic Axial System
Bowl Diameter 800 mm or 32 ",
Maximum Fill Weight 149 kg
Maximum Fill Quantity 119 liters
Explosion proof for Class I Division I C + D Motor.
One HF 800 unit is equivalent to
approximately one to two 48 basket units
in capacity estimated only
Usually 100-200 kgs per hour wet product estimated only.
Filtration Area: 0.9 m² (9.69 ft²). Speed-RPM Maximum: 1,600. G Force: 1,138. Load Weight: 149 kg (328 lb). Washing: Yes.
