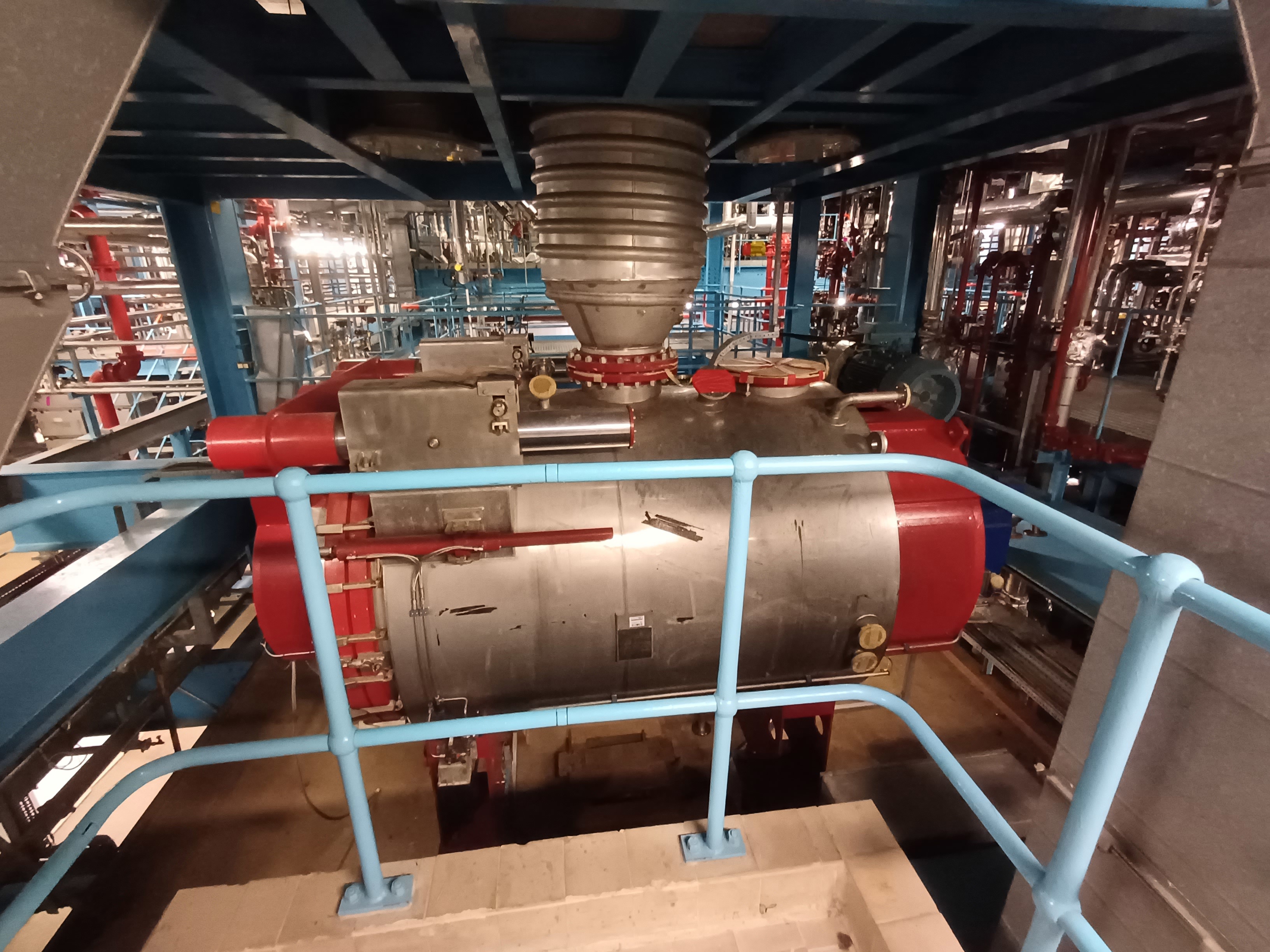

Unused Stainless Steel 316L Cogeim Steridry EP 8000 Dryer-Rotary Vacuum - IPP# 242449

Type: Dryer-Rotary Vacuum

Manufacturer: Cogeim

Model: Steridry EP 8000

Condition: Used

Material: Stainless Steel 316L

Capacity Design: 8 m3 (282.5 ft3)

Capacity Working: 5.5 m3 (194.2 ft3)

classification ATEX Ex II 1GD 11B c Tx, Ex II 2G IIB c T x, CE 1370, design pressure internal -1/4 bar @ -25/200 degrees C (7900 liter), jacket -1/6 bar @ -25/200 degrees C (400 liter), shaft -1/6 bar @ -25/200 degrees C (270 liter), shaft rotates anti-clockwise for drying, clockwise for discharging, shaft cored for heating, shaft driven by 75kw 3/50/400 volt IP65 ATEX II2G/D EEx de IIB T4 motor via a reduction gearbox, shaft speed 1.8-9 rpm, Burgmann gas type mechanical seal, 304L stainless steel half pipe coil jacket on straight side and flat ends, 1.9m diameter x 2.8m straight side, center bottom discharge, 1-clamped end with manual operated hydraulic ram for quick cleaning, design code: ASME VIII DIV 1 Ed 2004 + add.05 C.C.2523 + PED 97/23/CE

(1) 72 m3/hr @ 33.8m head 316 stainless steel centrifugal pump, manufactured by Flowserve, serial #543808-002, model MARKS3, size 2K4X3-13, EExd IIB T4, 1476 rpm, NPSH 1m, 3.2 bar differential pressure, design pressure 27 bar @ 370 degrees C, driven by 18.5kw, 3/50/400 volt 1500 rpm EExd IIB T4 motor mechanical seal, openings suction 100mm, discharge 75mm, mounted on a baseplate,

Diameter: 1,900 mm (74.8 in). Length: 2,800 mm (110.2 in). Temperature: 200 °C (392 °F). Pressure: 4 bar (58 psi). Rated for Vacuum: Yes. Heat Transfer Surface Area: 16.5 m² (178 ft²). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Agitation: Yes. Agitation Seal Type: Mechanical with Gas. Dust Collection: Yes. Jacket Material: Stainless Steel 304L. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Jacket Type: Half Pipe/Limpet.

Type: Dryer-Rotary Vacuum

Manufacturer: Cogeim

Model: Steridry EP 8000

Condition: Used

Material: Stainless Steel 316L

Capacity Design: 8 m3 (282.5 ft3)

Capacity Working: 5.5 m3 (194.2 ft3)

design pressure internal 4 bar + full vacuum @ -29/185 degrees C (7900 liter), jacket 6 bar + full vacuum @ -29/185 degrees C (400 liter), shaft 6 bar + full vacuum @ -29/185 degrees C (270 liter), shaft 6 bar + full vacuum @ -29/185 degrees C (270 liter), shaft rotates anti-clockwise for drying, clockwise for discharging, shaft driven by 55/28kw 3/50/400 volt IP55 EEx de IIB T4 ATEX motor via reduction gearbox, Burgmann mechanical seal with lubricator, shaft cored for heating with rotary union joint, 304L stainless steel jacket on straight side and flat ends,1.9m diameter x 2.8m straight side, center bottom discharge, 1-clamped end with manual operated hydraulic ram for quick cleaning, center bottom discharge with valve, design code: ASME VIII DIV 1 Ed 2004 + add.05 C.C.2523 + PED 97/23/CE,

dryer with (1) 600 liter 316L stainless steel vertical jacketed pressure condensate receiver, manufactured by Sinclair Stainless Fabrications Ltd, asset #12183, design pressure internal 6 bar + full vacuum @ -28/185 degrees C, jacket 6 bar @ -28/185 degrees C, weld dished top and bottom, 900mm inside diameter x 700mm straight side, openings top: 1-150mm, 2-50mm, side jacket: 1-25mm, bottom: 1-50mm, 1-25mm (jacket), mounted on legs(, 1) 150 liter 316L stainless steel vertical pressure tank, manufactured by Sinclair Stainless Fabrications Ltd, job #1340901, asset #12052, design pressure 6 barg + full vacuum @ 185 degrees C (160 liter), weld dished top and bottom, 440mm diameter x 900mm straight side, openings top: 1-50mm, straight side: 4-80mm, bottom: 1-80mm, mounted on lugs, design code: PD5500 2000 module G gas group 2CE 0878

Diameter: 1,900 mm (74.8 in). Length: 2,800 mm (110.2 in). Temperature: 185 °C (365 °F). Pressure: 4 bar (58 psi). Rated for Vacuum: Yes. Heat Transfer Surface Area: 16.5 m² (178 ft²). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Operational Mode: Batch. Agitation: Yes. Agitation Seal Type: Mechanical. Dust Collection: Yes. Jacket Material: Stainless Steel 304L. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 185 °C (365 °F). Jacket Type: Half Pipe/Limpet.

Type: Dryer-Rotary Vacuum

Manufacturer: Cogeim

Model: Steridry EP 8000

Condition: Used

Material: Stainless Steel 316L

Capacity Design: 8 m3 (282.5 ft3)

Capacity Working: 5.5 m3 (194.2 ft3)

design pressure internal 4 bar + full vacuum @ -29/185 degrees C (7900 liter), jacket 6 bar + full vacuum @ -29/185 degrees C (400 liter), internals polished to 0.4um Ra, shaft rotates anti-clockwise for drying, clockwise for discharging, shaft cored for heating with rotary union, shaft driven by 90/105kw 3/50-60/690-400/660-380/415-440 volt, 1483/1481/1486/1780 rpm IP55 EEx de IIB T4 ATEX motor via reduction gearbox, Burgmann mechanical seal with lubricator, 304L stainless steel half pipe coil jacket on straight side and flat ends, center bottom discharge, 1-clamped end with manual operated hydraulic ram for quick cleaning, center bottom discharge with valve, design code: ASME VIII DIV 1 Ed 2004 + add.05 C.C.2523 + PED 97/23/CE,

dryer with (1) 600 liter 316L stainless steel vertical jacketed pressure condensate receiver, manufactured by Sinclair Stainless Fabrications Ltd, asset #12132, design pressure internal 6 bar + full vacuum @ -28/185 degrees C, jacket 6 bar @ -28/185 degrees C, weld dished top and bottom, 900mm inside diameter x 700mm straight side, openings top: 1-150mm, 2-50mm, side jacket: 1-25mm, bottom: 1-50mm, 1-25mm (jacket), mounted on legs(1) centrifugal pump,

(1) 150 liter 316L stainless steel vertical pressure tank, manufactured by Sinclair Stainless Fabrications Ltd, job #1340901, asset #12051, design pressure 6 barg + full vacuum @ 185 degrees C (160 liter), weld dished top and bottom, 440mm diameter x 900mm straight side, openings top: 1-50mm, straight side: 4-80mm, bottom: 1-80mm, mounted on lugs, design code: PD5500 2000 module G gas group 2CE 0878,

(1) centrifugal pump

Diameter: 1,900 mm (74.8 in). Length: 2,800 mm (110.2 in). Temperature: 185 °C (365 °F). Pressure: 4 bar (58 psi). Rated for Vacuum: Yes. Heat Transfer Surface Area: 16.5 m² (178 ft²). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Agitation: Yes. Agitation Seal Type: Mechanical. Dust Collection: Yes. Jacket Material: Stainless Steel 304L. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 185 °C (365 °F). Jacket Type: Half Pipe/Limpet.

Type: Dryer-Rotary Vacuum

Manufacturer: Cogeim

Model: Steridry EP 8000

Condition: Unused

Material: Stainless Steel 316L

Capacity Design: 8 m3 (282.5 ft3)

Capacity Working: 5.5 m3 (194.2 ft3)

design pressure internal -1/4 bar @ -29/185 degrees C (7900 liter), jacket -1/6 bar @ -29/185 degrees C (400 + 50 liter), shaft -1/6 bar @ -29/185 degrees C (270 liter), shaft driven by approx 75kw 3/50/400 volt, ATEX II2G/D EEx de IIB T4 motor via 88.2:1 ratio reduction gearbox, shaft speed 1.8-9 rpm, Burgmann mechanical seal with lubricator, shaft rotates anti-clockwise for drying, clockwise for discharging, 1-clamped flat end with hydraulic rams for quick cleaning (manual hand pump), 304L stainless steel half pipe coil jacket on straight side, center bottom discharge, all with design code: ASME VIII DIV 1 ED.2004 + add.05 C.C.2523 + PED 97/23/CE

Diameter: 1,900 mm (74.8 in). Length: 2,800 mm (110.2 in). Height: 1 mm (0.04 in). Temperature: 185 °C (365 °F). Pressure: 4 bar (58 psi). Rated for Vacuum: Yes. Heat Transfer Surface Area: 16.5 m² (178 ft²). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Agitation: Yes. Agitation Seal Type: Mechanical. Dust Collection: Yes. Jacket Material: Stainless Steel 304L. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 185 °C (365 °F). Jacket Type: Half Pipe/Limpet.
