Stainless Steel 316 RO and Ultra RO Filter - IPP# 242517

  • Stainless Steel 316 RO and Ultra RO Filter - IPP# 242517 Stainless Steel 316 RO and Ultra RO Filter - IPP# 242517
  • Stainless Steel 316 RO and Ultra RO Filter - IPP# 242517 Stainless Steel 316 RO and Ultra RO Filter - IPP# 242517
  • Stainless Steel 316 RO and Ultra RO Filter - IPP# 242517
  • Stainless Steel 316 RO and Ultra RO Filter - IPP# 242517
Overview
Filter
RO and Ultra RO
Used
Stainless Steel 316L
Other Specifications
Yes
Reverse Osmosis
Skid
all mounted on a carbon steel skid
Additional Information

consisting of

  • (4) reverse osmosis cells,
  • (1) stainless steel combitube WM 3001 OF pump, manufactured by Sterling Fluid Systems (UK) Ltd, type CWHE 3060 AC NO1 DC 1 32, serial #268681, 100 degrees Max, 311 mbar head/suction, 4280 rpm, driven by 15kW, 3/50/400 volt, 2920 rpm EEx de IIB T4 motor, mounted on a baseplate,
  • (1) 284 liter 316 stainless steel vertical pressure receiver, manufactured by Robert Sanderson & Sons Ltd, serial #11400, design pressure 3.5 barg + full vacuum @ 150 degrees C, weld dished top and bottom, mounted on lugs,
  • (1) 316 stainless steel tube, head and shell horizontal heat exchanger, manufactured by Graham Hart (Process Technology) Ltd, serial #01-2680, design pressure tube side 10 bar + full vacuum @ 1-5 degrees C, shell 10 barg @ 105 degrees C, 2-stainless steel bonnet heads, mounted on feet,
  • system mounted on a carbon steel skid,

Similar Equipment

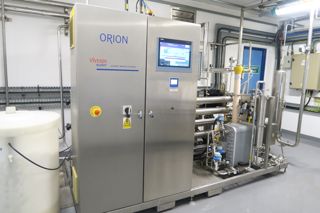

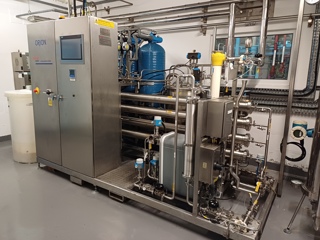

Stainless Steel 316L (Veolia) Vivendi Water Orion 2000 plus RO and Ultra RO Filter

Type: Filter

Subtype: RO and Ultra RO

Manufacturer: Veolia Water Solutions & Technology

Model: Orion 2000 plus

Condition: Used

Material: Stainless Steel 316L

  • 2000 kg/hr reverse Osmosis water purification system
  • feed water pressure 4-6 barg,
  • pneumatic pressure 5-6 barg,
  • electric 400 volt, 3phase+E, 50Hz, 38 Amp,
  • system includes

(4) 316L stainless steel/EPDM reverse osmosis cells, manufactured by Sommer + Strassburger, fabrik #222802.10.1, pressure 40 bar @ 80 degrees C (19 liter), (1) 5m3/hr @ 248.1/355.8m head 316L stainless steel inline centrifugal pump, manufactured by Grundfos, type CRNE3-23EX-P-G1-E-HQQE, serial #A98105920P11603, 6kW, 4500 rpm, 50/120 bar pressure, driven by 6kW, 3/50-60/380/480 volt, IP55 motor, (1) electric heater,

(1) UV filter,

(2) water softeners,

(1) 450 liter (total) 316L stainless steel vertical receiver, manufactured by Robert Sanderson & Sons Ltd, serial #10532, design pressure 3 barg + full vacuum @ 200 degrees C, asset #11476, weld dished top and bottom, 762mm diameter, openings top: 1-150mm, 4-50mm, 1-40mm, straight side: 1-80mm, bottom: 1-50mm,

built on control panel
