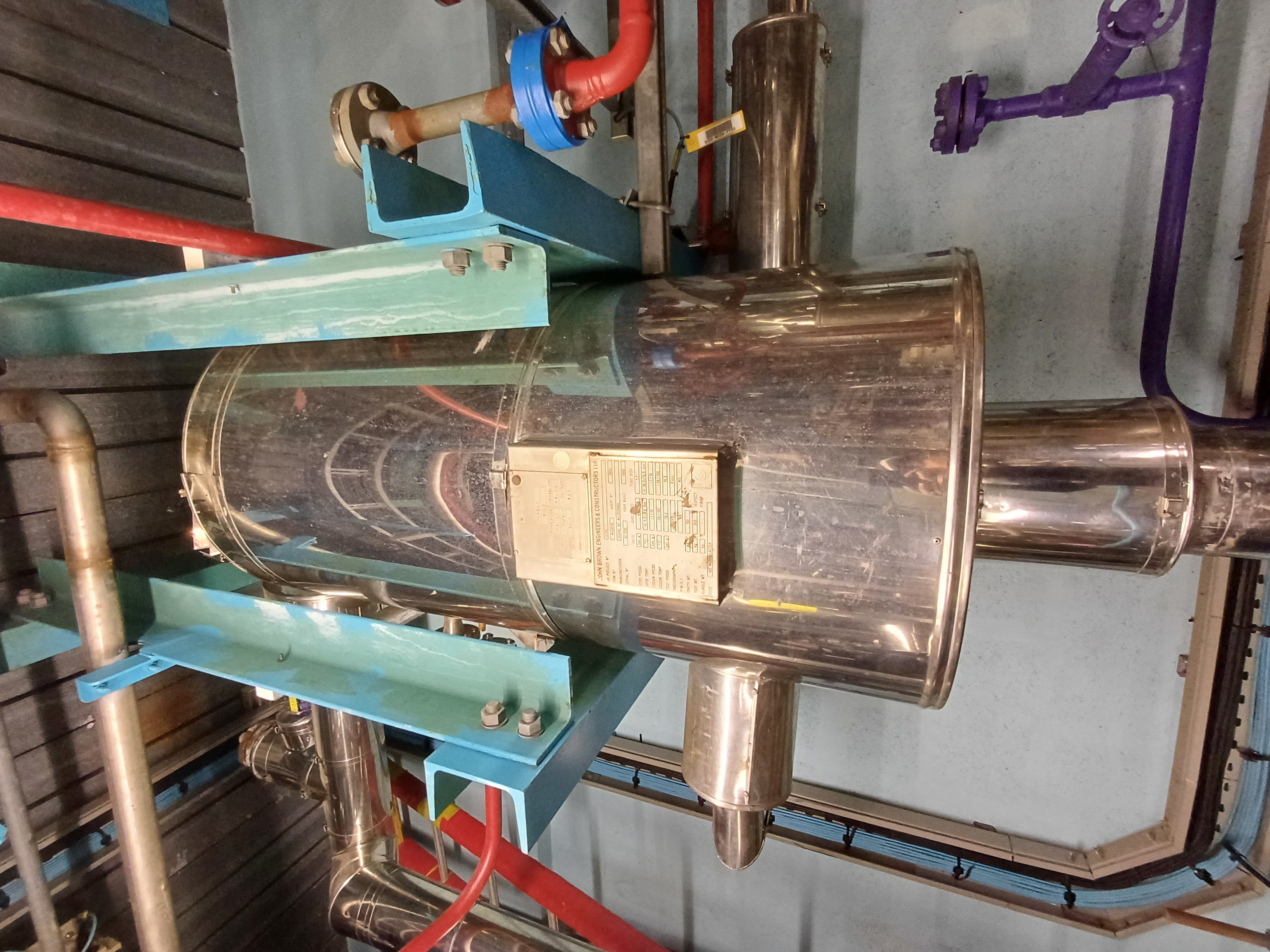

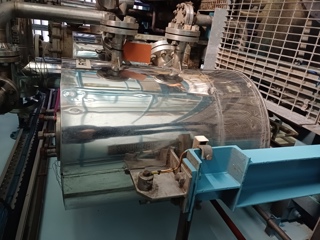

Stainless Steel 316L Kuhni Spiral Coil Heat Exchanger - IPP# 242556

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Kuhni

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 2.3 m² (24.8 ft²)

Shell Pressure: 6 bar (87 psi)

• design pressure side A: -1/3.2 barg @ -29/200 degrees C (106 liter),
• side B: -1/6 barg @ -29/200 degrees C (12 liter)
• 316L stainless steel tubular coil inside a vertical tank,

Shell Temperature: 2 °C (35.6 °F). Shell Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 450 mm (17.7 in). Head Material: Stainless Steel 316L. Nozzle Schedule: coil tube side: 2-25mm, shell side 1-80mm, 1-50mm. Cold-side Pressure: 3.2 bar (46.4 psi). Cold-side Temperature: 200 °C (392 °F). Hot-side Pressure: 6 bar (87 psi). Hot-side Temperature: 200 °C (392 °F). Spiral Material: Stainless Steel 316L.

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Kuhni

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 2.3 m² (24.8 ft²)

Shell Pressure: 25 bar (362.6 psi)

• design pressure coil side: -1/25 barg @ -29/350 degrees C,
• Shell: -1/25 barg @ -29/350 degrees C
• working pressure coil side: 2.6 barg @ 25/59 degrees C,
• shell: 8 barg @ 280 degrees C,
• 316L stainless steel spiral tube coil inside a 316L stainless steel vertical tank

Shell Temperature: 350 °C (662 °F). Vacuum: Yes. Head Material: Stainless Steel 316L. Cold-side Pressure: 25 bar (362.6 psi). Cold-side Temperature: 350 °C (662 °F). Hot-side Pressure: 25 bar (362.6 psi). Hot-side Temperature: 350 °C (662 °F). Spiral Material: Stainless Steel 316L.

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Kuhni

Condition: Used

Material: Stainless Steel Other

Heat Transfer Surface Area: 10 m² (107.6 ft²)

Shell Pressure: 2 bar (29 psi)

1.4435 s/steel spiral heat exchanger 7.5 bar @ 200 dgress Cin the internal spiral Internal coil: 10 Sqm, 40mm diameter x 2 banks Internal spiral: 7.5 bar @ 200 degrees C

Shell Temperature: 200 °C (392 °F). Vacuum: Yes. Shell Diameter: 700 mm (27.6 in). Length: 1,200 mm (47.7 in). Nozzle Schedule: Openings: Shell side (2) 80mm, (2) 100 mm; Coil side (2) 40mm.. Cold-side Pressure: 2 bar (29 psi). Cold-side Temperature: 200 °C (392 °F). Hot-side Pressure: 7.5 bar (108.8 psi). Hot-side Temperature: 200 °C (392 °F).

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Kuhni

Condition: Used

Material: Stainless Steel Other

Heat Transfer Surface Area: 4 m² (43.1 ft²)

Shell Pressure: 6 bar (87 psi)

Spiral vertical heat exchanger pressure tube side -1/6 bar @ 60 degrees C (20 liter) shell -1/6 bar @ 60 degrees C (800 liter)

Shell Temperature: 60 °C (140 °F). Vacuum: Yes. Cold-side Temperature: 60 °C (140 °F). Hot-side Pressure: 6 bar (87 psi). Hot-side Temperature: 60 °C (140 °F).
