Name: PTFE lined Cannon Reactor Services HCL Scrubber unit
Brand: CRS (Cannon Reactor Services)
SKU: 242729

Overview

Type:

Scrubber

Manufacturer:

CRS (Cannon Reactor Services)

Condition:

Used

Material:

PTFE Lined

Dimensions

Height:

6,500 mm (255.7 in)

Width:

600 m (1,950 ft)

Other Specifications

Liquid Flow Rate:

8 L/h (0.04 GPM)

Pressure:

0.05 bar (0.65 psi)

Temperature:

200 °C (392 °F)

Recirculation:

Yes

Recirculation Pump Details:

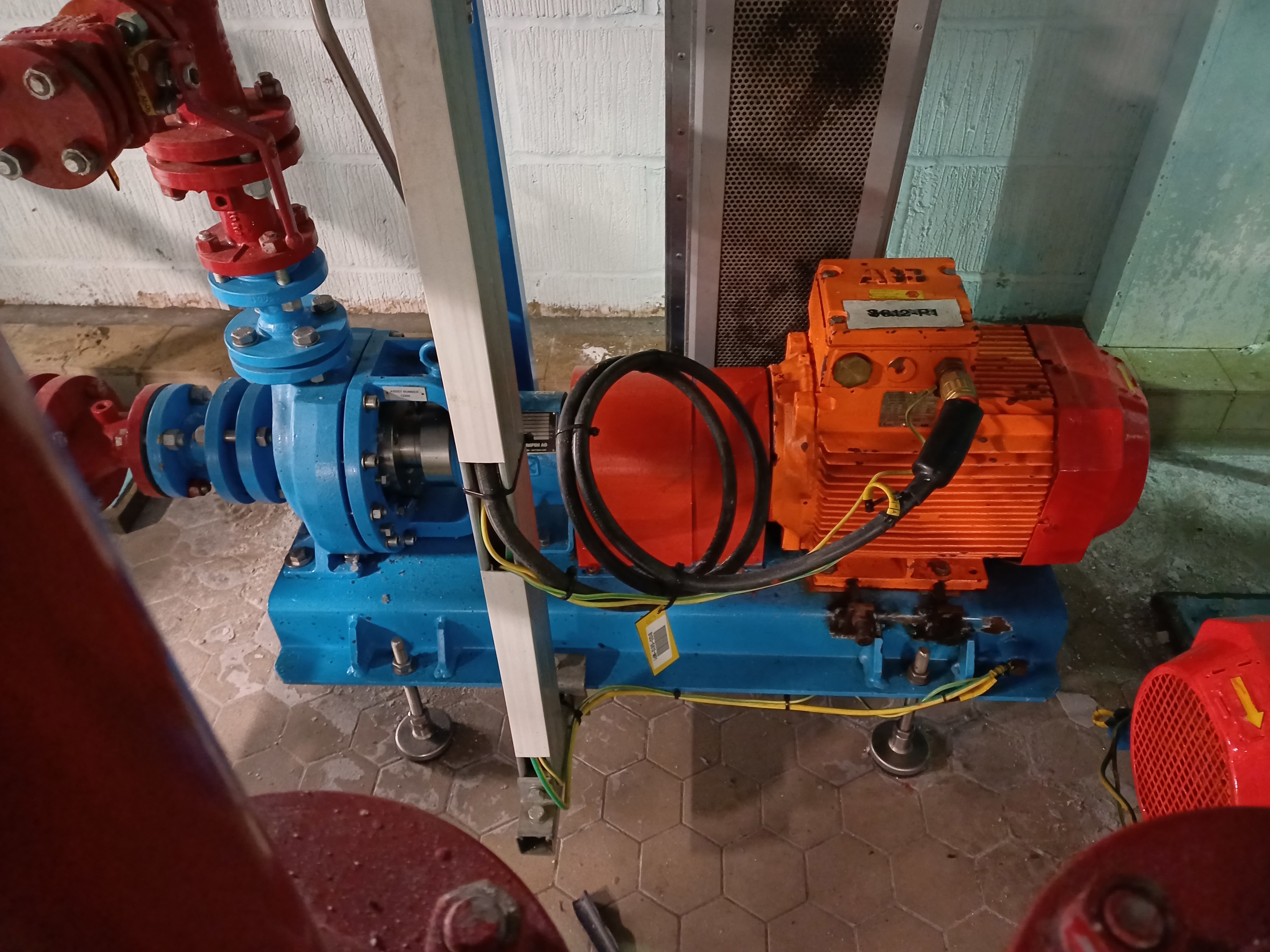

15m3/hr @ 29.5m head PFA lined centrifugal circulation pump, manufactured by CP Pumpen Ag, type EB 50-32-160, serial #02-00942-43362, 154mm diameter impellor, 40/60 degrees C, driven by 7.5kW, 3/50-60/660-690/380-415/440-480 volt, 2855/3455 rpm EEx de IIB T4 ATEX motor, mounted on a baseplate

Additional Information

design pressure -50/450 mbar @ 200 degrees C,
total capacity 2582 liter,

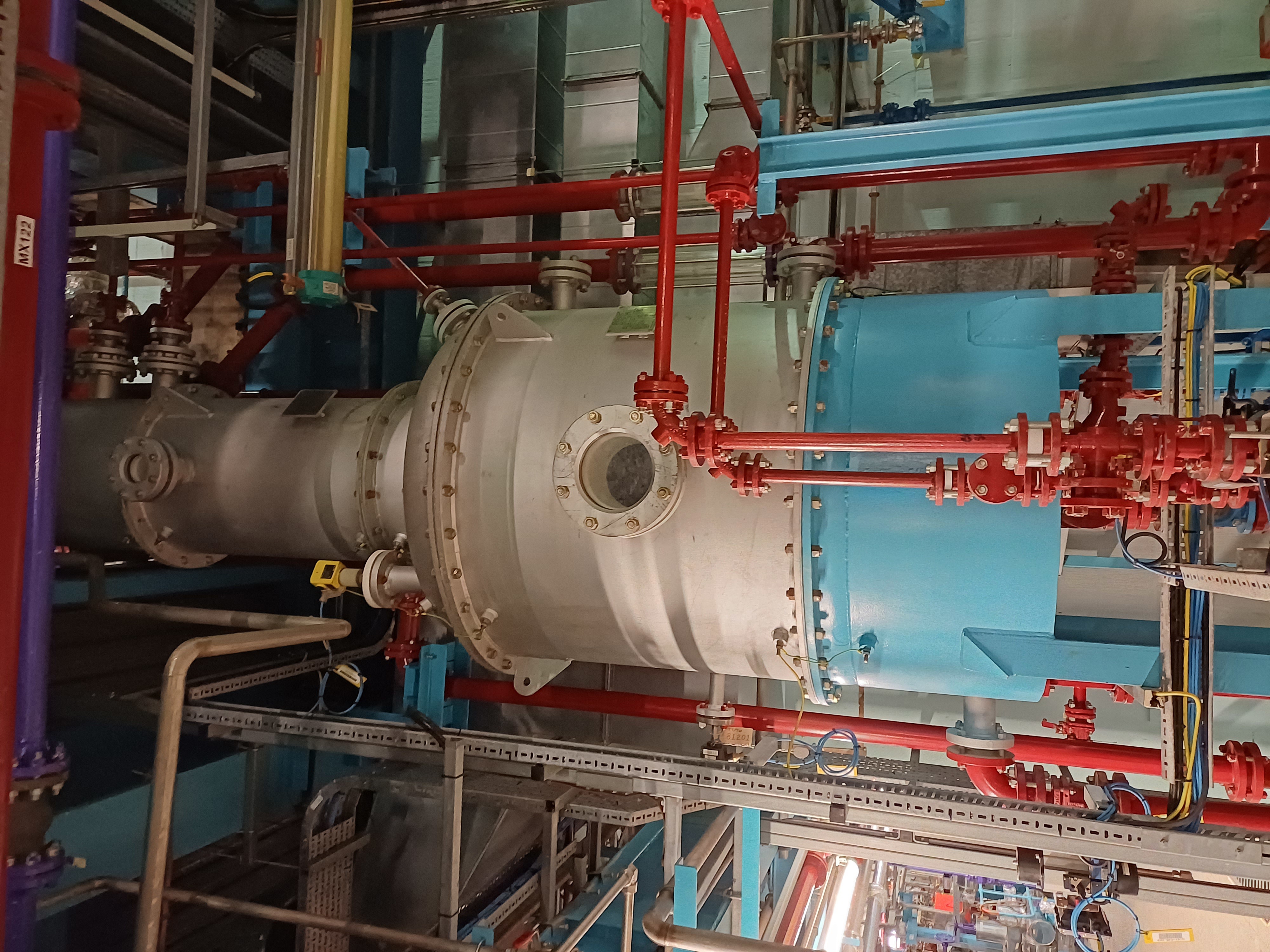

(1) 600mm diameter x 3m high PTFE lined spray column, design pressure -0.005/0.045 barg @ 200 degrees C, total 840 liter volume, 6-internal recirculation spray nozzle,

(1) venturi leg,

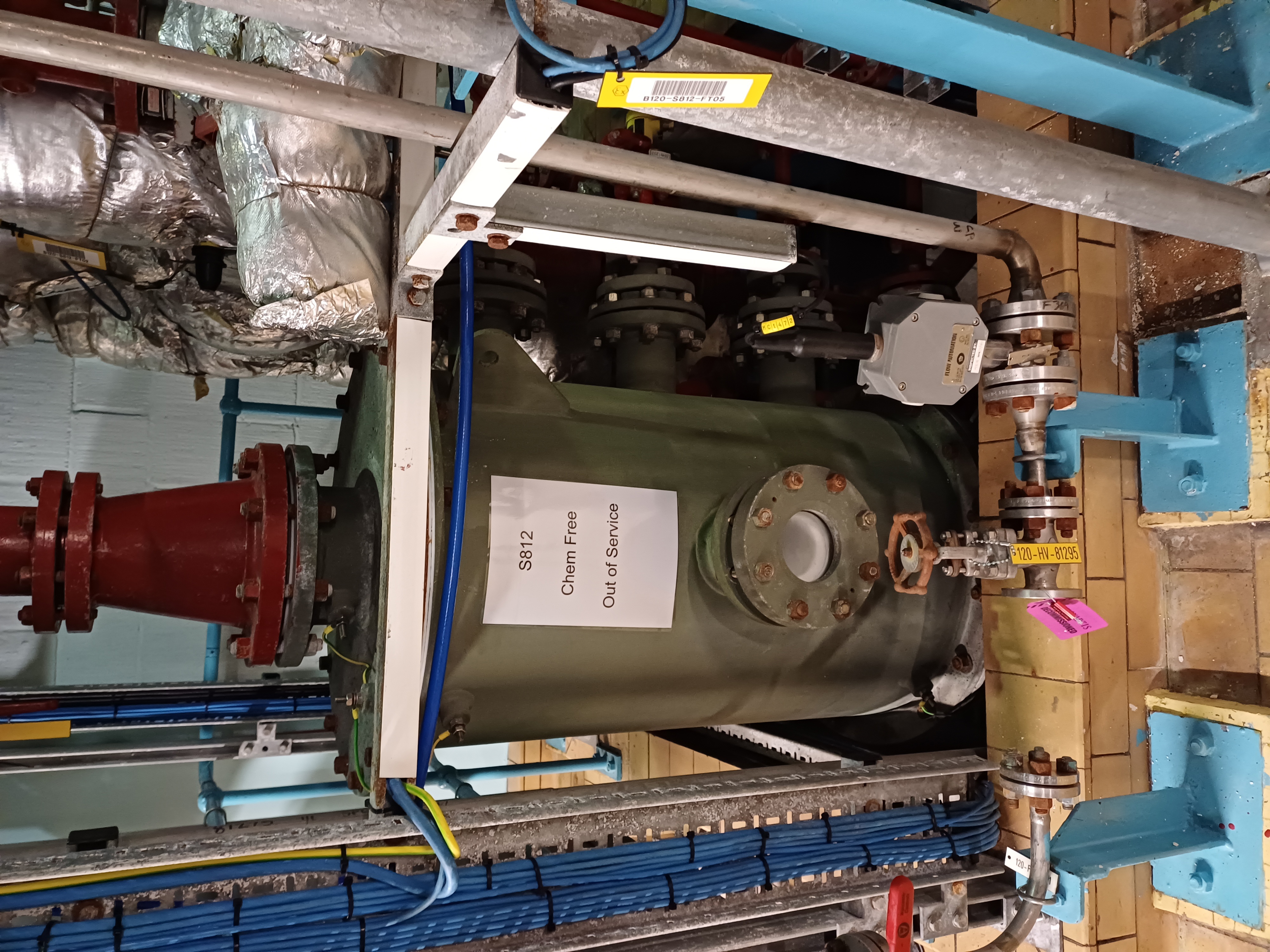

(1) 1595 liter PTFE lined holding tank, 1.2m diameter x 1060mm straight side, bolt dished top and bottom, mounted on legs,

design code BS5500 CAT 2,
