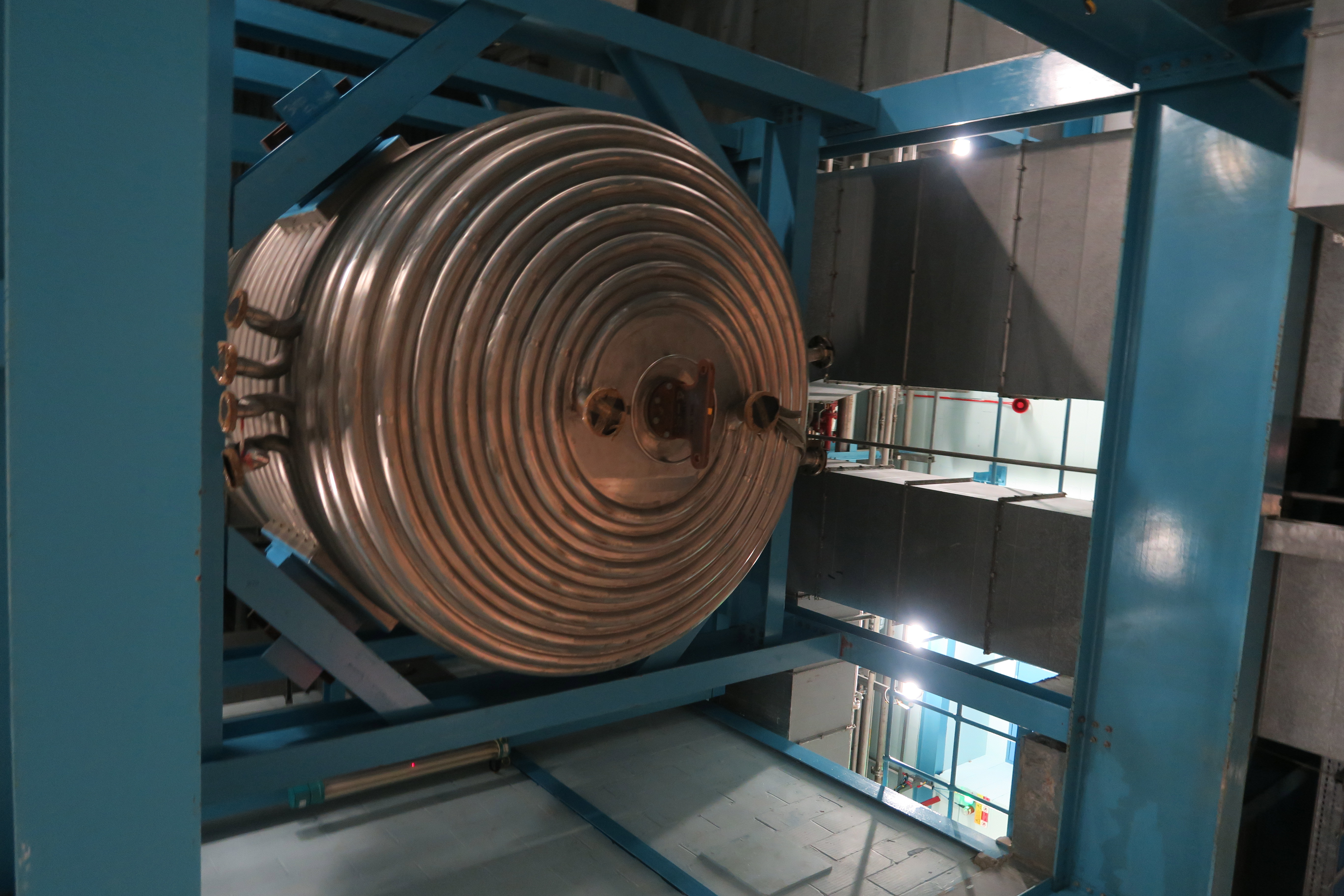

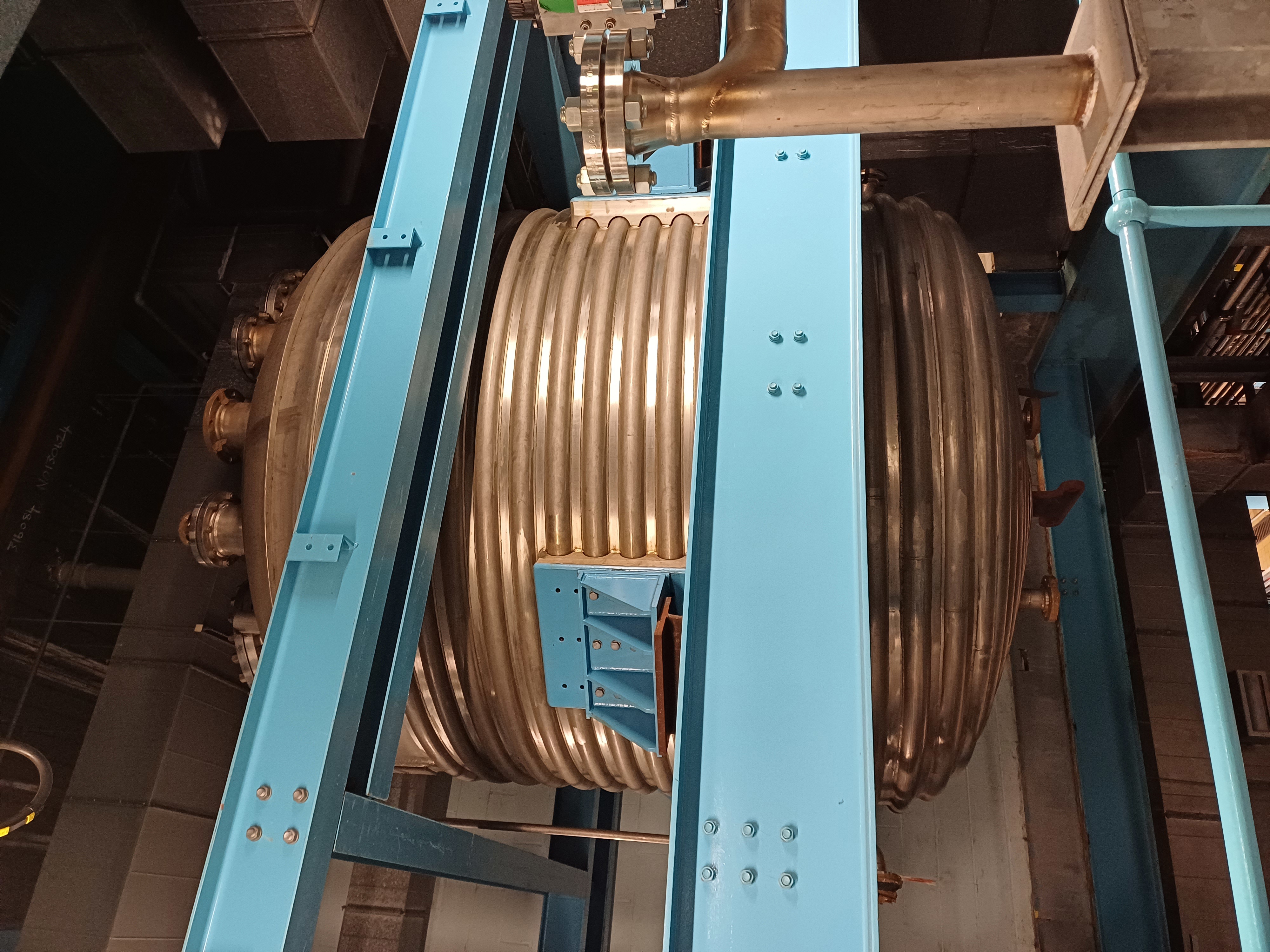

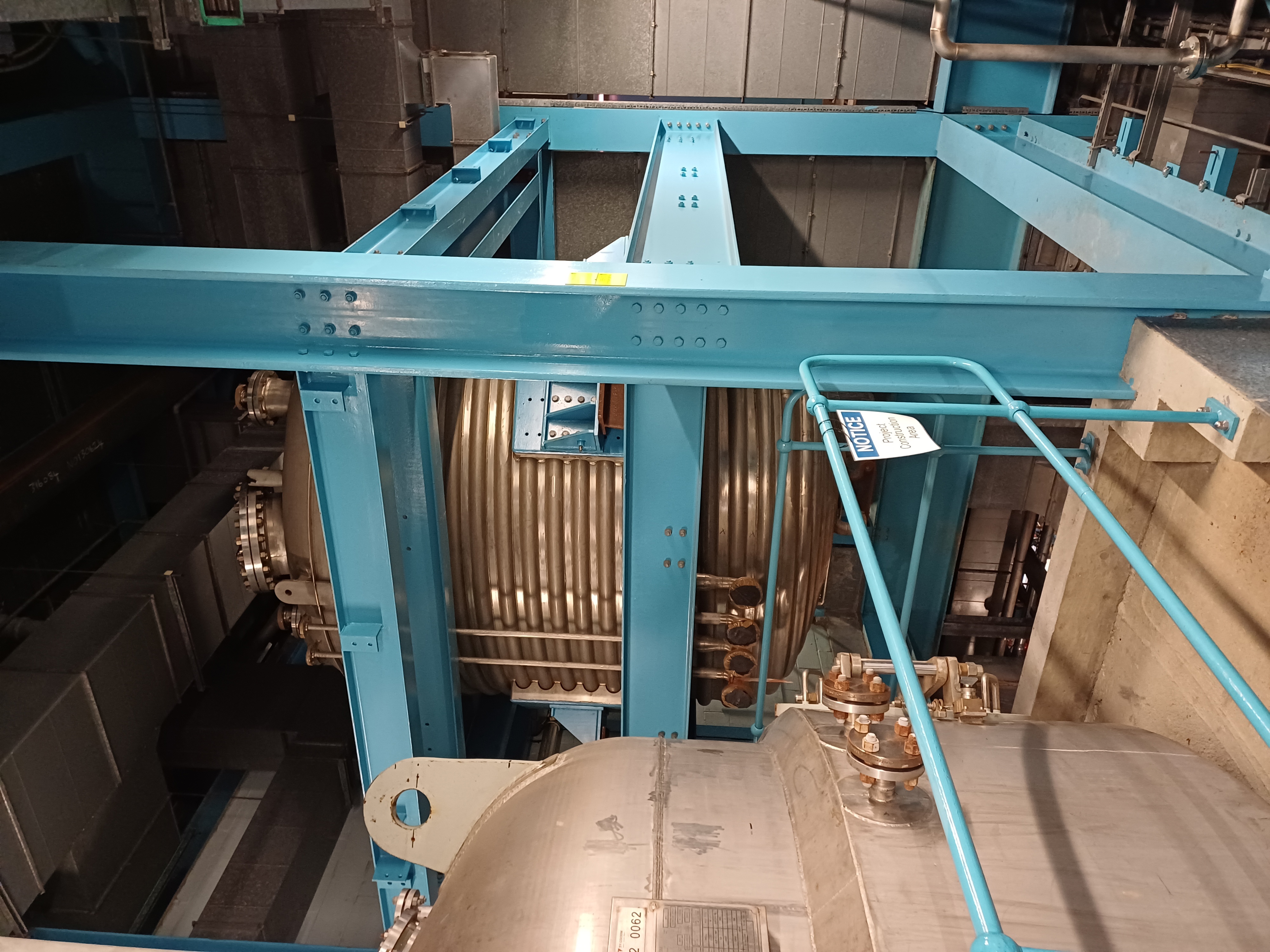

Unused 19,000 L (5,000 gal) 316L Stainless Steel polished Batch Reactor Body– CE/PED Certified - IPP# 242817

  • Unused 19,000 L (5,000 gal) 316L Stainless Steel polished Batch Reactor Body– CE/PED Certified - IPP# 242817 Unused 19,000 L (5,000 gal) 316L Stainless Steel polished Batch Reactor Body– CE/PED Certified - IPP# 242817
  • Unused 19,000 L (5,000 gal) 316L Stainless Steel polished Batch Reactor Body– CE/PED Certified - IPP# 242817 Unused 19,000 L (5,000 gal) 316L Stainless Steel polished Batch Reactor Body– CE/PED Certified - IPP# 242817
  • Unused 19,000 L (5,000 gal) 316L Stainless Steel polished Batch Reactor Body– CE/PED Certified - IPP# 242817 Unused 19,000 L (5,000 gal) 316L Stainless Steel polished Batch Reactor Body– CE/PED Certified - IPP# 242817
  • Unused 19,000 L (5,000 gal) 316L Stainless Steel polished Batch Reactor Body– CE/PED Certified - IPP# 242817
  • Unused 19,000 L (5,000 gal) 316L Stainless Steel polished Batch Reactor Body– CE/PED Certified - IPP# 242817
  • Unused 19,000 L (5,000 gal) 316L Stainless Steel polished Batch Reactor Body– CE/PED Certified - IPP# 242817
Overview
Reactor
Batch Type Body Only
Sinclair Stainless Fabrications LTD.
Unused
Stainless Steel 316L
19,000 L (5,000 gallons)
Ra0.8 um
Yes
Pressure Vessel
6 bar (87 psi)
Yes
185 °C (365 °F)
Jacket/Internal Coil
10 bar (145 psi)
185 °C (365 °F)
Half Pipe/Limpet
Stainless Steel 316L
Dimensions
Vertical
2,800 mm (110.2 in)
2,300 mm (90.6 in)
Heads
Dish
Stainless Steel 316L
Dish
Stainless Steel 316L
Other Specifications
Yes
Lugs
Inlets & Outlets
top: 1-500mm manway, 1-400/100mm, 1-400mm, 1-250mm (for agitator), 6-200mm, 1-200/80mm, side jacket: 2-80mm, 4-50mm, 4-25mm, bottom: 1-150mm, 2-80mm (jacket)
Additional Information
  • 16000 liter working volume
  • design pressure internal 6 bar + full vacuum @ -29/185 degrees C,
  • jacket 10 bar + full vacuum @ -29/185 degrees C,
  • design code BS5500 2006 Module G GAS group 1,

Similar Equipment

316 stainless steel Reactor Batch Type Body

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Portobello Fabrications LTD.

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 14,950 L (3,950 gallons)

Internal Pressure: 6.2 bar (90.1 psi)

working capacity 12000 liter

design pressure internal 6.21 bar + full vacuum @ -29/200 degrees C (14930 liter), jacket 5.17 bar @ -29/200 degrees C (1330 liter),

design code: BS5500: 1997 CAT 2

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 5.2 bar (75 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 2,400 mm (94.5 in). Straight Side Length: 2,500 mm (98.4 in). Support Type: Lugs.
