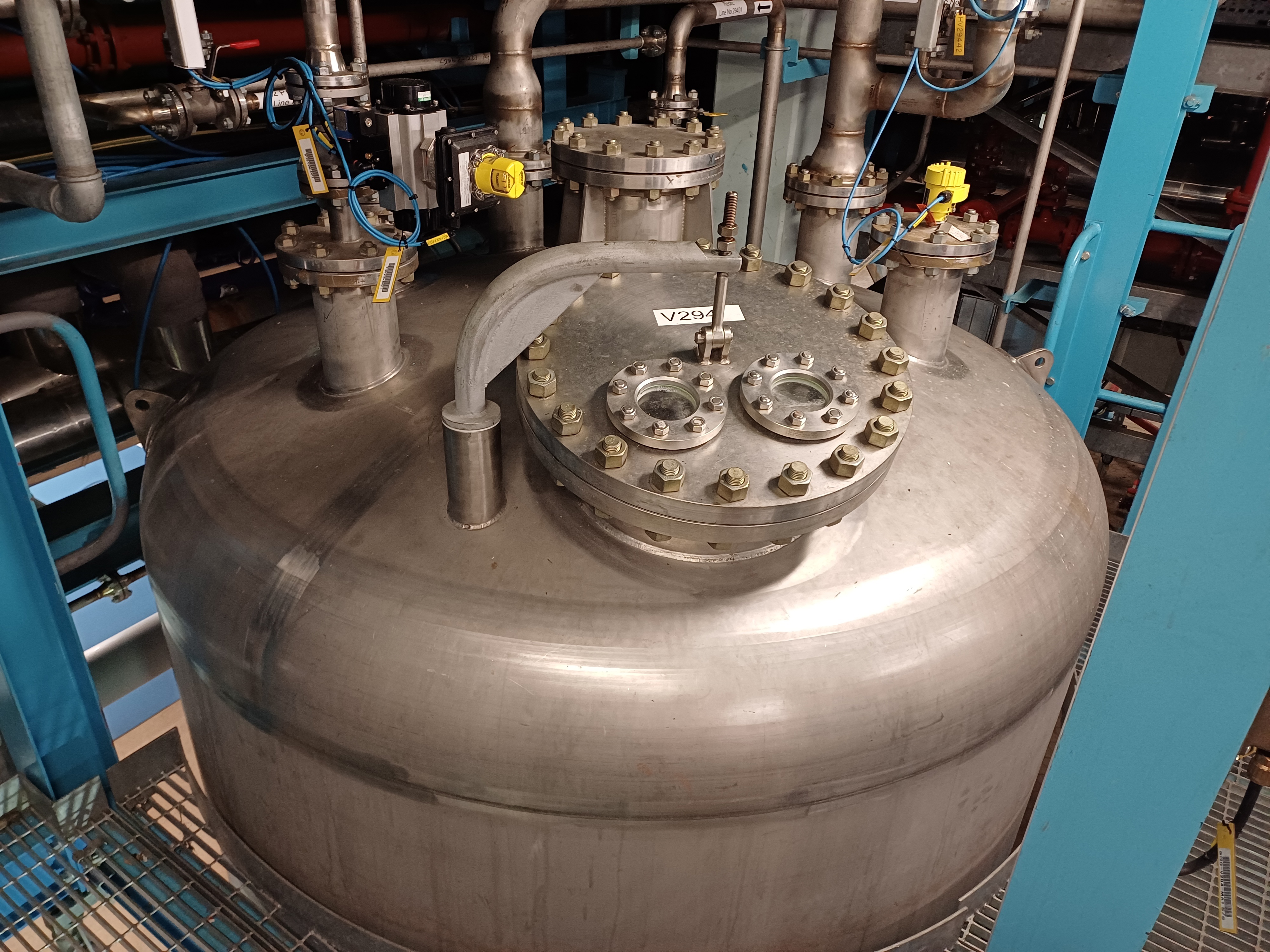

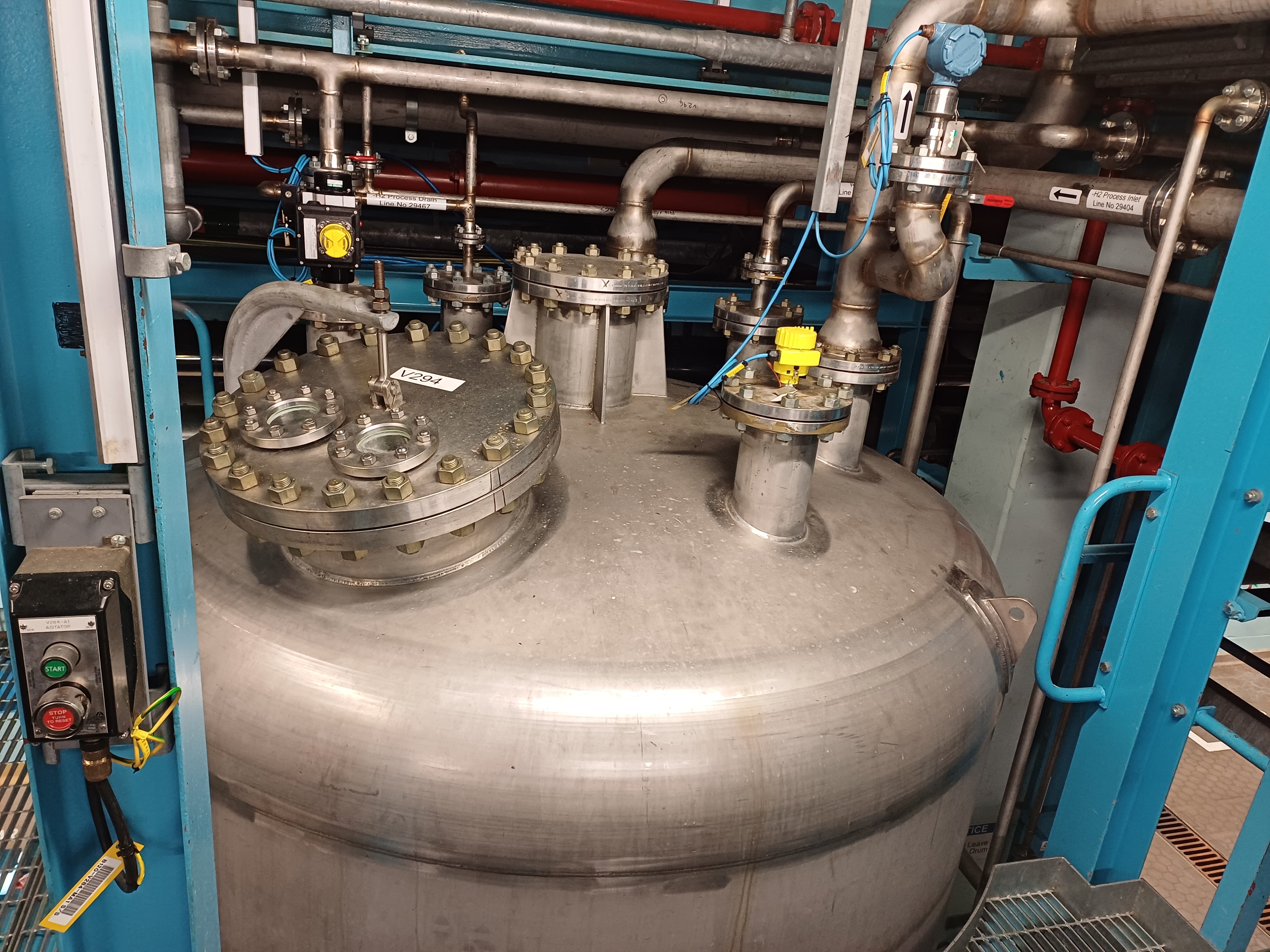

Stainless Steel 316L Sinclair Stainless Fabrications LTD. Tank - IPP# 242834

Type: Tank

Manufacturer: Sinclair Stainless Fabrications LTD.

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 11,850 L (3,150 gallons)

Orientation: Vertical

• 10000 liter working capacity,
• design pressure 3.5 bar + full vacuum @ -25/170 degrees C (11830 liter)
• design code: PD5500 2006 module G gas group 1 CAT 2,
• CE 0878,

(1) 10 m3/hr @ 35m head 316 stainless steel centrifugal pump, manufactured by CP Pumpen Ag, serial #06-00784/51638, type MKP 40-25-160, 173mm diameter impellor, 2930 rpm, pressure 16 bar @ 10/75 degrees C, differential pressure 5.5 bar, NPSH 1.2m, magnetic drive, openings suction 32mm,discharge 25mm, driven by 5.5/6.3kW, 3/50-60/690-400/660-380/415-440 volt, 2905/2893/2911/3435 rpm EEx de IIB T4 ATEX motor, mounted on a baseplate

Diameter: 2,400 mm (94.5 in). Straight-side Length: 2,000 mm (78.7 in). Internal Pressure: 3.5 bar (50.8 psi). Internal Temperature: 170 °C (338 °F). Vacuum: Yes. Support: Legs.

Type: Tank

Manufacturer: Sinclair Stainless Fabrications LTD.

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 11,850 L (3,150 gallons)

Orientation: Vertical

• .design pressure 3.5 bar + full vacuum @ -25/170 degrees C
• design code: PD5500 - 2006 - module G - gas group 1,
• CE0787,

(1) 10m3/hr @ 35m head 316 stainless steel centrifugal pump, manufactured by CP Pumpen Ag, type MKP 40-25-160, serial #06-00611/51560, 173mm diameter impellor, 2900 rpm, -25/170 degrees C, driven by 5.5/6.8kW, 3/50-60/690-400/660-380/415-440 volt, 2905/2893/2911/3486 rpm EEx de IIB T4 ATEX motor, mounted on a baseplate,

Diameter: 2,400 mm (94.5 in). Straight-side Length: 2,000 mm (78.7 in). Internal Pressure: 3.5 bar (50.8 psi). Internal Temperature: 170 °C (338 °F). Vacuum: Yes. Support: Legs.

Type: Tank

Manufacturer: Sinclair Stainless Fabrications LTD.

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 7,850 L (2,100 gallons)

Orientation: Vertical

• 6300 liter working capacity,
• design pressure 3.5 bar + full vacuum @ -25/170 degrees C (7860 liter),
• design code: PD5500-2006--MODULE G - GAS GROUP 1,

With (1) 10 m³/hr @ 35m head 316 stainless steel centrifugal pump, manufactured by CP Pumpen, type MKP 40-25-160, serial #06-00784/51639, 173mm diameter impellor, 2930 rpm, pressure 16 bar @ 10/75 degrees C, differential pressure 5.5 bar, driven by 5.5/6.3kW, 3/50-60/690-400/660-380/415-440 volt, 2905/2893/2911/3486 rpm EEx de IIB T4 ATEX motor,

Diameter: 2,000 mm (78.7 in). Straight-side Length: 2,000 mm (78.7 in). Internal Pressure: 3.5 bar (50.8 psi). Internal Temperature: 170 °C (338 °F). Vacuum: Yes. Support: Legs.

Type: Tank

Manufacturer: Sinclair Stainless Fabrications LTD.

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 300 L (79.3 gallons)

Orientation: Vertical

• 280 liter working capacity,
• CE0878,
• job #134-09-01,
• design pressure 3.5 barg + full vacuum @ -10/200 degrees C (300 liter),
• design code: PD5500 - 2000 - module G - gas group 1

Internal Pressure: 3.5 bar (50.8 psi). Internal Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Lugs.
