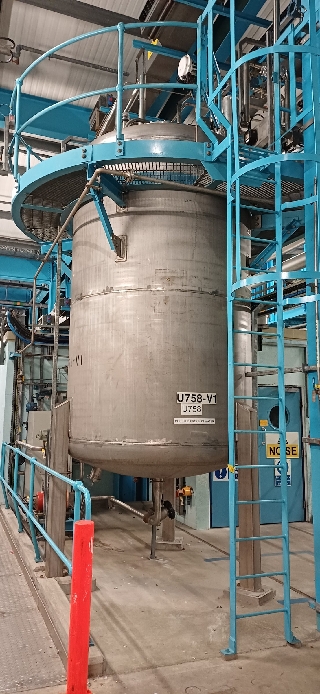

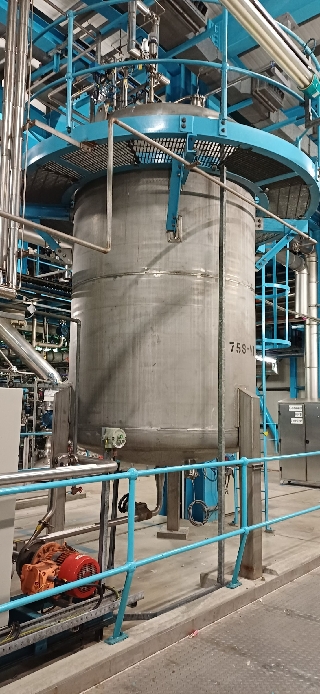

Stainless Steel 316L H.Pontifex & Sons Ltd. Tank - IPP# 242892

Type: Tank

Manufacturer: H.Pontifex & sons ltd

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 10,800 L (2,850 gallons)

Orientation: Vertical

• 10000 liter working capacity,
• design pressure internal 3.5 bar + full vacuum @ 100 degrees C (10820 liter),
• internally highly polished to 0.5 to 0.8 microns,

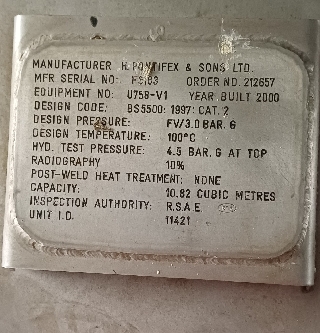

• design code: BS5500 1997 CAT 2
• top platform and vertical ladder available if required

Diameter: 2,000 mm (78.7 in). Straight-side Length: 2,900 mm (115 in). Internal Pressure: 3.5 bar (50.8 psi). Internal Temperature: 100 °C (212 °F). Vacuum: Yes. Support: Legs.

Type: Tank

Manufacturer: H.Pontifex & sons ltd

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 25,000 L (6,600 gallons)

Orientation: Vertical

• 4-blade pitched paddle agitator
• With 4 internal sidewall mounted baffles.

Diameter: 2,900 mm (114.2 in). Straight-side Length: 3,750 mm (147.6 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 60 °C (140 °F). Does it have Agitation ?: Yes. Baffle Type: Sidewall Mounted Straight Baffle. Support: Lugs.

Type: Tank

Manufacturer: H.Pontifex & sons ltd

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 10,000 L (2,650 gallons)

Orientation: Vertical

• Jacketed tank with agitation.
• With 4 internal sidewall mounted baffles.

Diameter: 2,250 mm (88.5 in). Straight-side Length: 2,300 mm (91.3 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 95 °C (203 °F). Does it have Agitation ?: Yes. Jacket Type: Half Pipe/Limpet. Jacket Pressure: 4.1 bar (60 psi). Jacket Temperature: 150 °C (302 °F). Support: Lugs.

Type: Tank

Manufacturer: H.Pontifex & sons ltd

Condition: Unused

Material: Stainless Steel 316

Capacity (Design): 48,000 L (12,700 gallons)

Orientation: Vertical

design pressure 70mbar @ 50 degrees C,

design code: Good Engineering Practice

Diameter: 3,100 mm (122 in). Straight-side Length: 8,000 mm (315 in). Internal Pressure: 0.07 bar (1.02 psi). Internal Temperature: 50 °C (122 °F). Support: Legs.
