Filter Dryer Rosenmund and Cogiem Filtrodry FPP 100 SD/FM by 3V Cogeim Hastelloy - C276 - IPP# 245495

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: 3V Cogeim

Model: FiltoDry FEPXD 400

Condition: Used

Material: Hastelloy - C22

Filtration Area: 4.2 m² (44.7 ft²)

Diameter: 2,300 mm (90.6 in)

• Shell rated 88.5/FV psi @392 Deg F. Jacket 316SS, rated 152.5/FV @392 Deg F Vertical Filter

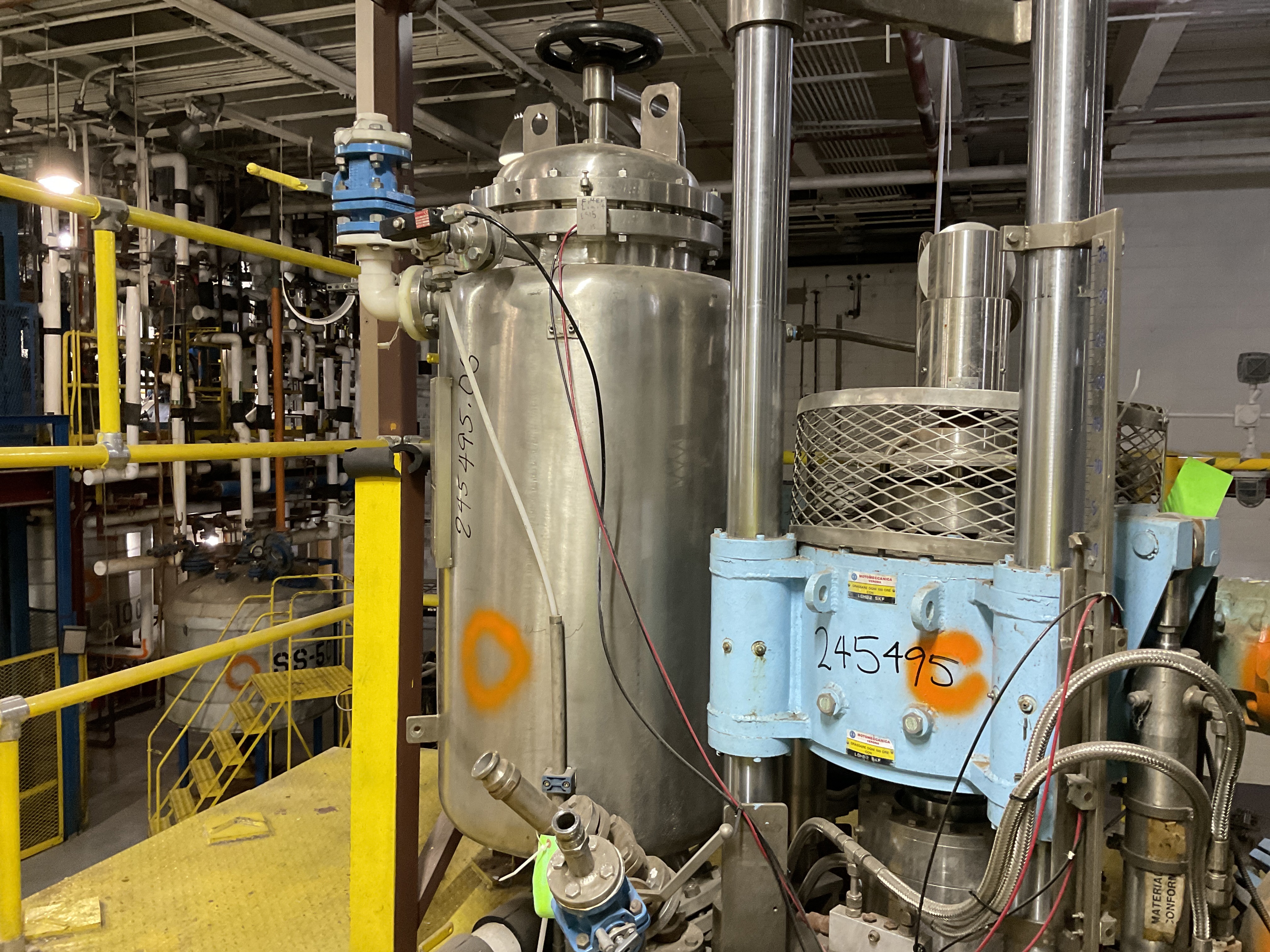

• Dryer Dust collector Jacket rated FV 152 @392degrees F. Internal finish is a sanitary polish. 304SS sheathing Mechanical seals. Cored shaft with . Side discharge with side discharge valve .integral Stock # 241129- Hastelloy C22 pulse jet Dust collector. Dryer Dimensions: 90" diameter x 76" length132 gallon Hastelloy C 22 side discharge valve. rated FV/88 @392 degrees F

Pressure: 6.1 bar (88.5 psi). Temperature: 200 °C (392 °F). Internal Finish: #4 Ra50. Agitation Seal Type: Mechanical. Jacket: Yes. Jacket Pressure: 10.5 bar (152.5 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Temperature: 200 °C (392 °F). Agitator Cored for Heating/Cooling: Yes.

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: 3V Cogeim

Model: Filtodry FPP XD 400 FM

Condition: Used

Material: Hastelloy - C22

Filtration Area: 4.2 m² (44.7 ft²)

Diameter: 2,300 mm (90.6 in)

Alloy C22

Internal finish is a sanitary polish. 304SS sheathing. 304 stainless steel

18.35" Side discharge with discharge valve, 132 gallon Hastelloy C 22 side discharge valve. National Board # 287. rated FV/88 @392 degrees F.

Dryer Dimensions: 90" diameter x 76" length

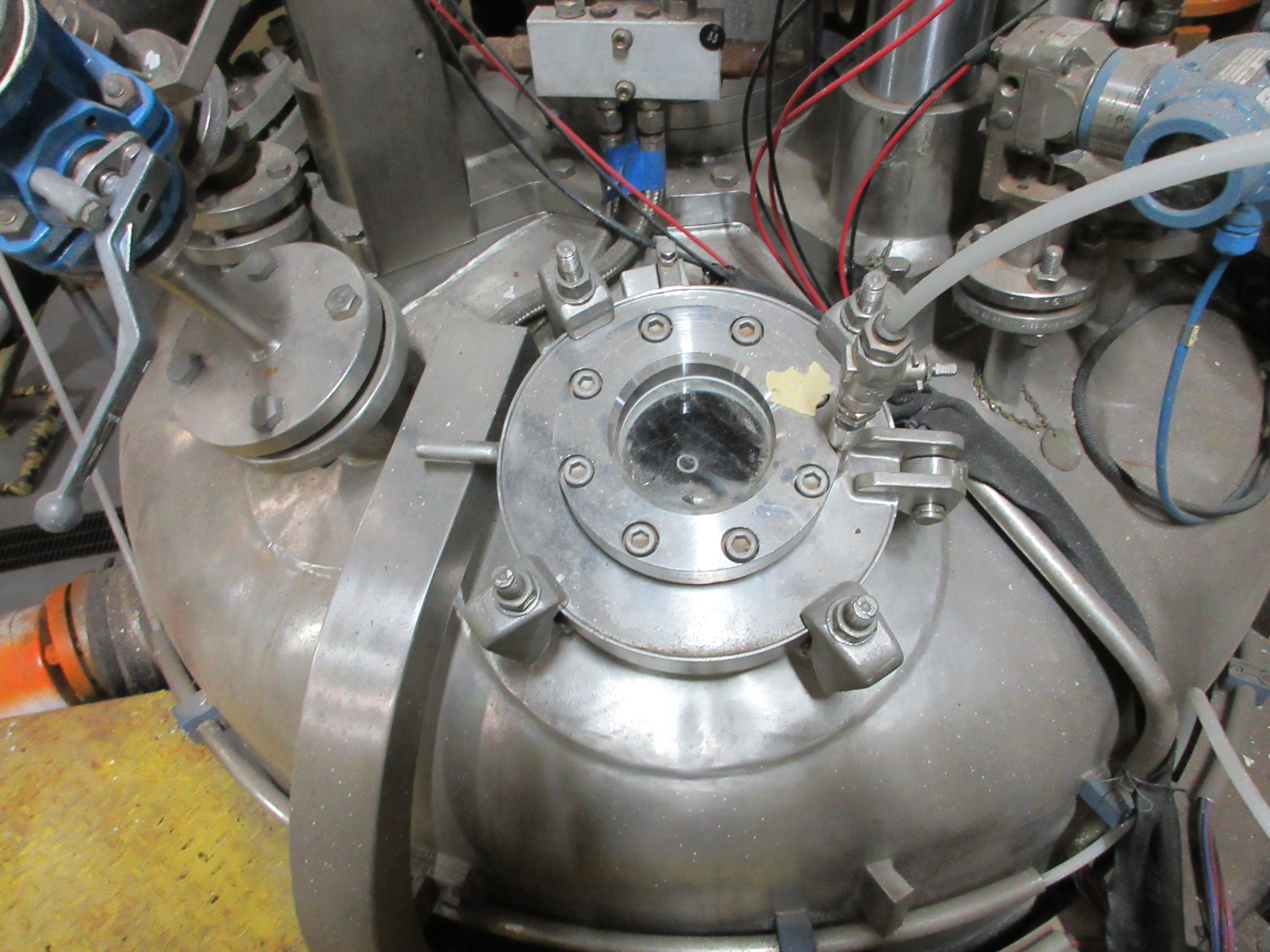

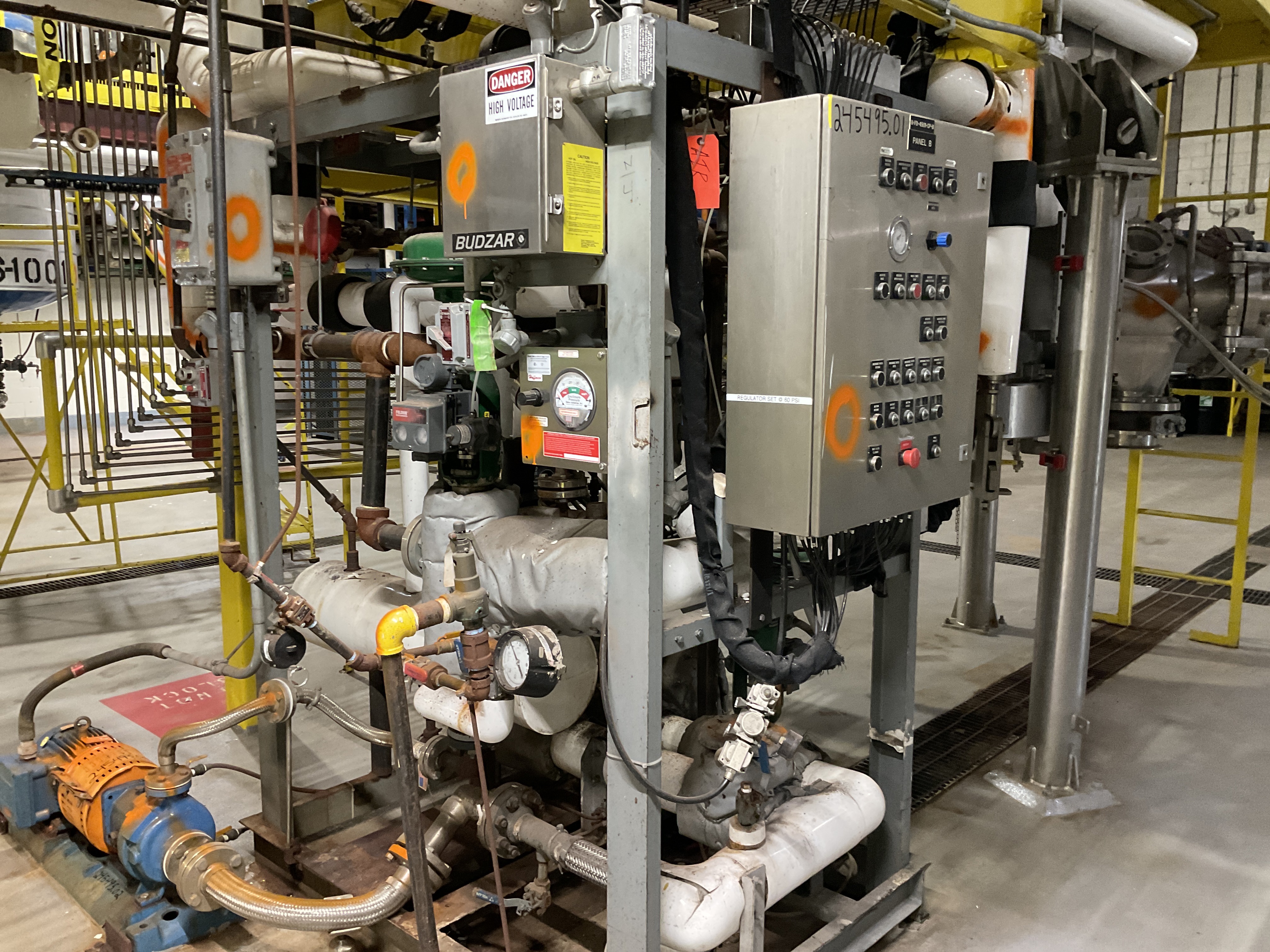

hydraulic skid. Includes: integral Stock # 241013- Hastelloy C22 pulse jet Dust collector. 8.6" handhole, 4.33" site glass.

Pressure: 6.1 bar (88.5 psi). Temperature: 200 °C (392 °F). Internal Finish: #4 Ra50. Agitation Seal Type: Mechanical. Jacket: Yes. Jacket Pressure: 10.5 bar (152 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Temperature: 200 °C (392 °F). Agitator Cored for Heating/Cooling: Yes.

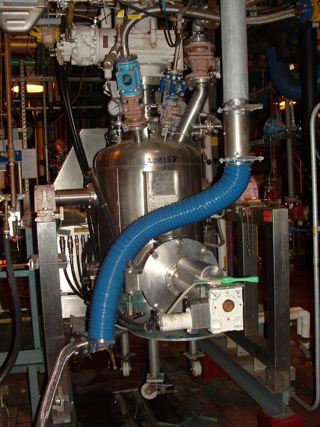

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Cogiem

Model: FFP-030-DFM

Condition: Used

Material: Hastelloy - C276

Filtration Area: 0.3 m² (3.2 ft²)

Pressure: 6 bar (87 psi)

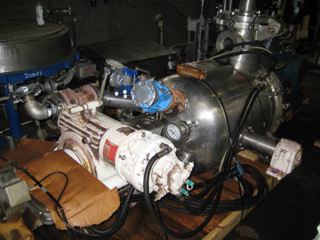

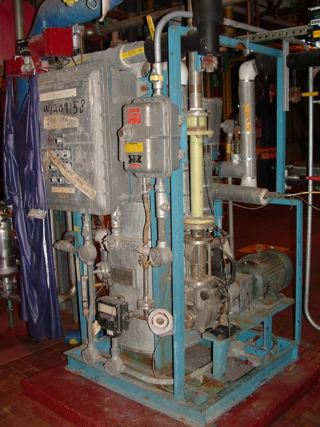

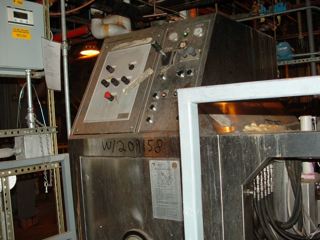

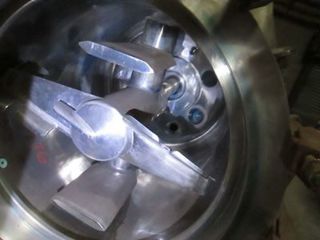

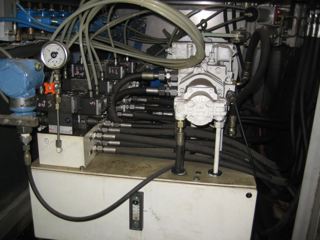

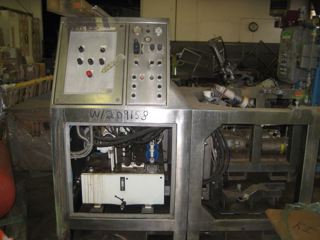

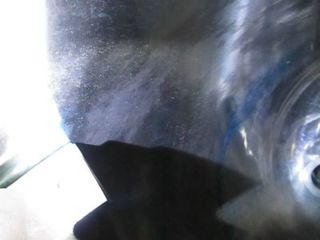

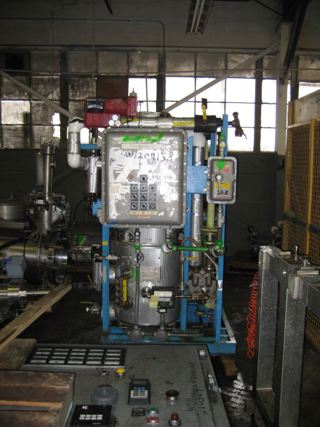

Filter interior is polished to a mirror polish (220 grit)With cored and heated shaftshaft rated for 87 psi at 208 degrees F.Hydraulic driven agitator rotation 1:14 from 6-58 rpm.With stuffing box agitator seal with gas purge. Hydraulic power pack operates the following.Agitator up/down, Bottom openingtiltingand the hatchPower pack is driven by a Reliance 10 hp 460volt, 3 ph motorSide solids dischargelamped bottom for heads removalTilting type filterWith 316 SS base and cabinetexterior parts polished to an 80 grit finishAll gaskets are PTFE.Filter has washing nozzles, and Explosion proof lighting for filter interiorAlso included is a Rosenmund Apovac Vacuum systemincluding vacuum pump and ring -Liquid vessel and coolerApovac model 1.5/660 PMSH 156 D2Serial # 51 050with Vacuum pump by Gepruft With PLC control systemhas operators controls mounted on hydraulic station

• Can be used with 248331 APOVAC system for vacuum at an additional cost.

Temperature: 165 °C (329 °F). Jacket: Yes. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 165 °C (329 °F).
