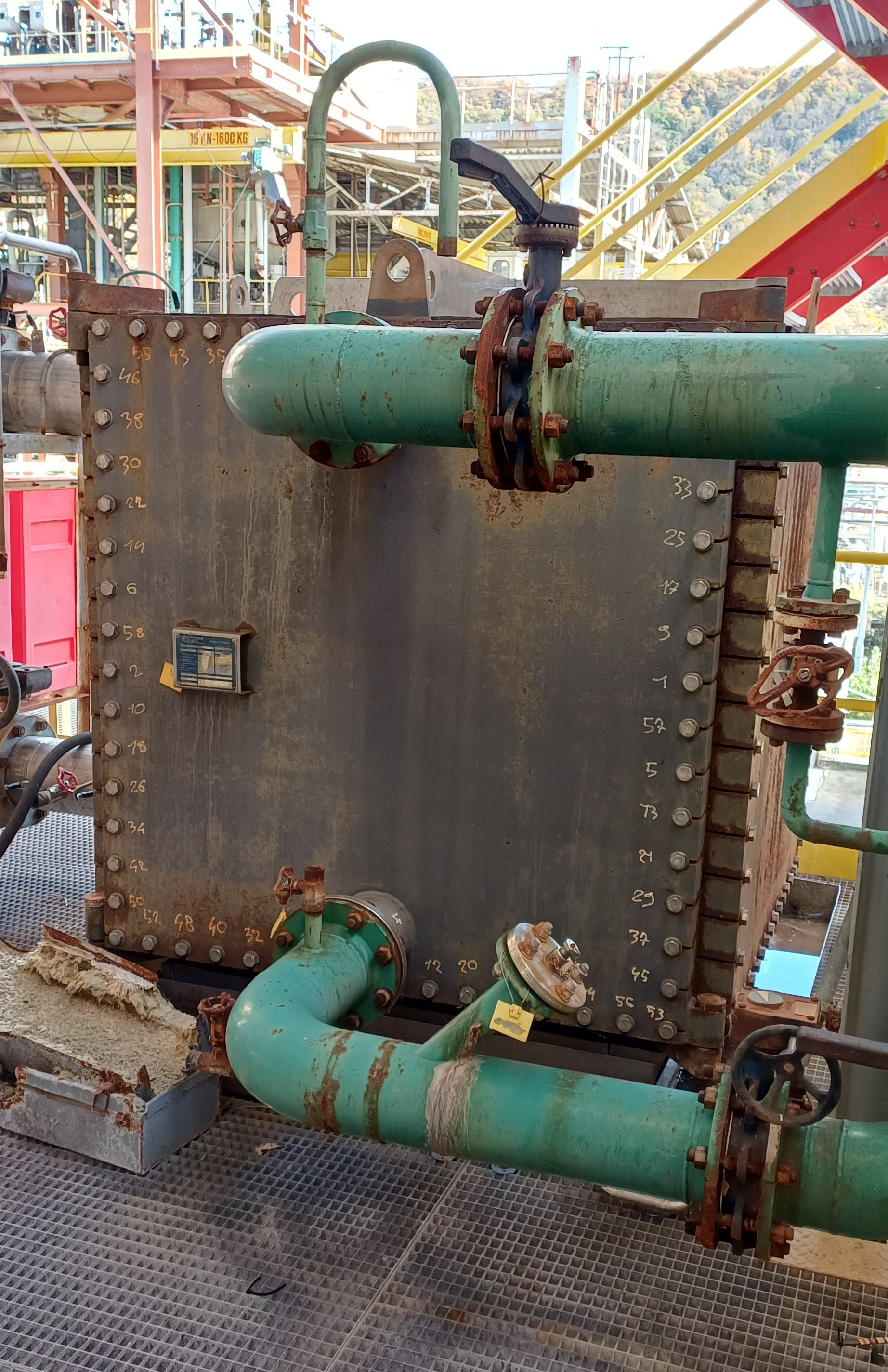

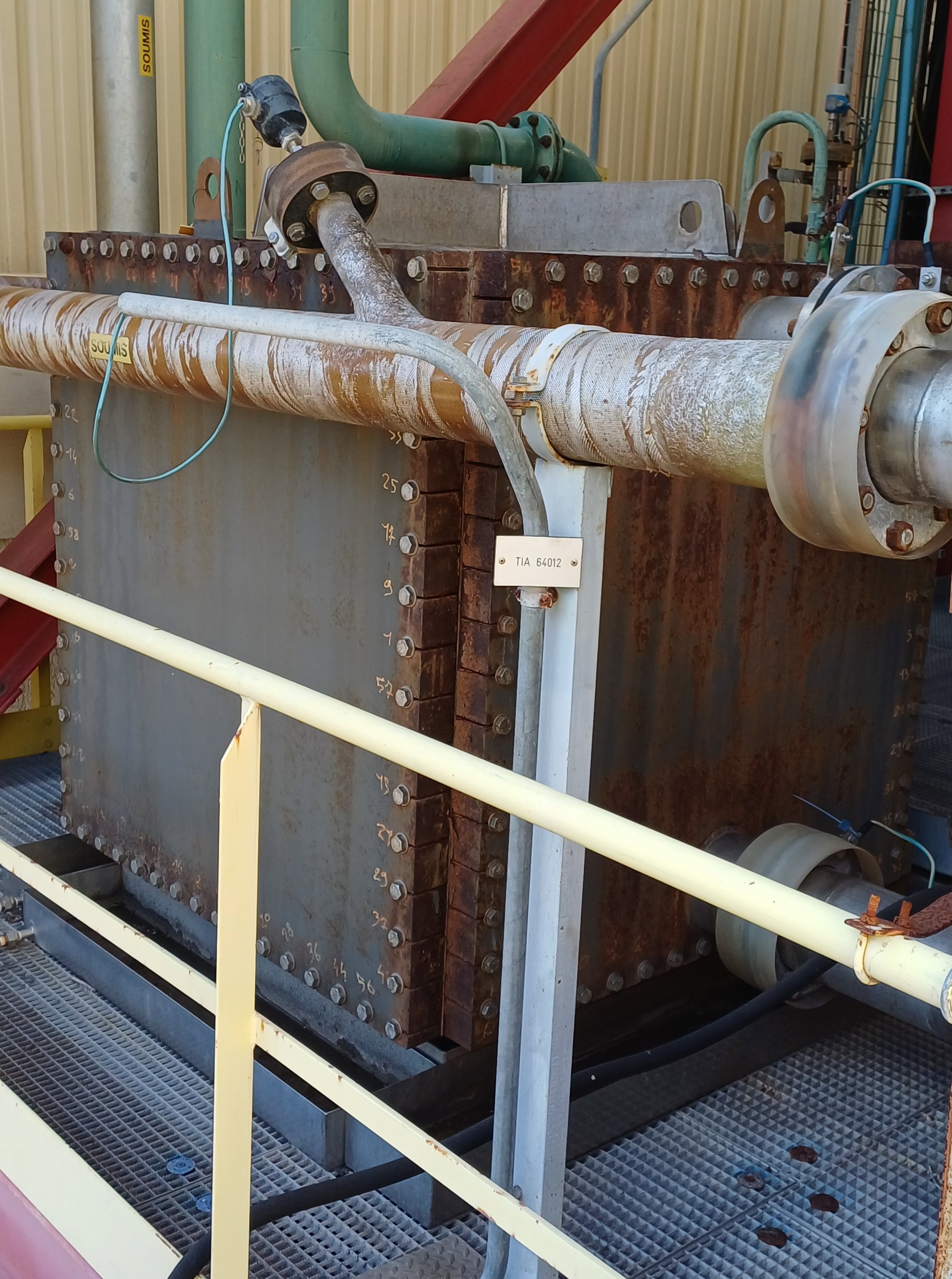

Kapp stainless steel 316 studded welded plate Heat Exchanger - IPP# 246426

Type: Heat Exchanger

Subtype: Welded Plate

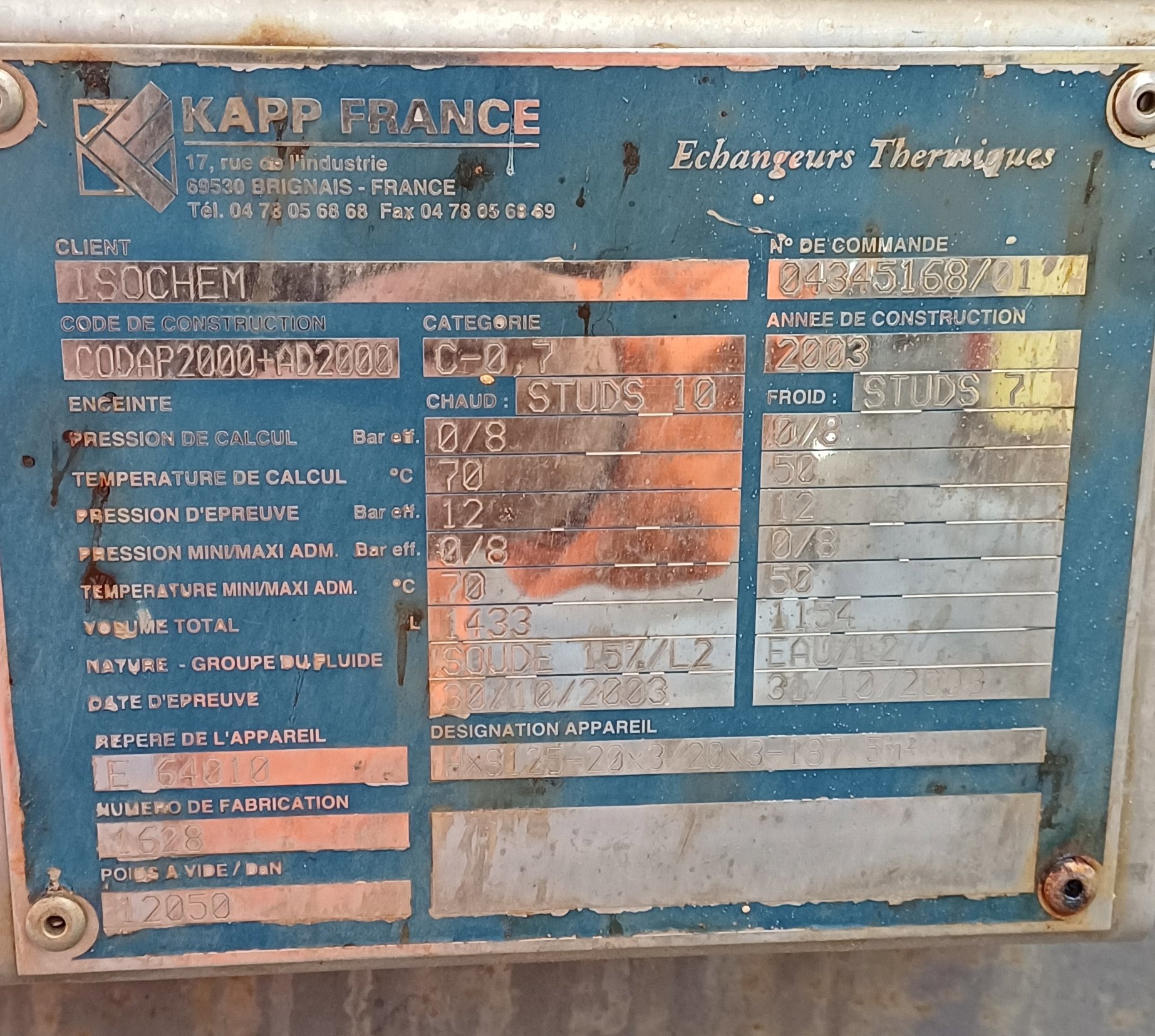

Manufacturer: Kapp

Model: HXEU 37.5-6x6/1x35.S=10.1 m2

Condition: Used

Material: Hastelloy C2000

Heat Transfer Surface Area: 10.1 m² (108.7 ft²)

Process Pressure: 6 bar (87 psi)

• design pressure process side (frames): -1/6 barg @ -29/185 degrees C (53 liter),
• service side (plates) -1/8 barg @ -29/185 degrees C (37 liter,
• CE0034,
• Cat III Mod H,
• mounted on lugs

Process Temperature: 185 °C (365 °F).

Type: Heat Exchanger

Subtype: Welded Plate

Manufacturer: Alfa Laval

Model: CP30-C-60 PLs

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 6.5 m² (70 ft²)

Process Pressure: 6 bar (87 psi)

• Compabloc welded plate heat exchanger,
• design pressure process side: 6 barg + full vacuum @ -29/185 degrees C (26.1 liter),
• service side: 8 barg + full vacuum @ -29/185 degrees C (24.6 liter),
• 1+1 pass process side, 4-pass service side,
• 316L stainless steel welded plates,
• openings process side: 1-100mm, 2-50mm, service side: 2-50mm
• mounted on lugs,
• design code: AD-Merkblatt Ed.2000

Process Temperature: 185 °C (365 °F).
