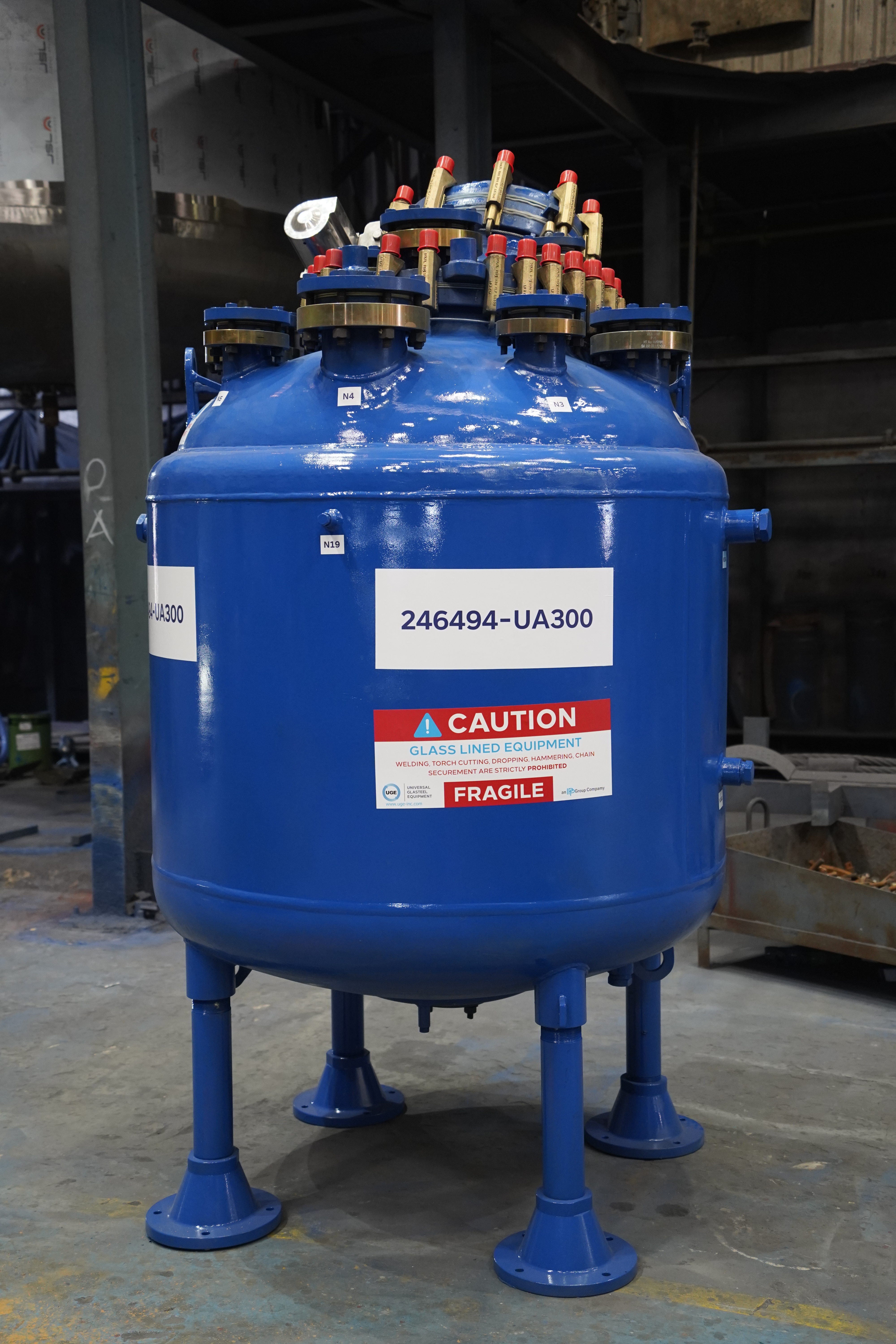

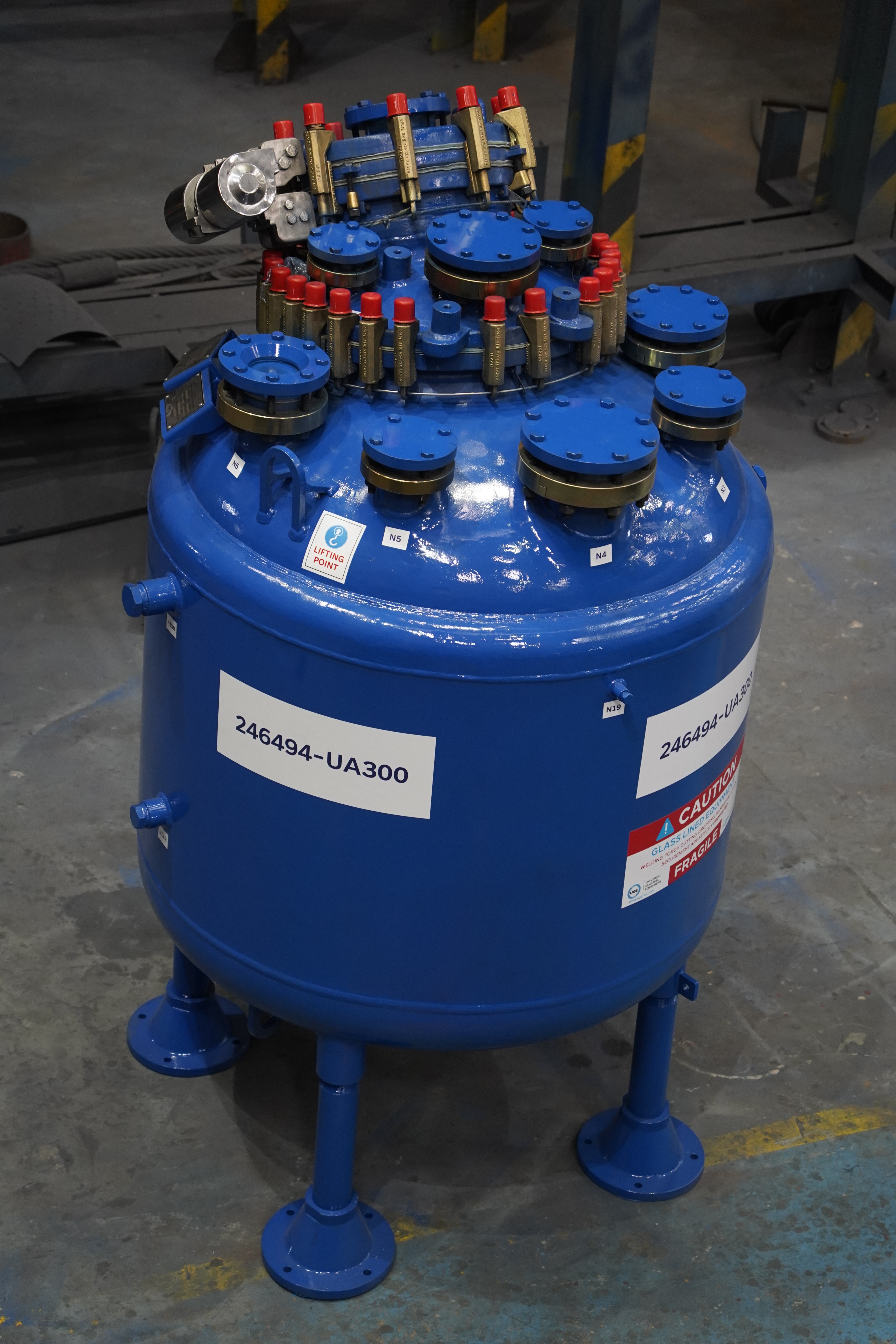

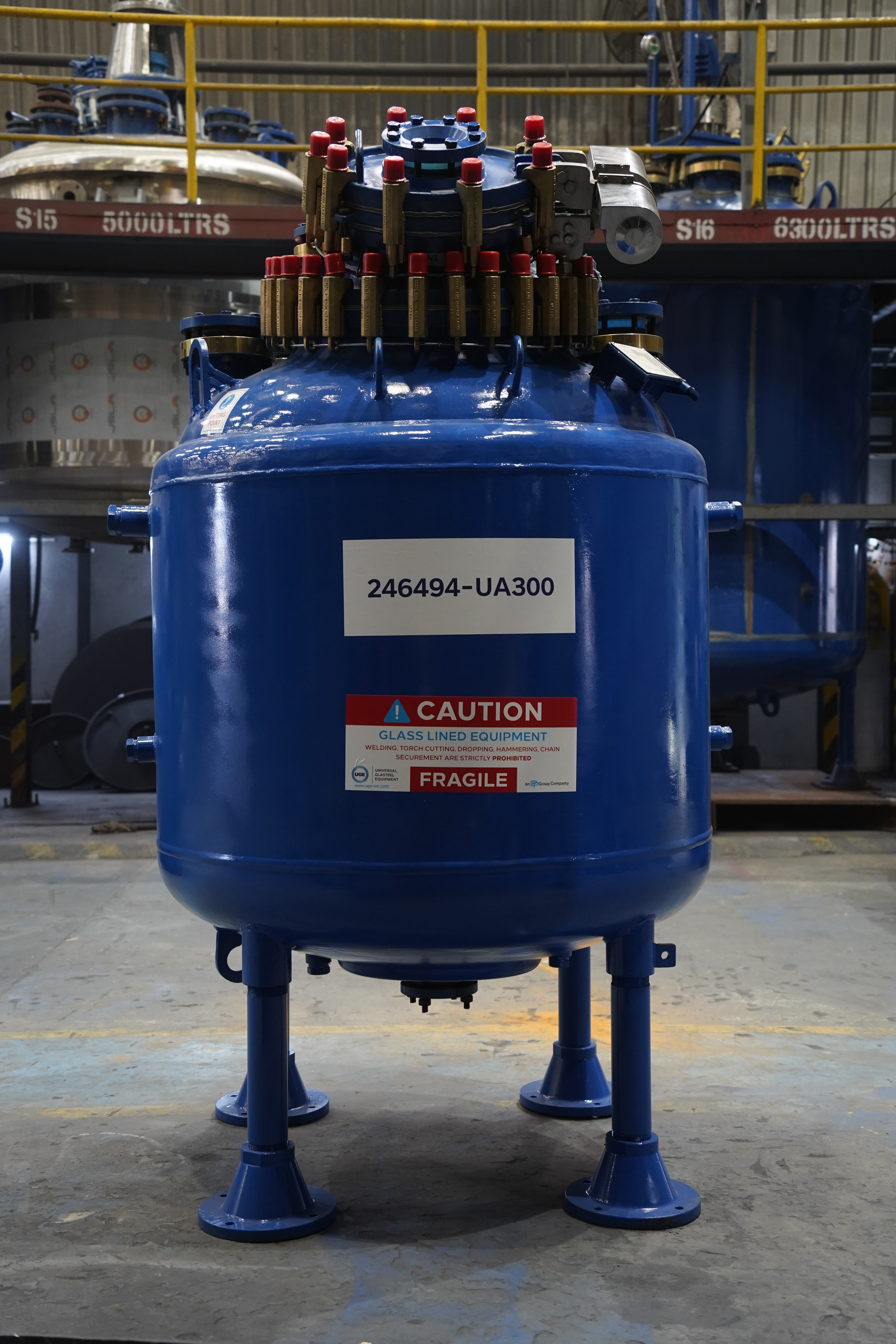

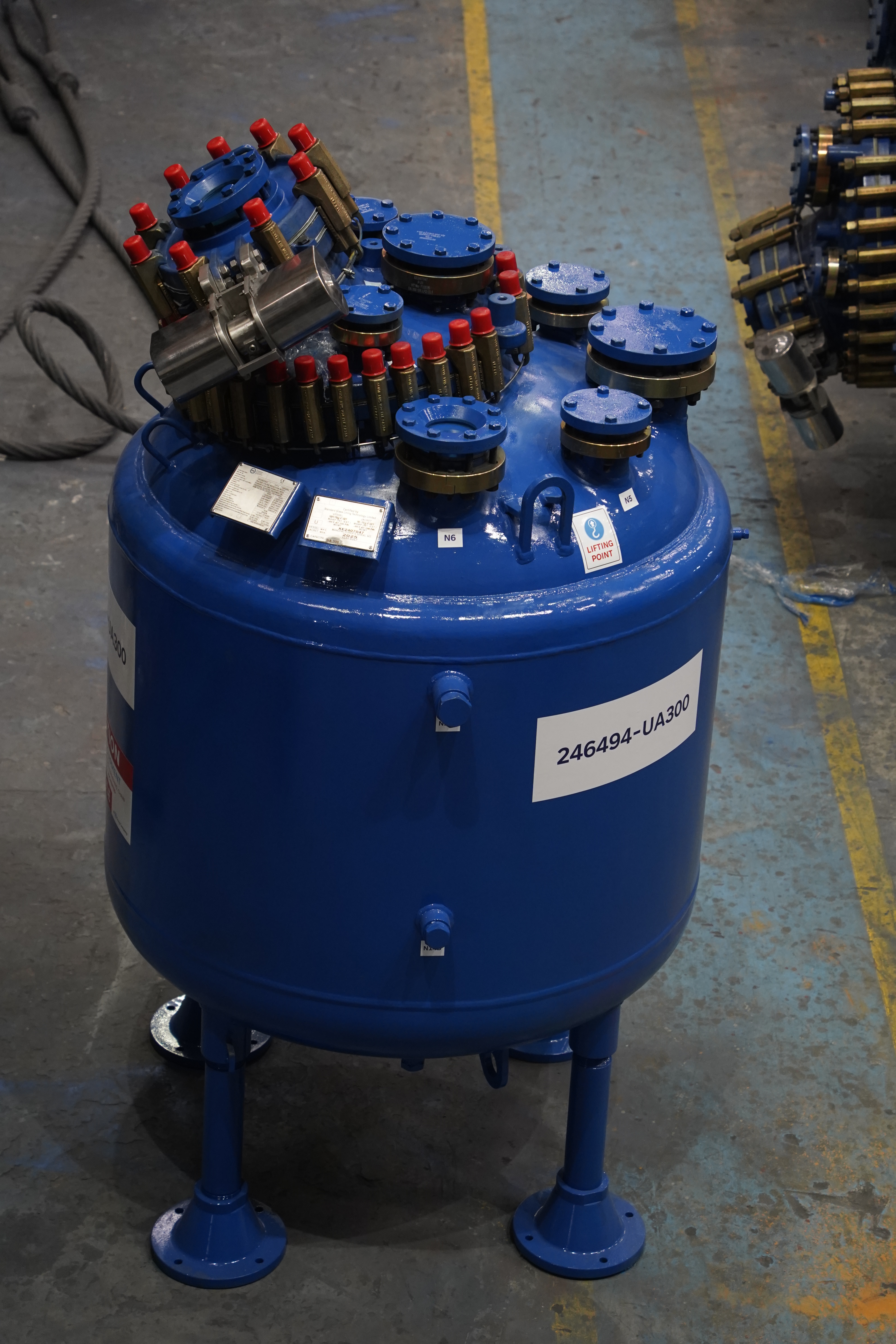

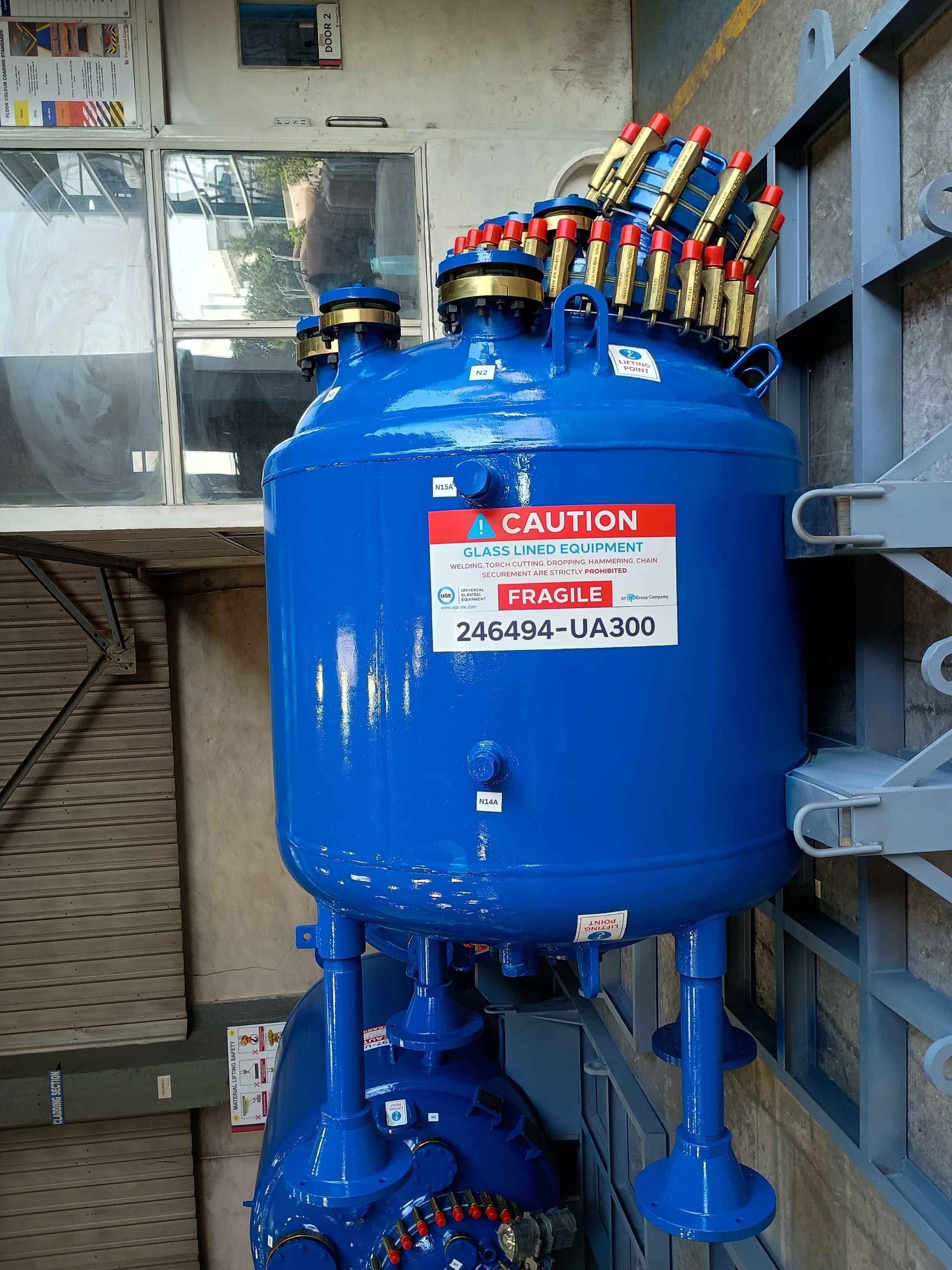

New Glasslined UGE UA-300 Batch Type Reactor Body - IPP# 246494

  • New Glasslined UGE UA-300 Batch Type Reactor Body - IPP# 246494 New Glasslined UGE UA-300 Batch Type Reactor Body - IPP# 246494
  • New Glasslined UGE UA-300 Batch Type Reactor Body - IPP# 246494 New Glasslined UGE UA-300 Batch Type Reactor Body - IPP# 246494
  • New Glasslined UGE UA-300 Batch Type Reactor Body - IPP# 246494 New Glasslined UGE UA-300 Batch Type Reactor Body - IPP# 246494
  • New Glasslined UGE UA-300 Batch Type Reactor Body - IPP# 246494 New Glasslined UGE UA-300 Batch Type Reactor Body - IPP# 246494
  • New Glasslined UGE UA-300 Batch Type Reactor Body - IPP# 246494 New Glasslined UGE UA-300 Batch Type Reactor Body - IPP# 246494
  • New Glasslined UGE UA-300 Batch Type Reactor Body - IPP# 246494
  • New Glasslined UGE UA-300 Batch Type Reactor Body - IPP# 246494
  • New Glasslined UGE UA-300 Batch Type Reactor Body - IPP# 246494
  • New Glasslined UGE UA-300 Batch Type Reactor Body - IPP# 246494
  • New Glasslined UGE UA-300 Batch Type Reactor Body - IPP# 246494
Overview
Reactor
Batch Type Body Only
UGE
UA-300
New
Glasslined
1,150 L (300 gallons)
Glass Lined
Yes
Pressure Vessel
6.9 bar (100 psi)
Yes
232.2 °C (450 °F)
Jacket/Internal Coil
6.9 bar (100 psi)
232.2 °C (450 °F)
Standard
Carbon Steel
Dimensions
Vertical
1,200 mm (48 in)
1,200 mm (48 in)
Heads
Dish
Glasslined
Dish
Glasslined
Other Specifications
Yes
Legs
Inlets & Outlets
24" main cover with 12" x 16" man way assembly including a 4" sight glass, protection ring and hinge assist. one 4 3/8" agitator nozzle, One 6" nozzle, three 4" nozzles, one 3" nozzle and two 2" nozzles.
Glass Details
New
New
  • New Base Reactor Body (with covers) Bare reactor price in sales comments.
  • Can be upgraded w/ drive system to reactor

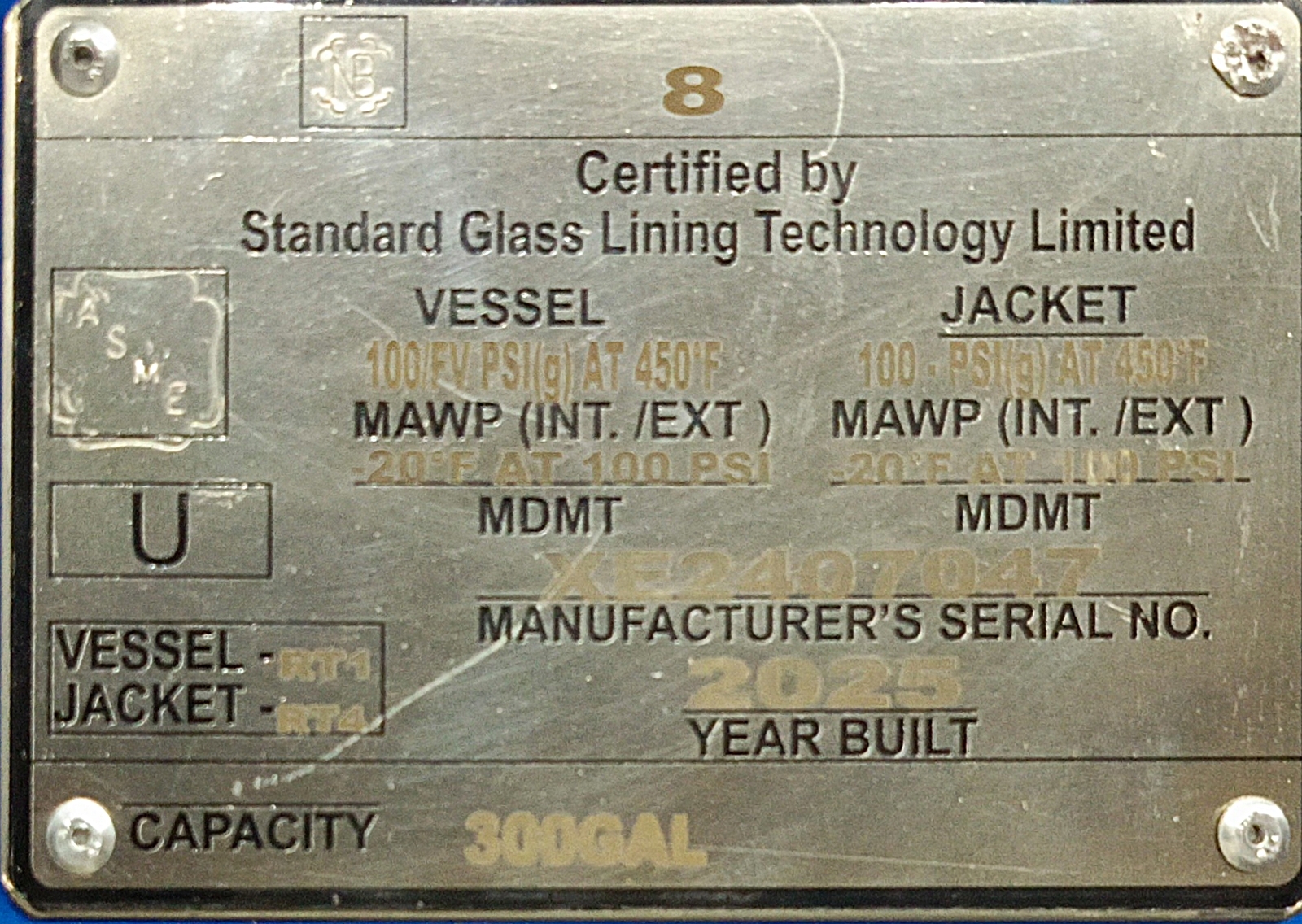

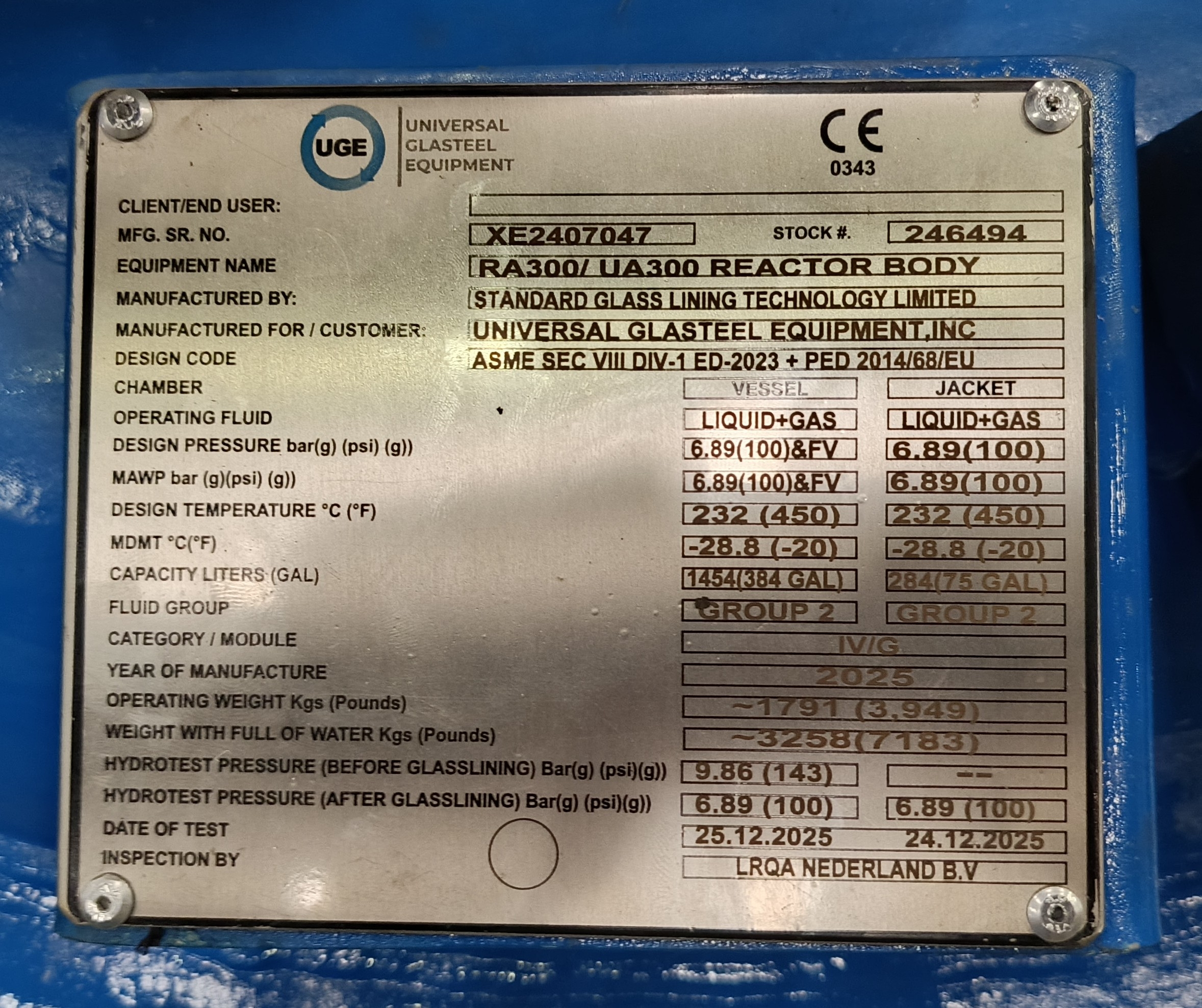

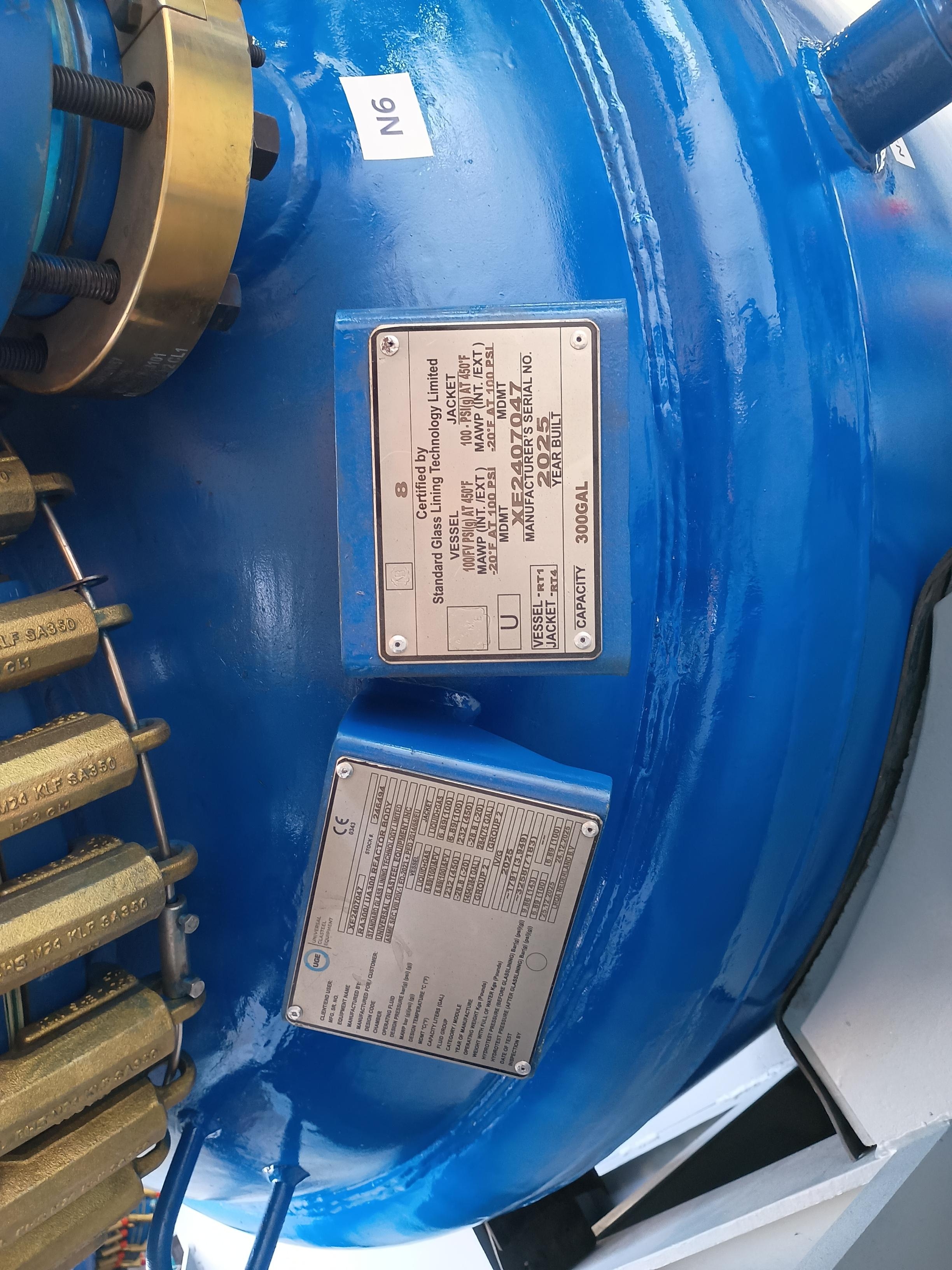

  • Both ASME National Board # and CE Marked
  • Interchangeable with UGE Agitation Systems & Pfaudler Agitation Systems
