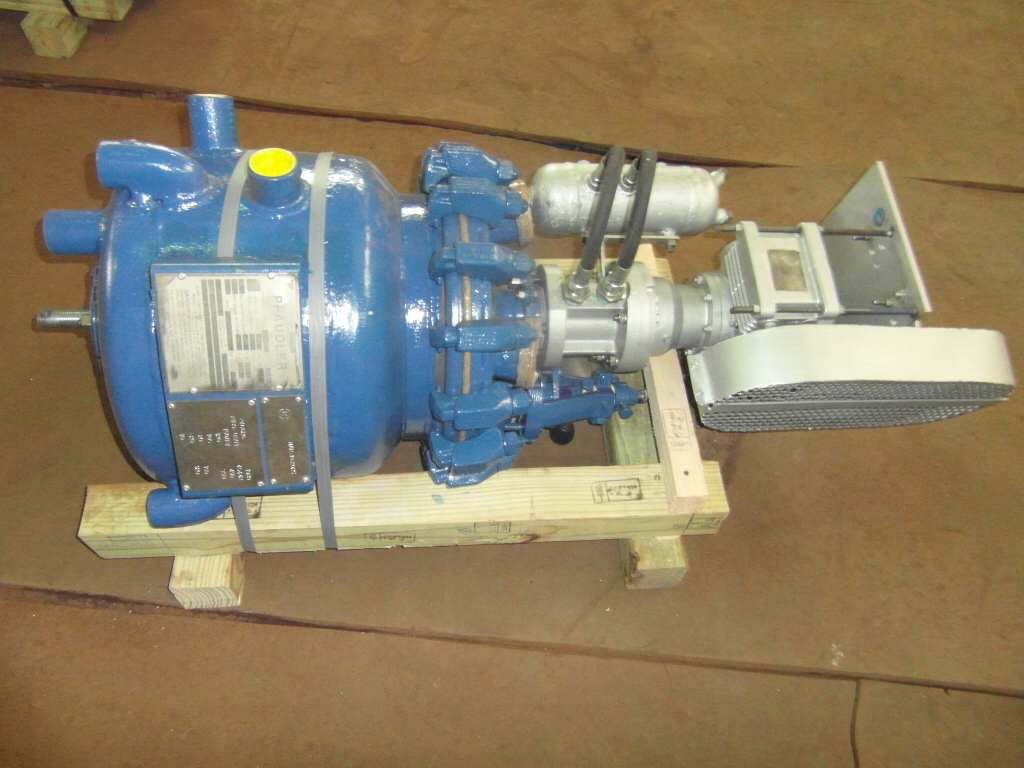

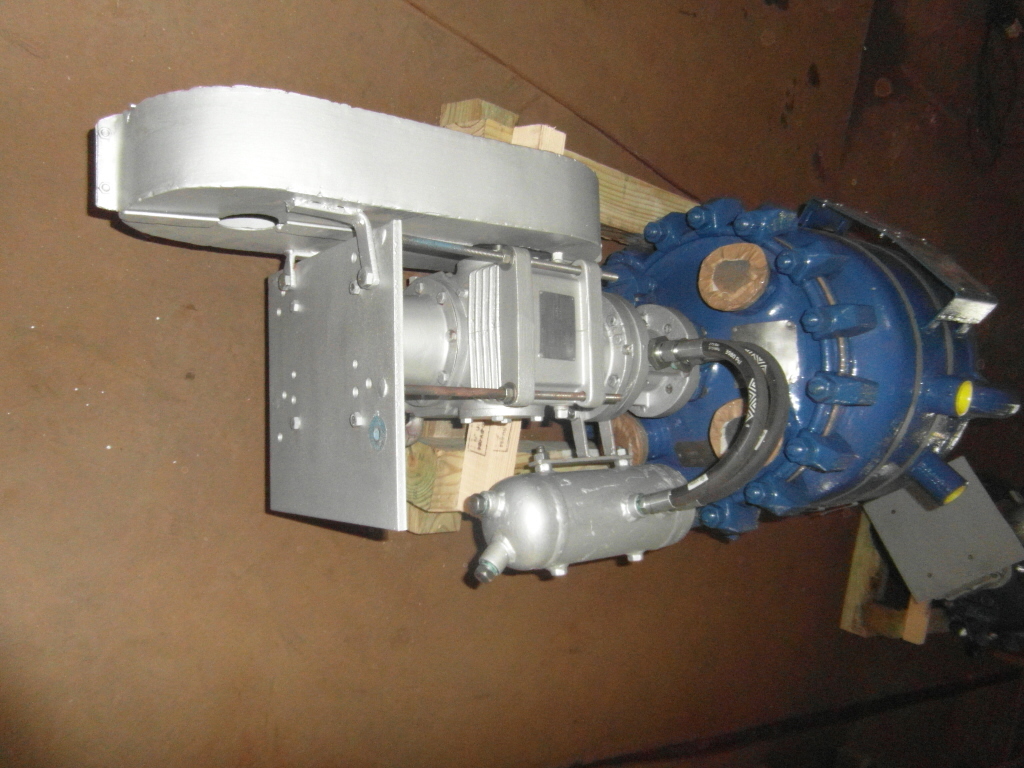

Glasslined Pfaudler Batch-Type Agitated Reactor - IPP# 246626

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: P Series

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 75.7 L (20 gallons)

Internal Pressure: 20.7 bar (300 psi)

Glass type: #9115

Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 6.9 bar (100 psi). Jacket Temperature: 232.2 °C (450 °F). Orientation: Vertical. Diameter: 508 mm (20 in). Straight Side Length: 476.3 mm (18.8 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: P Series

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 189.3 L (50 gallons)

Internal Pressure: 1.72 bar (25 psi)

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 7.2 bar (105 psi). Jacket Temperature: 176.7 °C (350 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 610 mm (24 in). Straight Side Length: 711 mm (28 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: P Series

Condition: Used

Material: Glasslined

Capacity (Design): 75.7 L (20 gallons)

Internal Pressure: 10.3 bar (150 psi)

belt drived by a 1 HP 3/60/230/460 volt motor.

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 8.3 bar (120 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Carbon Steel. Agitation: Yes. Diameter: 508 mm (20 in). Straight Side Length: 279.4 mm (11 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: P Series

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 189.3 L (50 gallons)

Internal Pressure: 1.72 bar (25 psi)

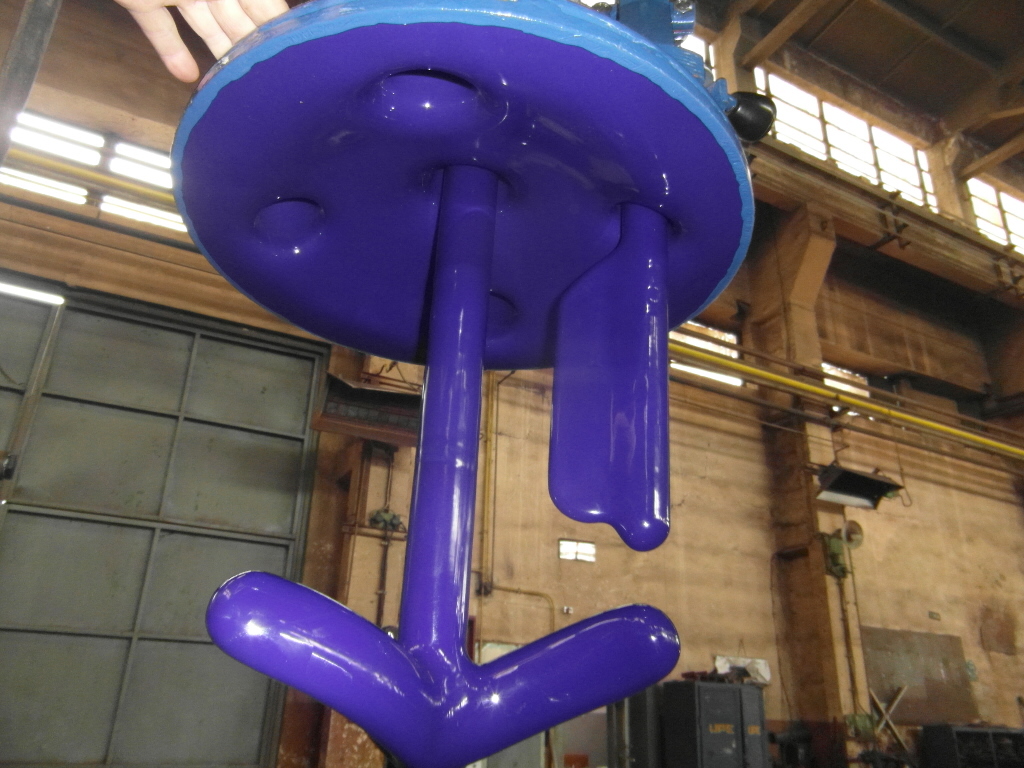

50 Gallon "P" Series reactor assembly Baffle and RCI installed, motor installed at time of purchase

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 7.2 bar (105 psi). Jacket Temperature: 176.7 °C (350 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 610 mm (24 in). Straight Side Length: 711 mm (28 in). Support Type: Legs.
