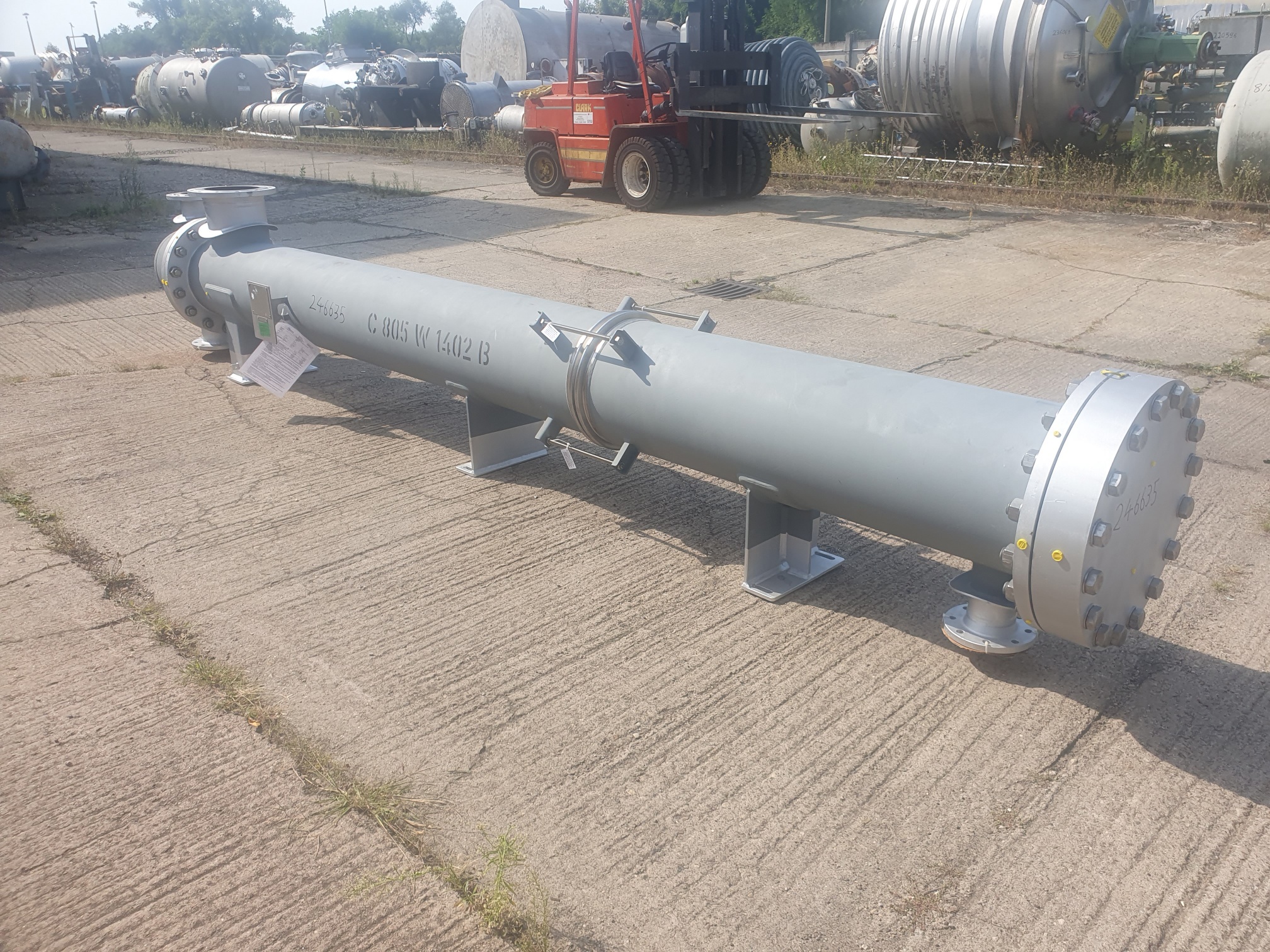

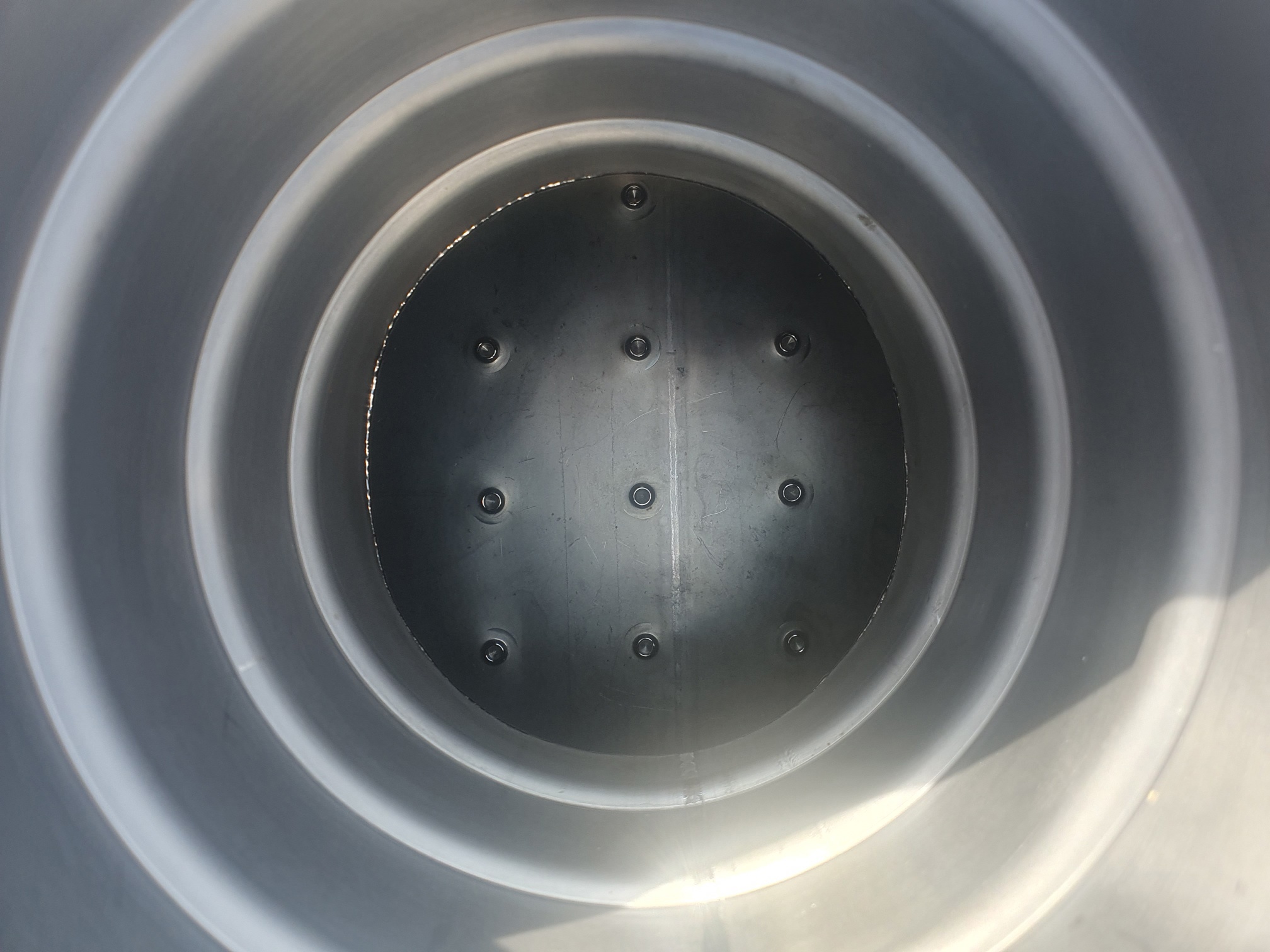

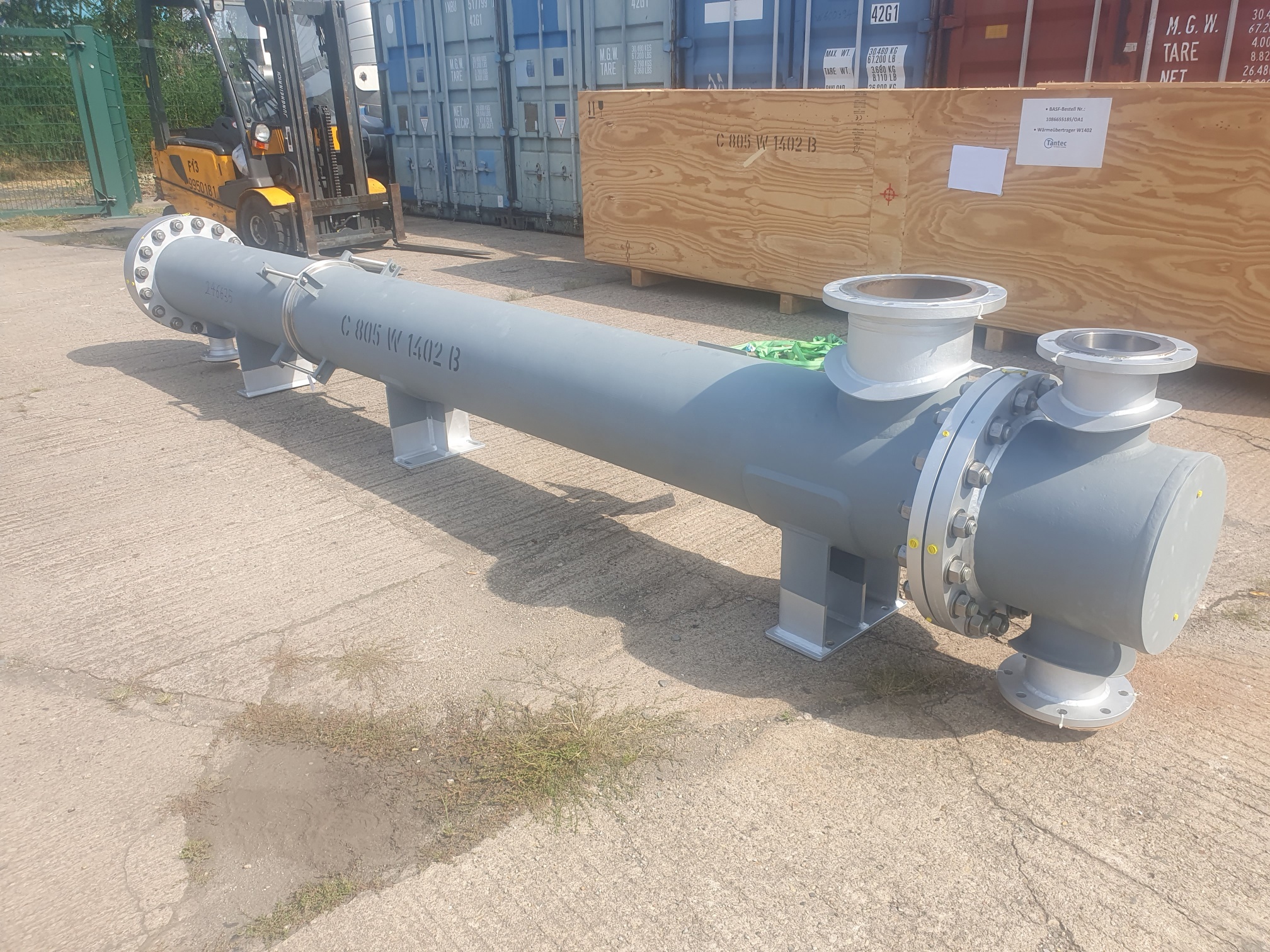

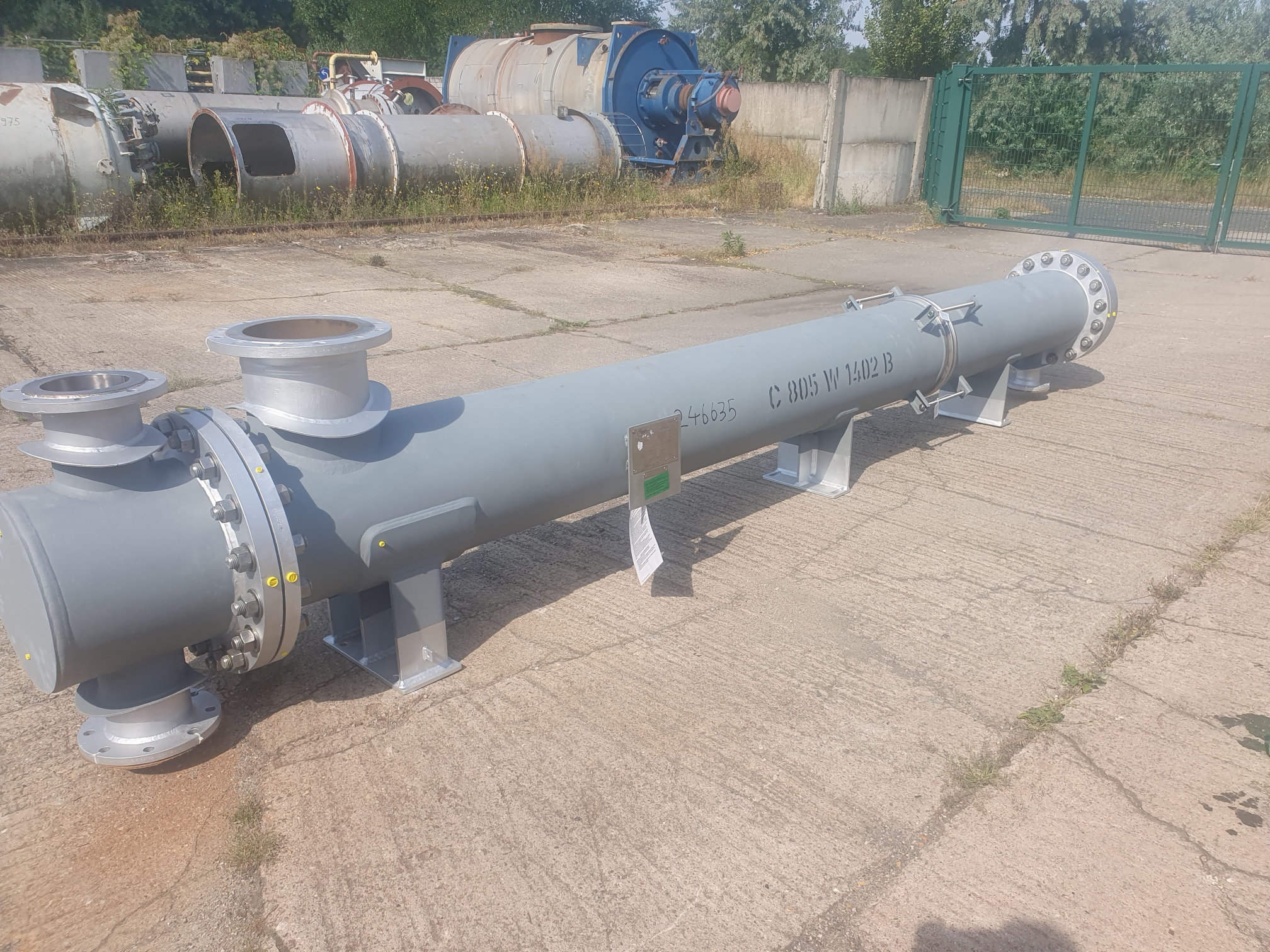

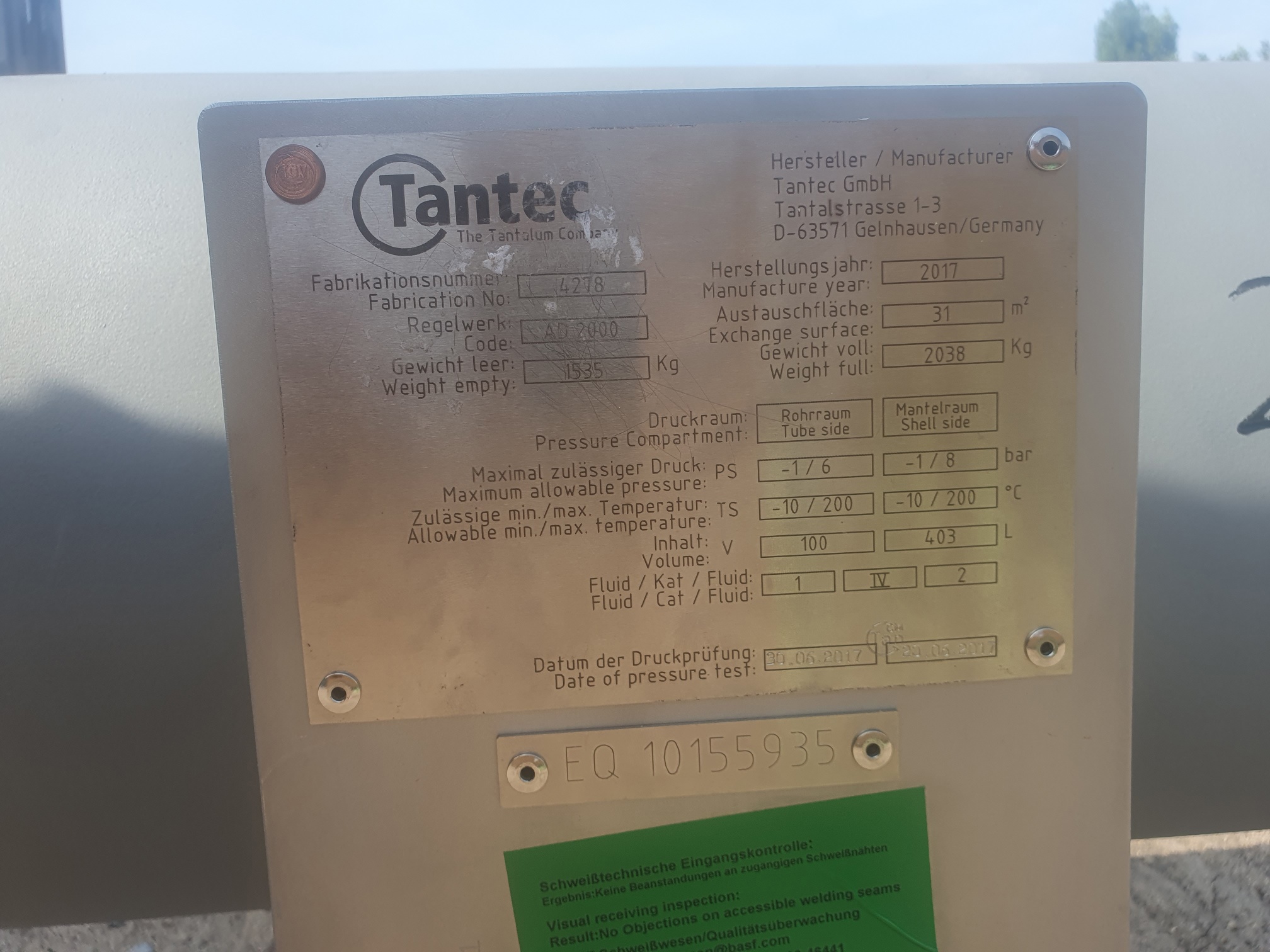

31m² tantalum tube carbon steel shell, horizontal shell and tube heat exchanger, manufactured by Tantec, serial number 4278, tube pressure rated by -1/6bar @-10/200 degrees C (volume 100 liter), shell pressure rated by -1/8bar @ -10/200 degrees C (volume403 liter), carbon steel shell 490mm diameter x 4508mm length, (175) tubes 12.7mm diameter x 0.4mm thickness x 4.500mm length, openings shell side: (1)DN100, (1)DN250; openings tubeside: (2)DN150, mounted on 2 saddles
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Cosmos Metalurgical (Camarillo CA)
Condition: Used
Material: Tantalum
Heat Transfer Surface Area: 4.3 m² (46.3 ft²)
Orientation: Horizontal
working pressure tube side 150 psi (10.3 bar) + full vacuum @ 400 degrees F (204 degrees C), shell side 150 psi (10.3 bar) + full vacuum @ 400 degrees F (204 degrees C) single pass 200mm I.D 304L stainless steel shell with expansion bellows (2) 304L stainless steel heads with Tantalum lining (1) flat channel head
Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Stainless Steel 304. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Tantalum. Vacuum: Yes. Shell Diameter: 200 mm (7.9 in). Head Material: Stainless Steel 304. Tube-side Passes: 1. Tube Number: 33. Tube Diameter: 19 mm (0.75 in). Tube Length: 2,300 mm (89.8 in). Nozzle Schedule: - Tube side openings: Coned head with 1-100mm, flat channel head with 1-50mm - Shell side openings: 2-80mm.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Pfaudler
Condition: Used
Material: Tantalum
Heat Transfer Surface Area: 11.4 m² (123 ft²)
Orientation: Horizontal
(48) 1" OD welded tubes. (2) Glass lined heads.
Shell Pressure: 3.4 bar (50 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 1.72 bar (25 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Tantalum. Tubesheet Material: Tantalum. Vacuum: Yes. Head Material: Carbon Steel. Tube Number: 48. Tube Diameter: 25.4 mm (1 in).
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Titanium Industrial
Condition: Used
Material: Tantalum
Heat Transfer Surface Area: 20.2 m² (217 ft²)
Orientation: Horizontal
budle for steam heat in and condensate return designed for mounting horizontal inside a tank. Tank side contact parts (OD of tubes and tubesheet) are covered in Tantalum Steam side designed for 250PSI @ 400 degrees F. Exterior design 0 psig @ full vacuum Overall length 176" with 8' tubes. Diameter is 24" OD and tubes are designed to pass through a 22" Pfaudler manhole. Surface area is 217 sq.ft. Shell in connection 3", shell out connection 1.5"
Tube Material: Tantalum. Vacuum: Yes. Length: 4,450 mm (176 in). Tube Length: 2,450 mm (96 in).
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Cosmos Metalurgical (Camarillo CA)
Condition: Used
Material: Tantalum
Heat Transfer Surface Area: 29.5 m² (317 ft²)
Shell Pressure: 10.3 bar (150 psi)
Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Tantalum. Tubesheet Material: Tantalum. Vacuum: Yes. Shell Diameter: 610 mm (24 in). Length: 1,850 mm (72 in). Tube Type: Straight Tube.
