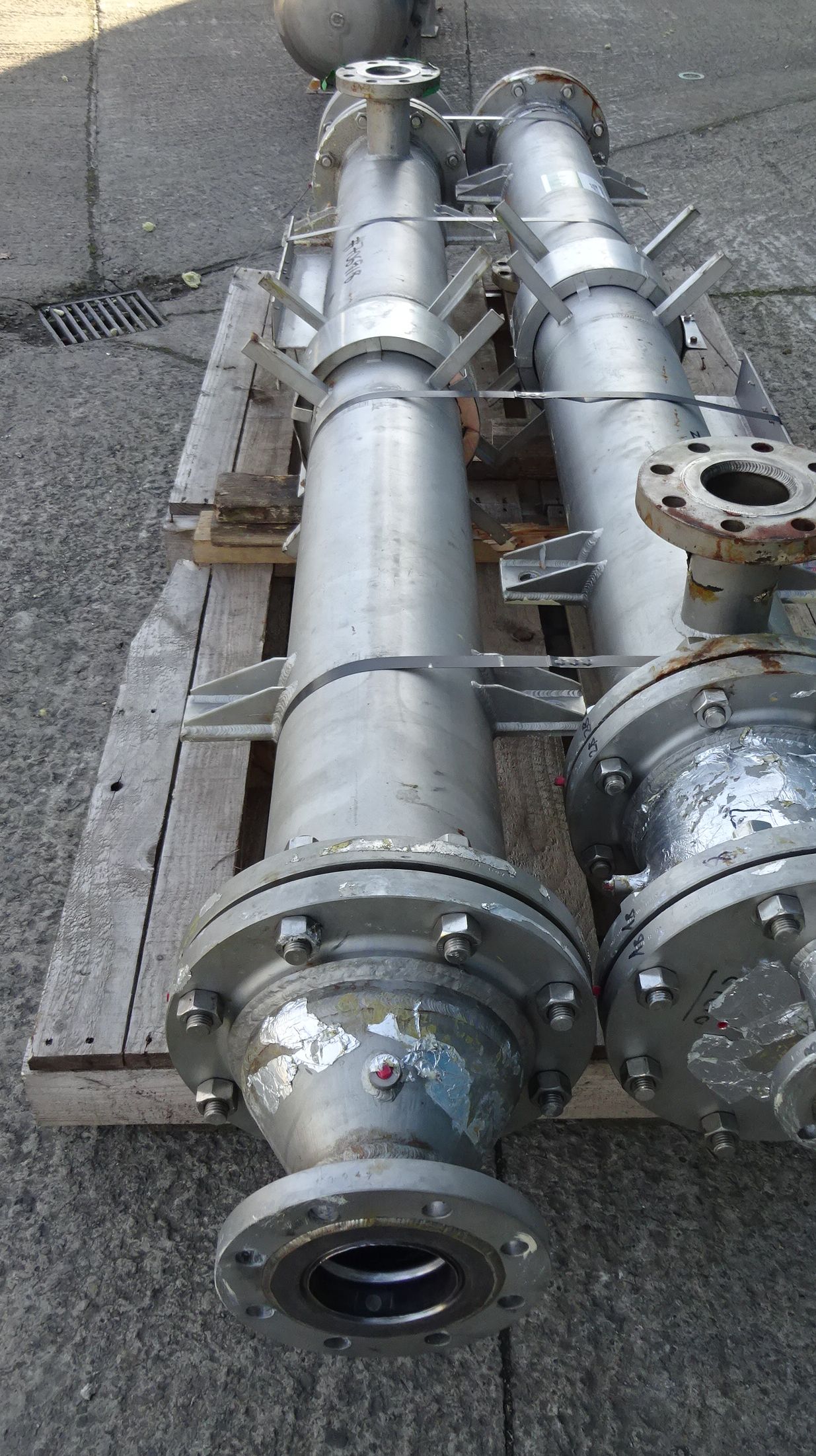

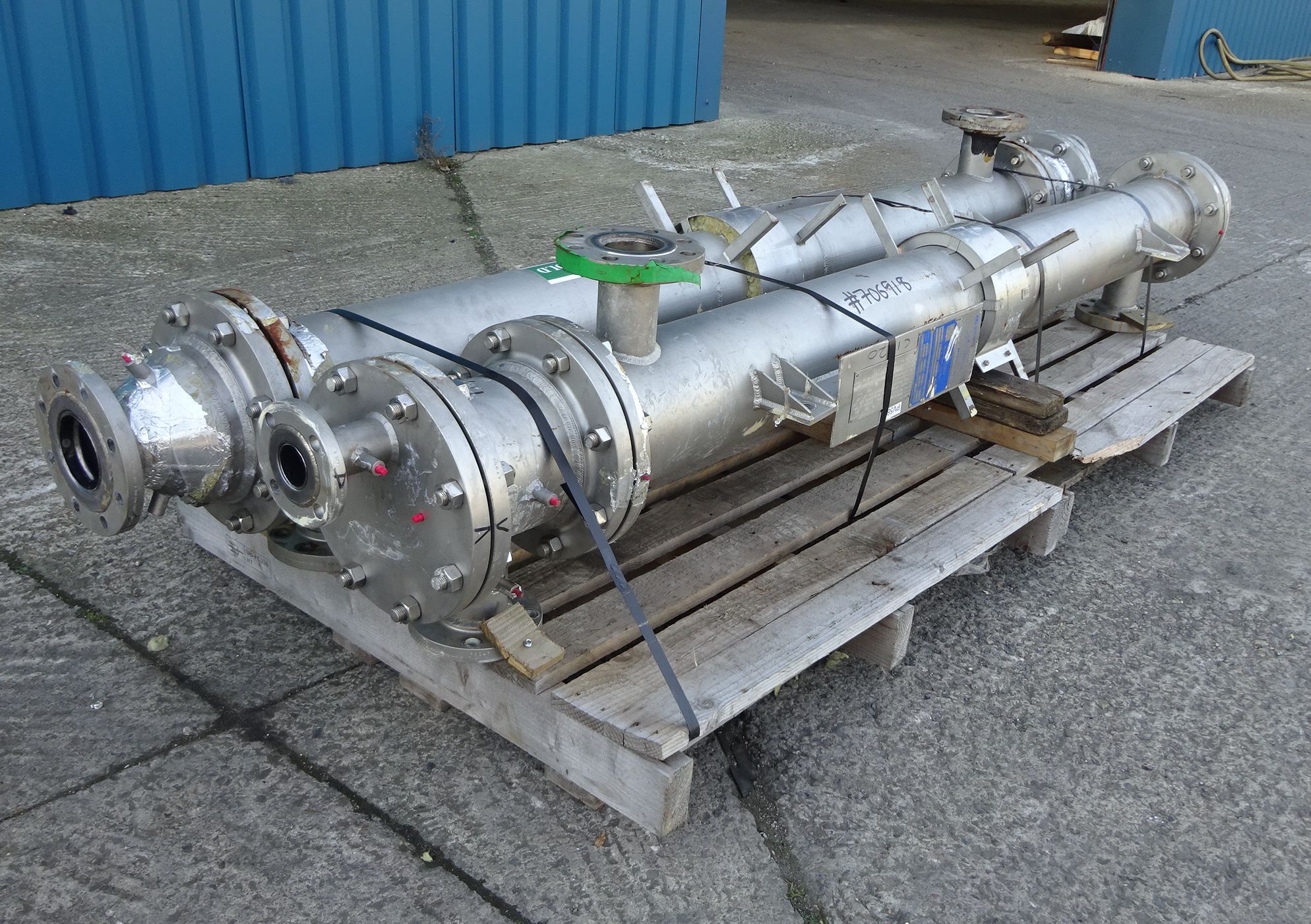

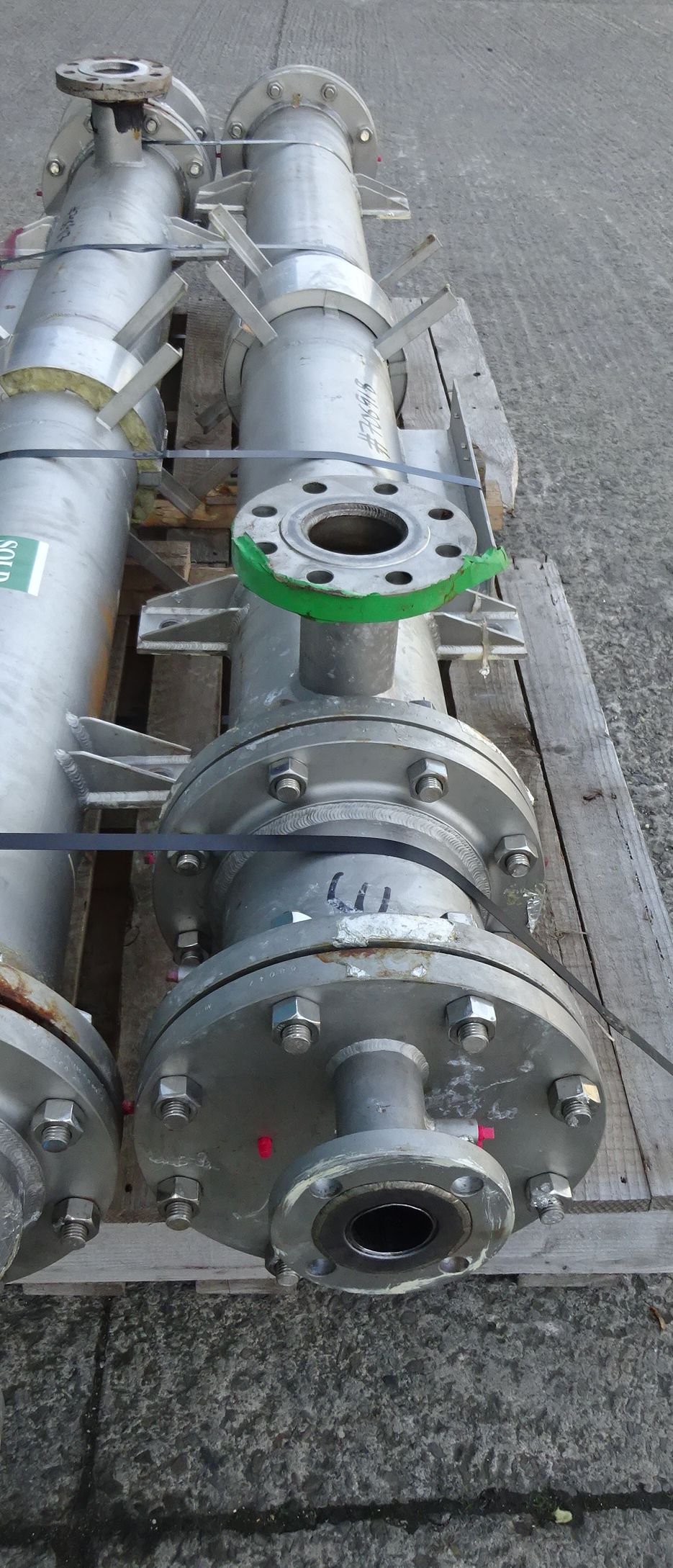

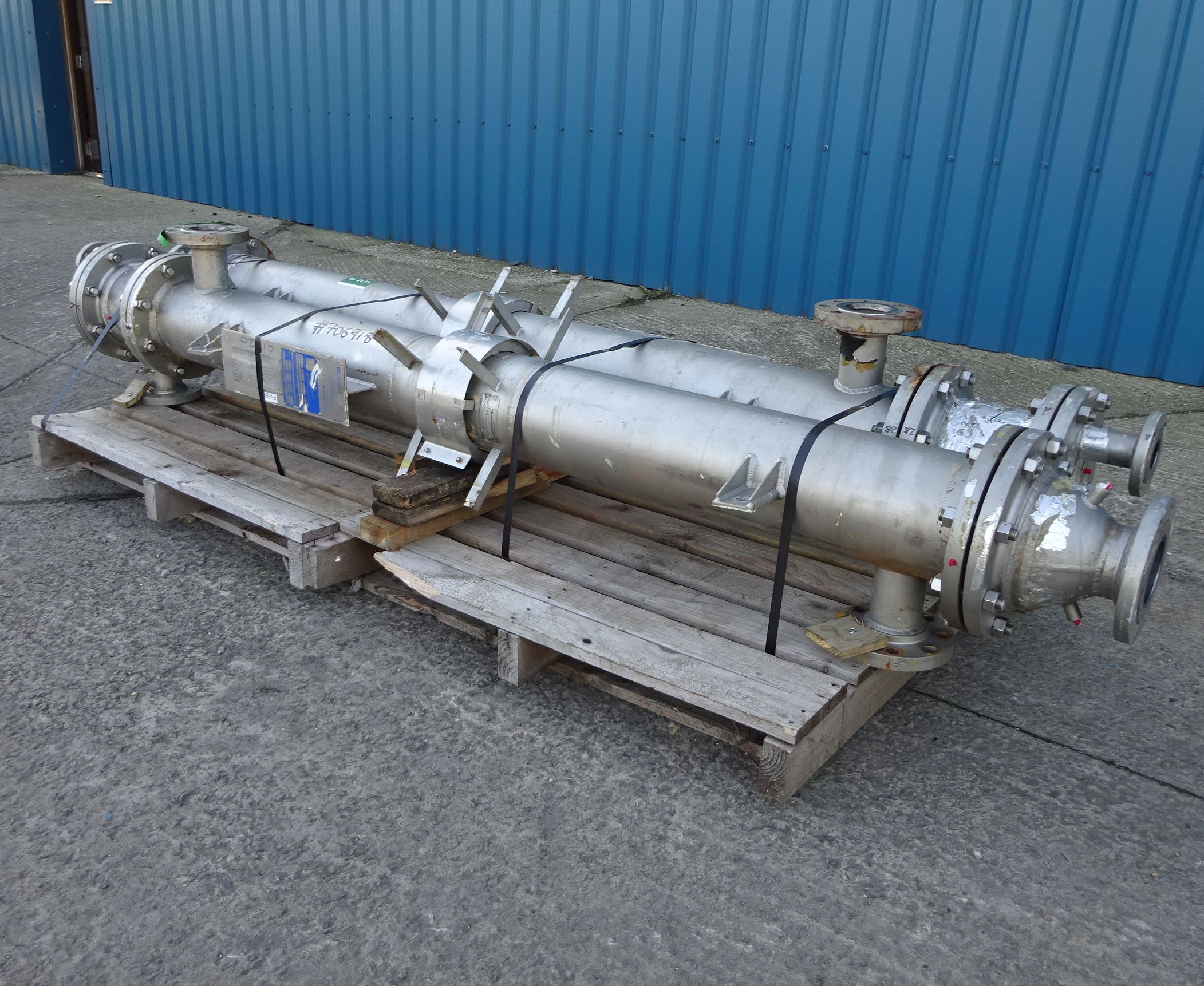

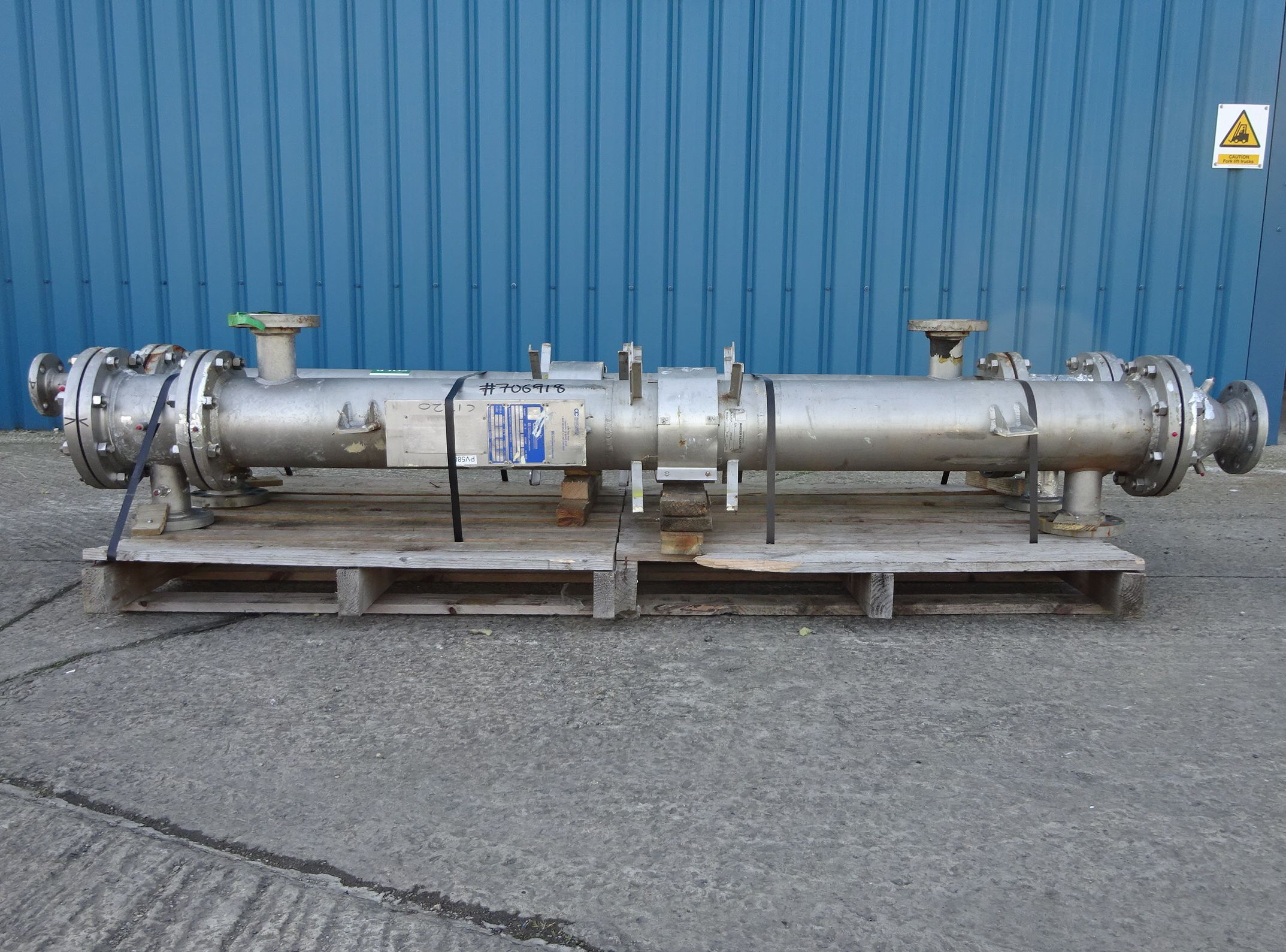

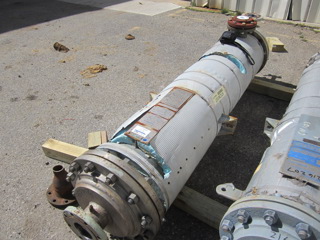

working pressure tube side 150 psi (10.3 bar) + full vacuum @ 400 degrees F (204 degrees C), shell side 150 psi (10.3 bar) + full vacuum @ 400 degrees F (204 degrees C) single pass 200mm I.D 304L stainless steel shell with expansion bellows (2) 304L stainless steel heads with Tantalum lining (1) flat channel head
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Cosmos Metalurgical (Camarillo CA)
Condition: Used
Material: Tantalum
Heat Transfer Surface Area: 20.8 m² (224 ft²)
Orientation: Vertical
Shell rated 150psi FV @ 450 degF. Tubes rated. 150psi FV @ 450 degF
Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Tantalum. Vacuum: Yes.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Cosmos Metalurgical (Camarillo CA)
Condition: Used
Material: Tantalum
Heat Transfer Surface Area: 29.5 m² (317 ft²)
Shell Pressure: 10.3 bar (150 psi)
CS shell rated 150psi FV @ 150 psi @450 deg F. Tantalum tubes rated 150psi FV@ 450 degF
Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Tantalum. Tubesheet Material: Tantalum. Vacuum: Yes. Shell Diameter: 609.6 mm (24 in). Length: 1,829 mm (72 in). Tube Type: Straight Tube.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Cosmos Metalurgical (Camarillo CA)
Condition: Used
Material: Tantalum
Heat Transfer Surface Area: 29.5 m² (317 ft²)
Shell Pressure: 10.3 bar (150 psi)
shell rated 150psi FV @ 150 psi @450 deg F tubes rated 150psi FV@ 450 degF
Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Tantalum. Vacuum: Yes. Shell Diameter: 609.6 mm (24 in). Length: 1,829 mm (72 in).
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Cosmos Metalurgical (Camarillo CA)
Model: BEM 12-1-72
Condition: Used
Material: Tantalum
Heat Transfer Surface Area: 9.3 m² (100 ft²)
Orientation: Horizontal
Rated 150/FV @ -20 to 400 degrees F tube side 150/FV @ -20 to 400 degrees F Shell Side Unit has (2) bolted flat heads (1) Tanalum, (1) CS with tantalum lining
Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Tantalum. Tubesheet Material: Tantalum. Vacuum: Yes. Shell Diameter: 304.8 mm (12 in). Head Material: Tantalum. Length: 2,400 mm (94.5 in). Tube Number: 84. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,829 mm (72 in). Nozzle Schedule: - Nozzles: Shell side has two 4" nozzles with 1" reducing flanges - Inlet/outlet: Tube side inlet is 4", tube side outlet is 3" with a 1" drain..
