Has Live bottom- Can be used with bagger downstairs
Type: Bin

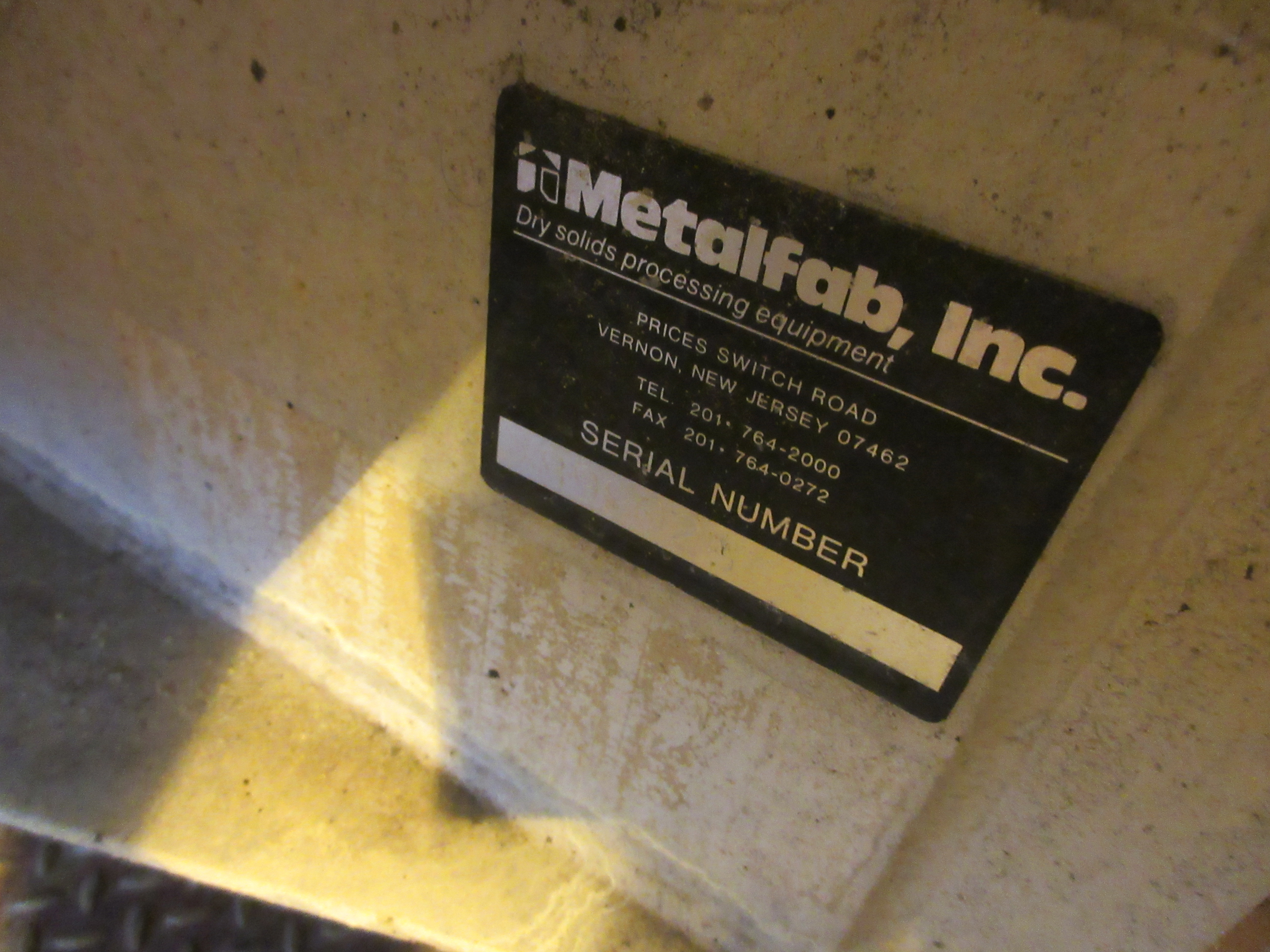

Manufacturer: Metalfab
Condition: Used
Material: Stainless Steel 304
Capacity Design: 5.7 m3 (200 ft3)
Orientation: Vertical
Has Live bottom- Can be used with bagger in basement below.
Width: 1,850 mm (72 in). Cone Length: 914 mm (36 in). Height: 1,850 mm (72 in). Support Type: Legs. Live Bottom: Yes.
Type: Bin
Manufacturer: Metalfab
Condition: Used
Material: Stainless Steel 316
Capacity Design: 1.84 m3 (65 ft3)
Orientation: Vertical
Live bottom motion generator (53-VM-510) is a type CD18-5380, serial # 837356. rated for 5380 lbs of force 1800 rpm. 3 HP, 230/460 volts 3 ph. 60 Hz.
Width: 2,300 mm (90 in). Height: 2,200 mm (87 in). Length: 2,200 mm (87 in). Support Type: Legs. Live Bottom: Yes.
Type: Bin
Condition: Used
Material: Stainless Steel 304
Clad: Yes
Capacity Design: 0.3 m3 (10.6 ft3)
Orientation: Vertical
hopper welded top, feed has s/steel rotary lock valve driven by 2-speed motor, 0.5 kw, 3/50/380-420/220-240 volt, 1400 rpm or 0.5kw, 3/60/440-480/250-280 volt, 1690 rpm, openings top 1-200mm (feed), 1-50mm, side 1-50mm, 1-25mm (sensor), bottom 1-250mm, with insulation and cladding
Width: 680 mm (26.8 in). Cone Length: 1,100 mm (43.3 in). Length: 300 mm (11.8 in). Support Type: Lugs.
Type: Bin
Condition: Used
Material: Stainless Steel 304
Capacity Design: 117 m3 (4,150 ft3)
Orientation: Vertical
mounted on a stainless steel skirt with a carbon steel frame with legs, handrail around top,
Width: 3,500 mm (137.8 in). Cone Length: 2,900 mm (113.4 in). Height: 11,200 mm (441.7 in). Length: 285,000 mm (11,200 in). Support Type: Legs.
