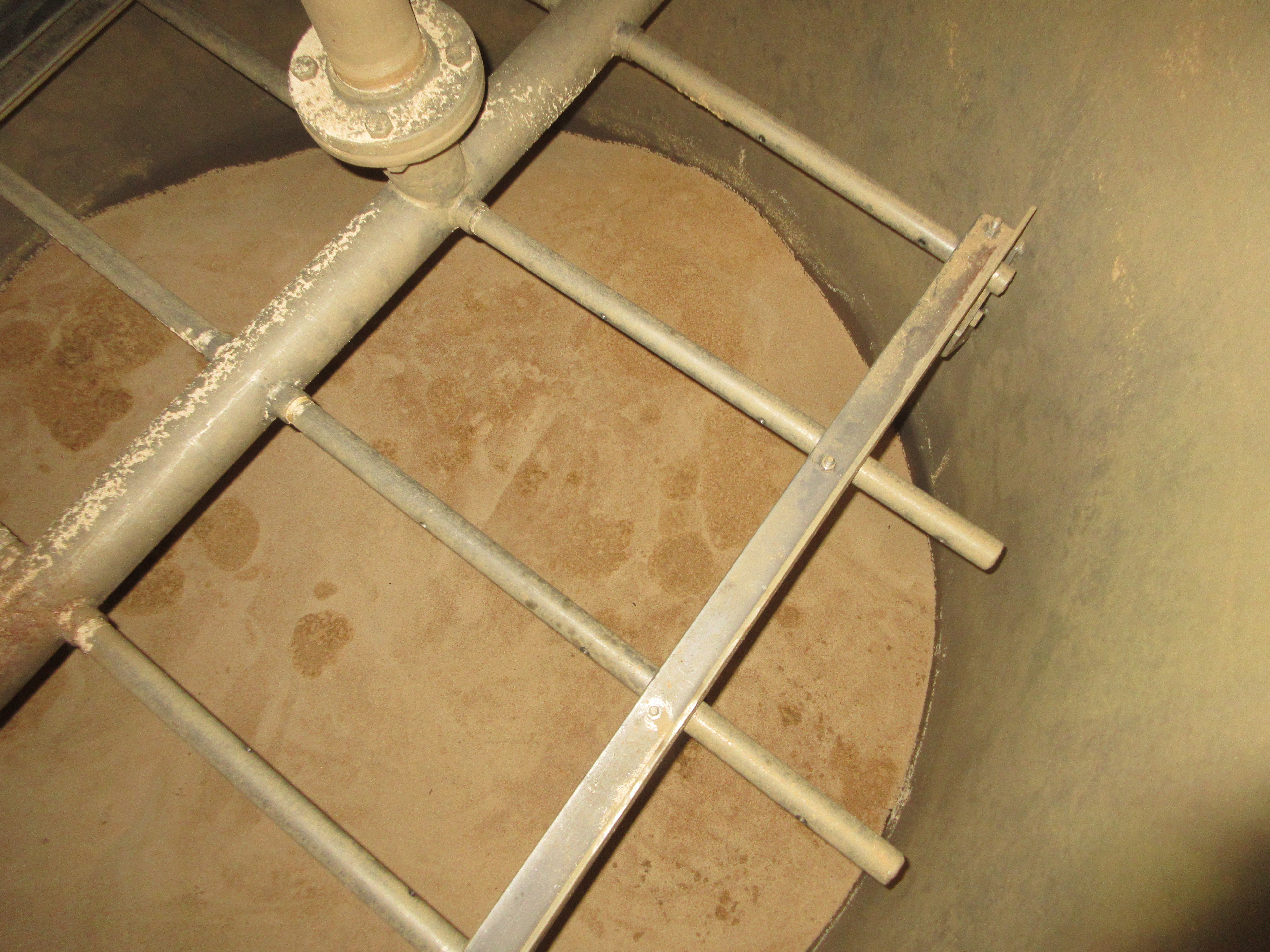

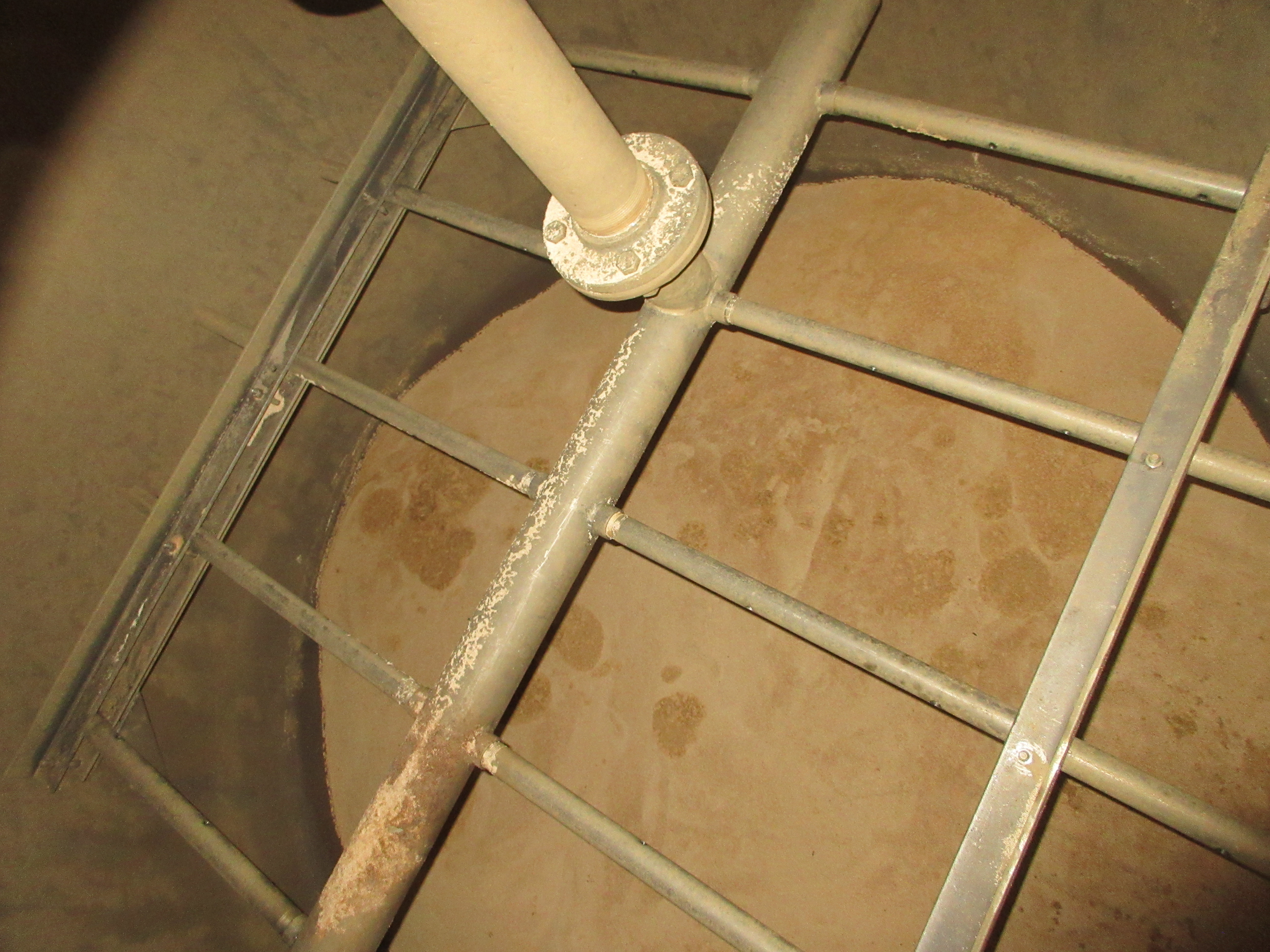

Five sets of trays on distributor two sets 43" with 3/8" holes, two sets 55" with 3/8" holes, one set 62" with 1/2" holes.
Type: Column
Subtype: Tray

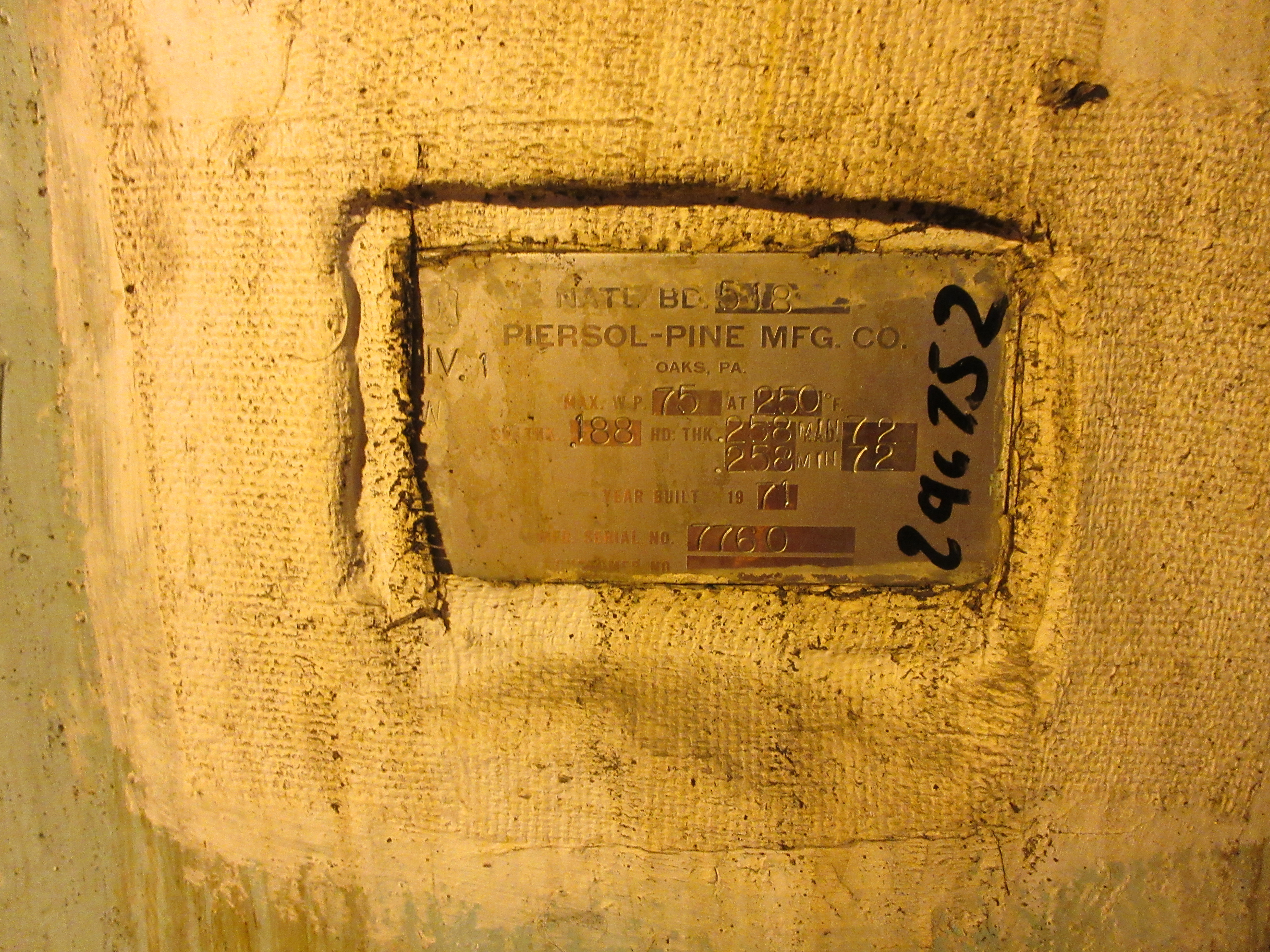

Manufacturer: Piersol-Pine
Condition: Used
Material: Stainless Steel 316
Diameter (1): 1,829 mm (72 in)
Length (overall): 1,829 mm (72 in)
Five sets of trays on distributor two sets 43" with 3/8" holes, two sets 55" with 3/8" holes, one set 62" with 1/2" holes.
Number Of Trays: 5. Tray Type: Sieve Deck.
Type: Column
Subtype: Tray
Manufacturer: Wyatt
Condition: Used
Material: Stainless Steel 316
Diameter (1): 1,372 mm (54 in)
Length (overall): 14,249 mm (561 in)
Pressure: 2.1 bar (30 psi). Vacuum: Yes. Temperature: 232.2 °C (450 °F). Number Of Trays: 38.
Type: Column
Subtype: Tray
Manufacturer: GIG
Condition: Used
Material: Stainless Steel 316
Diameter (1): 600 mm (23.6 in)
Pressure: 0.1 bar (1.45 psi)
(1.4435) tray column with sump tank sump tank 1.1 bar @ 102 degrees C (1270 liter), 600mm diameter x 8700mm total height, (33) internal 316L stainless steel Varioflex valve trays, approx 200mm spacing, column in 3-sections ( 2-sections 2420mm high, 1- section 2260mm high), column with (1) 26.2 square meter 304 stainless steel (1.4301) tube and shell vertical condenser, manufactured by GIG, design pressure tube side 6 bar @ 35 degrees C, shell atmospheric @ 64 degrees C, (194) 17.2mm diameter x 1.2mm thick x 2.5m long 304 stainless steel tubes, 4 pass tubeside, single pass shell side, 419mm diameter 304 stainless steel shell, condenser fits on to the top of the column, (2) 3.5 m3/hr @ 34m head 316 stainless steel centrifugal pumps, type NCL oh 32/165, manufactured by Dickow Pumpen, 2.1 kw, 2900 rpm, EX design, mounted on a baseplate
Temperature: 102 °C (215.6 °F).
Type: Column
Subtype: Tray
Manufacturer: Ryan
Condition: Used
Material: Stainless Steel 316
Diameter (1): 762 mm (30 in)
Length (overall): 6,706 mm (264 in)
(manufactured to code but not stamped) with davit for removal Heads 3/16" thick. With (10) Sieve trays, Approx. 115 3/4" puched holes with down commers.
Pressure: 0.69 bar (10 psi). Temperature: 126.7 °C (260 °F). Number Of Trays: 10.
