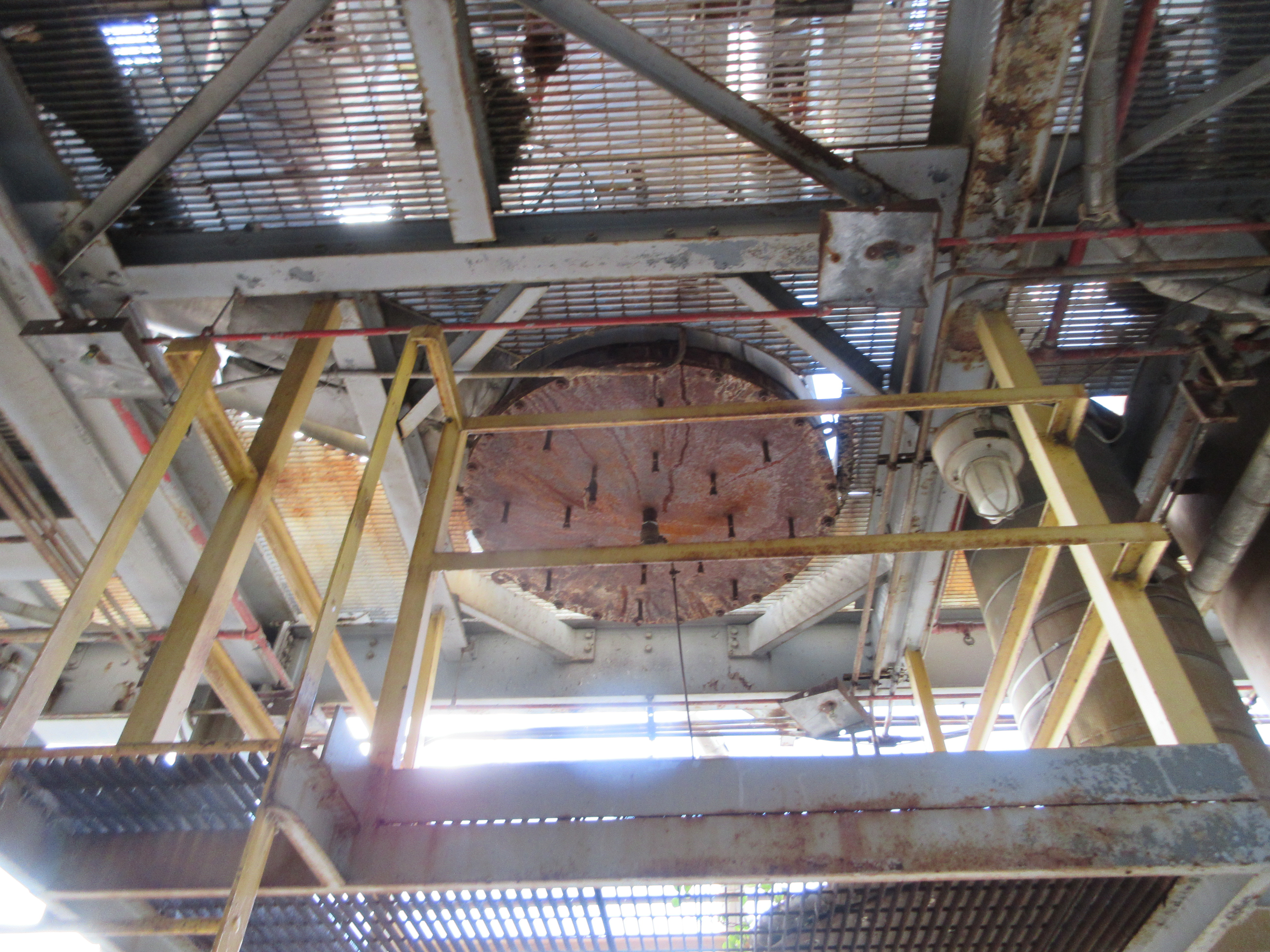

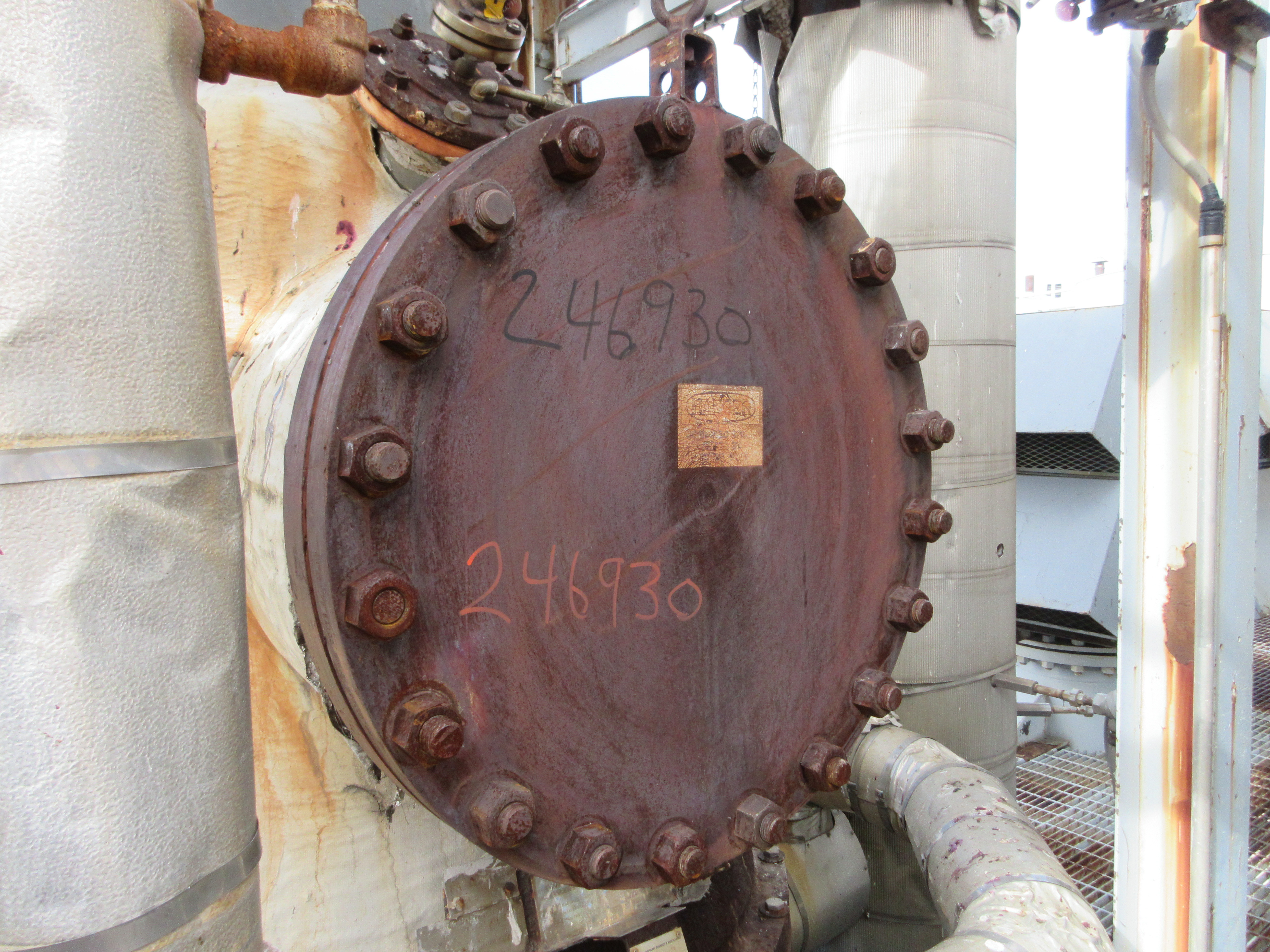

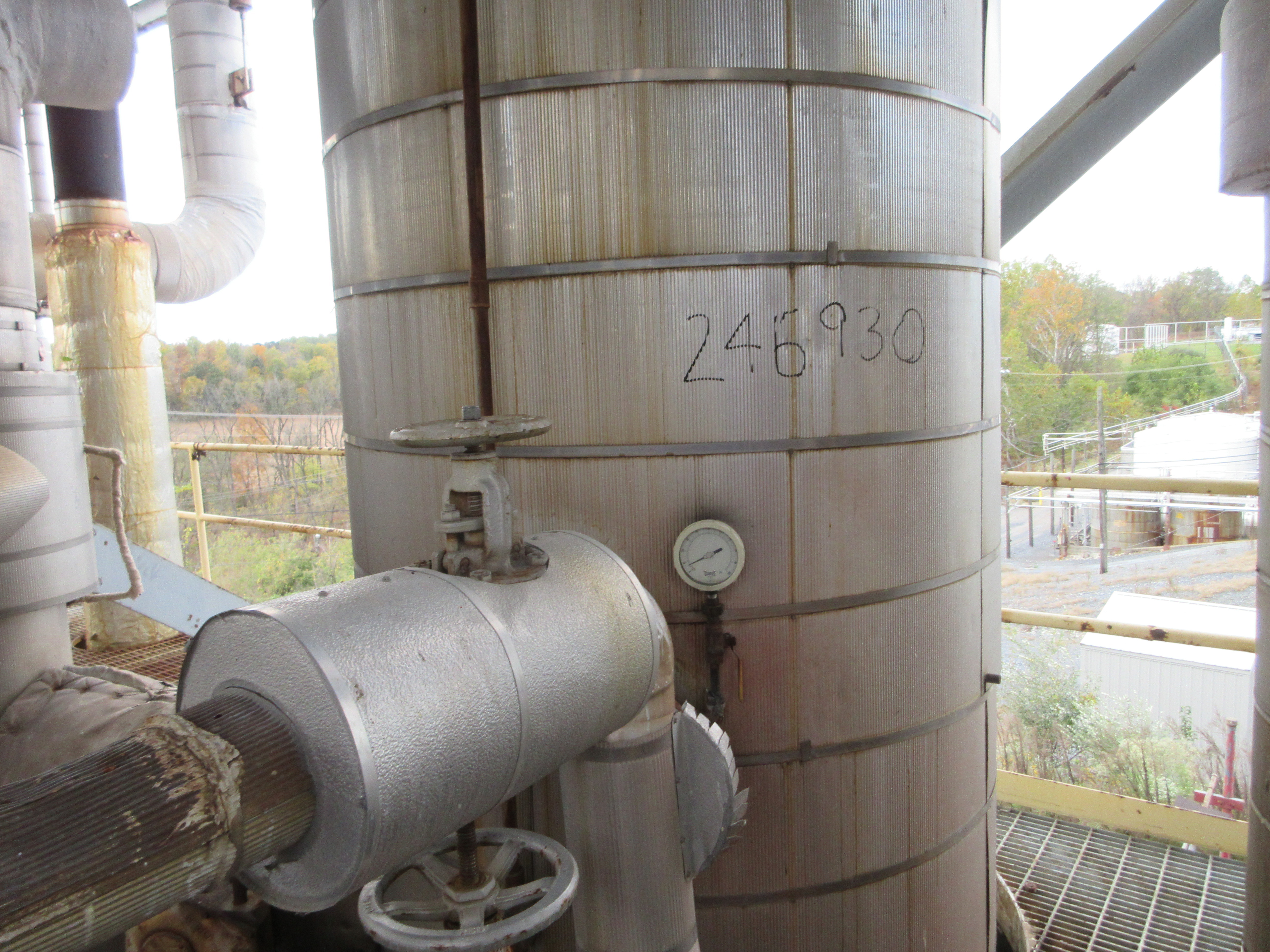

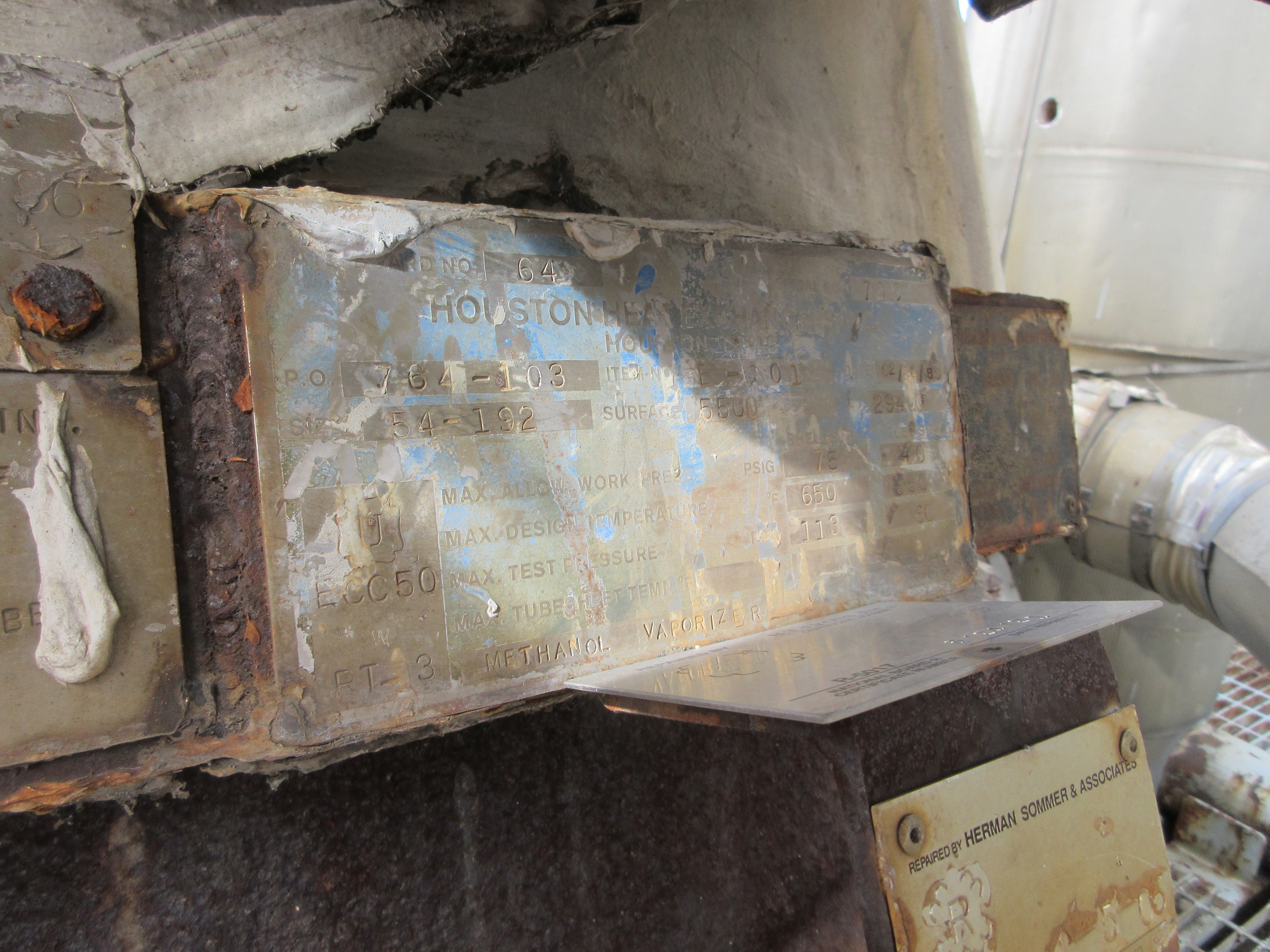

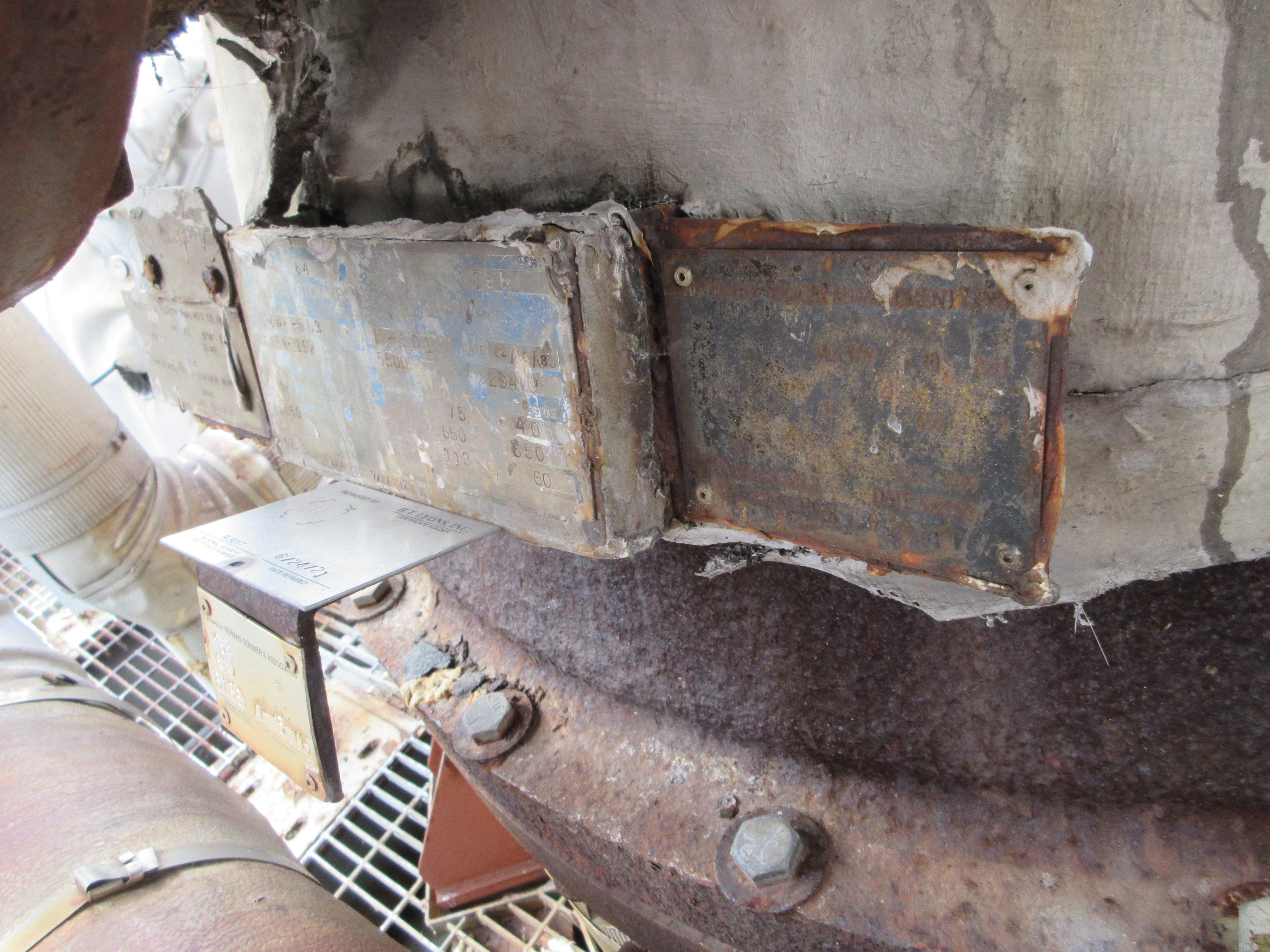

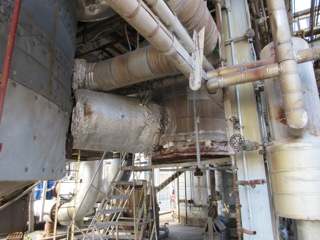

Carbon Steel Houston Heat Exchanger Shell and Tube Heat Exchanger - IPP# 246930

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Houston Heat Exchanger

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 545 m² (5,850 ft²)

Orientation: Vertical

After Cooler With expansion joint

Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 343.3 °C (650 °F). Shell Material: Carbon Steel. Tube Pressure: 2.8 bar (40 psi). Tube Temperature: 343.3 °C (650 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Shell Diameter: 1,400 mm (56 in). Head Material: Carbon Steel. Length: 4,900 mm (192 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 1,423. Tube Diameter: 25.4 mm (1 in). Tube Length: 4,800 mm (189 in). Tube Thickness: 2.1 mm (0.08 in). Nozzle Schedule: Two 20",one 8" one 6" two 2" one 1".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Shell and Tube Incorporated

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 186.1 m² (2,000 ft²)

Orientation: Horizontal

TEMA type: BFM, size 26-288 Vent & Drain: Two 3/4"

Shell Pressure: 36.2 bar (525 psi). Shell Temperature: 76.7 °C (170 °F). Shell Material: Carbon Steel. Tube Pressure: 48.3 bar (700 psi). Tube Temperature: -45.6 °C (-50 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Head Material: Carbon Steel. Length: 8,300 mm (326.3 in). Shell-side Passes: 2. Tube-side Passes: 2. Tube Type: Straight Tube. Tube Number: 360. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 7,300 mm (288 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Nozzles: 2-8" shell side nozzles, 2-4" tube side nozzles.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Western Supply

Model: BEM

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 299.1 m² (3,200 ft²)

Orientation: Horizontal

Pitch: 1.25" Triangular

Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 260 °C (500 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 260 °C (500 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 914 mm (36 in). Head Material: Carbon Steel. Length: 7,250 mm (286 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: Straight Tube. Tube Number: 625. Tube Diameter: 3,450 mm (135 in). Tube Length: 6,100 mm (240 in). Capacity: 56,800 L (15,000 gallons).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Graham

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 16.7 m² (180 ft²)

Shell Pressure: 1.38 bar (20 psi)

Single Element Two Stage Condensing Ejector Package Shell side MAWP Tube side MAWP 8 ' high

Shell Temperature: 287.8 °C (550 °F). Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 65.6 °C (150 °F). Vacuum: Yes. Length: 3,350 mm (132 in).
