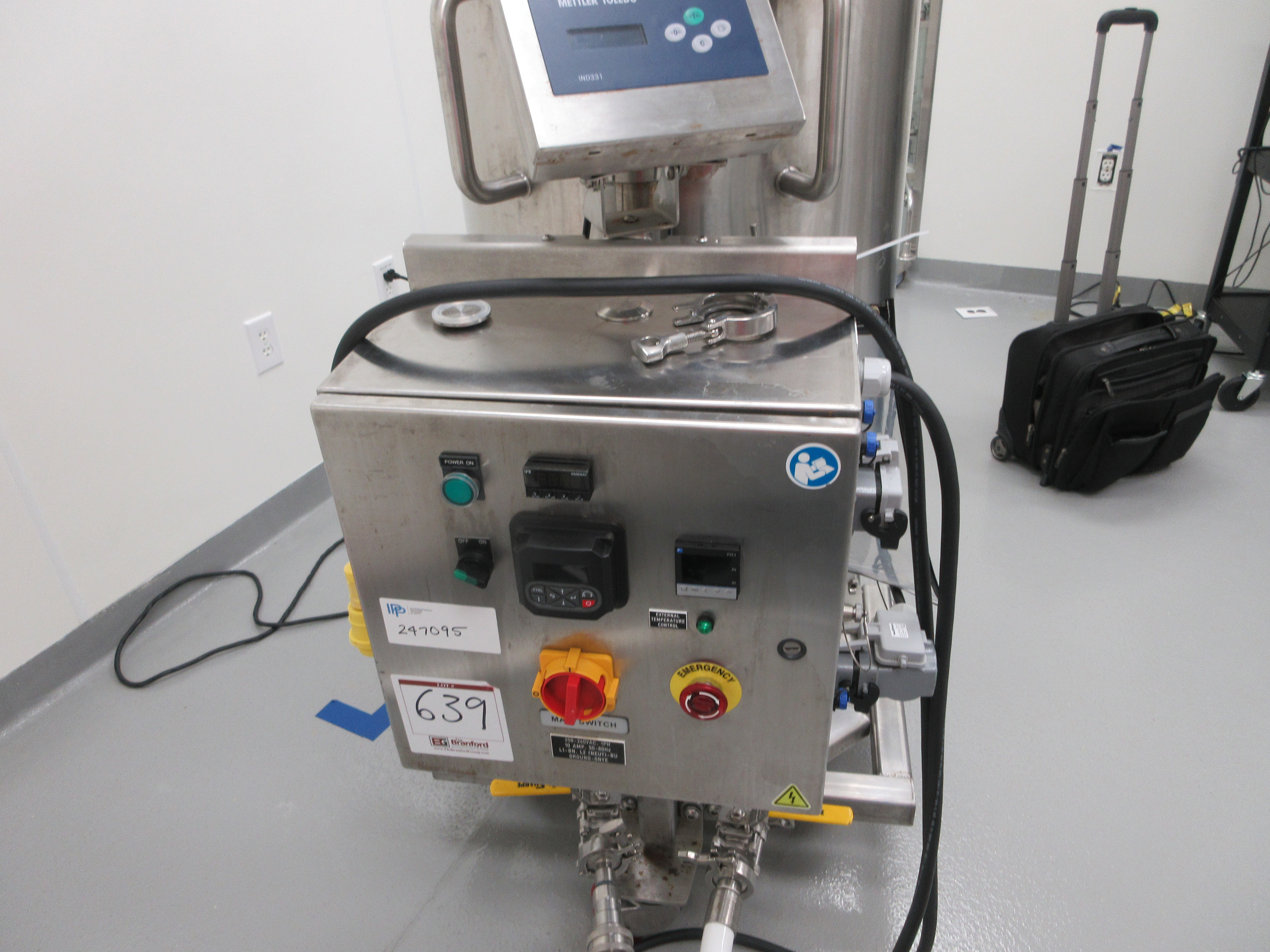

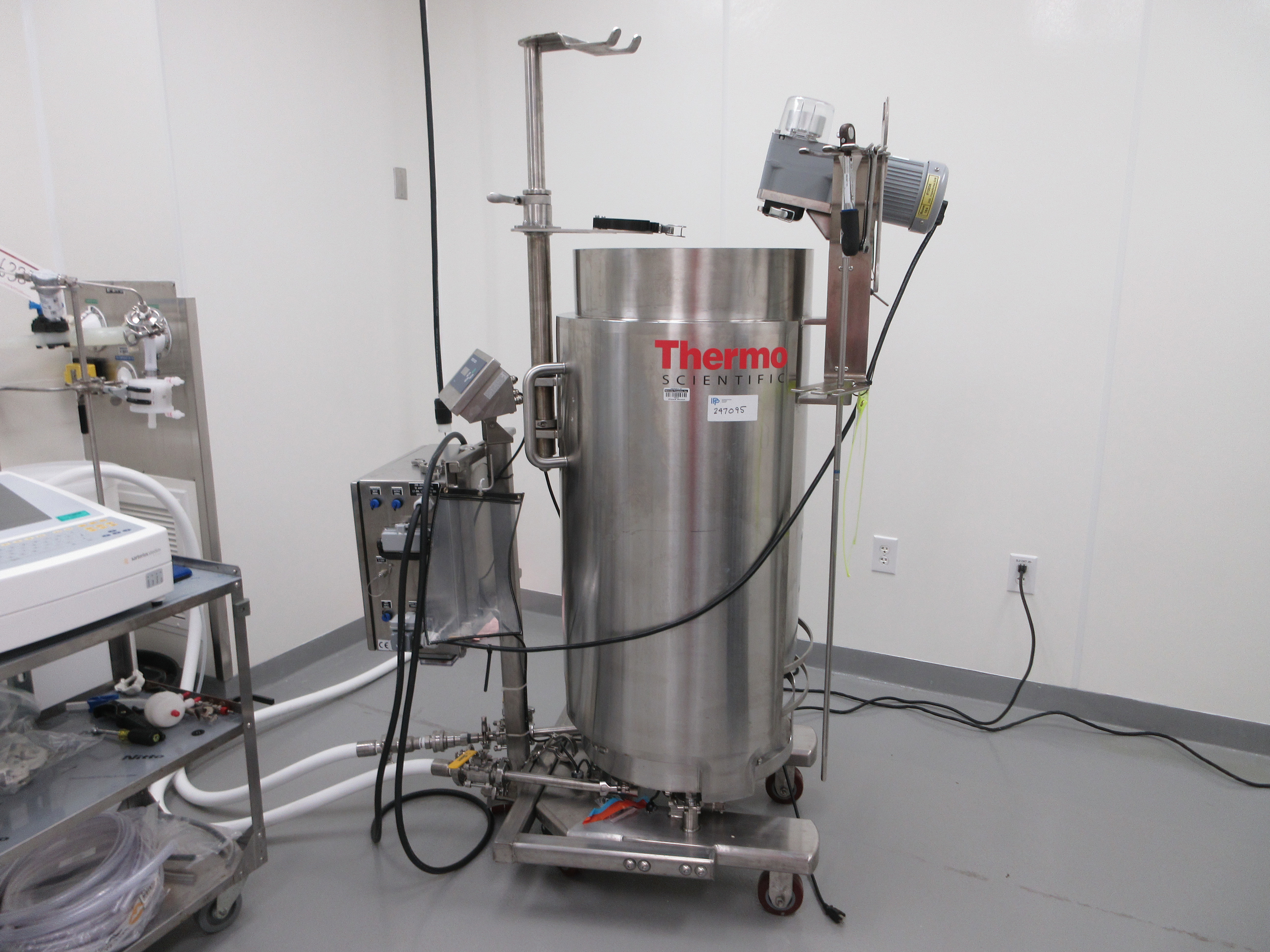

Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095

  • Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095 Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095
  • Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095 Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095
  • Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095 Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095
  • Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095 Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095
  • Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095
  • Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095
  • Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095
  • Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095
Overview
Tank
ThermoFisher
HyPerforma SUM0200.6645
Used
Stainless Steel 304
Capacity
200 L (52.8 gallons)
Dimensions
Vertical
502 mm (19.8 in)
1,100 mm (44 in)
Pressure
0.03 bar (0.5 psi)
Temperature
40 °C (104 °F)
Agitation
Yes
Jacket
Dimple
Stainless Steel 304
10.3 bar (150 psi)
65.6 °C (150 °F)
Other Specifications
None
Yes
Yes
Legs
Motor
0.37 kW (0.5 HP)
1,700
60
3
  • See Legacy Description
  • Agitator drive --Brother 3 phase induction motor, CE certified. F3530N005-WF4AENX Rated for ambient to 40 degrees C. 0.5 HP, 5:1 Ratio 208V 60 Hz,1.80 a, 1700 rpm. MFR # 7ZD96232003.
  • With rear-mounted handles.

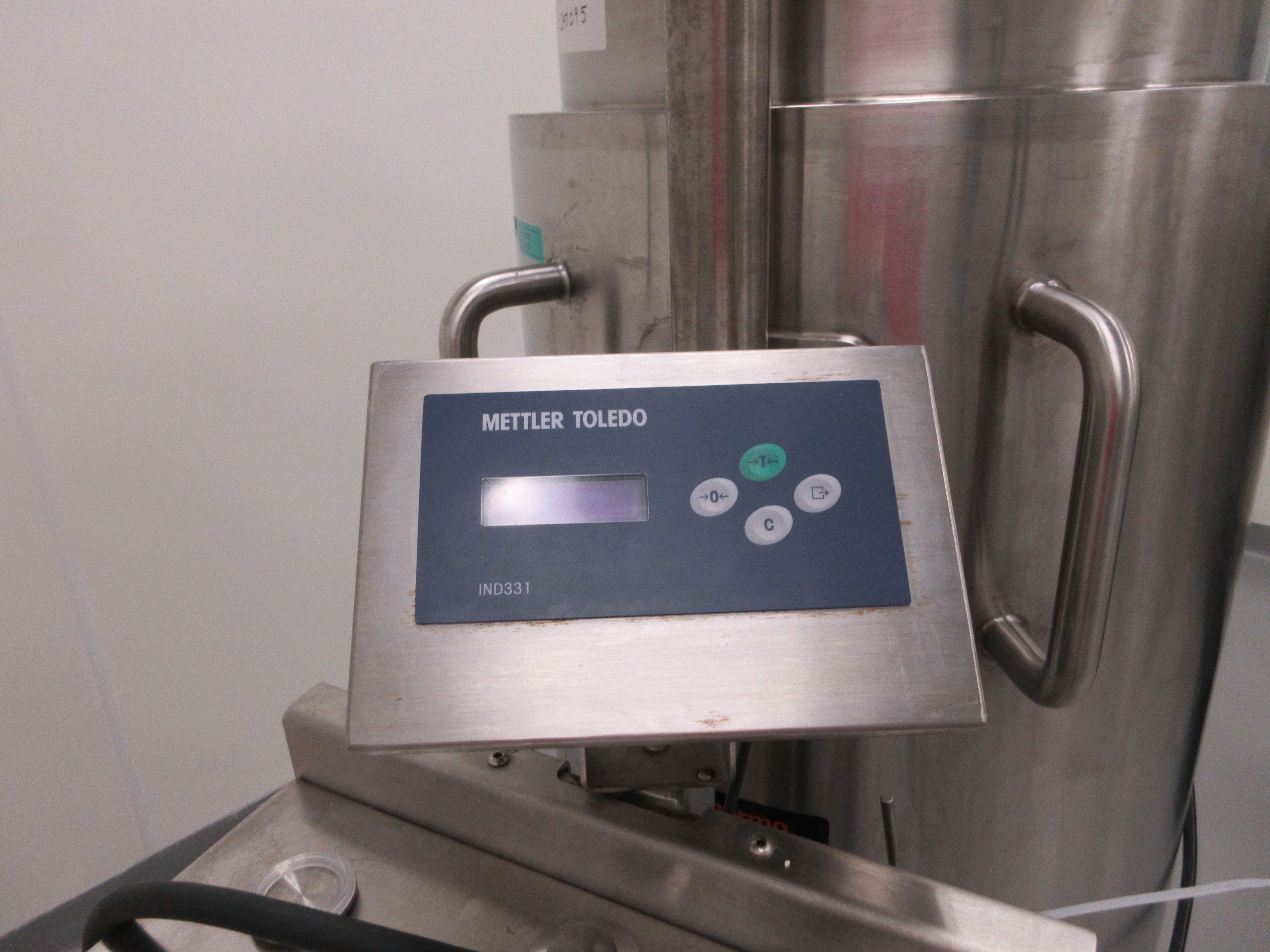

  • With Mettler Toledo MTB load cells.
