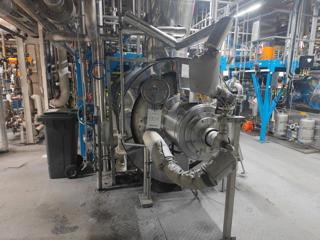

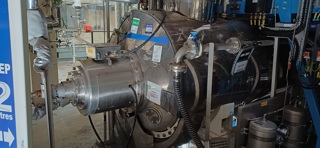

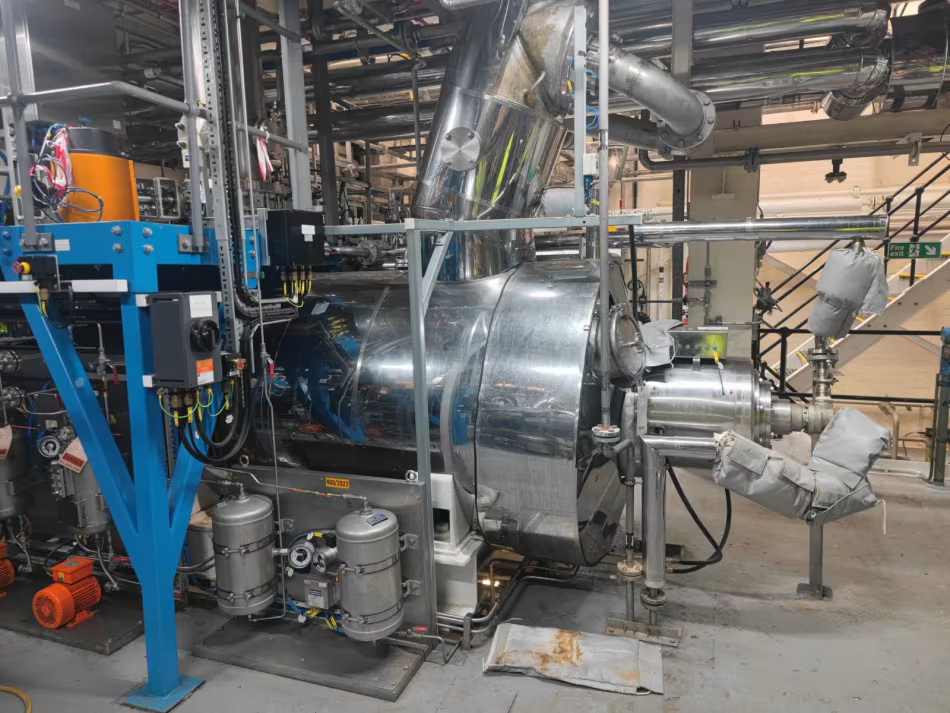

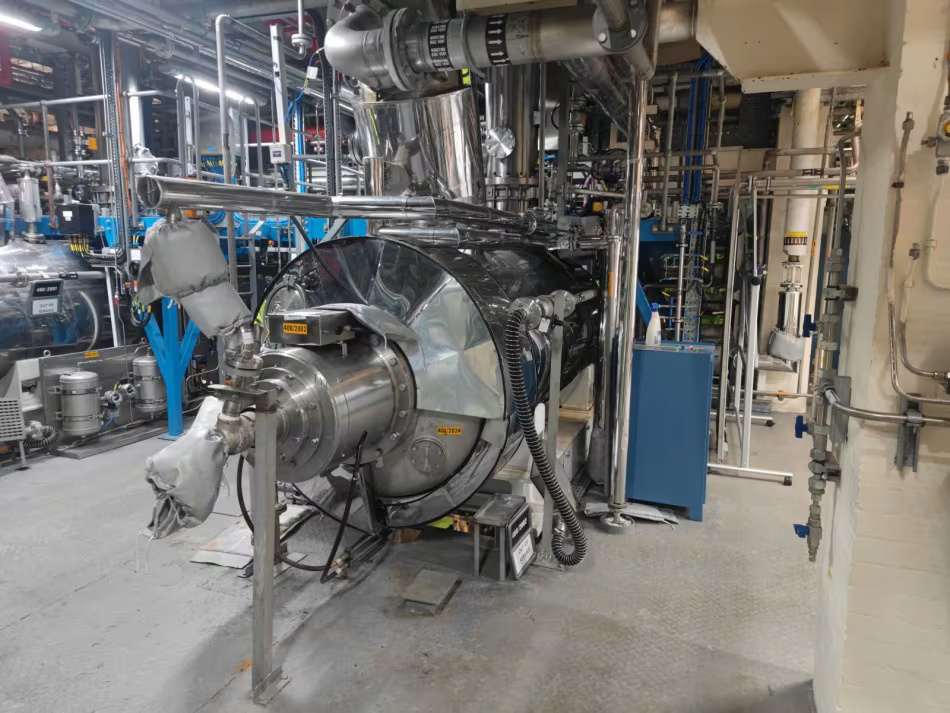

Dryer-Rotary Vacuum Paddle - IPP# 247251

Type: Dryer-Rotary Vacuum

Manufacturer: Buss-SMS-Canzler GmbH

Model: S 2500

Condition: Used

Material: Stainless Steel 316L

Capacity Design: 3.2 m3 (111.2 ft3)

Capacity Working: 2.5 m3 (88.3 ft3)

design pressure internal -1/2 bar @ 165 degrees C (3150 liter), jacket 6 bar @ 165 degrees C (105 liter), shaft 6 bar @ 165 degrees C (800 liter), motor is Ex CE II 2G Ex de IIC T4 Gb ATEX, 1-bolt dished end and 1-weld dished end, 1.2m diameter x 8195mm overall length, shaft cored for heating with rotary union joint,

Diameter: 1,200 mm (47.2 in). Temperature: 165 °C (329 °F). Pressure: 2 bar (29 psi). Rated for Vacuum: Yes. Heat Transfer Surface Area: 13.3 m² (143.2 ft²). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Agitation: Yes. Agitation Seal Type: Mechanical. Dust Collection: Yes. Jacket Material: Stainless Steel 304. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 165 °C (329 °F). Jacket Type: Half Pipe/Limpet.

Type: Dryer-Rotary Vacuum

Model: 900-59-125

Condition: Used

Material: Stainless Steel 316L

Capacity Design: 7 m3 (247.2 ft3)

Diameter: 1,200 mm (48 in)

jacketed rotary vacuum dryer shaft 50 psi @ 300 degrees F (3) carbon steel jackets (1-straight side and 1-each end) Rotary union joint, outbaord bearings Openings: top (2) 3' x 18 1/2" hinged covers with counter balanced mechanism, 2-12"; end 1-8"; botttom 1-10" with manual open/close mechanism; jkt 4-6", 4-2", 4-1", 4-3/4"; shaft 1-2", 1-1 1/2"

Length: 6,100 mm (240 in). Temperature: 148.9 °C (300 °F). Rated for Vacuum: Yes. Heat Transfer Surface Area: 23.3 m² (251 ft²). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Operational Mode: Batch. Agitation: Yes. Dust Collection: Yes. Jacket Material: Carbon Steel. Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 148.9 °C (300 °F).

Type: Dryer-Rotary Vacuum

Manufacturer: Gebruder Lodige Maschinenbau GmbH

Model: DVT 800/2ZF

Condition: Used

Material: Stainless Steel 316L

Capacity Design: 0.9 m3 (31.8 ft3)

Capacity Working: 0.6 m3 (21.2 ft3)

jacketed rotary vacuum paddle dryer with 1.7 square meter filter (900 liter) (74 liter) max working temperature 200 degree C, 316L stainless steel chamber 790mm diameter x 1290mm straight side weld dished end with carbon steel jacket, (1) bolt dished end with carbon steel jacket, 316L stainless steel plow blades on shaft 3/50/500 volt openings: top of straight side: 1-500mm with 1.7 square meter stainless steel jacketed filter, 1-250mm, 5-25mm (jacket), bottom: 1-300mm with valve, 4-25mm (jacket) filter pressure 5 bar @ 174 degrees C (900 liter) weld dished top, carbon steel jacket, openings: top 1-100mm, straight side 1-400mm manway, jacket 2-25mm, Dryer and filter TUV certified

Diameter: 700 mm (27.6 in). Length: 1,600 mm (63 in). Height: 3,400 mm (133.9 in). Temperature: 174 °C (345.2 °F). Pressure: 5 bar (72.5 psi). Rated for Vacuum: Yes. Heat Transfer Surface Area: 3.5 m² (38 ft²). Orientation: Horizontal. Agitation: Yes. Agitation Seal Type: Mechanical. Dust Collection: Yes. Jacket Material: Carbon Steel. Jacket Pressure: 8 bar (116 psi). Jacket Temperature: 174 °C (345.2 °F).

Type: Dryer-Rotary Vacuum

Manufacturer: Day Mixing Co.

Model: DS-434-1

Condition: Used

Material: Stainless Steel 316L

Capacity Design: 17 m3 (600 ft3)

Capacity Working: 12.3 m3 (434 ft3)

• With ribbon mixer 316SS wetted parts
• Vessel rated for FV/15 psi at 307 degrees F.
• Drive end head welded, opposite drive end bolted for removal. The dryer is supported by heavy duty channel legs.
• The vessel internal finish 180 grit polish in the product contact areas. Vessel nozzle schedule is as follows: One 20” top opening, One 12” bottom opening, Two 10” top openings, One 6” top for pressure relief, three 6” top sight glass assembly’s, Four 3” spares, one 2” N2 connection. Two 2” nipples on the heads for cleaning and two ¾” nipples for Thermowells.
• Spare Rotor available for additional cost. Spare rotor weighs in at 9,200 Lbs.
• Jacket Capacity by Calculation is 63.6 cubic foot/476 Gallons

Diameter: 1,850 mm (72 in). Length: 4,900 mm (192 in). Height: 3,050 mm (120 in). Temperature: 152.8 °C (307 °F). Pressure: 1.03 bar (15 psi). Rated for Vacuum: Yes. Heat Transfer Surface Area: 28.1 m² (302 ft²). Orientation: Horizontal. Operational Mode: Batch. Agitation: Yes. Agitation Seal Type: Packing. Jacket Material: Carbon Steel. Jacket Pressure: 4.1 bar (60 psi). Jacket Temperature: 152.8 °C (307 °F).
