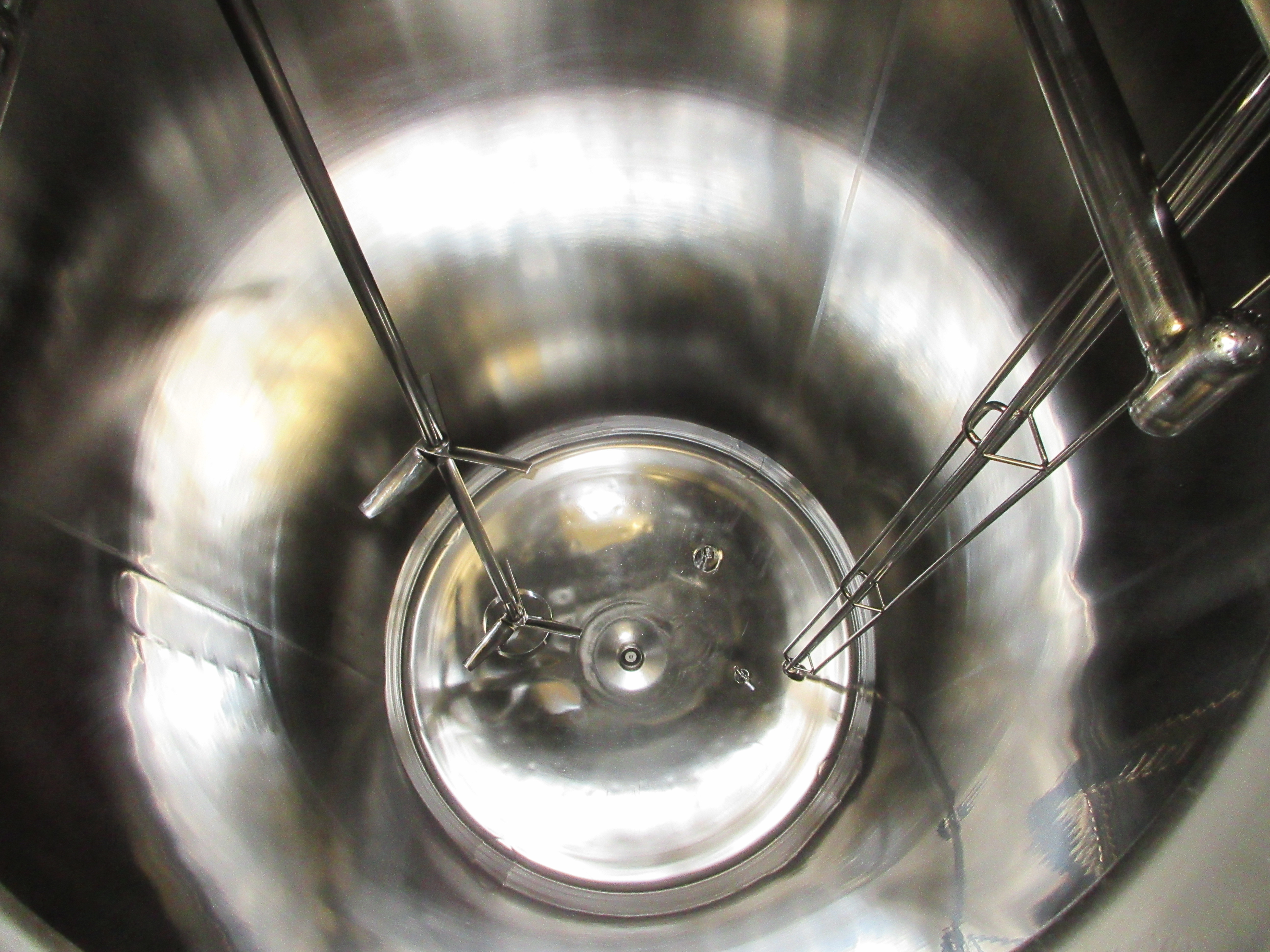

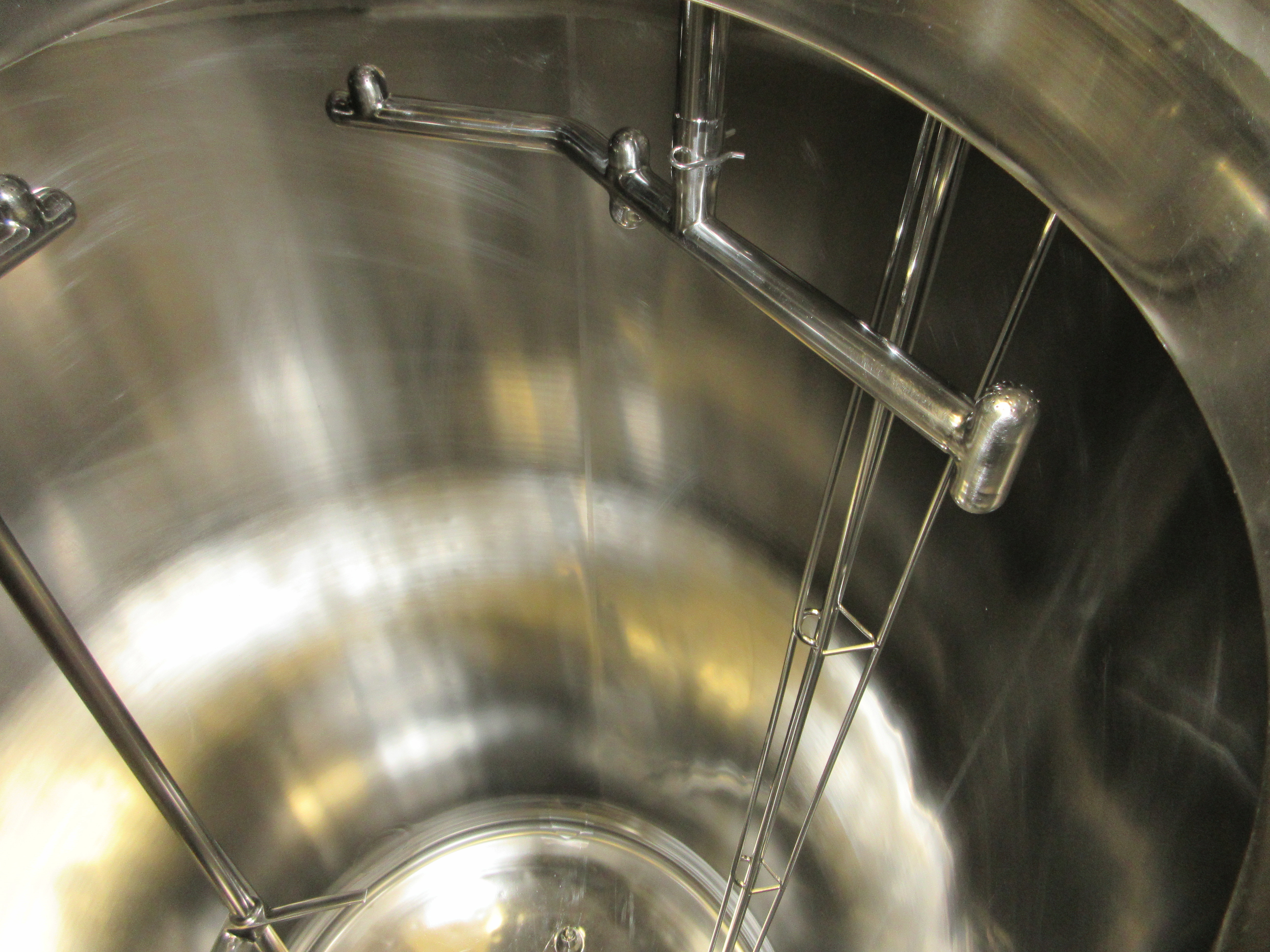

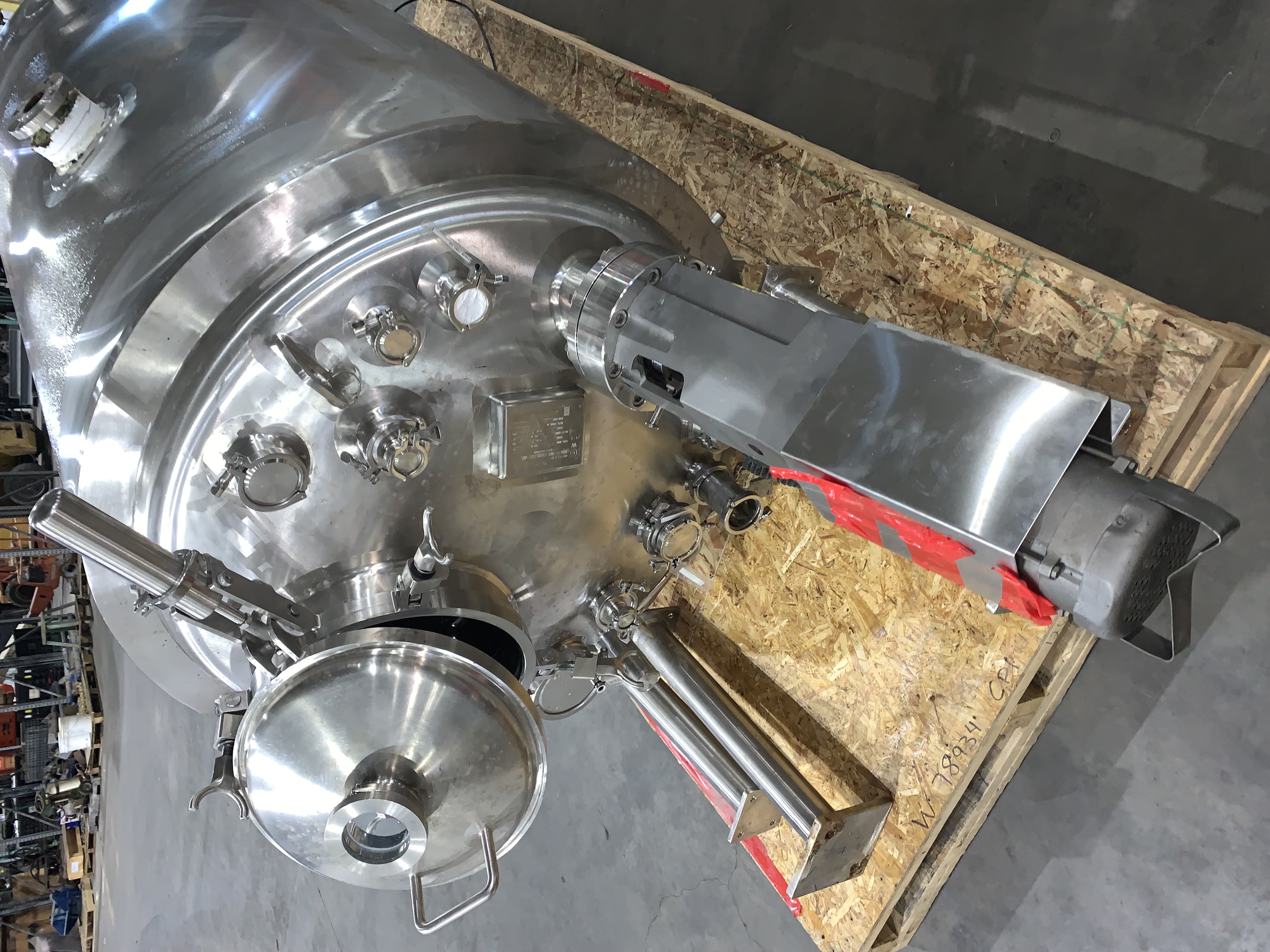

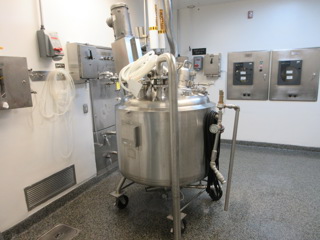

Batch-Type Agitated Reactor - IPP# 247391

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Northland Stainless

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 454.2 L (120 gallons)

Internal Pressure: 10.3 bar (150 psi)

• Jacket thickness 0.188
• Polished, sanitary, sanitary jacket shroud.

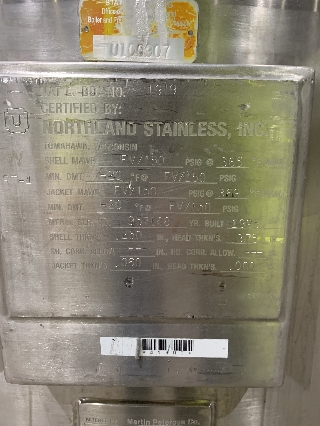

• Second vessel is NB # 1919, serial 957148 Built 1995.

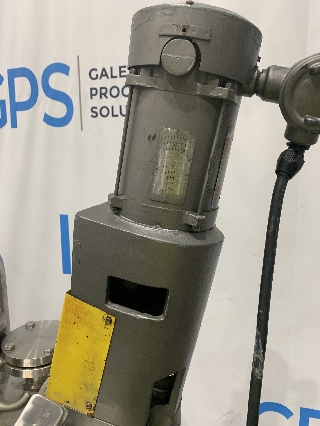

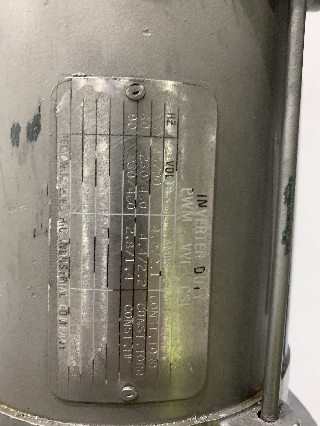

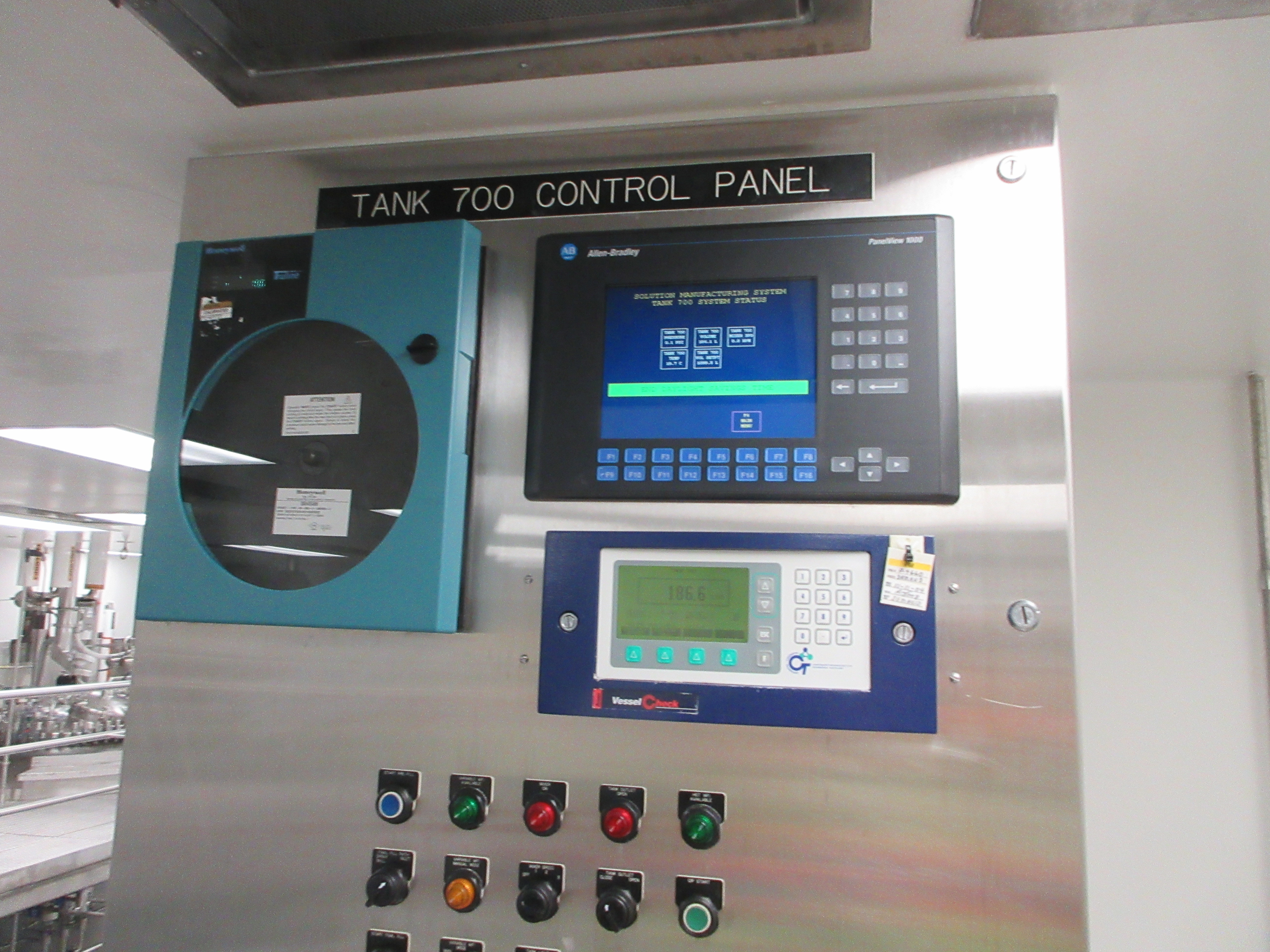

• On Board controls with VFD for agitator motor.

Internal Full Vacuum: Yes. Internal Temperature: 148.9 °C (300 °F). Sanitary Construction: Yes. Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 148.9 °C (300 °F). Jacket Material of Construction: Stainless Steel 316. Orientation: Vertical. Agitation: Yes. Diameter: 813 mm (32 in). Straight Side Length: 826 mm (32.5 in). CIP: Yes. Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Northland Stainless

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 530 L (140 gallons)

Internal Pressure: 10.3 bar (150 psi)

• Full Mirror Polish and sanitary.
• With CIP.

Internal Full Vacuum: Yes. Internal Temperature: 185 °C (365 °F). Sanitary Construction: Yes. Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 185 °C (365 °F). Jacket Material of Construction: Stainless Steel 316. Orientation: Vertical. Agitation: Yes. Diameter: 914 mm (36 in). Straight Side Length: 711 mm (28 in). CIP: Yes. Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Northland Stainless

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 189.3 L (50 gallons)

Internal Pressure: 3.8 bar (55 psi)

• Jacket thickness 0.188
• Full stainless sanitary insulation cover/Jacket Polished.

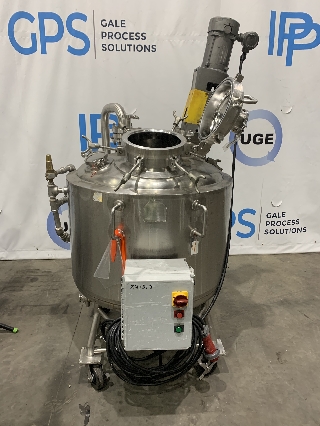

• On board motor controls in NEMA panel.

Internal Full Vacuum: Yes. Internal Temperature: 148.9 °C (300 °F). Sanitary Construction: Yes. Jacket Pressure: 4.8 bar (70 psi). Jacket Temperature: 148.9 °C (300 °F). Jacket Material of Construction: Stainless Steel 316. Orientation: Vertical. Agitation: Yes. Diameter: 610 mm (24 in). Straight Side Length: 610 mm (24 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Northland Stainless

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 3,400 L (900 gallons)

Internal Pressure: 3.4 bar (50 psi)

• Full Mirror Polish, sanitary construction with insulation shroud.
• Half pipe coil jacket rated for FV
• Washdown rated motor and drive of stainless steel.
• 10 wraps Half pipe coil jacket are counted as stiffening rings.

Internal Full Vacuum: Yes. Internal Temperature: 148.9 °C (300 °F). Sanitary Construction: Yes. Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 148.9 °C (300 °F). Jacket Material of Construction: Stainless Steel 316L. Orientation: Vertical. Agitation: Yes. Diameter: 1,700 mm (66 in). Straight Side Length: 1,450 mm (57 in). CIP: Yes. Support Type: Legs.
