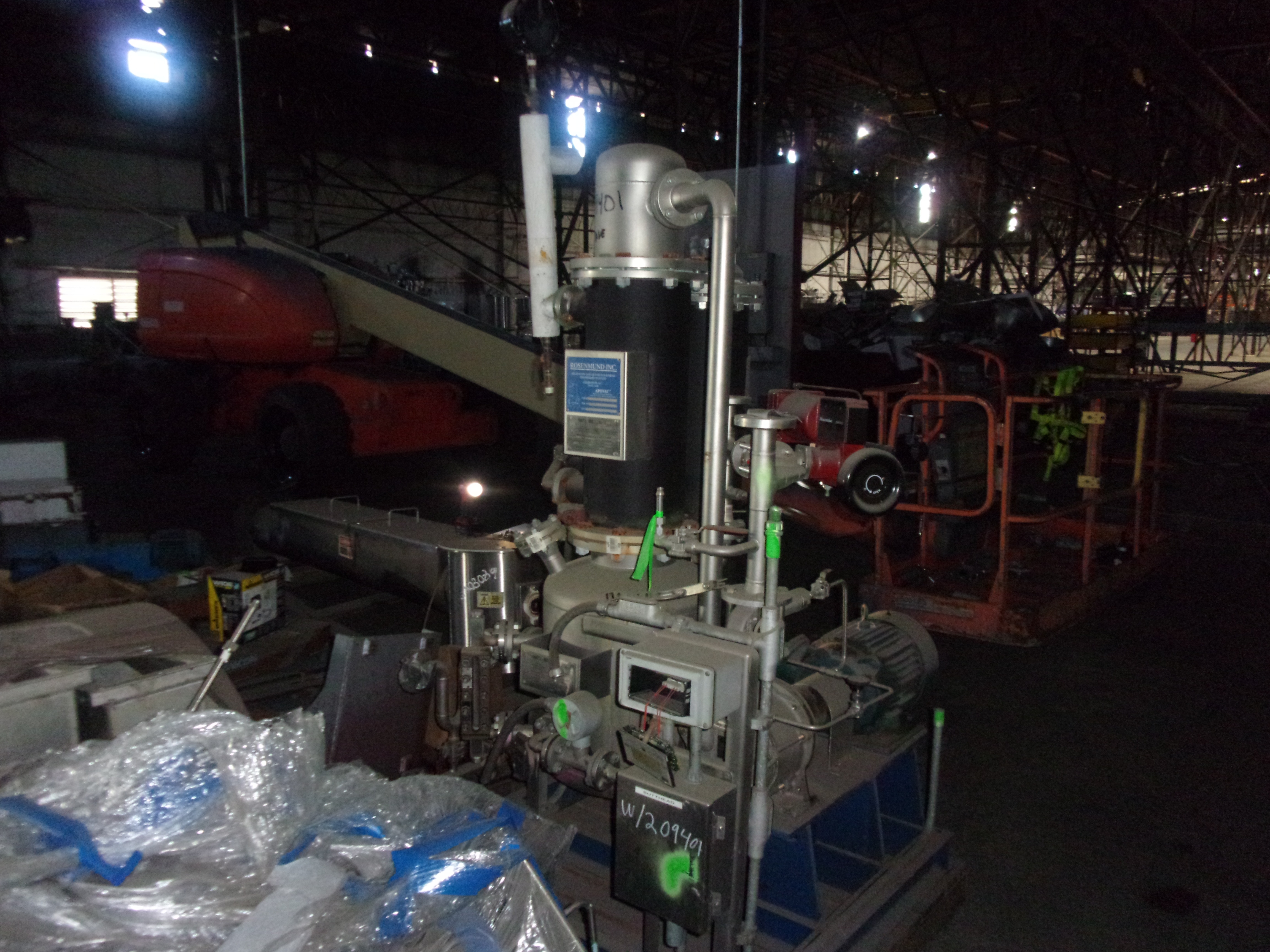

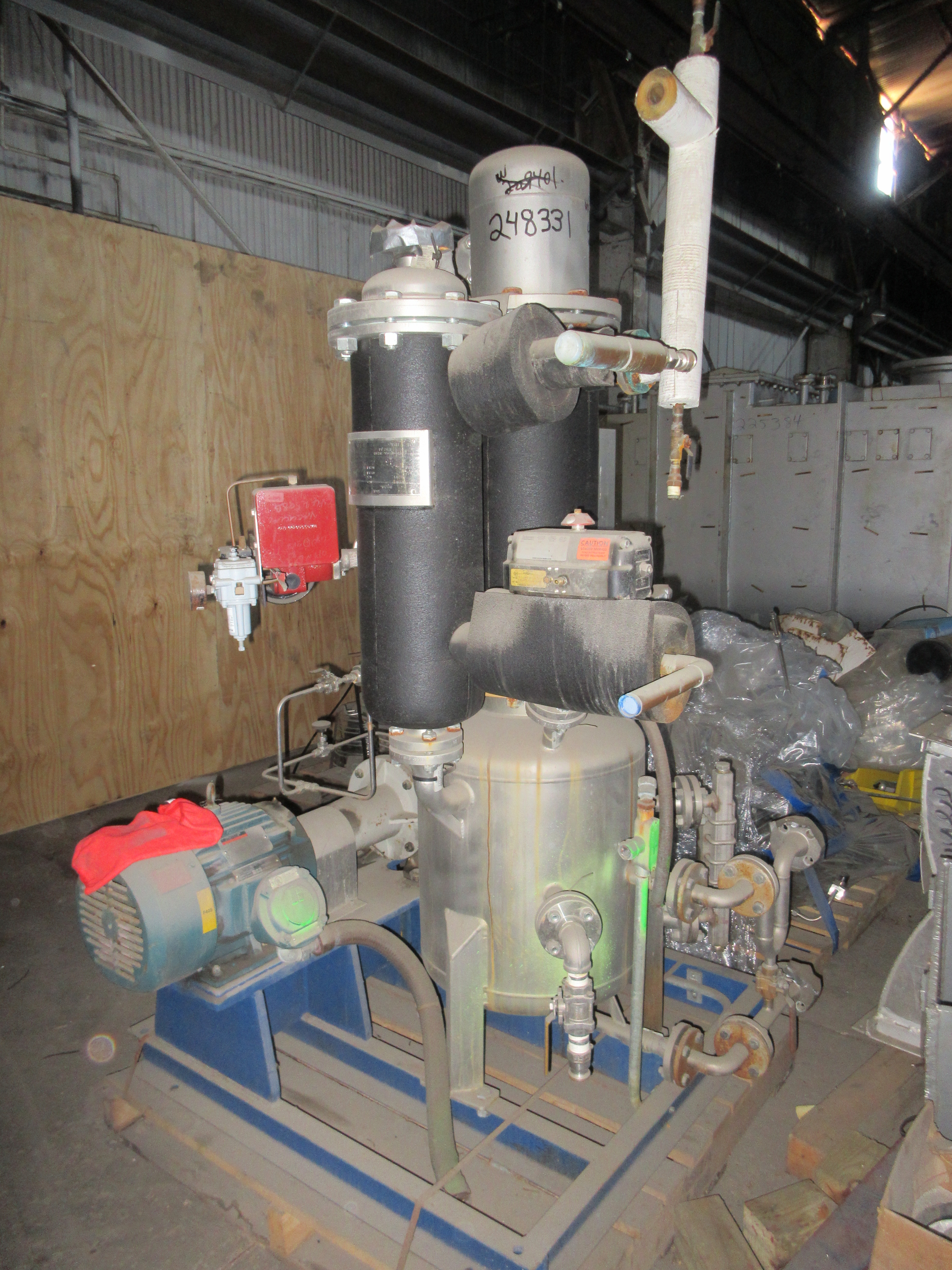

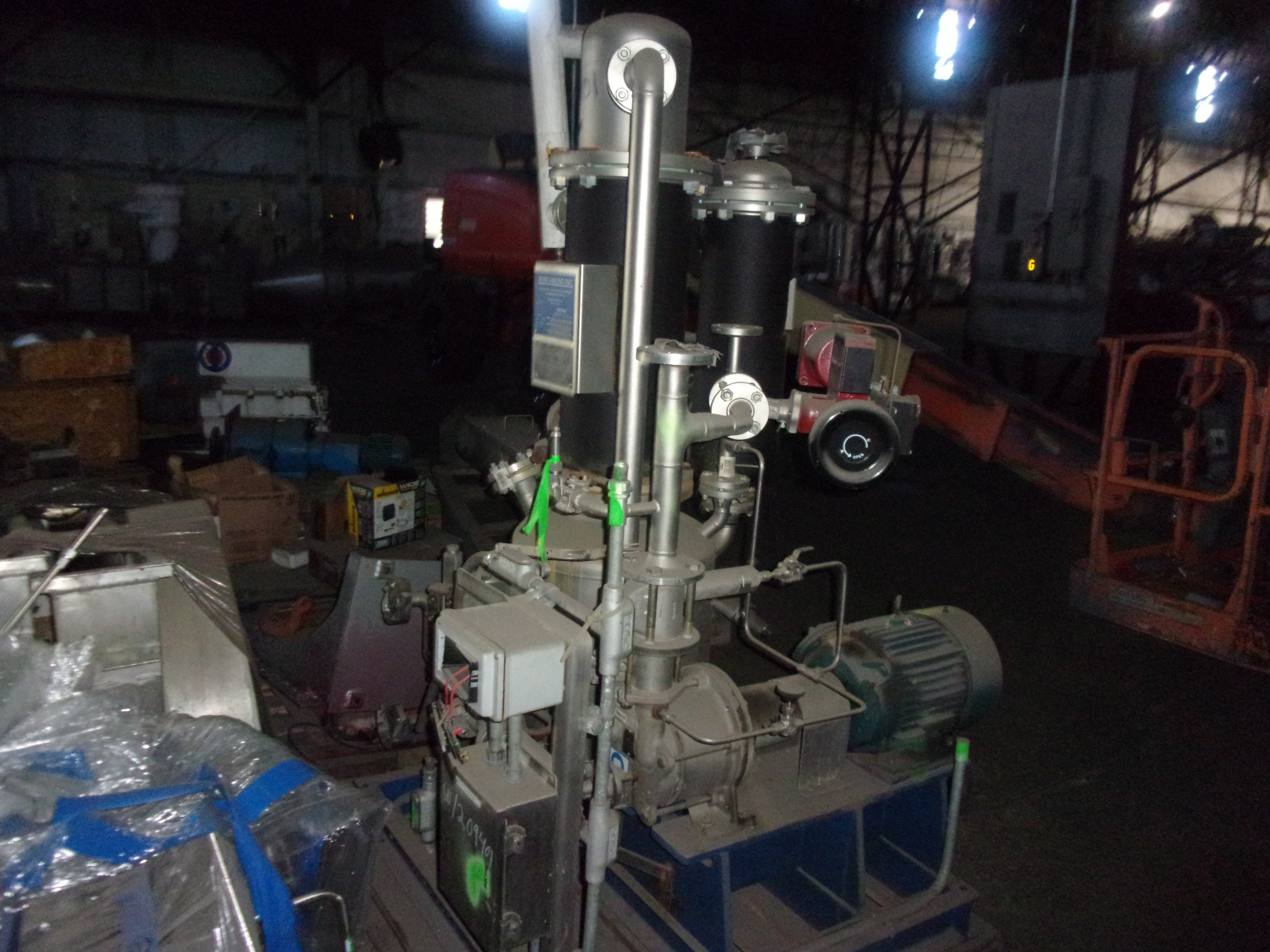

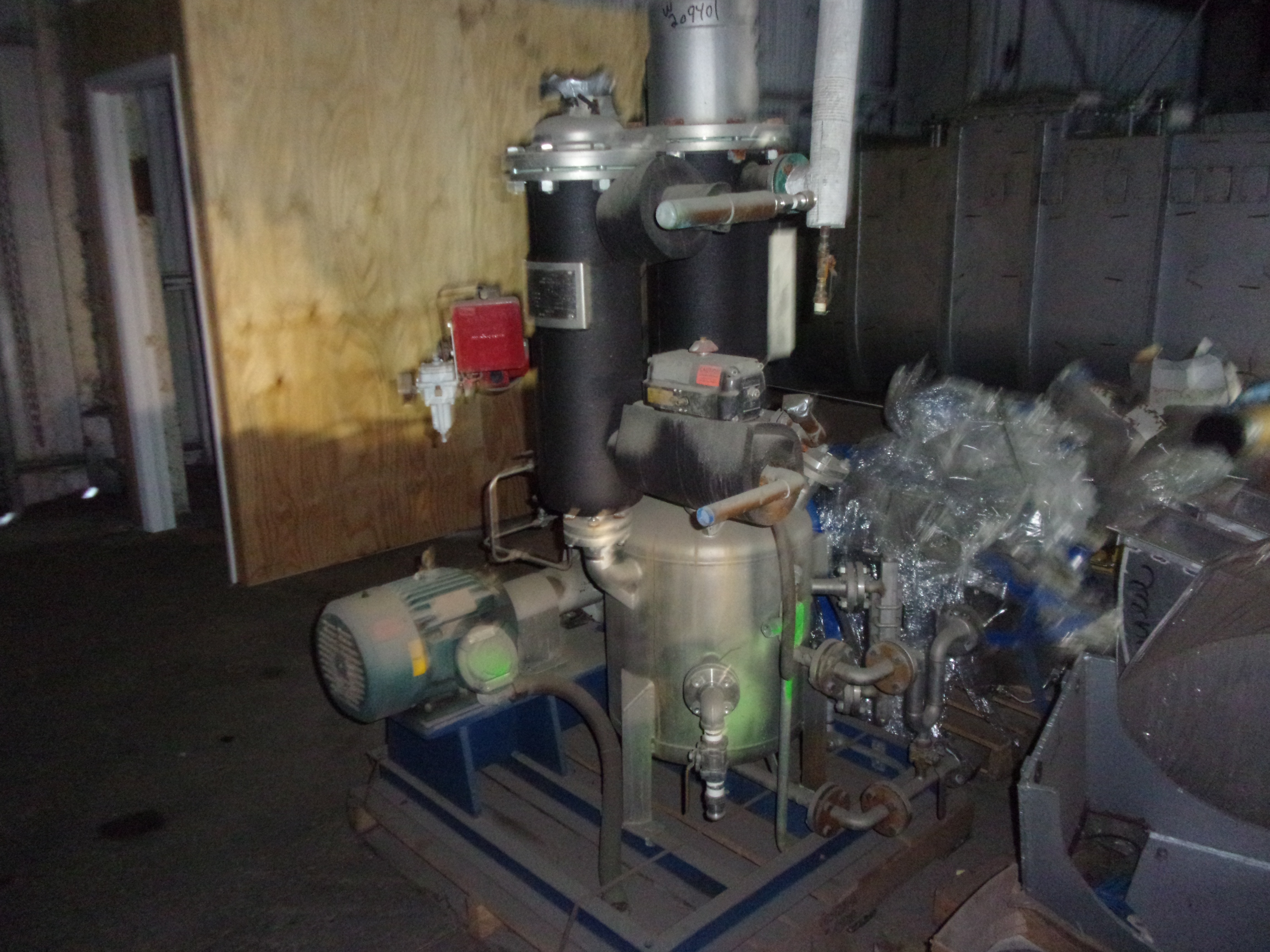

Rosenmund and Cogiem Filter APOVAC Unit - IPP# 248331

Type: Filter

Subtype: Rosenmund and Cogiem

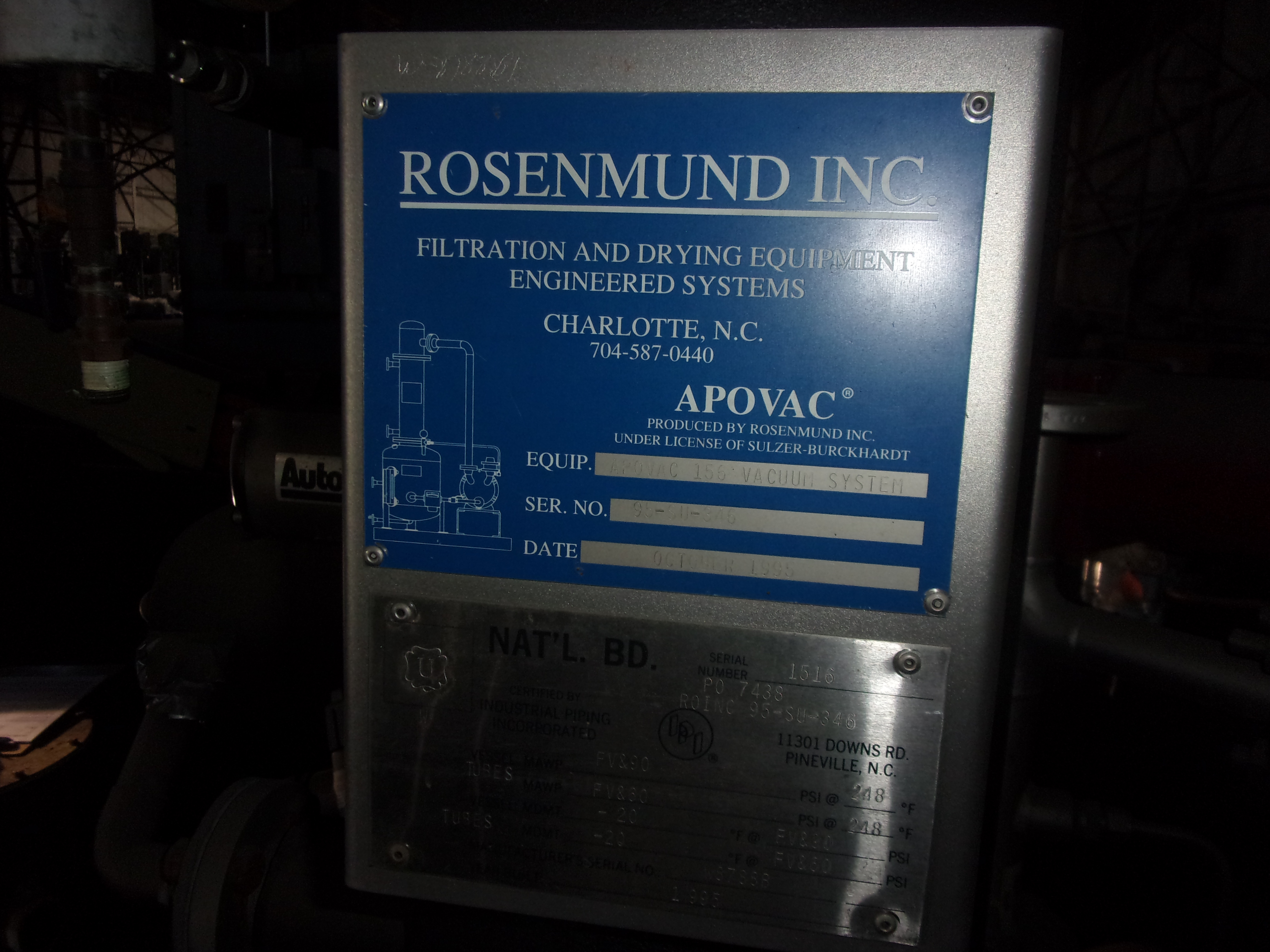

Manufacturer: Rosenmund AG

Model: FML 250

Condition: Used

Material: Hastelloy - C22

Filtration Area: 0.25 m² (2.7 ft²)

Diameter: 550 mm (21.7 in)

• Agitated jacketed Rosenmund filter dryer
• Batch size 20 to 25kg
• internal design pressure 0.39 MPa (3.9 bar) + vacuum @ -20/170 degrees C (120 liter)
• coil jackets 0.6 MPa (6 bar) @ -20/170 degrees C (10 liter)
• internal working pressure 0.15 MPa (1.5 bar) @ 100 degrees C
• jacket 0.6 MPa (6 bar) @ 100 degrees C
• 550mm diameter x 828mm from agitator opening to filter plate,
• chamber insulated and with 316L stainless steel cladding, side discharge with 316L stainless steel glove box
• Ex motor,
• filter plate has a raise/lower and a hydraulic lock mechanism driven by the same power pack,
• CE certified,
• unit also includes
• (1) stainless steel condenser, (1) stainless steel tank, (1) heating controller

Pressure: 3.9 bar (56.6 psi). Temperature: 170 °C (338 °F). Agitation Seal Type: Mechanical. Jacket: Yes. Jacket Pressure: 6 bar (87 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Temperature: 170 °C (338 °F).

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: 3V Cogeim

Model: FiltoDry FEPXD 400

Condition: Used

Material: Hastelloy - C22

Filtration Area: 4.2 m² (44.7 ft²)

Diameter: 2,300 mm (90.6 in)

• Shell rated 88.5/FV psi @392 Deg F. Jacket 316SS, rated 152.5/FV @392 Deg F Vertical Filter
• Dryer Dust collector Jacket rated FV 152 @392degrees F. Internal finish is a sanitary polish. 304SS sheathing Mechanical seals. Cored shaft with . Side discharge with side discharge valve .integral Stock # 241129- Hastelloy C22 pulse jet Dust collector. Dryer Dimensions: 90" diameter x 76" length132 gallon Hastelloy C 22 side discharge valve. rated FV/88 @392 degrees F

Pressure: 6.1 bar (88.5 psi). Temperature: 200 °C (392 °F). Internal Finish: #4 Ra50. Agitation Seal Type: Mechanical. Jacket: Yes. Jacket Pressure: 10.5 bar (152.5 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Temperature: 200 °C (392 °F). Agitator Cored for Heating/Cooling: Yes.

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: 3V Cogeim

Model: Filtodry FPP XD 400 FM

Condition: Used

Material: Hastelloy - C22

Filtration Area: 4.2 m² (44.7 ft²)

Diameter: 2,300 mm (90.6 in)

Alloy C22

Internal finish is a sanitary polish. 304SS sheathing. 304 stainless steel

18.35" Side discharge with discharge valve, 132 gallon Hastelloy C 22 side discharge valve. National Board # 287. rated FV/88 @392 degrees F.

Dryer Dimensions: 90" diameter x 76" length

hydraulic skid. Includes: integral Stock # 241013- Hastelloy C22 pulse jet Dust collector. 8.6" handhole, 4.33" site glass.

Pressure: 6.1 bar (88.5 psi). Temperature: 200 °C (392 °F). Internal Finish: #4 Ra50. Agitation Seal Type: Mechanical. Jacket: Yes. Jacket Pressure: 10.5 bar (152 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Temperature: 200 °C (392 °F). Agitator Cored for Heating/Cooling: Yes.

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Rosenmund

Model: RSD 0.03-975-98

Condition: Used

Material: Hastelloy - C22

Filtration Area: 0.3 m² (3.2 ft²)

Pressure: 6 bar (87 psi)

Agitated Pressure Filter The 24.5 Liter vessel is rated -1/6 Bar @ -20 to 200 degree C The 2.7 Liter jacket is rated -1/6 Bar @ -20 to 200 degree C. The .3 Liter Heated Base is rated -1/6 Bar @ -20 to 200 degree C. With Bergmann mechanical seal on shaft, and CIP ports with spray balls for cleaningSide bottom solids discharge with manual flush valve, center bottom fluid outlet with manual ball valve. Clamped bottom head for removing heals. Comes with portable hydraulic power pack, that utilizes a piston pump for up/down and right/left agitator movement. Power pack has AB electric controls Filter housing is mounted on a stainless steel frame with castors, and the hydraulic power pack is also on castors, making the entire unit portable.

Temperature: 200 °C (392 °F). Jacket: Yes.
