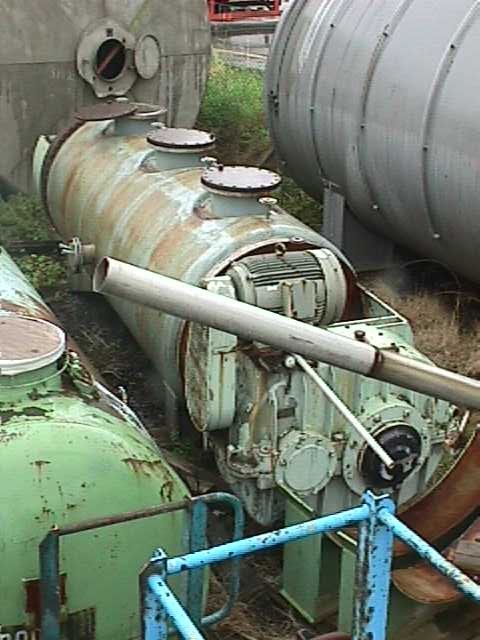

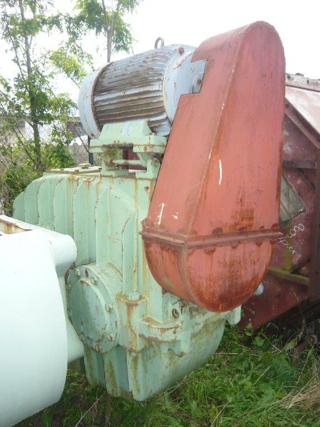

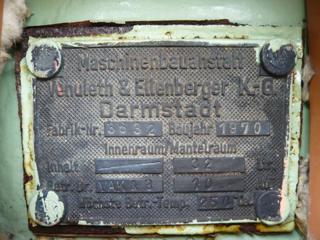

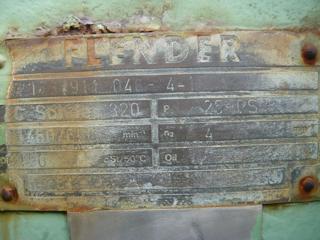

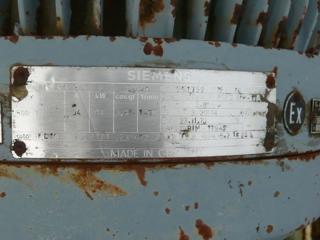

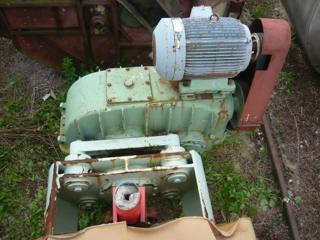

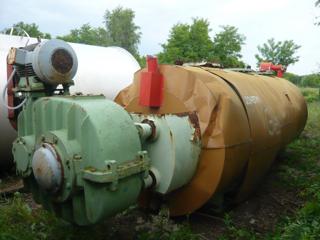

Stainless Steel Austenitic Venuleth & Ellenberger Dryer-Rotary Vacuum - IPP# 48704

Type: Dryer-Rotary Vacuum

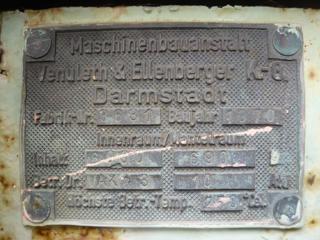

Manufacturer: Venuleth & Ellenberger

Condition: Used

Material: Stainless Steel Austenitic

Capacity Design: 6 m3 (211.9 ft3)

Capacity Working: 4 m3 (141.3 ft3)

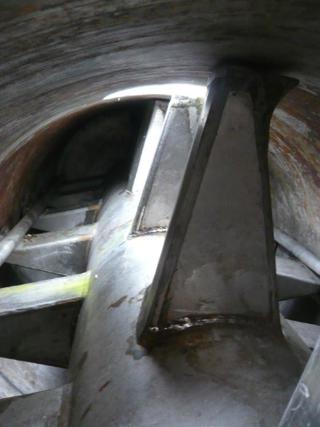

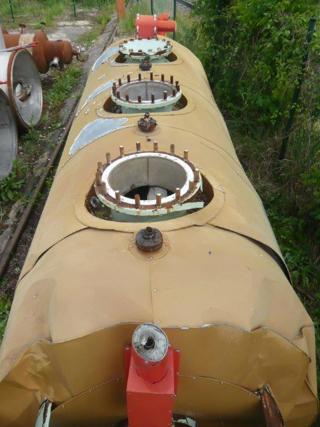

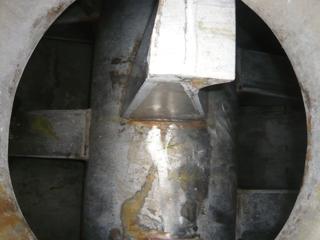

wetted parts ST37 (CS jacket) jacketed vacuum paddle dryer DN 21792 internal pressure -1/3 bar @ 250 degrees C, 6000 liter; Jacket pressure 10 bar @ 250°C, c/steel jacket. 419 mm diameter Openings include: top 3-400mm; bottom 1-310mm.

Diameter: 1,400 mm (55.1 in). Length: 3,950 mm (154.9 in). Height: 1,900 mm (74.8 in). Temperature: 250 °C (482 °F). Pressure: 3 bar (43.5 psi). Rated for Vacuum: Yes. Heat Transfer Surface Area: 17.3 m² (186 ft²). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Agitation: Yes. Jacket Material: Carbon Steel. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 250 °C (482 °F).

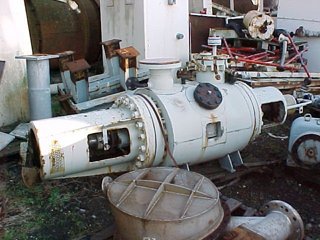

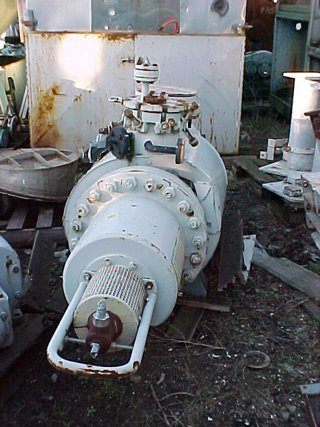

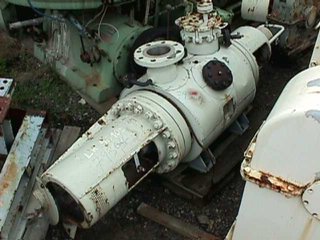

Type: Dryer-Rotary Vacuum

Manufacturer: Venuleth & Ellenberger

Condition: Used

Material: Stainless Steel Austenitic

Capacity Design: 0.25 m3 (8.8 ft3)

Capacity Working: 0.18 m3 (6.4 ft3)

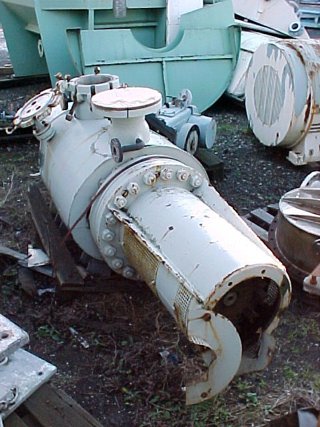

rotary vacuum dryer Shell 24" (600mm) diameter x 40" (1000mm) long with rotary joint Flat bolted heads Openings: 1-200mm handhole with hinged cover, 1-150mm, 1-100mm; 1-175mm bottom outlet; jacket 4-25mm

Diameter: 600 mm (23.6 in). Length: 1,000 mm (39.4 in). Pressure: 3 bar (43.5 psi). Rated for Vacuum: Yes. Heat Transfer Surface Area: 1.86 m² (20 ft²). Shaft Cored and National Board Stamped: Yes. Agitation Seal Type: Packing. Jacket Pressure: 32 bar (464.1 psi).

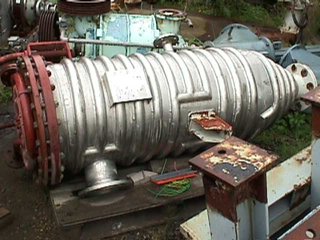

Type: Dryer-Rotary Vacuum

Manufacturer: Engelsmann AG

Model: K127AM200/180

Condition: Used

Material: Stainless Steel Austenitic

Capacity Design: 0.25 m3 (8.8 ft3)

Capacity Working: 0.17 m3 (6 ft3)

Vacuum dryer system internal pressure rated -1/+1bar @ -10/+165 degrees C (volume 250 liter), jacket pressure rated -1/+8bar @ -10/+165 degrees C (volume 35 liter) type CD180M-4 3~/50Hz/230-400V/1,460rpm CE confirm, EExdeIICT4, system including: (1) 3.1m² 1.4571 stainless steel tube and shell heat exchanger/condenser, (1) 8m³/h @ 3m head iron cast centrifugal pump, (1) 50 liter 1.4571 stainless steel condensate receiver, (1) 20 liter 1.4571 stainless steel gas separator, (1) 17.5 liter 1.4571 stainless steel jacketed pressure tank, (1) Frequency converter on pallet, (2) stainless steel guards on pallet, (2) Valves and (1) chain on pallet, Accessories on pallet

Diameter: 600 mm (23.6 in). Length: 2,300 mm (90.6 in). Height: 2,200 mm (86.4 in). Temperature: 165 °C (329 °F). Pressure: 1 bar (14.5 psi). Rated for Vacuum: Yes. Heat Transfer Surface Area: 4.4 m² (47 ft²). Agitation Seal Type: Mechanical. Jacket Material: Stainless Steel Austenitic. Jacket Pressure: 8 bar (116 psi). Jacket Temperature: 165 °C (329 °F).

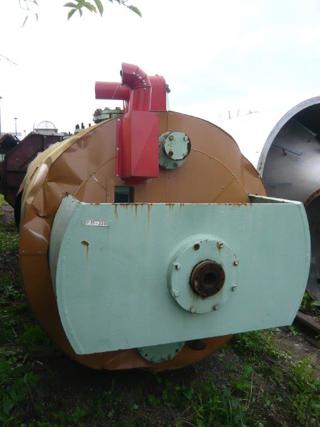

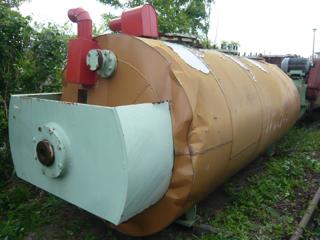

Type: Dryer-Rotary Vacuum

Manufacturer: Giovanola

Condition: Used

Material: Stainless Steel Austenitic

Capacity Design: 2.2 m3 (78.4 ft3)

Capacity Working: 1.6 m3 (56.5 ft3)

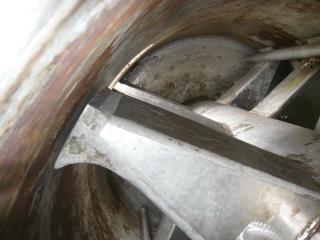

Rotary vacuum paddle dryer system system includes tanks, filters, pumps and other ancillaries

Diameter: 1,500 mm (59.1 in). Length: 4,000 mm (156.9 in). Height: 2,950 mm (116.1 in). Temperature: 165 °C (329 °F). Rated for Vacuum: Yes. Heat Transfer Surface Area: 5.1 m² (55.2 ft²). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Operational Mode: Batch. Agitation: Yes. Dust Collection: Yes. Jacket Material: Stainless Steel Other. Jacket Pressure: 6.5 bar (94.3 psi). Jacket Temperature: 165 °C (329 °F). Jacket Type: Half Pipe/Limpet.
