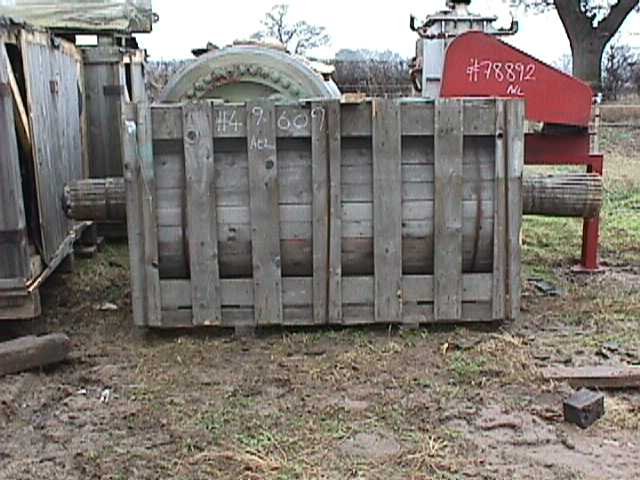

IPP# 49609 - Dryer-Flaker Drum and Belt 1,067 mm (42 in) For Sale

Type: Dryer-Flaker Drum and Belt

Manufacturer: R.Simon Dryers

Condition: Used

Flaker Width: 300 mm (11.8 in)

Area of Flaker: 1 m² (10.8 ft²)

face chrome plated single drum flaker/dryer
Drum working pressure 5.5 bar, speed 3 to 21 rpm,
cored for steam/hot oil heating

Orientation: Horizontal.

Type: Dryer-Flaker Drum and Belt

Manufacturer: Maschinenbau Technik

Model: SBA-300 x 4000

Condition: Used

Material: Stainless Steel 316

Flaker Width: 300 mm (11.8 in)

For Belt: Length of Flaker: 4,000 mm (157 in)

301/321/316 stainless steel pilot scale horizontal belt flaker system with a pastillator
size 300 x 4000mm
fabrik #02.331
CE #2.02032, 321
stainless steel belt is driven by a 2.2kw motor via a 1.35kw
316 stainless steel top housing, belt tension mechanism, manually adjustable discharge scraper, belt with a 1.8 m3/hour 321 stainless steel cooling water system with 6-spray nozzles
mounted on a carbon steel frame and is a stand alone unit, system also includes: (1) top mounted 321 stainless steel pastillator (drop former) with extension device for lateral retraction mechanism for cleaning
15-nozzles (1-row of 8, 1-row of 7), (1) electrically heated distribution tray
(1) 0.06 m3/hour @ 80 to 100 degrees C product feed pump

1. 60 liter electric heated reservoir/tank, (1) 2.4 m3/hour cooling water centrifugal pump, driven by 1.1kw, 3/50/230/400 volt, 2845 rpm motor
   brief overview:
   used for the solidification and cooling of melts, product is fed onto the water cooled belt by the Pastillator (drop former), the cooled and solidified product adheres easily to the cooled stainless steel belt and is scraped off by a manually adjustable scraper and then collected in suitable containers

Area of Flaker: 4 m² (43.1 ft²). Orientation: Horizontal. Single Belt or Double Belt ?: Single. Flaker Feed Type: Standard Drop Pastillator. Number of Cooling Zones for Belt: 1. Nozzles per Cooling Zone: 6. Scraper: Yes. Scraper Details: manually adjustable.

Type: Dryer-Flaker Drum and Belt

Manufacturer: Blaw Knox

Condition: Used

Material: Carbon Steel

Flaker Width: 1,524 mm (60 in)

Area of Flaker: 21.2 m² (228 ft²)

Single drum flaker
Grooved drums, 1/8" groove every 1"
316SS vac chamber housing. W/spare drum
Roll face is grooved on 1' spacings

Orientation: Horizontal.

Type: Dryer-Flaker Drum and Belt

Manufacturer: Sandvik

Condition: Used

Material: Stainless Steel Other

Flaker Width: 1,500 mm (59.1 in)

For Belt: Length of Flaker: 24,850 mm (978 in)

1.5m wide x 24.85m long
rotoform cooling conveyor/belt
Drawing Number 6530.
5m long hot water section
17.5m cooling water section
Cooling water capacity: 185 GPM @ 30 psi, Hot water zone has 16 sprays x 4 runs x 0.71 gpm (45.4 gpm), Cold water zone has 49 sprays x 4 runs x 0.71 gpm (139.1 gpm), 900mm diameter tension drum, 900mm diameter drive drum
andvik Dropformer feed unit with hot oil heated weir, chain driven by 0.75 KW, 3/50/415 volt motor via varispeed gearbox. brass knife discharge, carbon steel support frame with sump tanks mounted under the belt, Flaker includes a discharge vibratory shaker for size classifacation, (3) Sihi Centrifugal cooling water pumps, Russel Finex inline water filter,

Area of Flaker: 37 m² (398 ft²). Orientation: Horizontal. Single Belt or Double Belt ?: Single. Flaker Feed Type: Standard Drop Pastillator. Number of Cooling Zones for Belt: 4. Nozzles per Cooling Zone: 49. Scraper: Yes. Scraper Details: Discharge scraper - Brass MOC.
