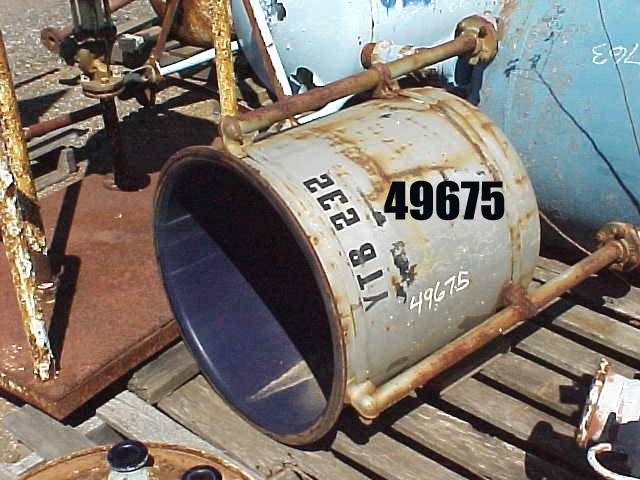

Glasslined Pfaudler Tank - IPP# 49675

Type: Tank

Manufacturer: Pfaudler

Model: VR-100

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 378.5 L (100 gallons)

Orientation: Vertical

• Open top storage tank

Diameter: 762 mm (30 in). Straight-side Length: 914 mm (36 in). Internal Pressure: 1.72 bar (25 psi). Internal Temperature: 176.7 °C (350 °F). Support: Lugs.

Type: Tank

Manufacturer: Pfaudler

Model: VR-100

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 378.5 L (100 gallons)

Orientation: Vertical

Diameter: 762 mm (30 in). Straight-side Length: 914 mm (36 in). Internal Pressure: 1.72 bar (25 psi). Internal Temperature: 176.7 °C (350 °F). Vacuum: Yes. Support: Lugs.

Type: Tank

Manufacturer: Pfaudler

Condition: Used

Material: Glasslined

Capacity (Design): 1,700 L (450.4 gallons)

Orientation: Vertical

• Lined with 9113 glass.

Diameter: 1,000 mm (39.4 in). Straight-side Length: 2,100 mm (82.7 in). Internal Pressure: 2.3 bar (33.4 psi). Internal Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Lugs.

Type: Tank

Manufacturer: Pfaudler

Condition: Used

Material: Glasslined

Capacity (Design): 1,700 L (450.4 gallons)

Orientation: Vertical

• Lined with 9113 glass.

Diameter: 1,000 mm (39.4 in). Straight-side Length: 2,100 mm (82.7 in). Internal Pressure: 2.3 bar (33.4 psi). Internal Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Lugs.
