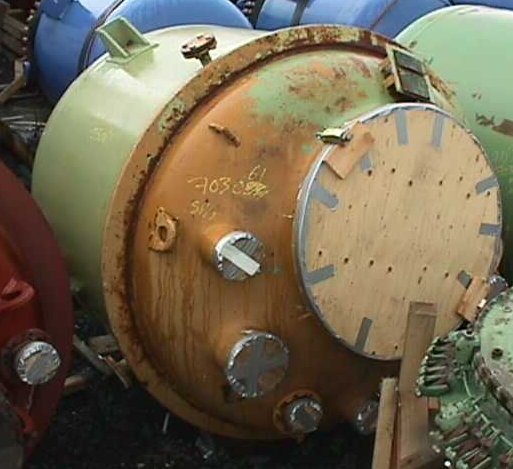

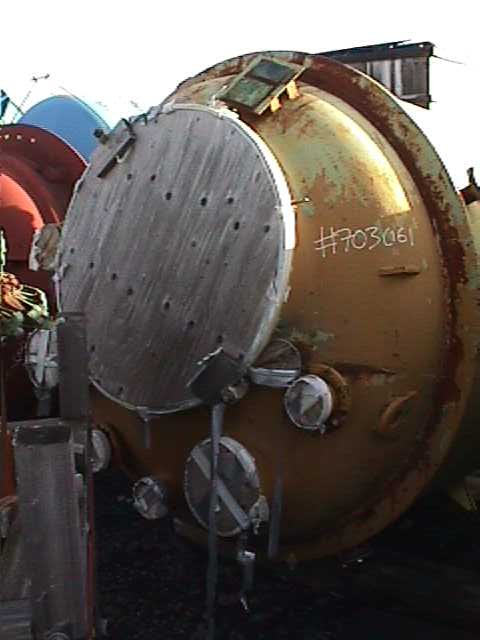

Glasslined DeDietrich STU Batch-Type Agitated Reactor - IPP# 703061

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: STU

Condition: Used

Material: Glasslined

Capacity (Design): 4,400 L (1,162 gallons)

Internal Pressure: 4.4 bar (63.8 psi)

• Jacket: Openings: 2-75mm, 6-32mm

Internal Temperature: 200 °C (392 °F). Jacket Pressure: 4.4 bar (63.8 psi). Jacket Temperature: 200 °C (392 °F). Diameter: 1,800 mm (70.9 in). Straight Side Length: 2,100 mm (82.7 in). Support Type: Lugs.

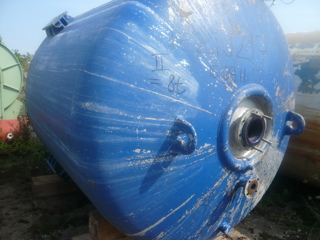

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: STU

Condition: Used

Material: Glasslined

Capacity (Design): 6,000 L (1,585 gallons)

Internal Pressure: 6 bar (87 psi)

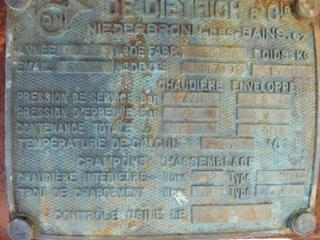

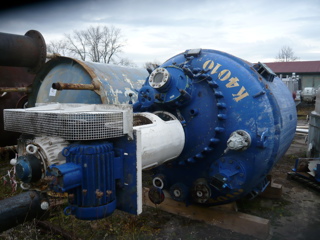

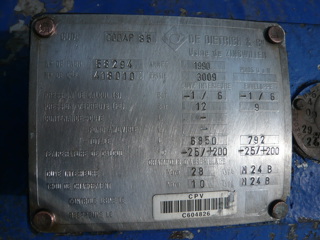

Code number 418010,
internal pressure -1/6 bar @ -25/200 degrees C
jacket -1/6 bar @ -25/200 degrees C (792 liters)

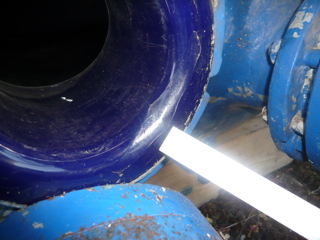

glass type 3009/blue,

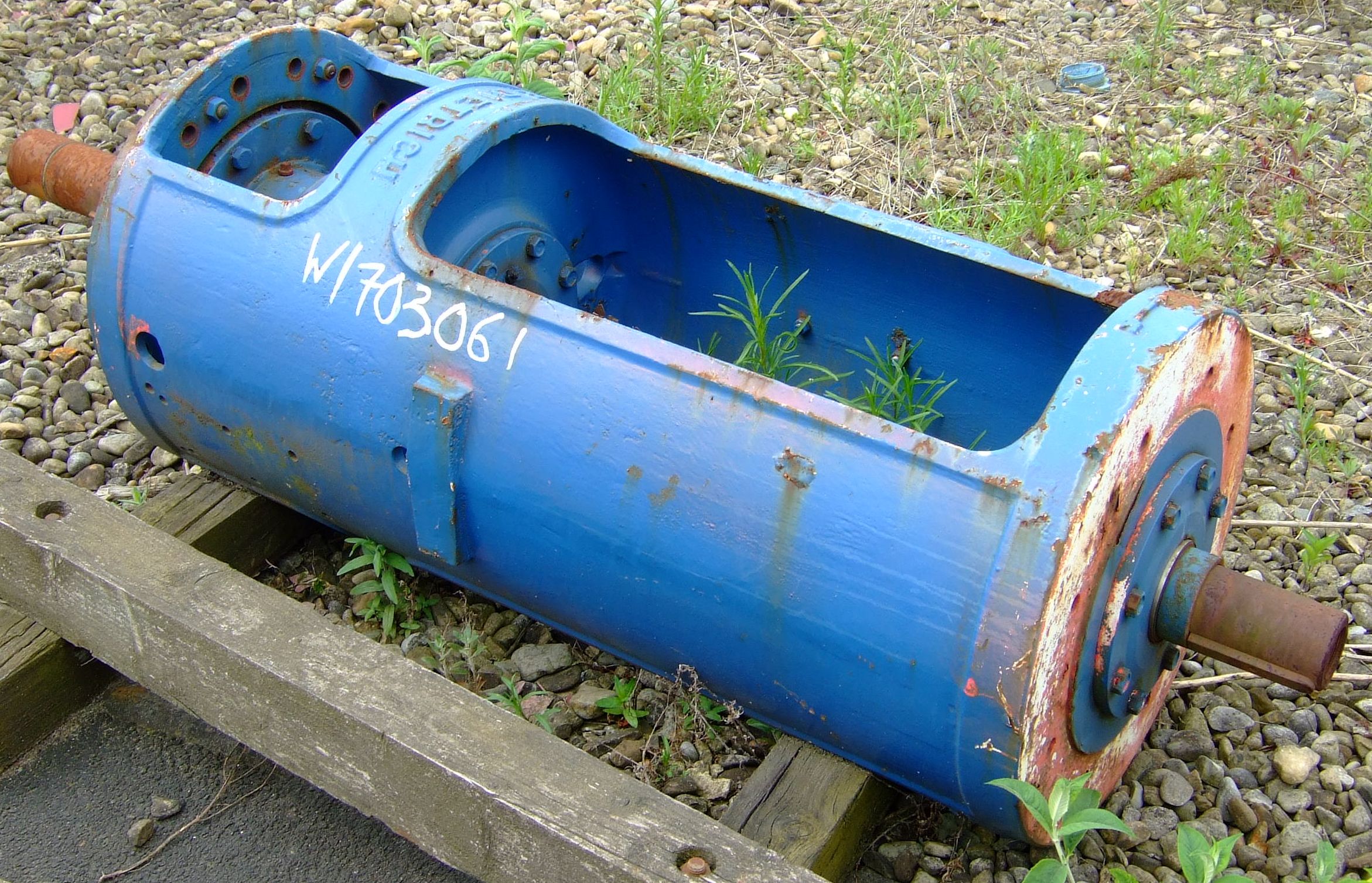

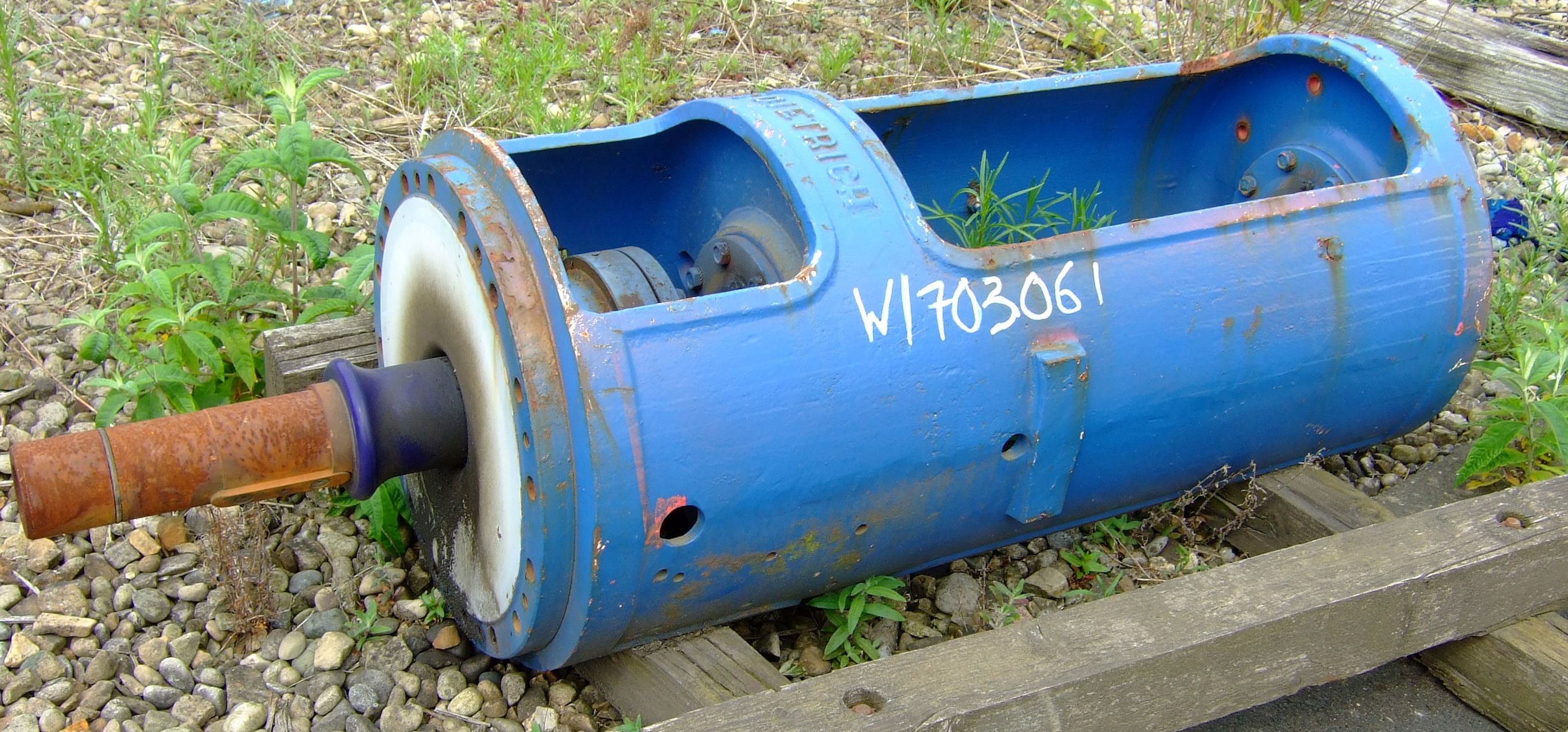

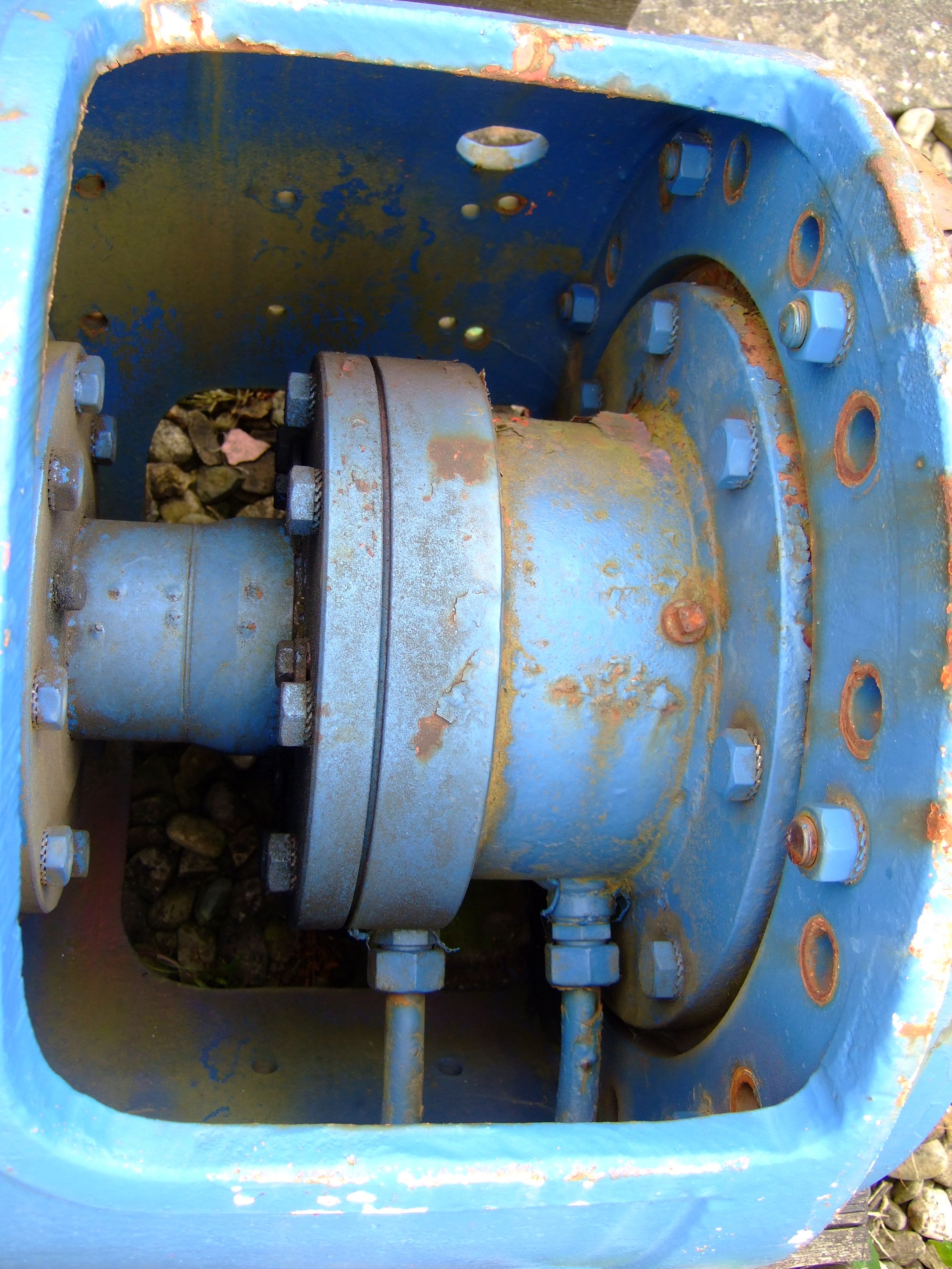

CRANE-MCR 90 double mechanical seal,

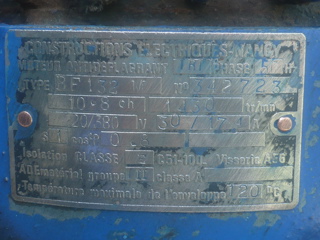

model 100 drive driven by 10.8 kw, 3/50/220/380 volt, 1430 rpm motor,
built to CODAP 85 by DeDietrich & Cie, Zinswiller

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Orientation: Vertical. Agitation: Yes. Diameter: 2,000 mm (78.7 in). Straight Side Length: 1,860 mm (73.2 in).

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: STU

Condition: Used

Material: Glasslined

Capacity (Design): 1,200 L (317 gallons)

Internal Pressure: 6 bar (87 psi)

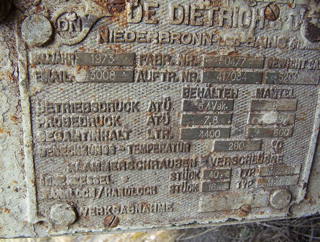

contract number 417192
CODAP 85. With glass 3008.

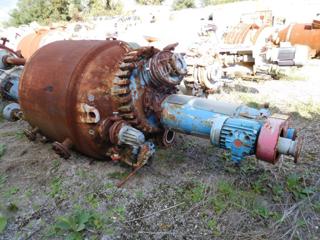

belt driven by 3.0 kW 3~/50Hz/220-380V,

Internal Full Vacuum: Yes. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 1,200 mm (47.2 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: STU

Condition: Used

Material: Glasslined

Capacity (Design): 6,850 L (1,810 gallons)

Internal Pressure: 6 bar (87 psi)

• Contract number: 418548
  -internal rated 6/ vacuum bar @ 200 degrees C, volume 6.850 liter, jacket rated 6 bar @ 200 degrees C, volume 780 liter
  Dip tube

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 2,000 mm (78.7 in). Straight Side Length: 2,650 mm (104 in). Support Type: Lugs.
