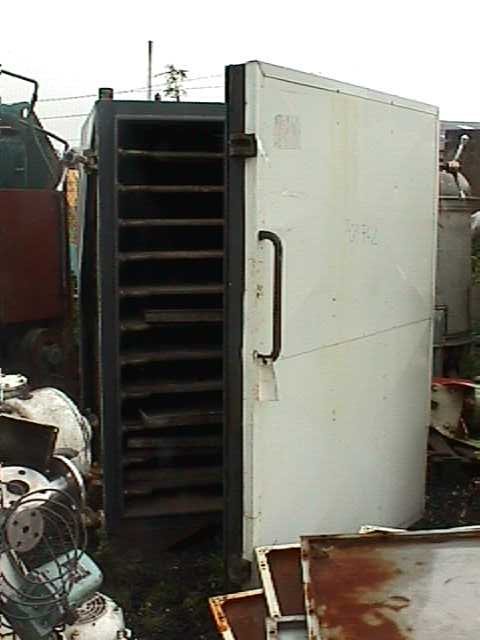

Dryer-Shelf 13.3 m² (143 ft²) Lined For Sale - IPP# 703742

  • Dryer-Shelf 13.3 m² (143 ft²) Lined For Sale - IPP# 703742 Dryer-Shelf 13.3 m² (143 ft²) Lined For Sale - IPP# 703742
  • Dryer-Shelf 13.3 m² (143 ft²) Lined For Sale - IPP# 703742
Overview
Dryer-Shelf
N Lebel Pantin
Used
Lined
Capacity
13.3 m² (143 ft²)
Other Specifications
Yes
11
1,000 mm (40 in)
1,200 mm (47 in)
1,950 mm (77 in)
1,550 mm (62 in)
1,450 mm (58 in)
12
0.31 m3 (10.8 ft3)
Additional Information

resin lined vacuum shelf dryer. Cored for steam heating. Distance between shelves 4". Unit has (12) 39 1/2" long x 19 1/2" wide x 2" deep 316 stainless steel trays. Hinged door with swing bolt closure. All resin lined wetted parts. Insulated carbon steel housing. Openings: vacuum 1-6", 2-1/2"; steam 4-2 1/4".
