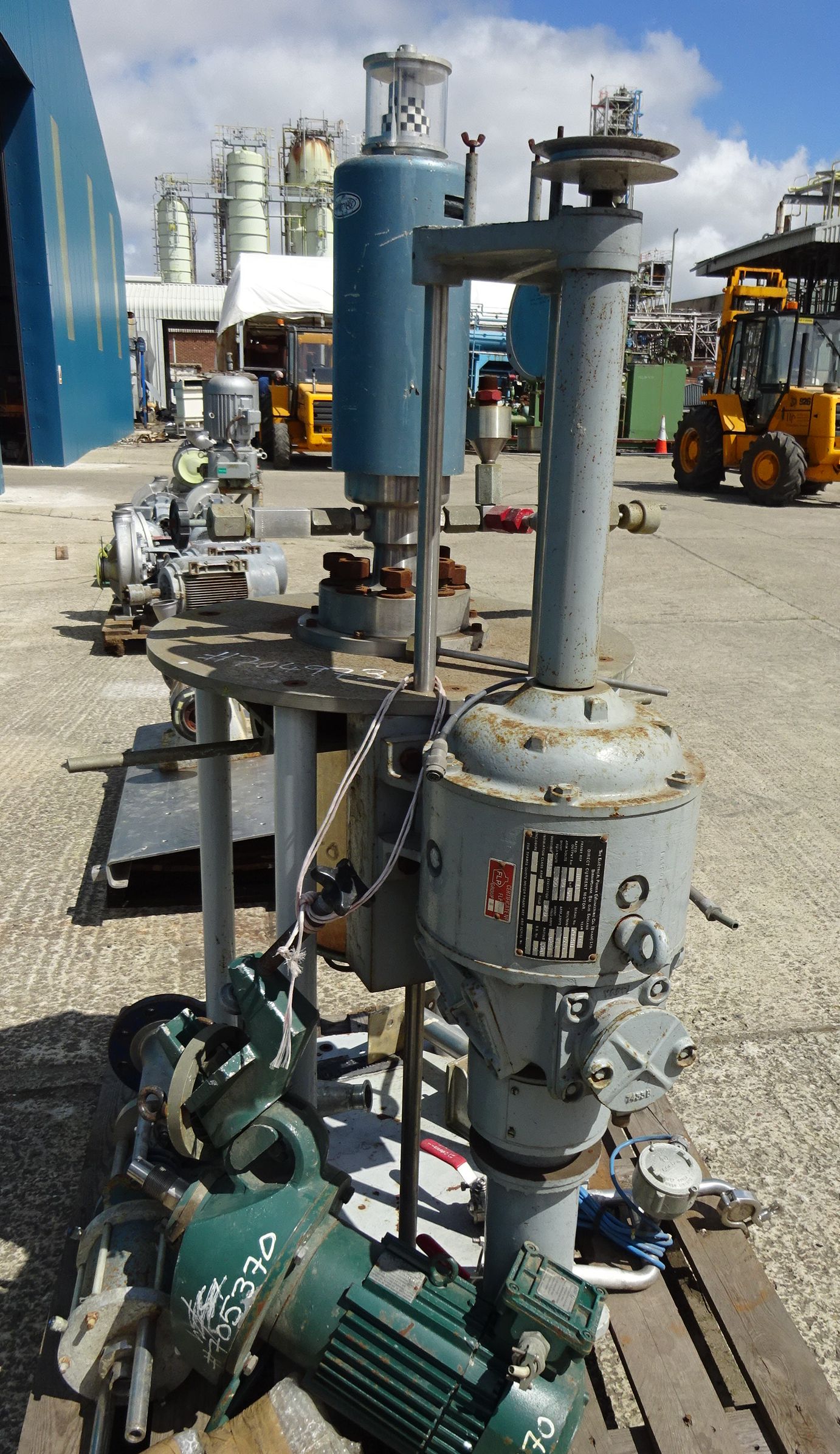

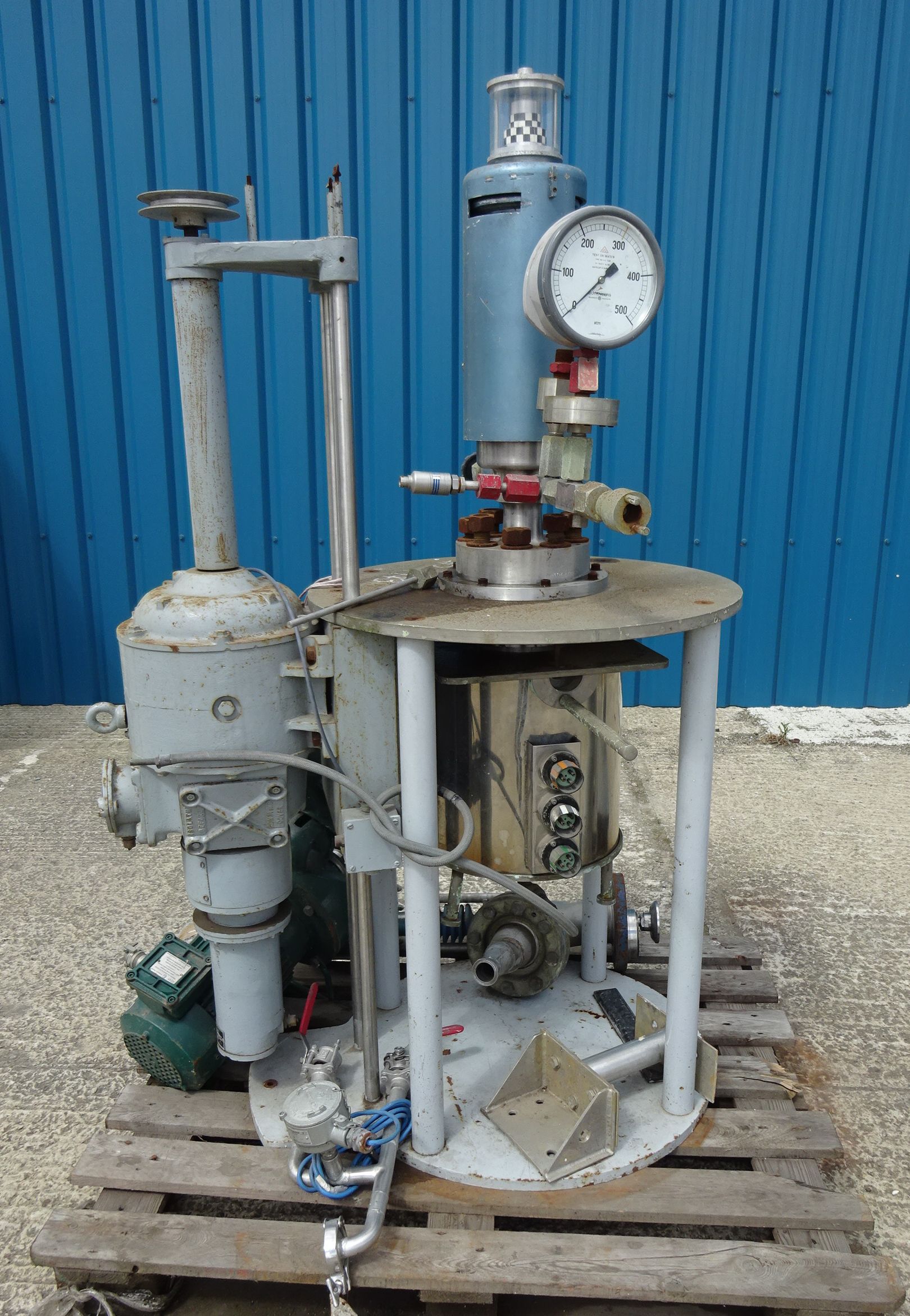

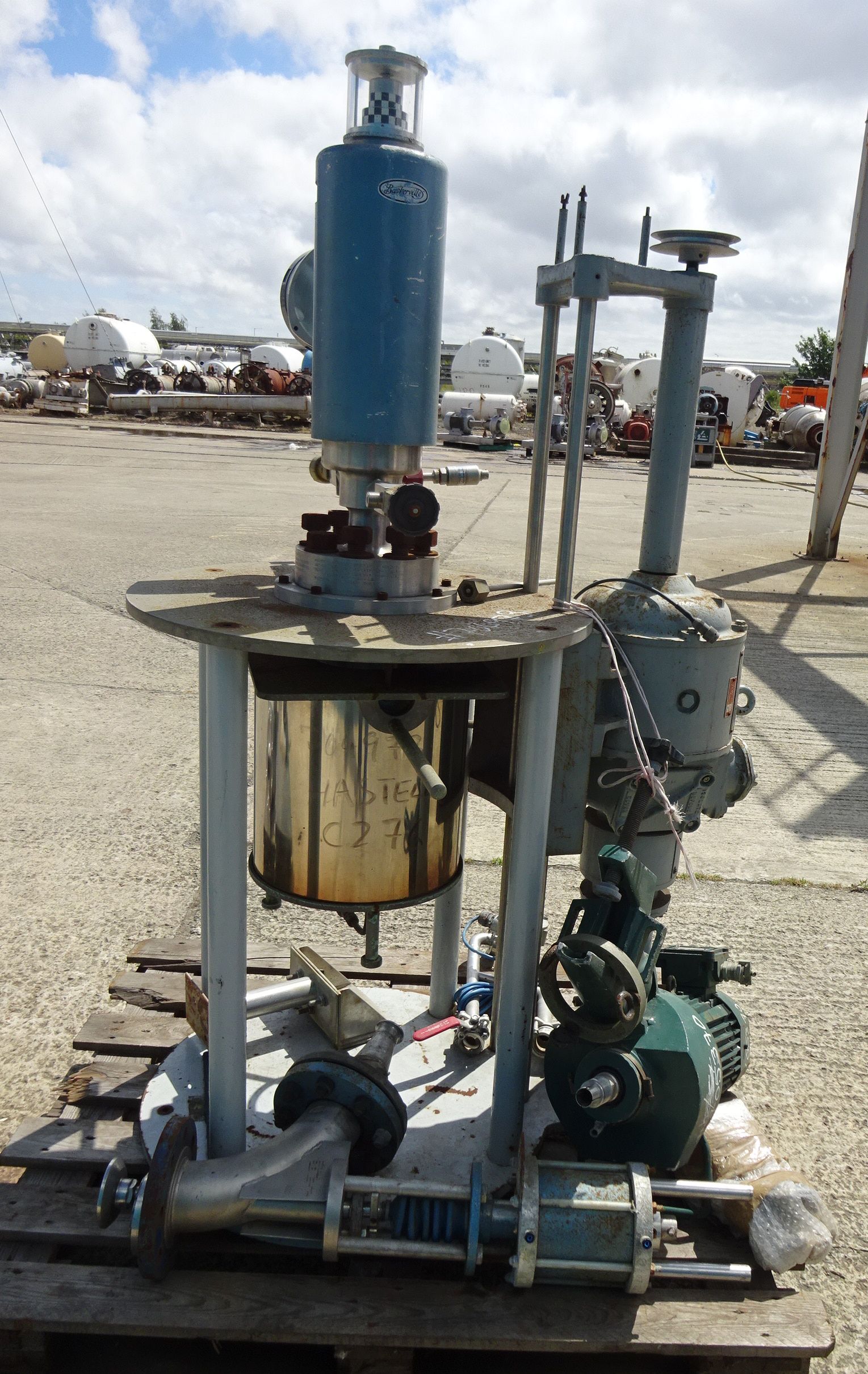

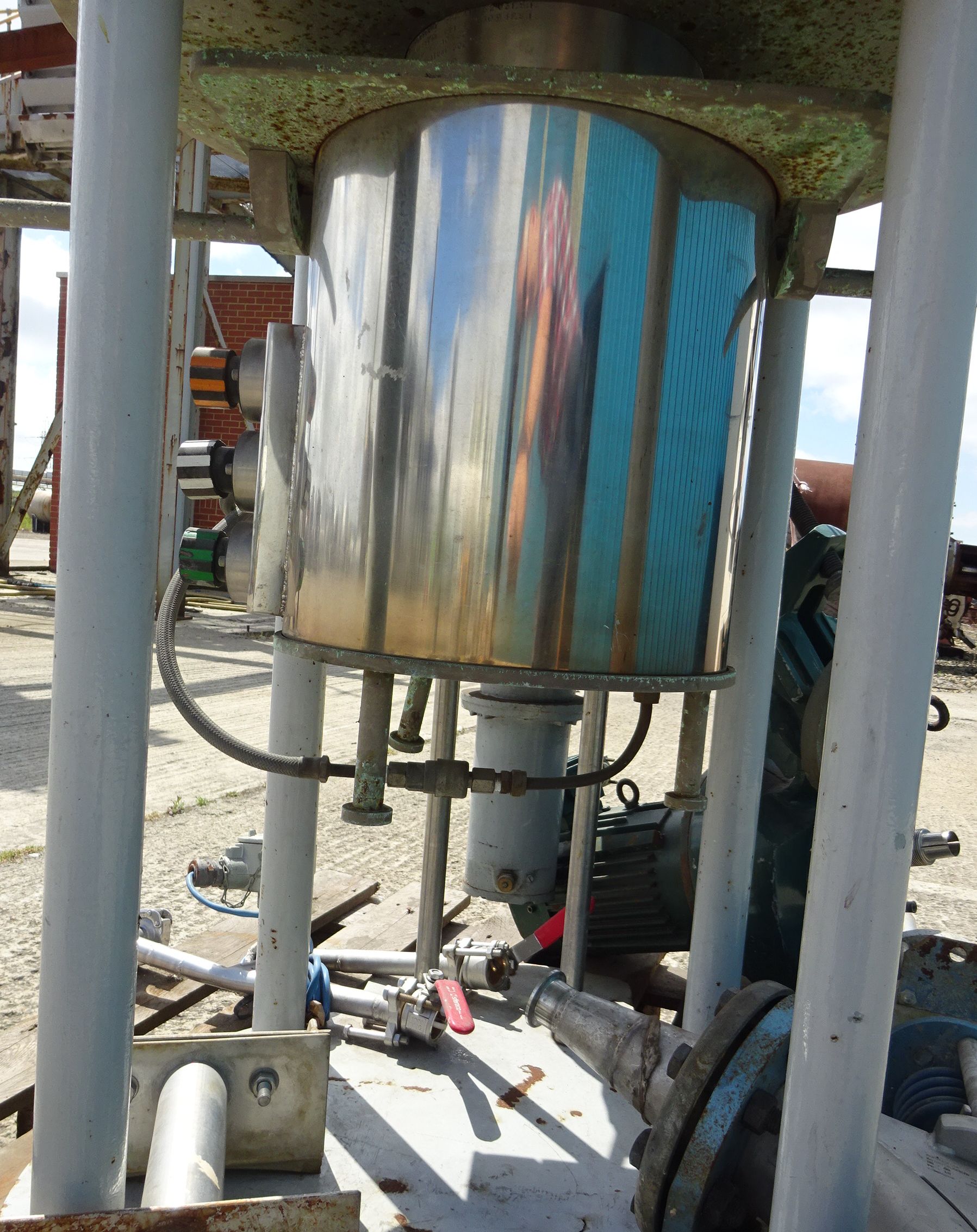

Batch-Type Agitated Reactor 2 L (0.53 gallons) Hastelloy - C276 For Sale - IPP# 704973

Type: Reactor

Subtype: Batch-Type Agitated

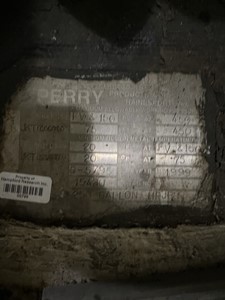

Manufacturer: Perry Products Corp

Condition: Used

Material: Hastelloy - C276

Capacity (Design): 946 L (250 gallons)

Internal Pressure: 10.3 bar (150 psi)

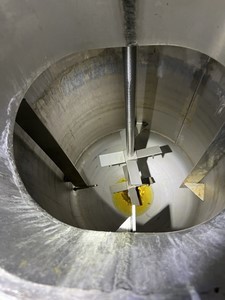

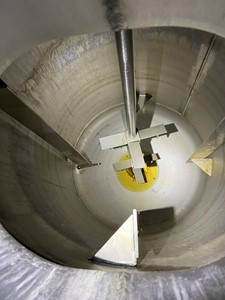

Three turns schedule 10 half pipe on bottom head, Eight turns schedule 10 half pipe on side walls. Mixing by Eastern model FRG-C2M with double mechanical seal Duel sets of four blade pitch turbine mixers

Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 5.2 bar (75 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Diameter: 1,000 mm (40 in). Straight Side Length: 1,150 mm (45 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Alloy Fab

Condition: Unused

Material: Hastelloy - C276

Capacity (Design): 1,300 L (350 gallons)

Internal Pressure: 41.4 bar (600 psi)

• ReconditionedVessel rated for 600 psi at 600 degrees F.jacket good for FV/90 psi at 400 psiAssembled with a reconditioned 4 RDTW drivemechanical seal with new bearings and seals and motor

Internal Full Vacuum: Yes. Internal Temperature: 315.6 °C (600 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 204.4 °C (400 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 1,200 mm (48 in). Straight Side Length: 965 mm (38 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

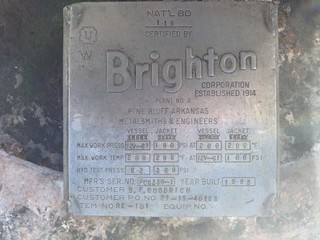

Manufacturer: Brighton Manufacturing

Condition: Used

Material: Hastelloy - C276

Capacity (Design): 12,100 L (3,200 gallons)

Internal Pressure: 4.2 bar (61 psi)

Internal Temperature: 93.3 °C (200 °F). Jacket Pressure: 13 bar (188 psi). Jacket Temperature: 93.3 °C (200 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 2,250 mm (89 in). Straight Side Length: 2,650 mm (105 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Mitsubishi

Condition: Used

Material: Hastelloy - C276

Capacity (Design): 36 L (9.5 gallons)

Internal Pressure: 10.5 bar (152.3 psi)

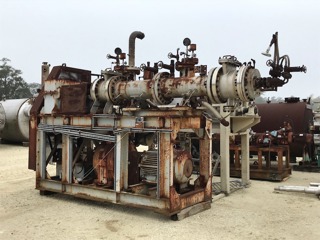

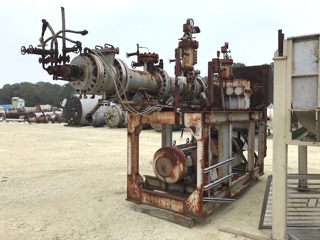

continous high viscosity reactor/dryer, rated 15000 CP @ 22.8 Kg/hr with a 37 minute retention time. with an intenal agitator shaft with discs, 150mm disk diameter. Unit has (53) discs on the shaft, 24 to 53 rpm disc speed. Shaft has double mechanical seals, and is belt driven through a vari speed gear reducer rated 900 rpm input to 279 to 1115 rpm output.

Internal Full Vacuum: Yes. Internal Temperature: 400 °C (752 °F). Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 400 °C (752 °F). Jacket Material of Construction: Carbon Steel. Orientation: Horizontal. Agitation: Yes. Diameter: 190 mm (7.5 in). Straight Side Length: 1,750 mm (68.7 in).
