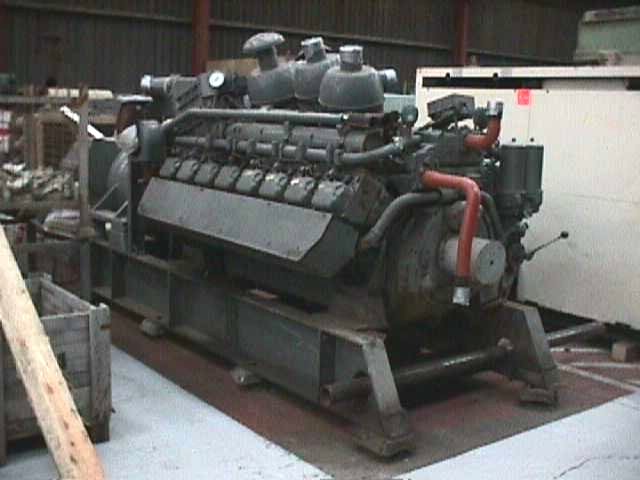

550 KVA, diesel engine driven electric generator. Engine manufactured by Deutz; Generator: 550 KVA, 1500 rpm, 795 amps, 50 Hz. Unit rated 550 KVA, 3/50/400 volt, 1500 rpm. Driven by diesel engine Type BF16M716, serial #5252569, rated 625 HP, 1500 rpm. Air cooled, (16) cylinder, (2) sets of (8) cylinders each with turbocharger and intercooler. Intercooler rated 4 bar. Unit with (4) air filters, built-on control panel. Skid mounted.
Type: Power Generator
Manufacturer: Dorman
Condition: Used
Material: Carbon Steel
Capacity: 0.19 MW
Voltage: 400
diesel engine driven electric generator. Unit rated 187.5 KW, 3/50/230/400 volt, 1500 rpm. Driven by (6) cylinders. Diesel engine, Type GLET-CA-2, SN 06042/1175/040. Turbo charged, oil and water cooling system. Unit w/built-in control panel. Skid mtd.
Cycle: 50. Phase: 3. Drive Power: 187.5 kW (251.4 HP). Fuel Type: Diesel. Powered By: Engine. Controls: Yes.
Type: Power Generator
Manufacturer: Waukesha
Model: 16VAT27GL
Condition: Used
Material: Carbon Steel
Capacity: 3.4 MW
Amperage: 220.5 amp
SAA #2000-168, natural gas fired, continuous, comp ratio 9/1, min.WKI 91, ignition timing (BTDC) 11-02, service 4650 HP (3469 Kw), altitude limit 500 feet (152 meter), governed speed 1000 rpm, 0.80mm valve intake & exhaust clearance, firing order 1R-1L-4R-4L-7R-7L-6R-6L-8R-8L-5R-5L-2R-2L-3R-3L, AC generator (alternator) manufactured by Leroy Somer, type LSA-56-BM65-6P, serial #167056-2, IP 23, 3360.8 Kw, 4201 kVA power rating, 11000 volt, 220.5 Amp, 3 phase, 50 Hz, 1000 rpm, excitation AREP, all mounted on a carbon steel skid.
Voltage: 11,000. Cycle: 50. Phase: 3. Operational Hours: 34,000. Fuel Type: Natural Gas. Powered By: Engine.
Type: Power Generator
Manufacturer: Elliott
Model: BYRH-UG
Condition: Used
Material: Carbon Steel
Capacity: 1.01 MW
Amperage: 163 amp
Elliott steam turbine generator set with Elliott turbines Single stage back pressure style units. We believe this unit has zero run hours since the overhaul. Engine, gearbox and generator are mounted in a common skid. Rated Power - 1350HP/1007kW; Rated Turbine Speed - 5750 RPM; Rated Inlet Steam Pressure - Gauge - 599 PSI; Rated Steam Temperature - 750 Deg F; Rated Exhaust Pressure - 155 PSI. Gear Drive is a model # C4 R4, Serial # B102145C-G2, Rated power 1350, Service factor 1.66, High speed shaft;5750, Low speed shaft;1815 , Tag # 802654 C4 2625. Alternater is built by BBC (Brown Boveri) Serial # C36-A076-101, Drive end bearing 6322/C3, opposite drive end bearing 6320/C3. Time rated continuous; Frame # 717, enclosure is drip proof; rated ambient temp. 40 degrees C. With twin Amtek oil coolers and 1.5 hp oil pump.
Voltage: 4,160. Cycle: 60. Phase: 3. Drive Power: 1,007 kW (1,350 HP). Power Transmission: Gear. Powered By: Steam. Controls: Yes.
Type: Power Generator
Manufacturer: Stewart & Stevenson
Model: 12V149GDT1B1045SB
Condition: Used
Material: Carbon Steel
Capacity: 1 MW
Amperage: 1,505 amp

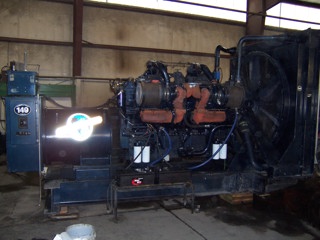

Diesel Generator set
277/480 volt
With an IEC (International Electric Corp) generator,
Model 6432LEJ-002
Serial Number A612123
frame 320
ambient 40 degrees C
965 continuous KW, 1206 KVA
1451 AMPS.
Driven by a Detroit Diesel Allison 149 Power, V12 engine with exhaust gas turbo charger, electric oil heater and muffler.
Skid mounted with cooling fan serial number 126796.
New hour meter on generator with 102 hours, plus 665 previous hours on the unit.
Voltage: 480. Cycle: 60. Phase: 3. Operational Hours: 767. Drive Power: 965 kW (1,294 HP). Fuel Type: Diesel. Power Transmission: Direct Coupled. Powered By: Engine.
