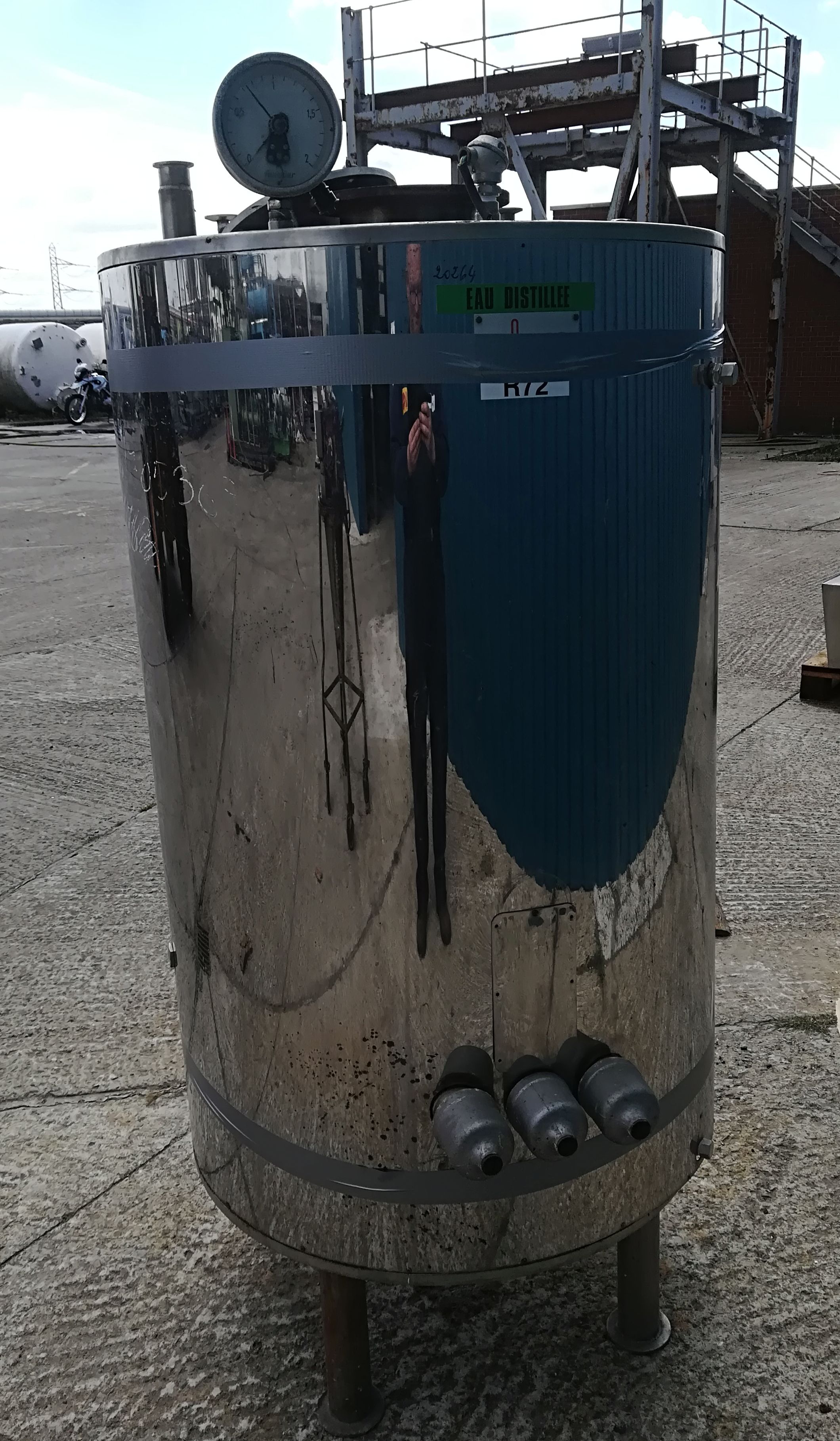

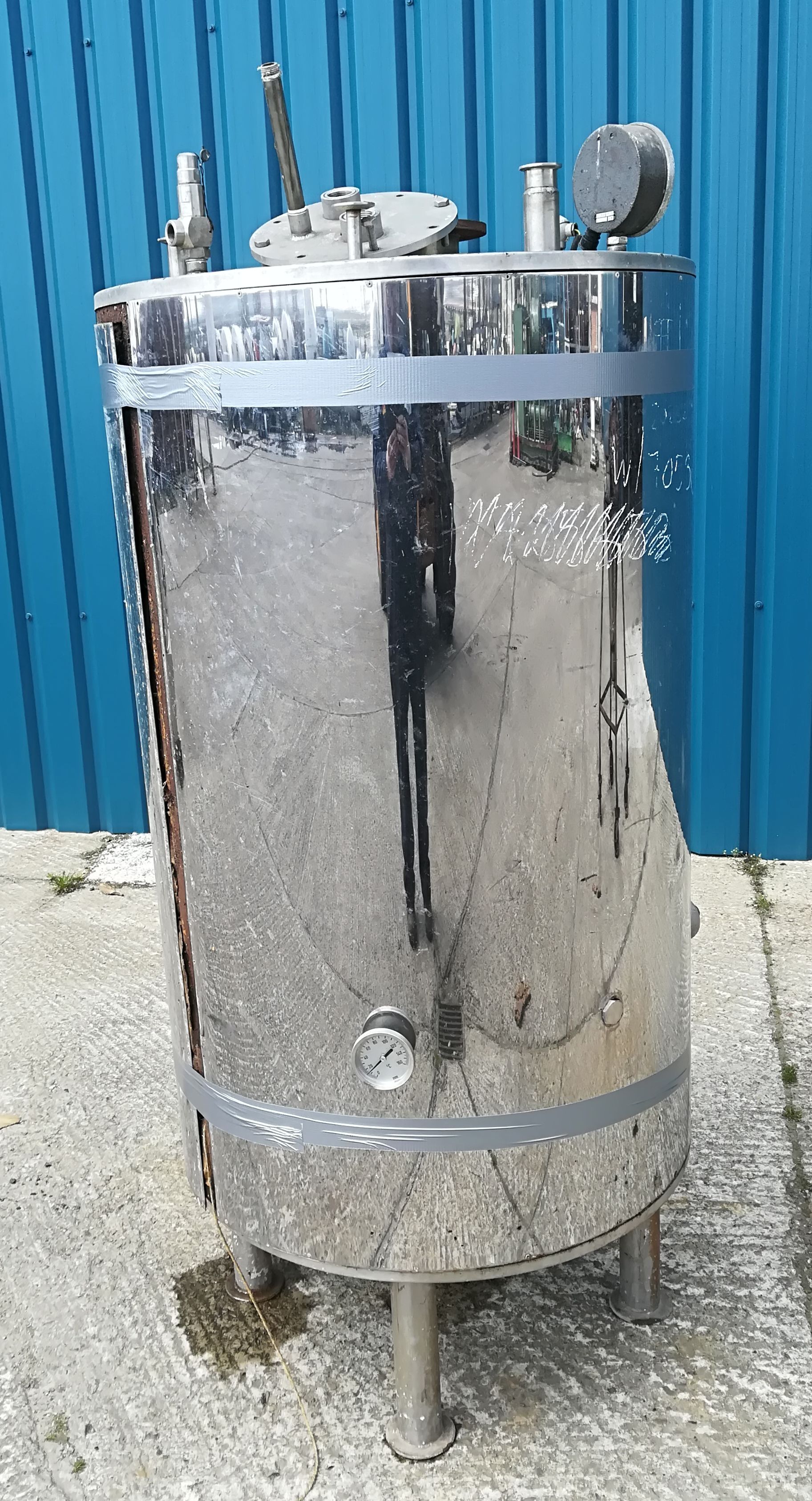

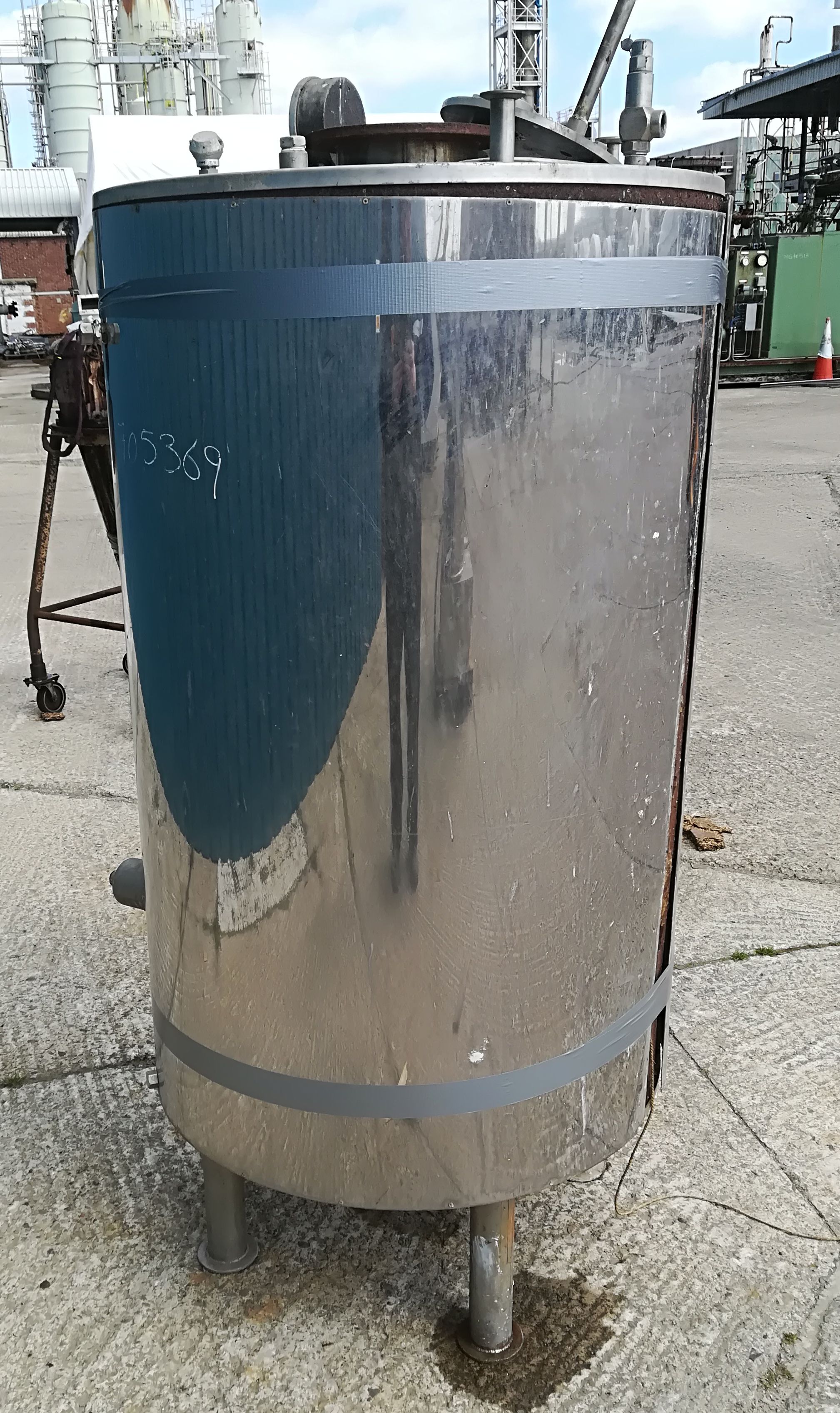

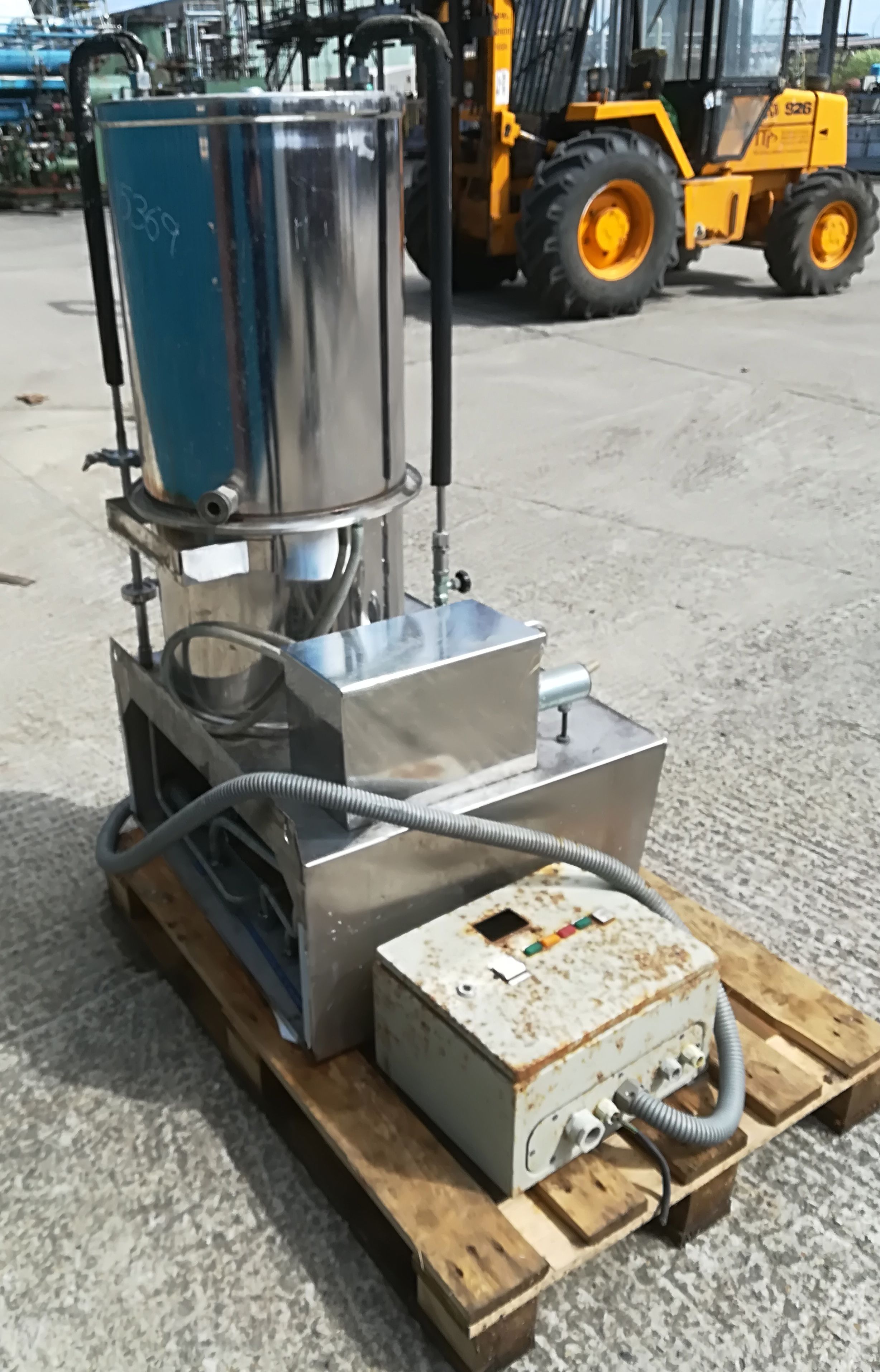

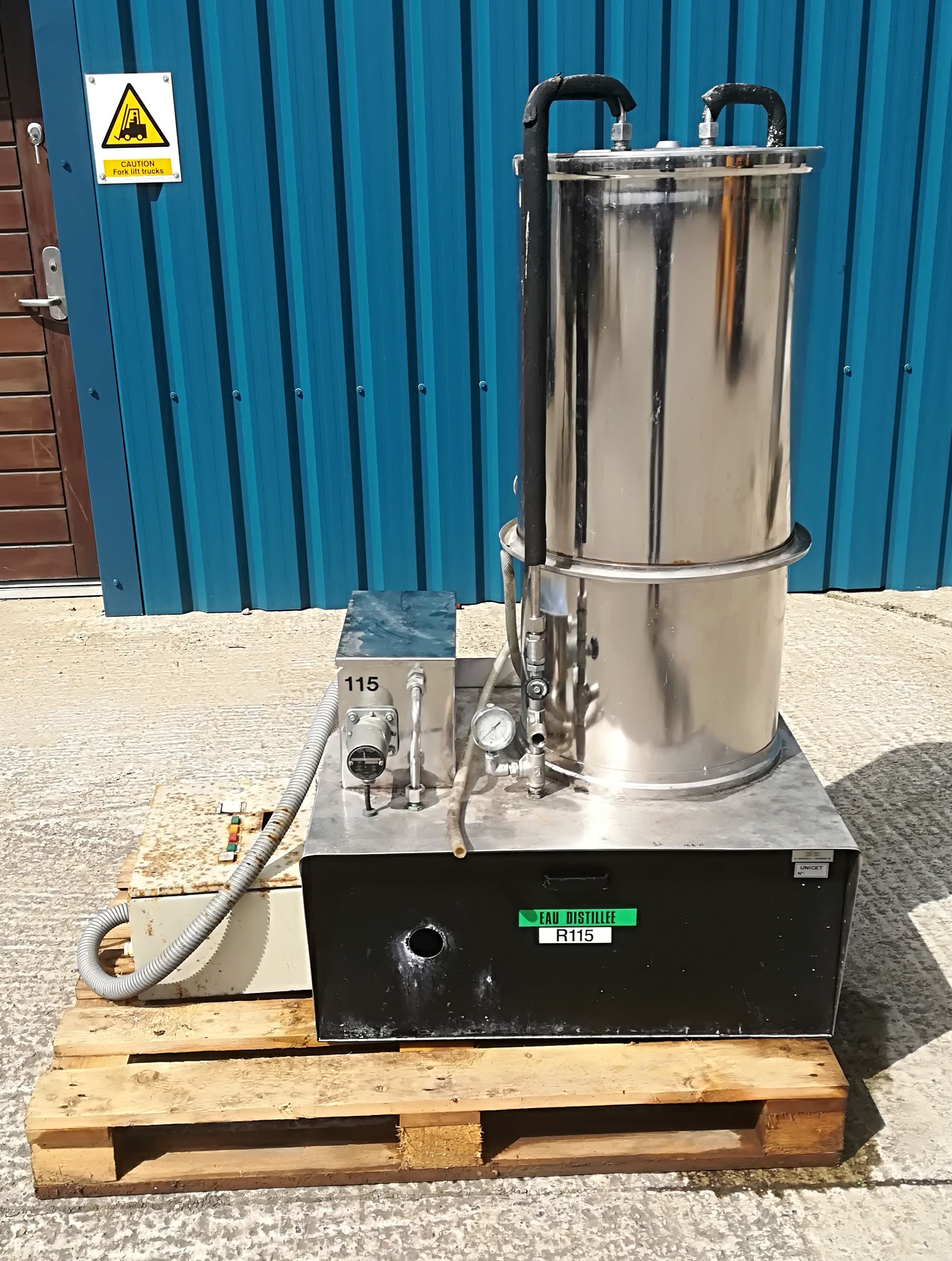

Stainless Steel 316 Still For Sale - IPP# 705369

Type: Still

Manufacturer: Distillation Engineering Co.

Condition: Used

Material: Stainless Steel 316

Diameter: 304.8 mm (12 in)

Length: 2 m (6.7 ft)

with out a still pot. Needs a 750-1000 gallon reactor to complete (sold separate) Designed to bolt onto the top of a reactor with a 750-1000 gallon capacity. (depending on the chemical service) The system consists of the following parts First a 12" x 80" SS packed column, second a top mounted re-boiler, and third a reflux tank. The column section is 12" diameter x 80" overall length. 316 SS, NB # 205, rated for FV/125 psi at 500 degrees F. Manufactured by Roben. With a packing support 10" from the bottom of the column. Estimated packed capacity is 5 ft.3. The U-Tube condenser is top mounted to the column. It is 150 ft.2, The shell is 316 SS. NB # 4892. The shell is rated for FV/150 psi at 450 degrees F The tubes are rated for 100 psi at 450 degrees F. It is manufactured by Roben, serial # 81034. It is 18" diameter x 107" overall length. Two pass tube side. With 2" tube nozzles. The reflux/receiver tank has a 60 Gallon capacity and is manufactured from 316 SS material. It is orientated vertically. The dimensions of the vessel are 24" diameter x30" straight side,

Still Type: Column Still. Pressure: 8.6 bar (125 psi). Temperature: 260 °C (500 °F). Column: Yes. Orientation: Vertical.

Type: Still

Manufacturer: Paul Mueller

Model: P7140

Condition: Used

Material: Stainless Steel 316

Diameter: 1,219 mm (48 in)

Length: 2.7 m (8.9 ft)

1,200 lbs./hr PyroPure Clean steam generator Produces pyrogen free pure steam that meets USP requirements With external shell and tube evaporator, double tube sheet 316LSS contact surfaces, polished to 20 ra max. blowdown cooler which serves as a pre-heater for water entering the evaporator steam seperator and feedwater pump Evaporater NB # 32477 serial #4767410-1 Shell rated for 150/FV psi at 366 degrees F tubes rated for 150/FV psi at 366 degrees F Cooler NB #32664 Serial # 4864670-1 shell rated for FV/150 psi at 336 degrees F tubes rated for FV/150 psi at 336 degrees F Feed water pump, 316SS manufactured by Fristam Pump direct driven by a 3 hp 3500 rpm AC motor All parts mounted on a skid with the following controls AB PLC control with Panel View Plus operator interface I/O cabinet and Motor staring cabinet complete with breaker Feedwater inlet is 1" TC sanitary Steam inlet is 1.5" flange(150 psi max) Pure steam outlet is 2" TC sanitary Condensate outlet is 1" FNPT drain is 1" TC, and instrument air is 1/4" FNPT Dimensions are 48" wide x 46.5" deep x 107" high. Shipping weight is 2,150 lbs.

Pressure: 10.3 bar (150 psi). Temperature: 168.9 °C (336 °F). Controls: Yes. Support Type: Skid. Orientation: Vertical.

Type: Still

Manufacturer: Santasalo-Sohlberg Corp

Model: 2000H1

Condition: Used

Material: Stainless Steel 316

Diameter: 250 mm (9.8 in)

Length: 3.1 m (10 ft)

176 lbs./hr.of pure steam generated at 58 psi Clean Steam Generator Finn Aqua with (1) 316SS DI columns enclosed in a 304SS housing with associated pumps, valves, condensors, collection pots Housingis 36" wide x 51" long x 11' high

Still Type: Column Still. Pressure: 8 bar (116 psi). Temperature: 175 °C (347 °F). Controls: Yes. Support Type: Skid. Orientation: Vertical.

Type: Still

Manufacturer: Steris Finn-Aqua

Model: 3000-G

Condition: Used

Material: Stainless Steel 316

Controls: Yes

Support Type: Skid

4700 lbs/hr
Pure Steam Generator Falling film design to remove pyrogenic material Steam heated. Electricals rated 3.0 kW, 480 volt, 60 cyc, 5.2 amp with 0.5 kW 120 volt 4.2 amp, 60 cyc controls. All product surfaces are sanitary 316SS construction. Skid with process controls in a SS control cabinet Sesigned to consistenly generat Pure Steam for usin in Pharma and biotec industries.

Orientation: Vertical.
