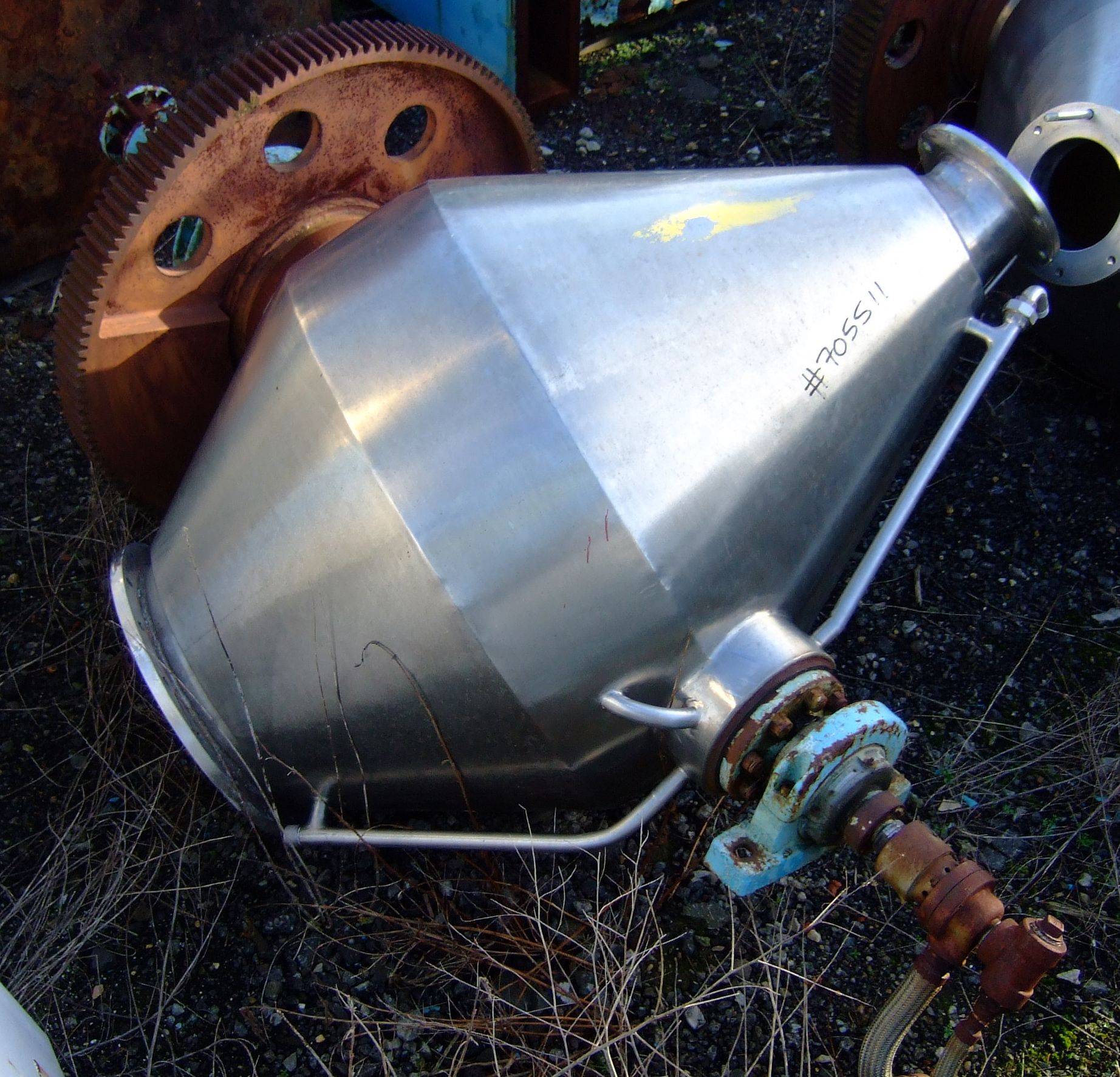

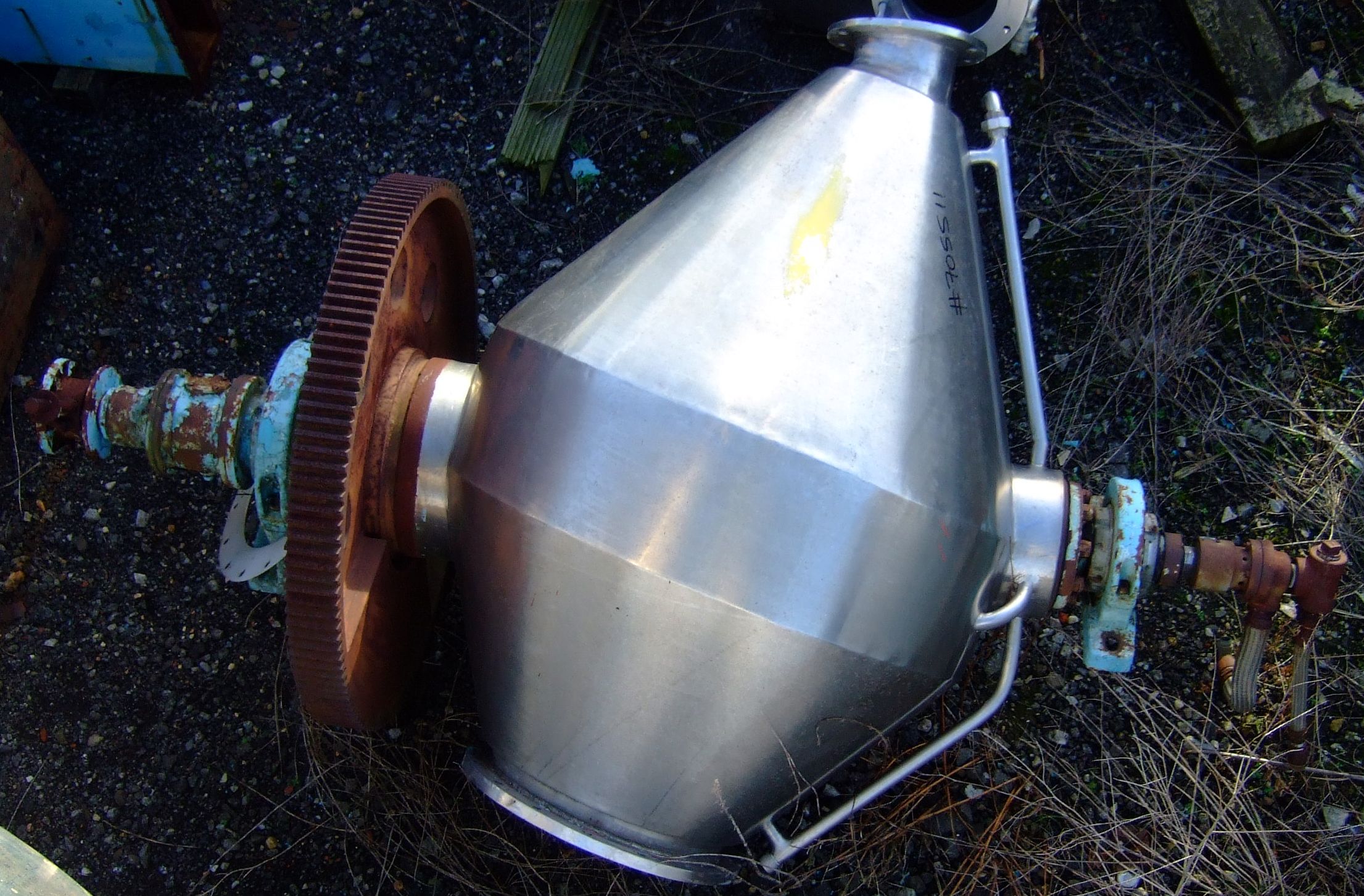

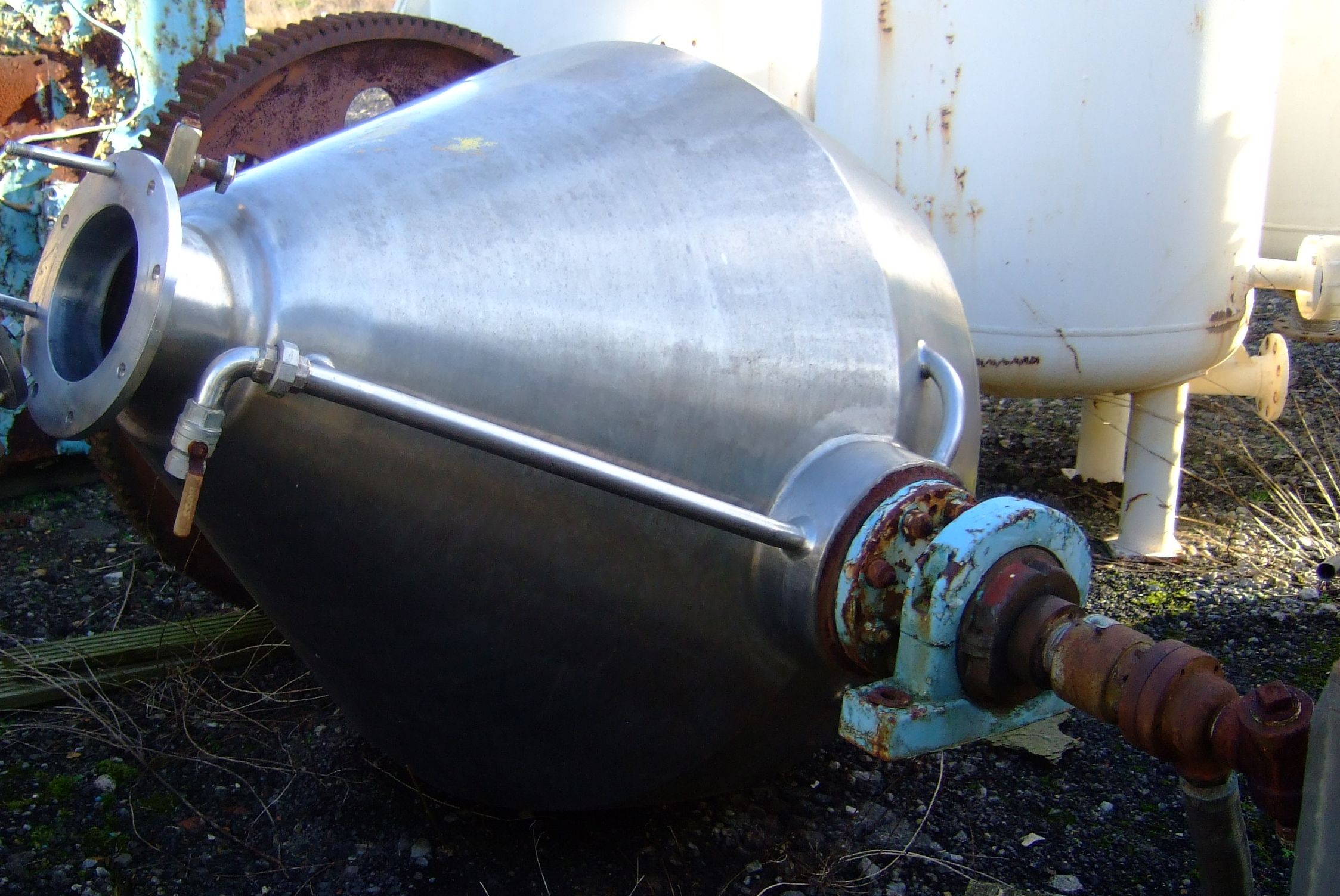

Oblicone' double cone vacuum dryer

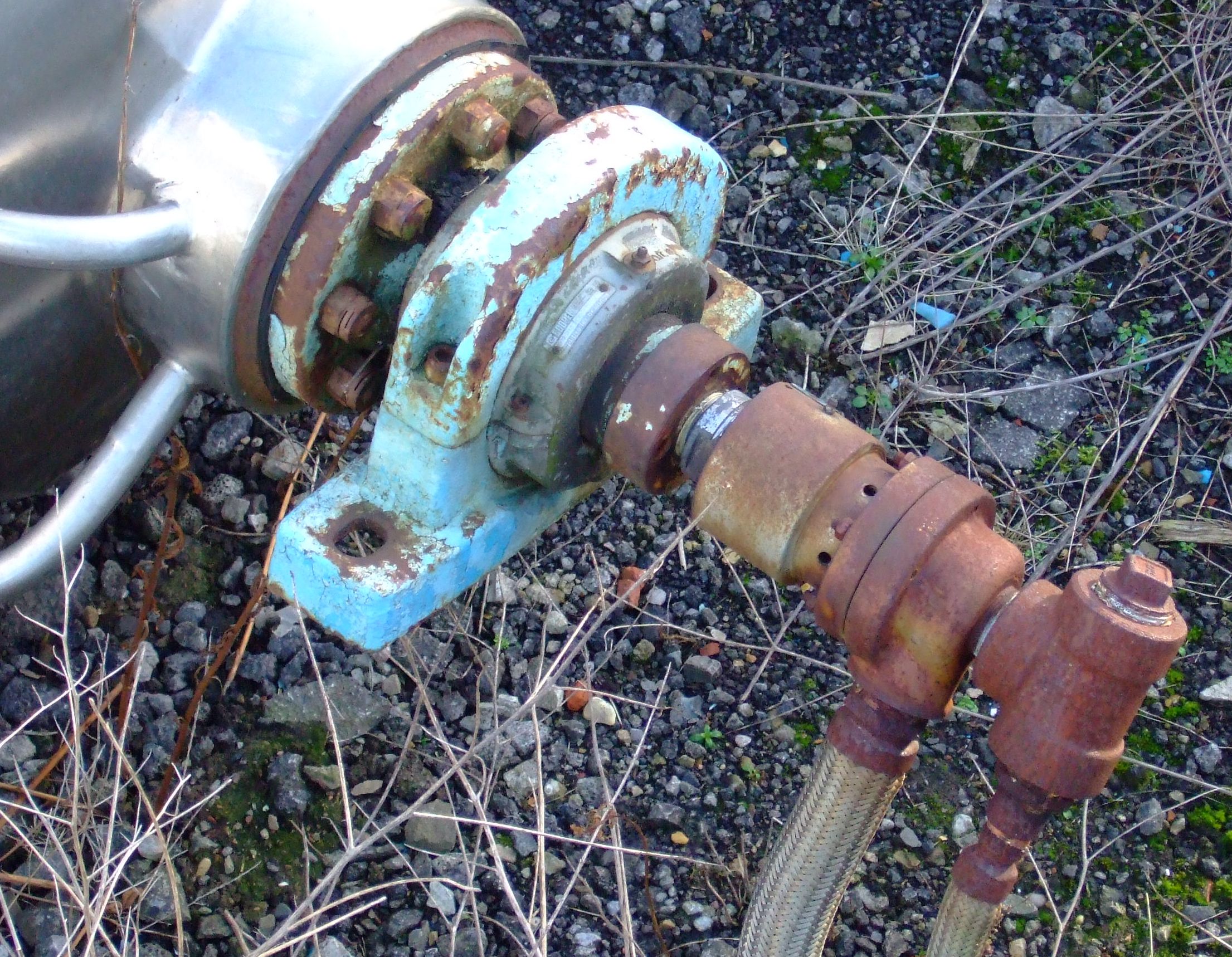

external rotary union
380/420 volt
Openings: 1-250mm diameter feed with manway (with hinged clamped cover), 1-200mm discharge with valve
Type: Dryer-Twin Shell & Double Cone
Manufacturer: Steele and Cowlishaw Limited
Condition: Used
Material: Stainless Steel 316
Capacity Design: 0.6 m3 (21.2 ft3)
Capacity Operating: 0.5 m3 (17.7 ft3)
jacketed 'Oblicone' double cone vacuum dryer
external rotary union
Top cone section 400mm long x 300mm straight side x 900mm bottom cone section
380/420 volt
Openings: 1-250mm diameter feed with manway (with hinged clamped cover), 1-200mm discharge with valve
Vessel Pressure: 2.07 bar (30 psi). Vessel Temperature: 60 °C (140 °F). Jacket Pressure: 1.38 bar (20 psi). Jacket Temperature: 60 °C (140 °F).
Type: Dryer-Twin Shell & Double Cone
Manufacturer: Baker Perkins
Condition: Used
Material: Stainless Steel 316
Capacity Design: 1.36 m3 (48 ft3)
Capacity Operating: 0.85 m3 (30 ft3)
belt and pulley drive to Kopp variable speed gearbox
coupled to fixed speed reducer and pinion drive. with a stand, access platform
Shell 4' diameter x 7'8" high.
safety cage. Speed variable 0.6-5.7 rpm
Working pressure: container 1 torr;
Vessel Pressure: 0.00131 bar (0.019 psi). Jacket Pressure: 2.07 bar (30 psi). Jacket Temperature: 100 °C (212 °F).
Type: Dryer-Twin Shell & Double Cone
Manufacturer: Patterson Ind
Condition: Used
Material: Stainless Steel 316
Capacity Design: 0.142 m3 (5 ft3)
Capacity Operating: 0.113 m3 (4 ft3)
Gear driven by a cone gear drive approx 3 HP.
Vessel Pressure: 2.07 bar (30 psi). Vessel Temperature: 177 °C (350 °F). Jacket Pressure: 3.1 bar (45 psi). Jacket Temperature: 177 °C (350 °F). Full Vacuum: Yes.
Type: Dryer-Twin Shell & Double Cone
Manufacturer: A & B Process Systems
Condition: Used
Material: Stainless Steel 316
Capacity Design: 3.77 m3 (133 ft3)
Capacity Operating: 2.41 m3 (85 ft3)
MDMT -20F @ 15/-15psi.
Inside wall 316stainless steel
Shell 78" diameter x 16" straight side x 42" cone
84" overall length
Vessel Pressure: 1.03 bar (15 psi). Vessel Temperature: 104 °C (220 °F). Jacket Pressure: 1.03 bar (15 psi). Jacket Temperature: 104 °C (220 °F).
