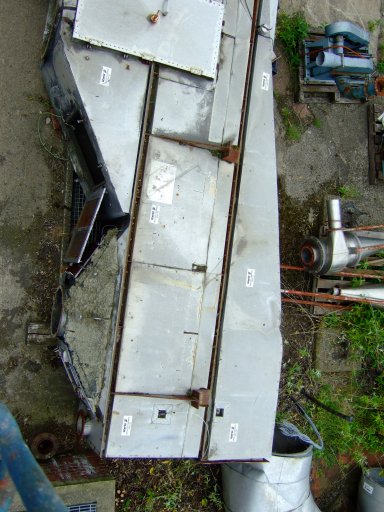

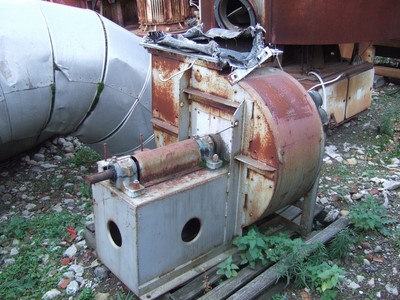

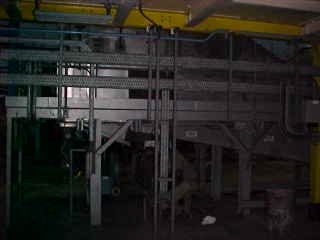

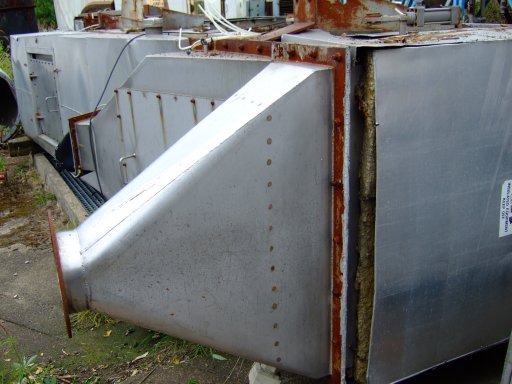

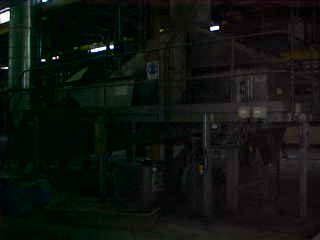

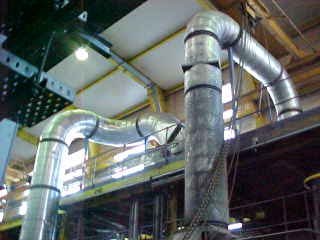

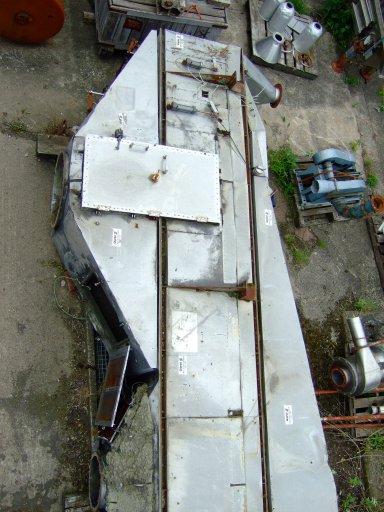

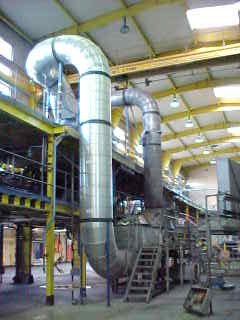

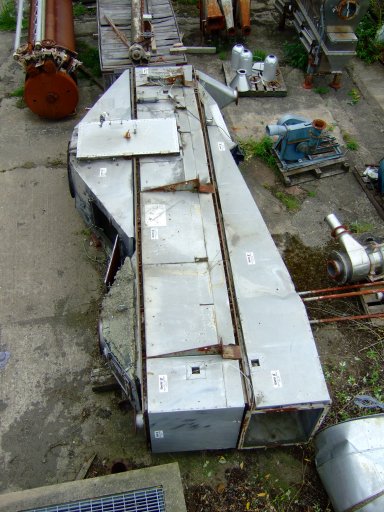

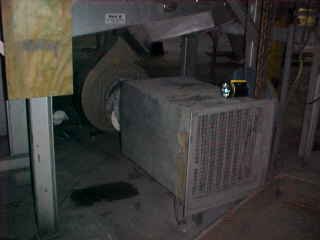

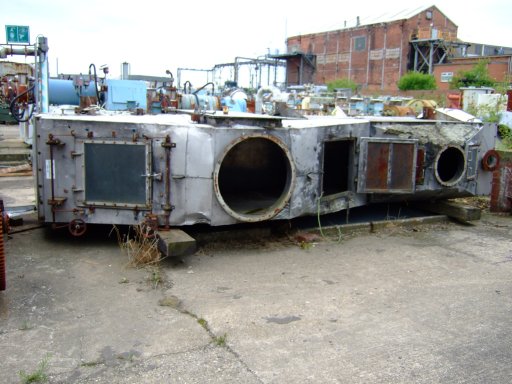

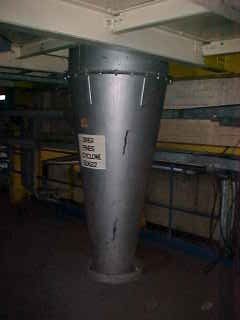

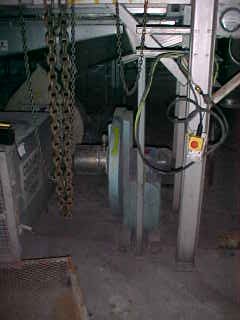

static fluid bed dryer system reference number K5/8-88-001A Bed temperature 100 - 120 degrees C Bed with (2) pneumatic operated hinged weir plates weir height range 140mm - 250mm Dryer chamber approx. 920mm wide x 5.8m long, chamber with 690mm wide x 1.3m high hinged inspection door Openings: drying air inlet 900mm, cooling air inlet 300mm, recycle 750mm, exhaust 500mm System consists of (1) air heater, aluminium fins with carbon steel tubes, rated 250 psi, (1) centrifugal cooling air fan, manufactured by Fans & Blowers, Ltd, serial # 6331 Motor: 3 phase (1) carbon steel cyclone, 1000mm top diameter x 1700mm straight side x 2000mm cone. Bottom outlet 350mm, straight side 760mm x 200mm, (1) exhaust/wet air fan, belt driven by 15 kw, 3/50/415V, 2940 rpm motor. (1) main dryer fan belt driven by 75 kw, 3/50/415V, 1470 rpm motor (no motor).
Type: Dryer-Fluid Bed
Manufacturer: Niro
Condition: Used
Material: Stainless Steel 304
Bowl Diameter: 1,340 mm (52.8 in)
Bowl Height: 9,600 mm (378 in)
vibrating fluid bed dryer vibratory mechanism 304 stainless steel perforated fluid bed openings: feed: 1-800mm, powder discharge: 1-635mm, top: 1-700mm manway, 2-600mm, 1-250mm, straight side: 3-500mm manways, bottom: 2-625mm, 1-500mm manway dryer with springs but no frame
Orientation: Horizontal. Operational Mode: Continuous.
Type: Dryer-Fluid Bed
Manufacturer: Niro
Condition: Used
Material: Stainless Steel 304
Bowl Diameter: 1,100 mm (43.3 in)
Bowl Height: 6,000 mm (236.2 in)
continuous vibrating fluid bed dryer perforated fluid bed openings: feed: 1-600mm, powder discharge: 1-300mm, top: 1-750mm manway, 1-450mm, straight side: 3-450mm manways, bottom: 2-625mm each with a 625mm diameter x 980mm straight side s/steel tank dryer mounted on carbon steel frame with springs
Orientation: Horizontal. Operational Mode: Continuous.
Type: Dryer-Fluid Bed
Manufacturer: Aeromatic-Fielder AG
Model: T5-2110
Condition: Used
Material: Stainless Steel 304
Capacity: 340 L (89.8 gallons)
Air Flow Rate: 3,600 m3/h (2,119 CFM)
fluid bed dryer system 50-250 Kg With cylindrical chamber the rupture channel 950mm dia x 2345mm high Filter housing rated 2 bar and has volume of 1638 liter. Filter area 13 sq meter. W/(2) 304SS product bins, rated 2 bar, w/volume of 340 liter, base area of bin 0.45 sq meter, 1100mm/750mm dia x 500mm deep, w/60mm x 270mm sight glass. Fine dust filter 19.3 sq meter. Steam air heater rated 467,2000 Kg/hr with air inlet of -10 deg C and outlet of +80 deg C. Steam pressure 4 bar. Fan rated 1.2 cbm/sec, static pressure 5000 N/sq meter, rated 8.5 KW @ 2900 rpm. With hydraulic operated bin loader
Pressure: 2 bar (29 psi). Temperature: 80 °C (176 °F). Bowl Diameter: 1,000 mm (39.4 in). Bowl Height: 2,496 mm (98.3 in). Operational Mode: Batch.
Type: Dryer-Fluid Bed
Manufacturer: Glatt
Model: WST120
Condition: Refurbished/Rebuilt
Material: Stainless Steel 304
Capacity: 420 L (111 gallons)
Air Flow Rate: 5,981 m3/h (3,520 CFM)
250 Kg Fluid Bed Dryer batch type Steam heater rated 140000 Kcal/hr steam Motor: 3 phase 220/380 volt With (2) product bins 1200mm upper diameter, 800mm lower diameter, sanitary polished Drying chamber 3.5m high (11'6") x 1.2m diameter (48") With a control panel indicating air temperature, timers, intervals, vibration indicator of dust collector
Pressure: 6 bar (87 psi). Bowl Diameter: 1,200 mm (47.2 in). Bowl Height: 3,500 mm (137.8 in). Product Density: 0.42 m3 (14.8 ft3). Operational Mode: Batch. Dust Collection: Yes.
