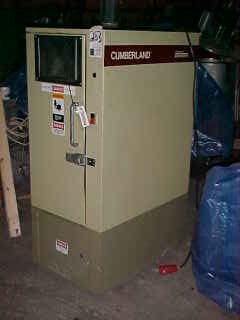

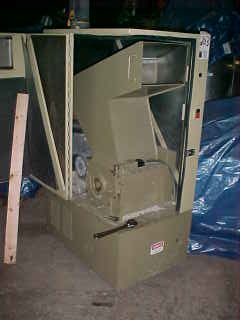

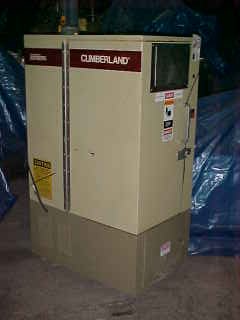

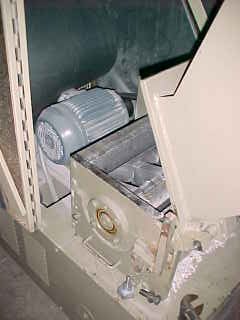

"A" series compact portable carbon steel steel granulator
Throat size 200mm x 300mm
cutting circle diameter 200mm, throughput approx. up to 300 lbs/hr,

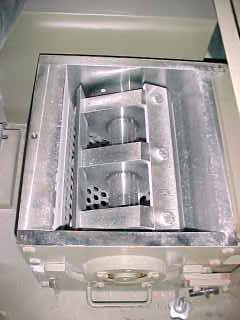

depending on type and form of material. Rotor with (3) carbon steel removable knives

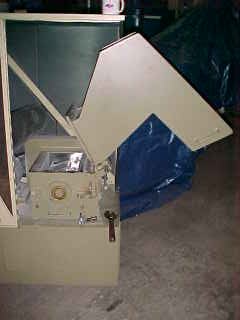

feed chute designed for hand, robot or conveyor feed, chute is hinged for easy access to knives, unit discharge into removable bin
designed for beside the press granulation.
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: Pallman
Model: PS8-126
Condition: Used
Material: Carbon Steel
Inlet Diameter: 1,300 mm (51.2 in)
Motor Power (Design): 110 kW (148 HP)
Type PS8-12/6
granulation system
800mm diameter x 1200mm long rotor with 6 removable blades, 6 removable stator knives. Rotor speed 315RPM. With (2) access doors 1280 mm x 650 mm
Rotor speed 340 rpm. Feed 1300 mm x 600 mm with steel chute, discharge with steel chute. System includes an Aerzner blower type GL16.12, SR# 81013, pressure difference 5 PSI. Blower was driven by 50 HP 3/50/380/440V, 1470 RPM motor. (1) rotary lock valve on granulator discharge, SR# 5928, belt driven by 0.75 kW 3/50/220/250/380/440V, 1400 RPM motor via gearbox. With steel dust collector with fan and associated blower.
Speed (RPM): 340. Orientation: Horizontal.
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: Black Clawson
Condition: Used
Material: Carbon Steel
Inlet Diameter: 152 mm (6 in)
Motor Power (Design): 224 kW (300 HP)
Orientation: Horizontal.
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: Raymond
Model: 50
Condition: Used
Material: Carbon Steel
Outlet Discharge Diameter: 279 mm (11 in)
Inlet Diameter: 406 mm (16 in)
bare mill only. (no drive).
Air flow and power requirement are 6000 acfm,
Fan power 40 Hp.,
Mill power minimum 50 HP, maximum 100 HP.
The Imp mill is designed for low cost, dependable, grinding for fine to medium grinds.
Motor Power (Design): 74.6 kW (100 HP). Orientation: Horizontal.
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: Rietz
Model: RD-18-P32
Condition: Unused
Material: Carbon Steel
Motor Power (Design): 74.6 kW (100 HP)
Orientation: Vertical
construction with 360 degree SS screen.
Designed for industrial duty, for mixing and depluming of slurries, pastes, liquids, and resins and shredding
Unit has vertical shaft with horizontal rotating knives, 360 degrees screen discharge.
