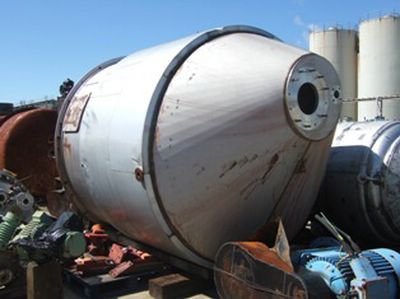

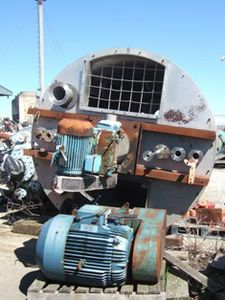

agitated jacketed disperser system
Working pressure: atmospheric
Temperature range: 30 - 60 degrees C (processing), 80 degrees C (washing)
Tank dimensions: approx 2400mm diameter x 2450mm straight side

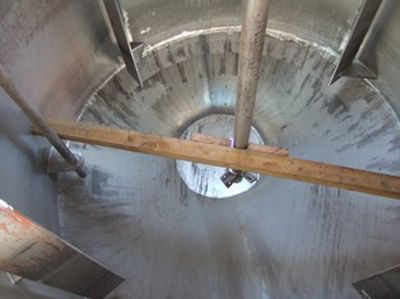

Internal baffles on sidewall

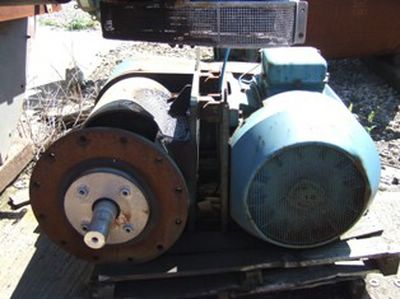

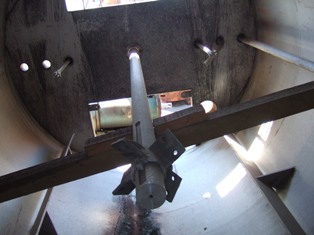

shaft 101mm diameter x 2650mm long with (4) blade 45 degree pitched paddles, bottom mounted 316L stainless steel disperser APV drive, model IDD, serial # 900877-B, belt driven by 2-speed motor 75/15 kw, 3/50/415 volt, 1475/735 rpm, mechanical seal, 600mm 316L stainless steel disperser blade, mounted on lugs,
(1) stainless steel Mono Merlin rotary screw feed pump, type SAE22HIR5/H0141, serial # G306880/01, belt driven by 7.5 kw, 3/50/415 volt, 1450 rpm motor via 3.35:1 ratio gearbox,
(1) stainless steel Wigbat inline high speed shearer, belt driven by 22 kw, 3/50/415 volt, 1465 rpm motor,
(1) 2 cu.m/hr s/steel Grundfos centrifugal pump, type CR2-130, model C590013-9338, 2900 rpm, 93.8m head, 21 bar @ 120 degrees C (max),
(1) plastic seal water tank,
(1) 2.5 m3/hr stainless steel Grundfos centrifugal pump, type CR2-110-AAA, model D4255711-9625, 2900 rpm, 68m head, 16 bar @ 120 degrees C
Type: Mixer-Disperser
Manufacturer: Fryma
Model: VME-500
Condition: Used
Material: Stainless Steel 316
Motor Power: 14.7 kW (19.7 HP)
Bowl Capacity: 500 L (17.7 ft3)
vacuum processing vessel with Homogeniser
internal pressure 95% vacuum
500 liter batch 316 stainless steel jacketed vessel
top cover with a duplicated slow speed agitator with (2) saw tooth blade impellors
(1) homegeniser, clamp dished top, weld dished bottom, top cover
with hydraulic raise and lower mechanism, built on controls
Jacketed: Yes. Jacket Pressure: 3 bar (43.5 psi). Hydraulics: Yes. Vacuum: Yes. Controls: Yes.
