Dryer-Spray 2,500 mm (98.4 in) Stainless Steel 304 For Sale - IPP# 706104

Type: Dryer-Spray

Manufacturer: Tetre

Model: Type 150

Condition: Used

Material: Stainless Steel 304

Diameter: 2,500 mm (98.4 in)

Atomizer Type: Single Fluid Pressure Nozzle

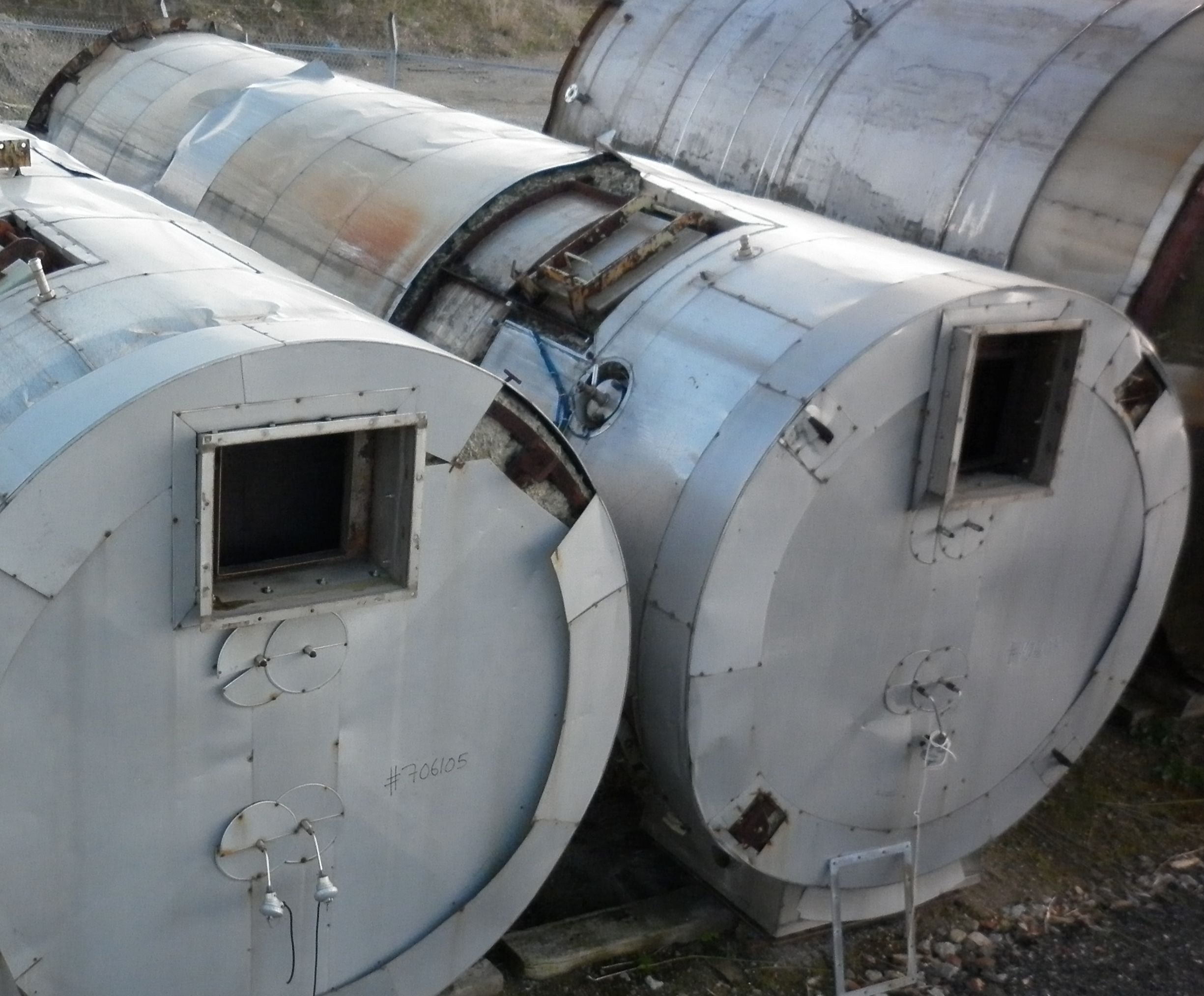

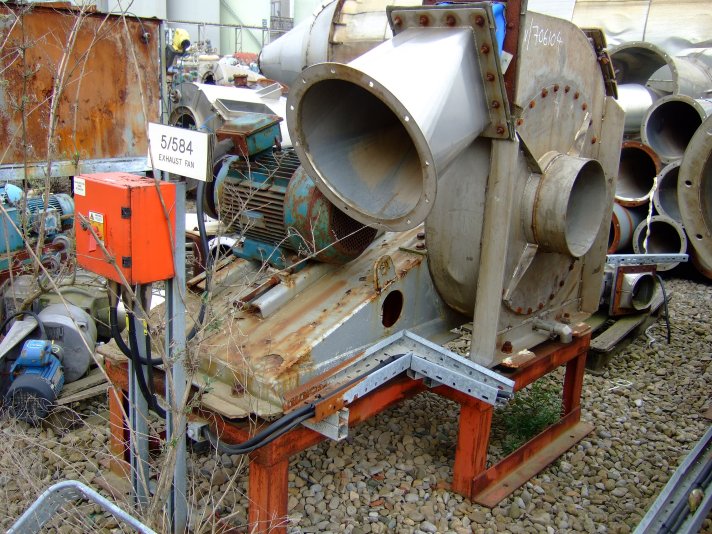

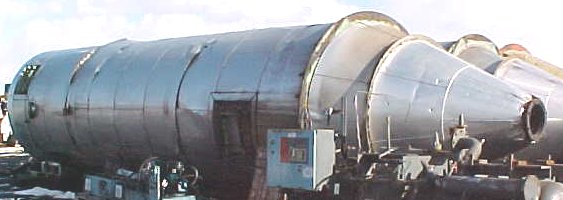

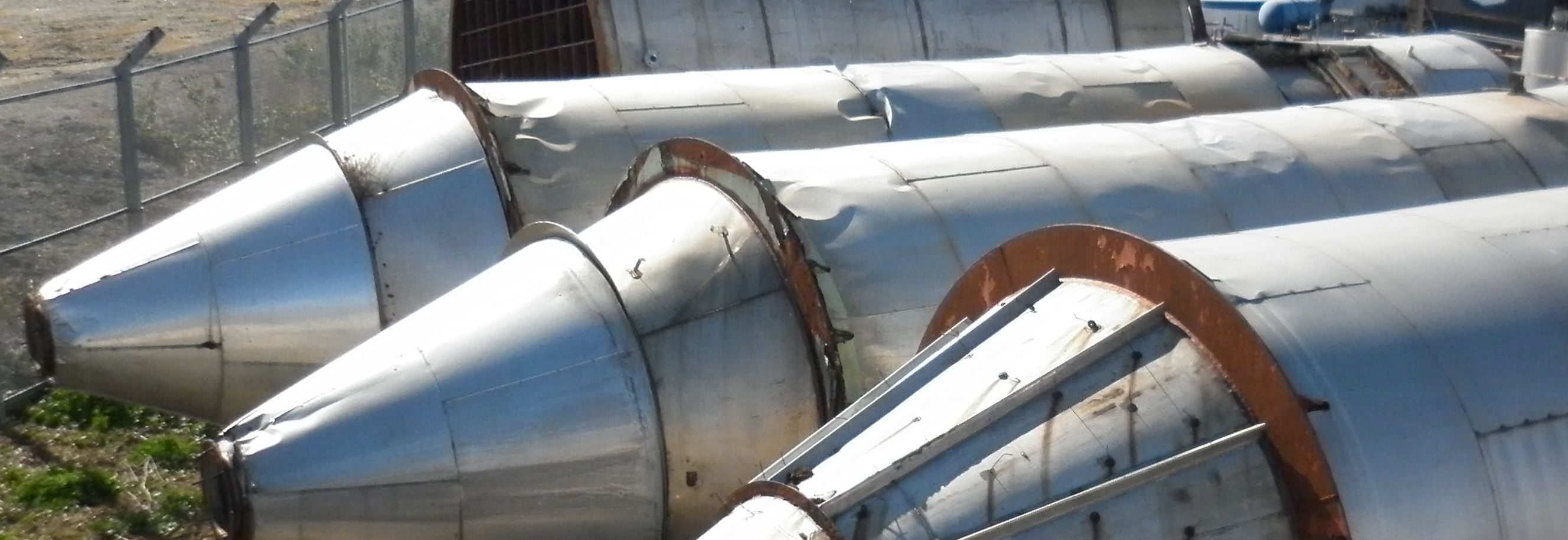

System consists of: (1) Tetre 304 stainless steel spray dryer, spray nozzle feed, evaporation 100-160 kg/hr@ 160-195 deg C, 2.5m diameter x 8.5m straight side x 3m high cone section, 2 x hinged inspection doors, mounted on carbon steel mounting ring, (1) Maxon gas fired burner, serial # 600200332-02, 50 HZ, 110 volt, heat value 10 kwh/nm3, inlet pressure 100 mbar @ 150 degrees C, min heat input (HHV) 18 kw, max heat input (HHV) 600 kw, duct pressure -1 bar, (1) stainless steel cyclones, (1) rotary valve (1) 2.22 m3/sec exhaust fan, manufactured by Pollrich, type S380331RWIII, serial # 33311/37468, 2720 -2800 rpm max, 280 degrees C (max), (1) stainless steel vane demister , manufactured by AAF International ltd, type Vane-pak, size DF-100, serial # AP03980, (1) 500mm diameter stainless steel single deck vibratory compact sieve, model 17240-LD.EP, manufactured by Russell Finex, serial # DF1510, 500mm diameter x 60mm deep deck with top cover, vibratory motor type MVS1-157550, rated 0.3 kw (input), 0.22 kw (output), 3/50/220-240/380-415 volt, 1500 rpm, (1) 1.75 cubic feet (0.05 cubic meter, 50 liter) stainless steel ribbon blender. manufactured by Winkworth, type UT50/C, serial # 16664, interrupted ribbon design, trough 1.2m long x 300mm wide x 350mm deep, driven by 3 kw, 3/50/415 volt, 1400/92 rpm motor via gearbox, hinged top cover, (1) control Panel

Evaporation Rate: 160 kg/h (352.7 lb/h). Inlet Temperature: 195 °C (383 °F). Air Flow Rate: 8,000 m3/h (4,700 CFM). Heating Type: Gas. Explosion-Shock Resistant: Yes. Height: 12,500 mm (492.1 in).

Type: Dryer-Spray

Manufacturer: Tetre

Model: Type 150

Condition: Used

Material: Stainless Steel 304

Diameter: 2,500 mm (98.4 in)

Atomizer Type: Single Fluid Pressure Nozzle

System consists of: (1) Tetre 304 stainless steel spray dryer, spray nozzle feed, evaporation 100-160 kg/hr@ 160-195 deg C, 2.5m diameter x 8.5m straight side x 3m high cone section, 2 x hinged inspection doors, mounted on carbon steel mounting ring, (1) Maxon gas fired burner, serial # 600200332-03, 50 HZ, 110 volt, heat value 10 kwh/nm3, inlet pressure 100 mbar @ 150 degrees c, min heat input (HHV) 18 kw, max heat input (HHV) 600 kw, duct pressure -1 bar, (1) stainless steel cyclones, (1) rotary valve (1) 2.22 m3/sec exhaust fan, manufactured by Pollrich, type S38031RWIII, 2720 -2800 rpm max, 280 degrees C (max) (1) kinpactor, manufactured by AAF International ltd, (1) stainless steel vane demister , manufactured by AAF International ltd, type Vane-pak, size DF-100, serial # AP03980, (1) 500mm diameter stainless steel single deck vibratory compact sieve, model 17240, manufactured by Russell Finex, serial # DF1854, 500mm diameter x 60mm deep deck with top cover, vibratory motor type MVS1-3/500-890, rated 0.45 kw, 3/50/220-240/380-415 volt, 3000 rpm (1) 2.1 cubic feet (0.06 cubic meter, 60 liter) stainless steel ribbon blender. manufactured by Hosokawa, type HMC-60, serial # 648010100, rated 3 kw, ribbon speed 158 rpm (max), interrupted ribbon design, trough 1.2m long x 300mm wide x 350mm deep, driven by 3 kw, 3/50/380/415 volt, motor via gearbox, hinged top cover, (1) control Panel

Evaporation Rate: 160 kg/h (352.7 lb/h). Inlet Temperature: 195 °C (383 °F). Air Flow Rate: 8,000 m3/h (4,700 CFM). Heating Type: Gas. Explosion-Shock Resistant: Yes. Height: 12,500 mm (492.1 in).

Type: Dryer-Spray

Manufacturer: Anhydro

Model: III-A size #2

Condition: Used

Material: Stainless Steel 304

Diameter: 2,400 mm (94.3 in)

Atomizer Type: Rotary Disc-Wheel

Flat bottom, with a center bottom discharge Chamber diameter 94.25". Inlet air to the chamber is heated by a direct gas fired air heater Gas Air heater is manufactured by Maxon, type Air Flow Burner series NP. The burner uses a spark ignited pilot and control is by Maxon Series "Q" butterfly valve. Hot air enters the chamber through an air distributor on top of the chamber. The distributor has vanes that are adjustable to control the air flow pattern into the chamber. As a standard feature, a cooling ring is built in around the inlet area. This prevents particles from becoming overheated in the event they contact this area. This prevents particles from becoming overheated in the event they contact this area. If the cooling chamber is needed, it will use 375 CFM at 2" W.C. Exhaust blower is manufactured by New York Blower, and is a type "P" pressure blower. It is rated for 750 cfm, and is belt driven by a 5 HP motor at 3600 rpm. Electrical spec for the blower motor is 3/60/230-460V and the motor style is TEFC. It sits on a 184 T frame. Dryer Dimensions from Drawing L-2808-0101: Chamber diameter 7' 10.25", Height 11' 9". 4' 2" from Grade to bottom of dryer. Footprint: Approximately: 14' x 11'. Gas pressure needed, 3 psi, Power needed for Controls 115 VAC 1 ph, 60 Hz, Power required for motors 240 VAC 3 Ph, 60 Hz.

Evaporation Rate: 40.8 kg/h (90 lb/h). Inlet Temperature: 204.4 °C (400 °F). Outlet Temperature: 93.3 °C (200 °F). Heating Type: Gas. Height: 2,150 mm (84 in).

Type: Dryer-Spray

Manufacturer: Anhydro

Model: type III-A no.4 ANHYDRO

Condition: Used

Material: Stainless Steel 304

Diameter: 2,600 mm (102 in)

Atomizer Type: Rotary Disc-Wheel

Flat-bottom design with sweep powder-collection arm and type CB-160 centrifugal atomizer The unit is built throughout of polished steel/sanitary construction and can be used to process flavors, foods, pharmaceuticals and neutraceuticals. 8'6" diameter by 9'0" height spray chamber. Specifications: Relative Humidity - RH inlet = 50%; Feed Temperature - T feed =108 deg F; Ambient temperature - T ambient =n/a; Feed Solid Content - TS = 35%; Product Moisture Content - RM = 1%; Feed Rate - FER = 230 lbs/hr; Dry Gas Rate - PGR = 3343 lbs/hr; Gas Residence Time - GRT = 38.1 seconds; Chamber Pressure - Pch = n/a; Heat from Heater - Q htr = n/a;

Evaporation Rate: 67.6 kg/h (149 lb/h). Inlet Temperature: 198.9 °C (390 °F). Outlet Temperature: 78.6 °C (173.5 °F). Height: 2,750 mm (108 in).
